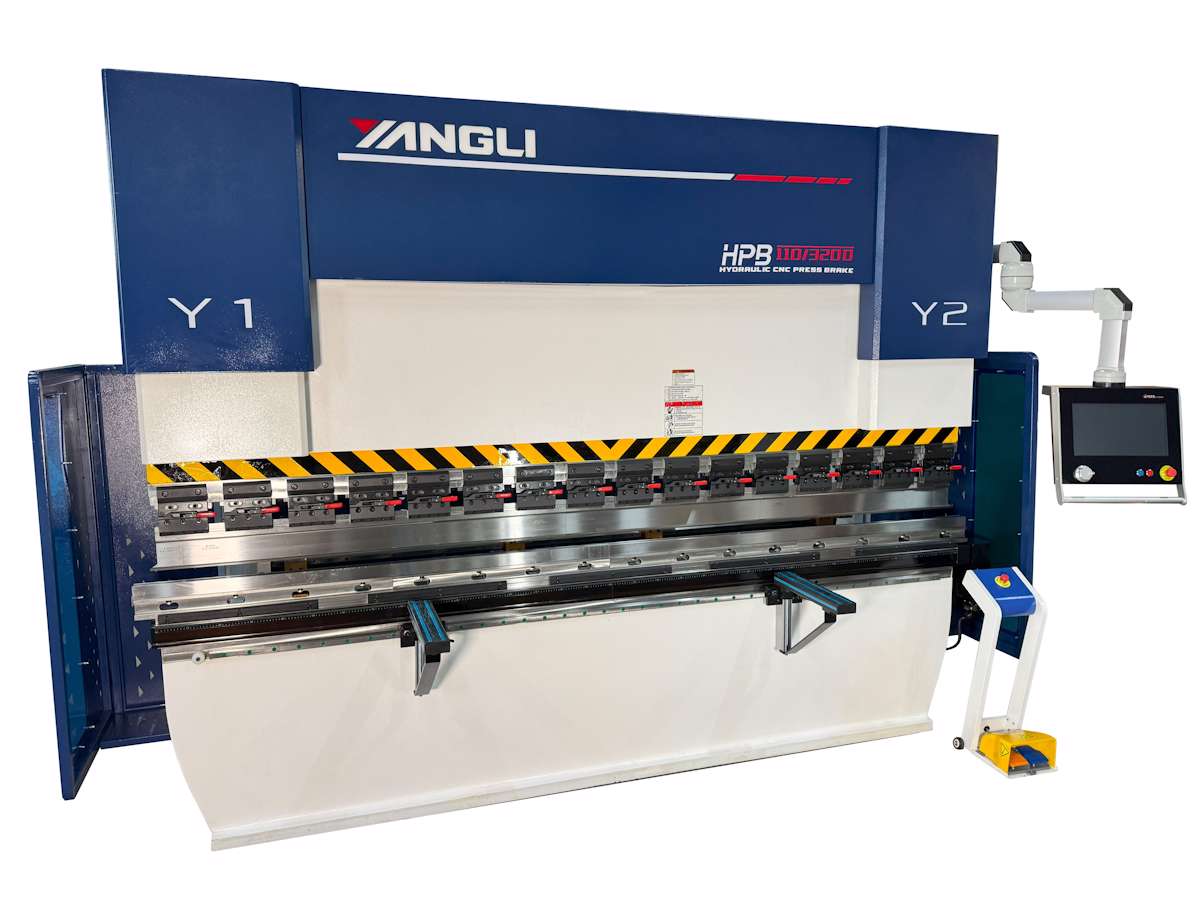

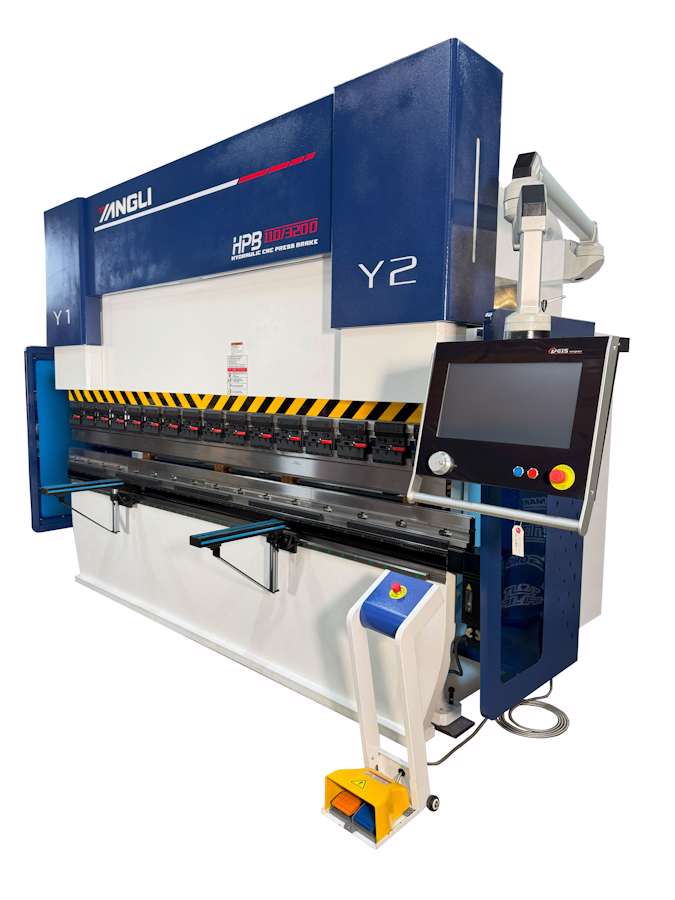

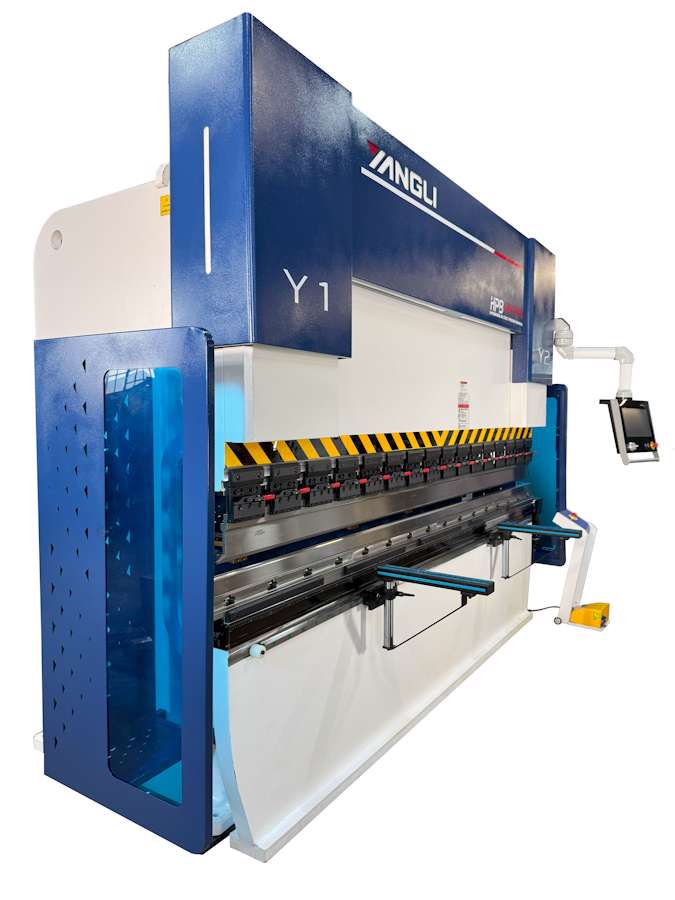

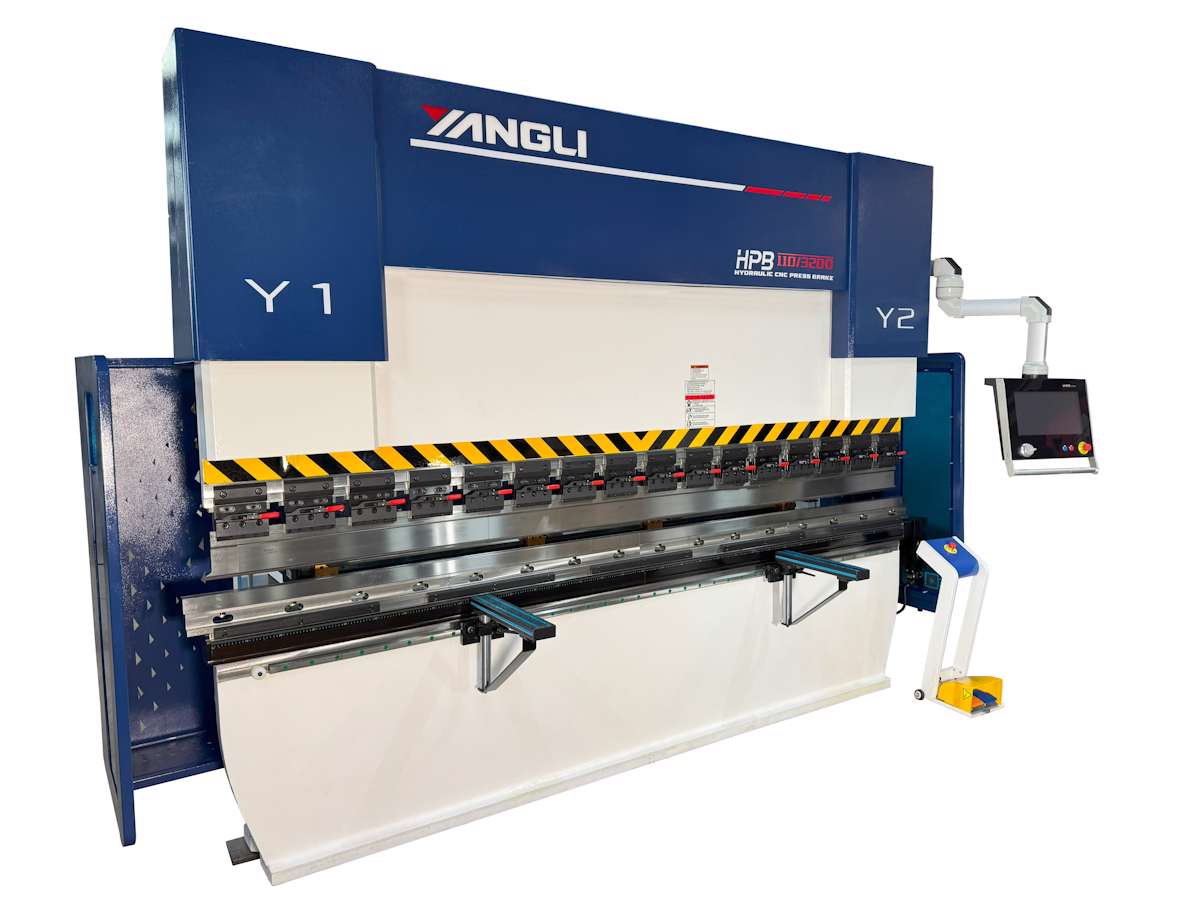

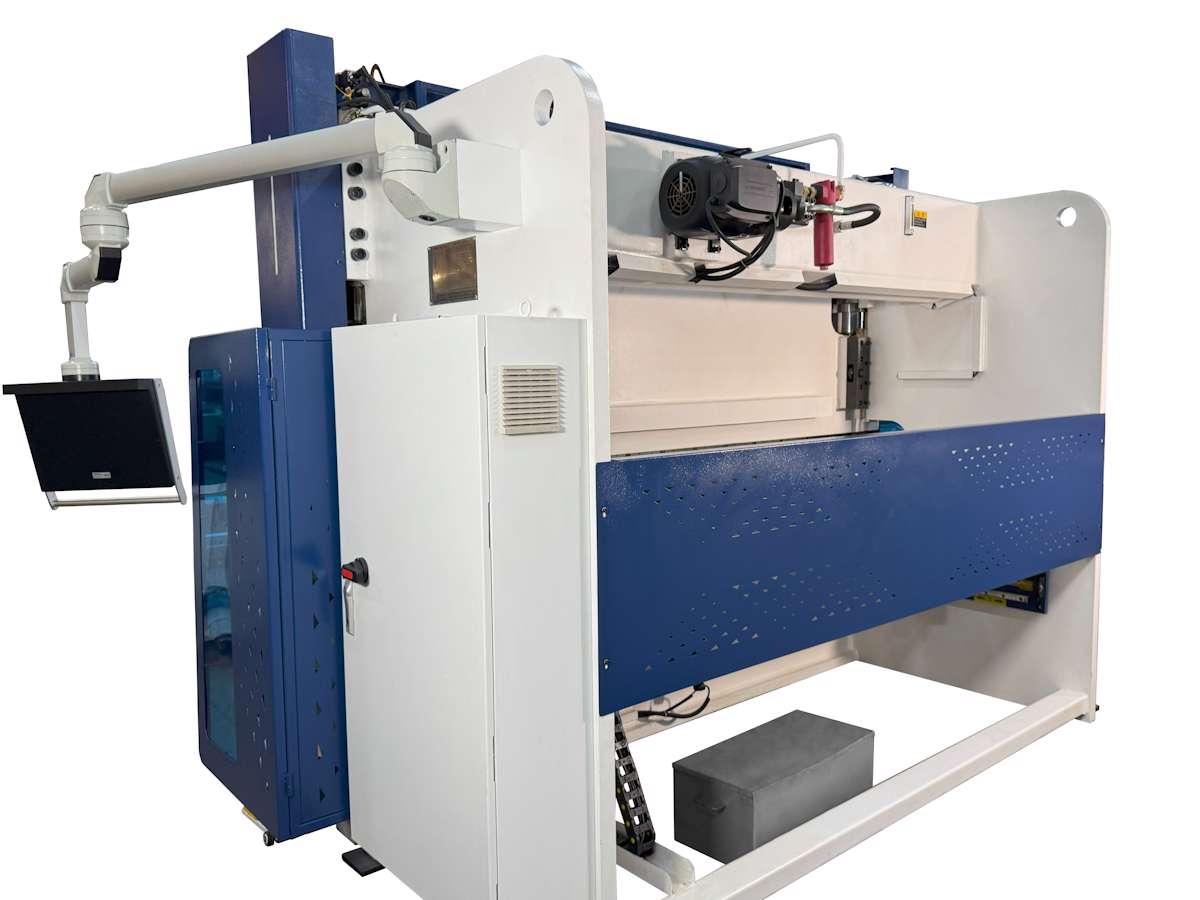

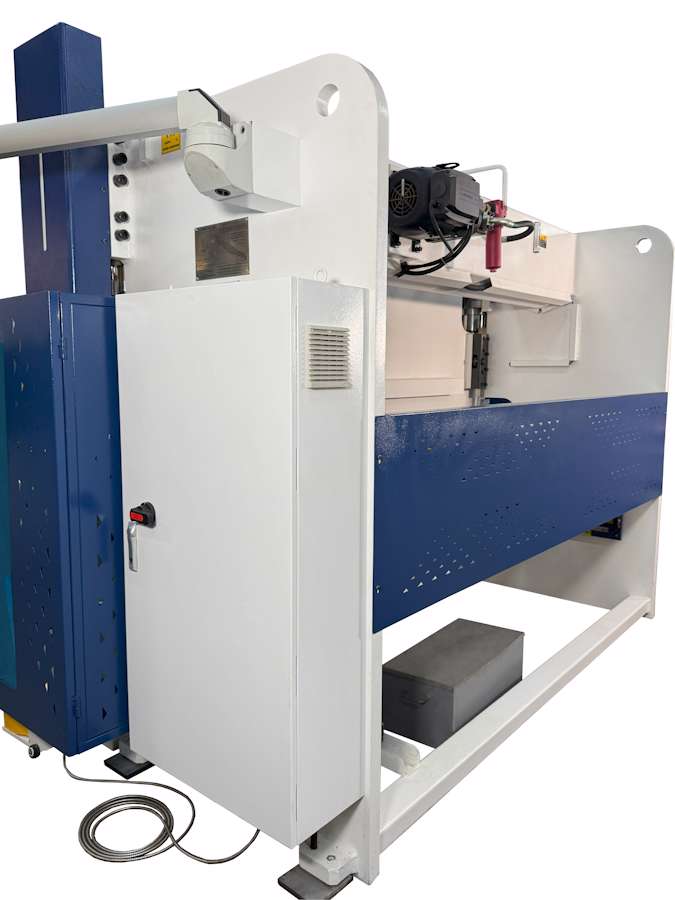

Yangli HPB-110x3200 CNC Hydraulic Press Brake (14107)
New Yangli HPB-110x3200 CNC Hydraulic Press Brake (14107)
110 Ton x 3200, DE15 4+1 Axis, Servo, Mech Crown
Availability: In Stock (TBC)
Special Price: R 599 000.00 excl.
List Price: R 665 600.00 excl.
Yangli delivers quality you can trust and lasting performance you can rely on.
Press brakes designed to deliver maximum performance through quality features and robust built strength durability.
Specifications:
Nominal Force: 1100 kN
Table Length: 3200mm
Slide travel stroke: 130mm
Axis: Y1, Y2, X, R + Crowning
Throat depth: 320mm
Max Opening Height: 390mm
Slide stroke adjustment: 100mm
Return Speed: 150mm/s
Loading Speed: 11mm/s
Main Motor: 7.5kW
Standard Features:

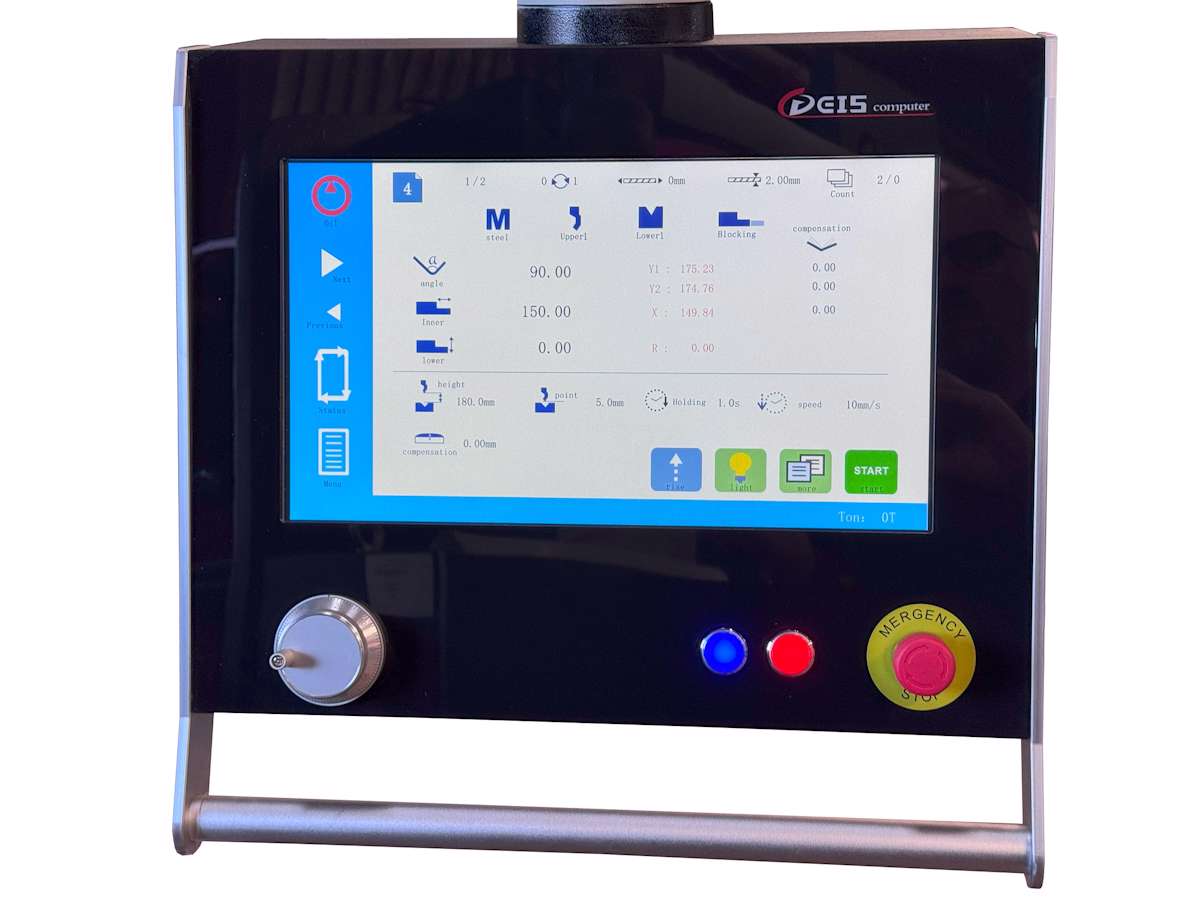

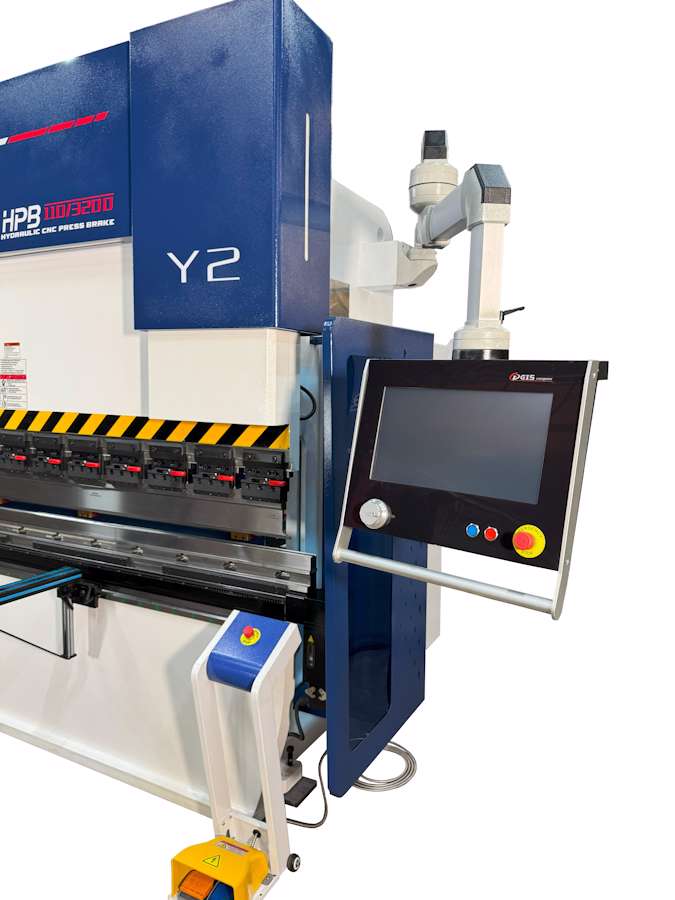

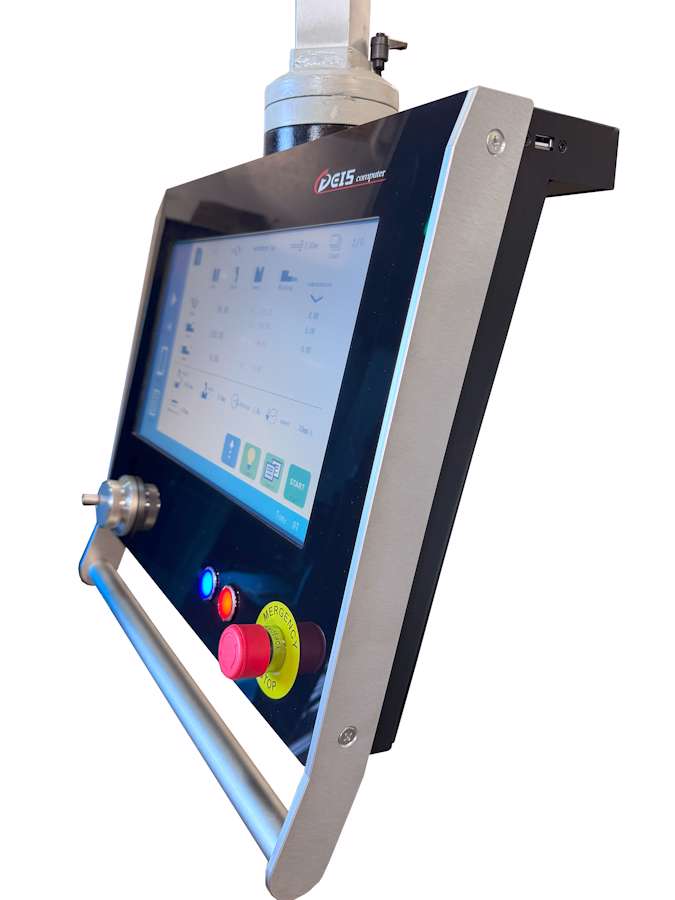

DE15 CNC controller with 15.6 inch touch screen.

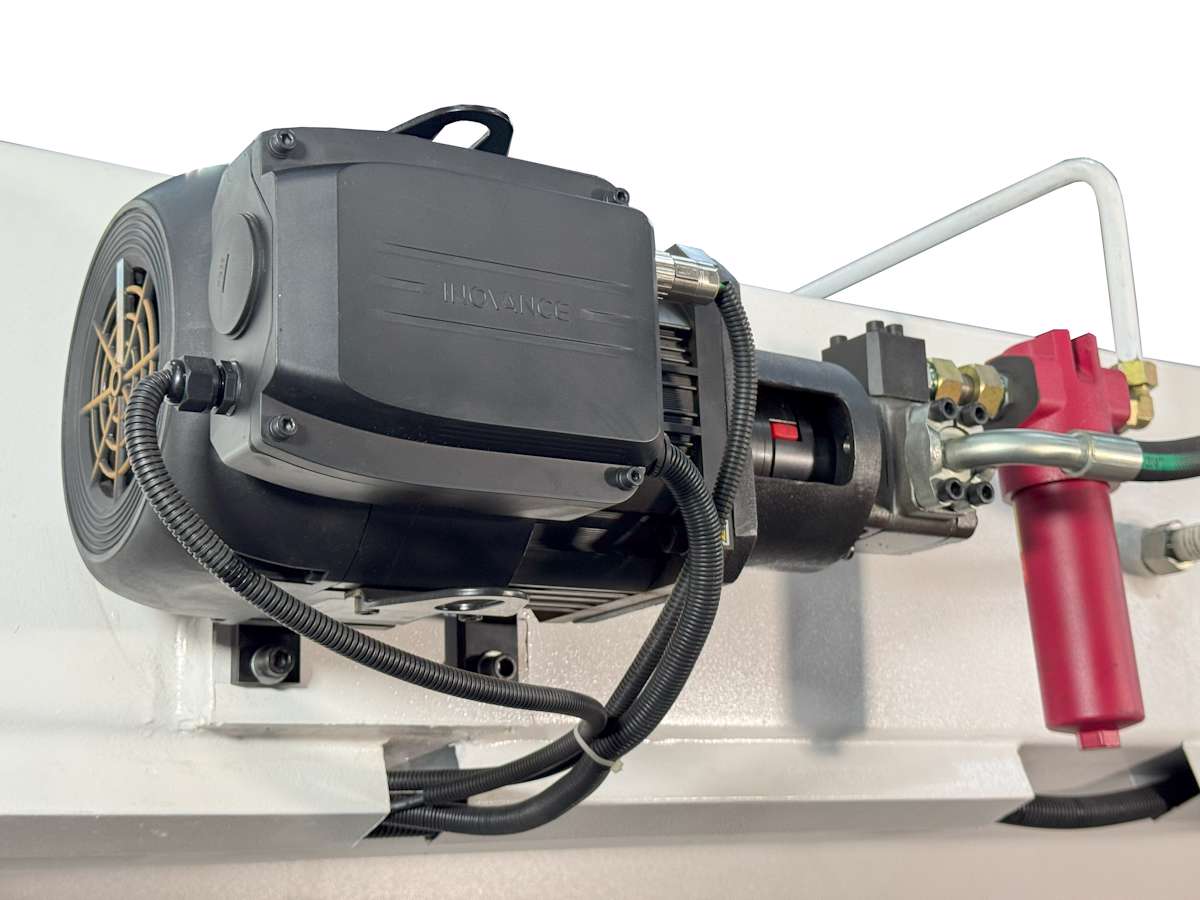

Servo Hybrid Drive & gear pump with energy saving and environmental protection features.

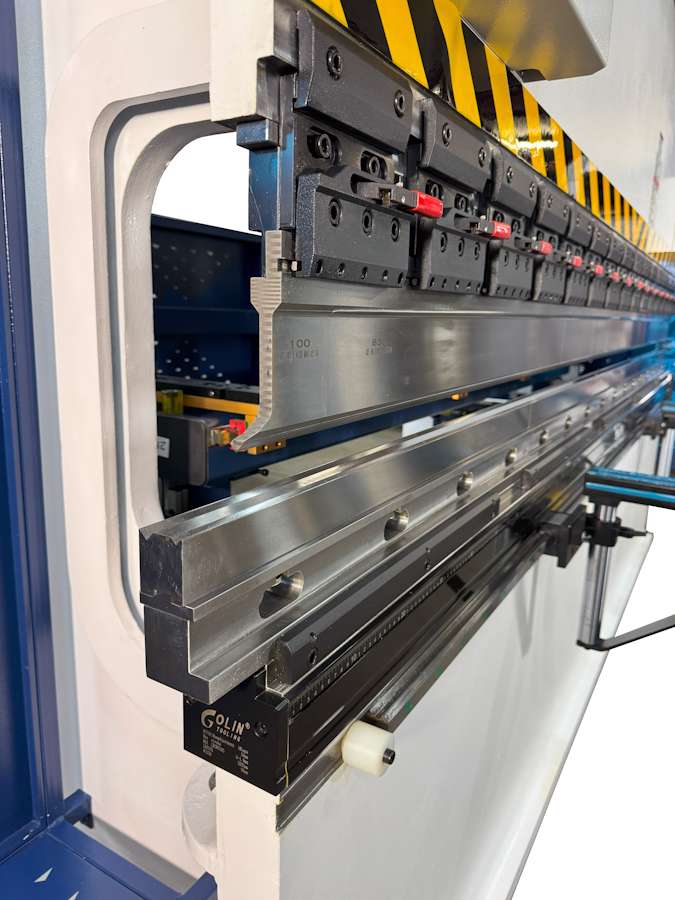

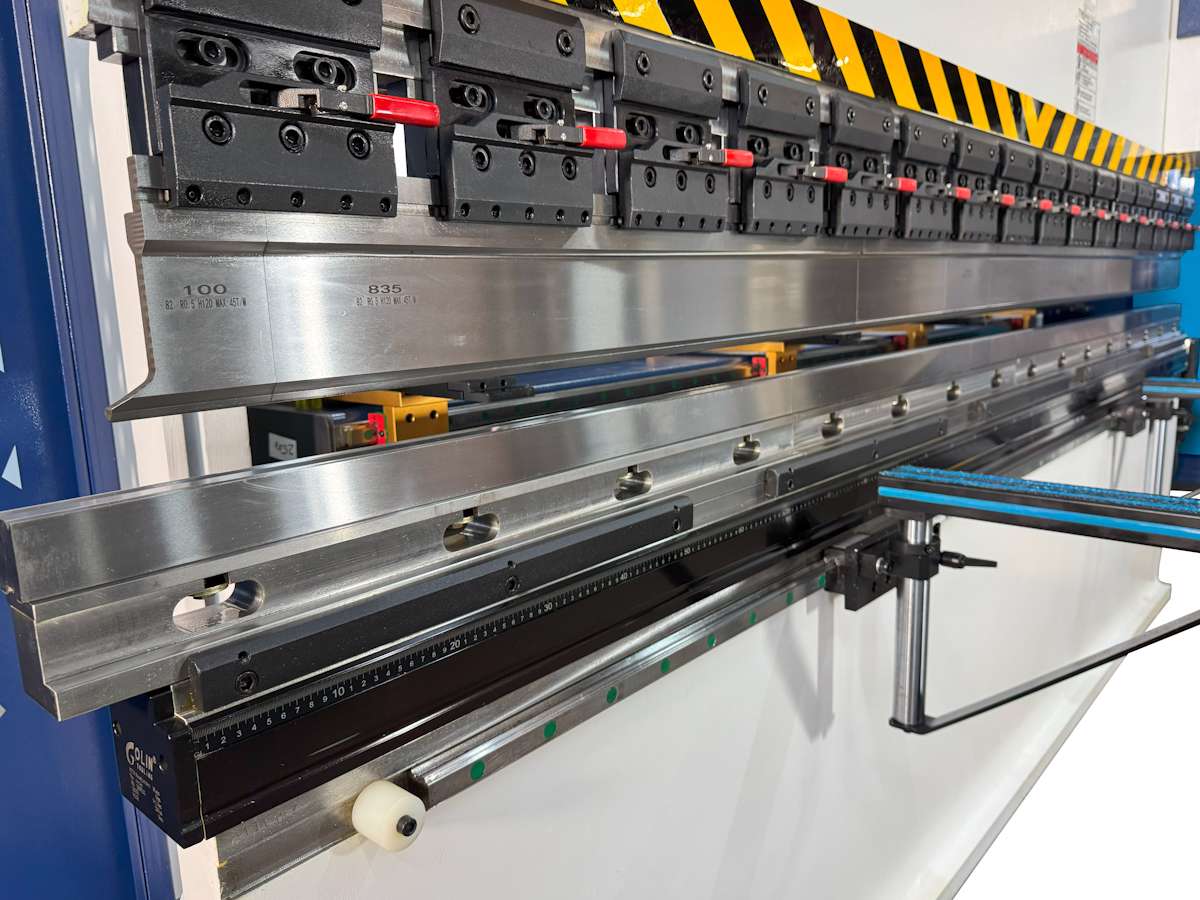

Proportional valve synchronous control, equipped with three-stage rapid clamping device.
Y1; Y2; X; R + Electric Crowning Axis.
Mechanical Anti-deflecting Automatic Worktable.

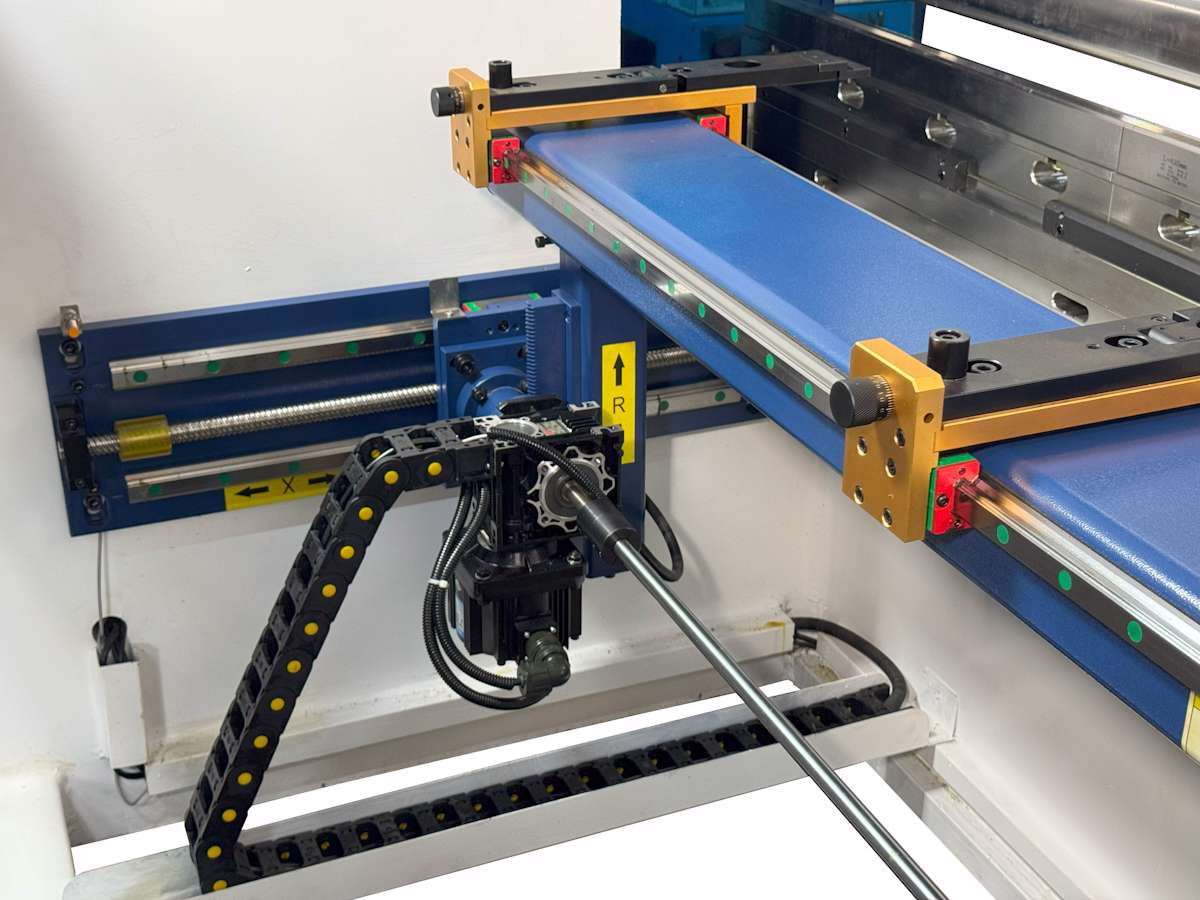

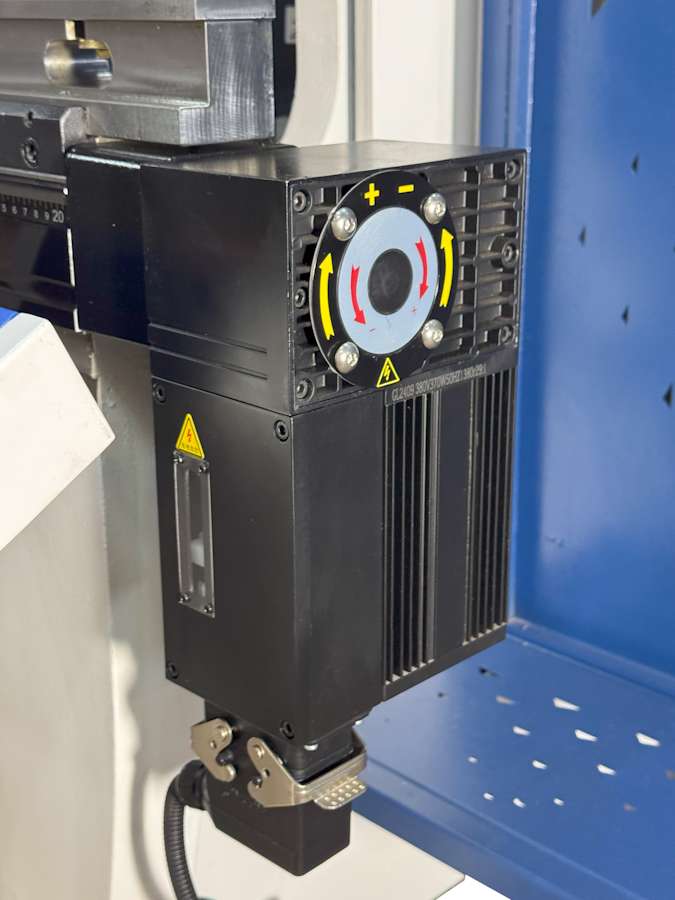

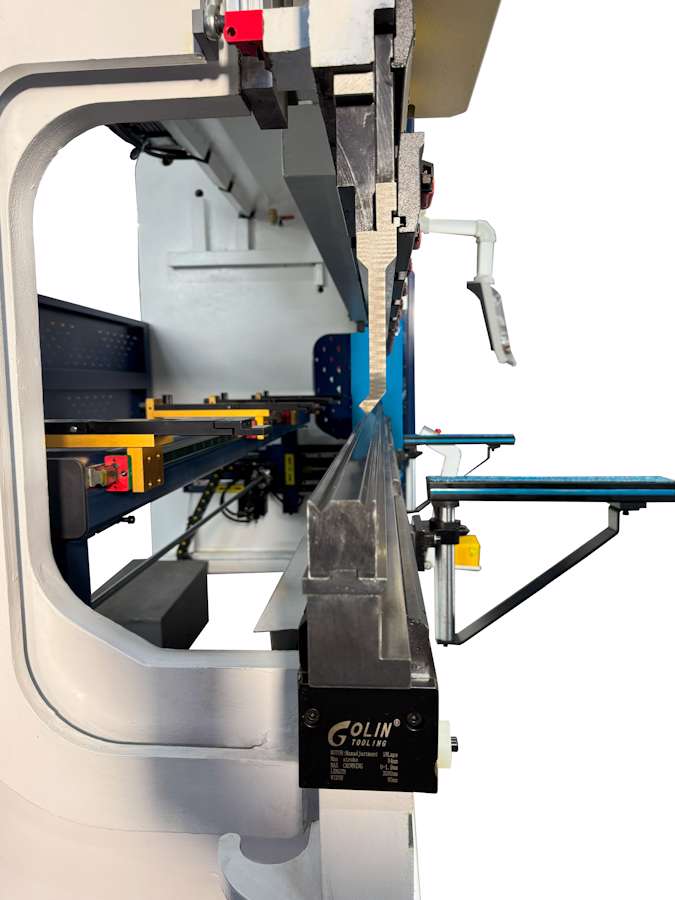

Backgauge with Servo motor, ball screw and Linear guide rail providing X axis and R axis automatic adjustment with accurate positioning and repeatability.

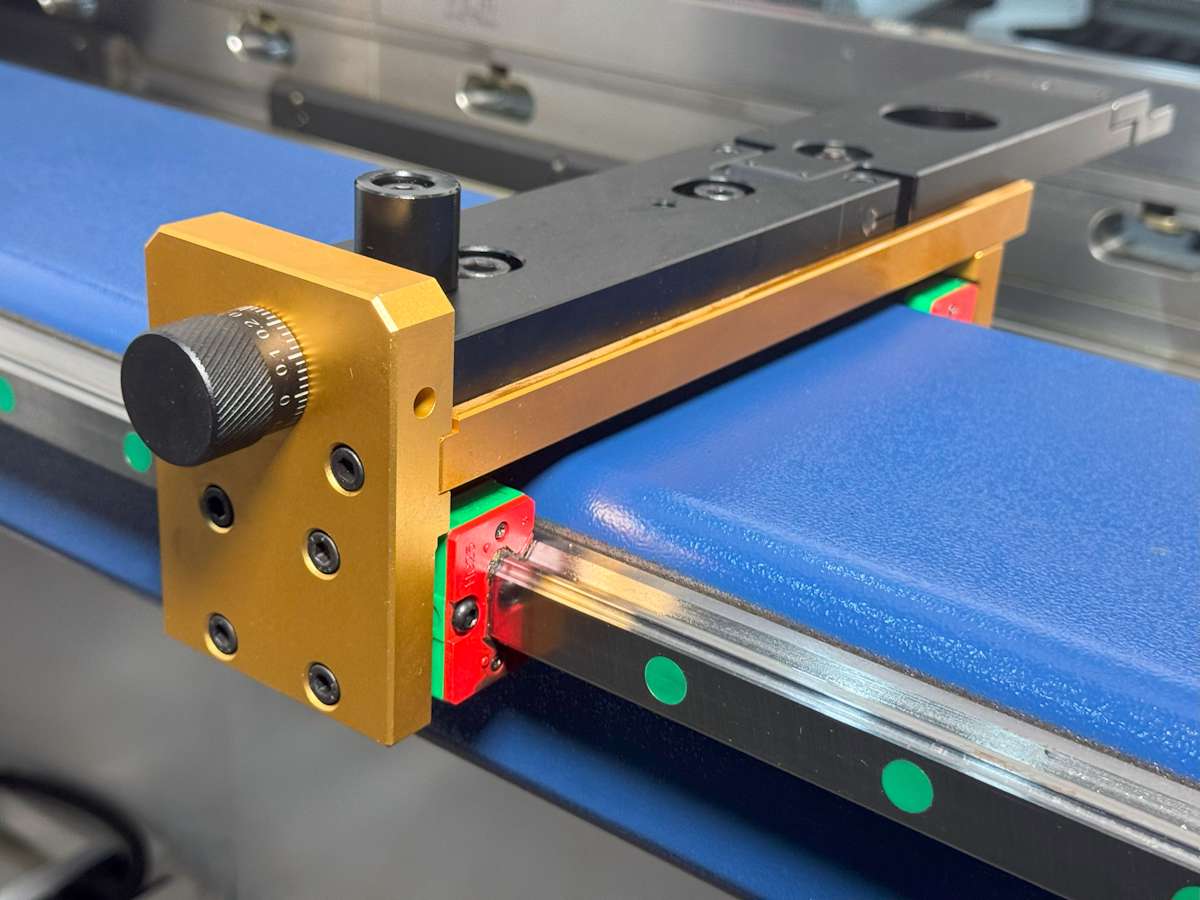

The rear material-stopping crossbeam is equipped with dual linear guides + fine adjustment stop fingers, allowing for the adjustment of the overall height and fine adjustment of the rear stop fingers.
