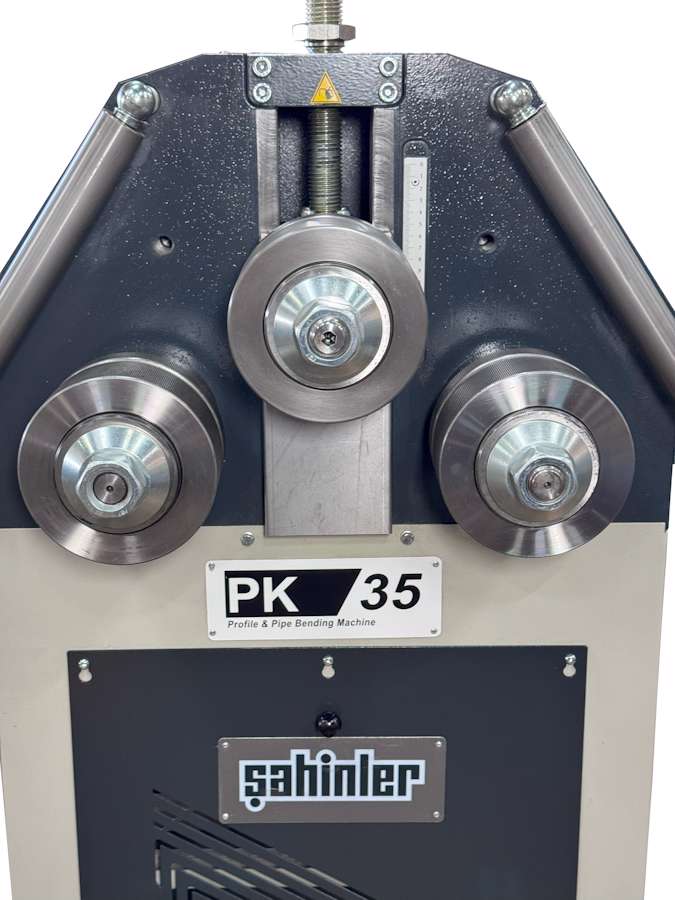

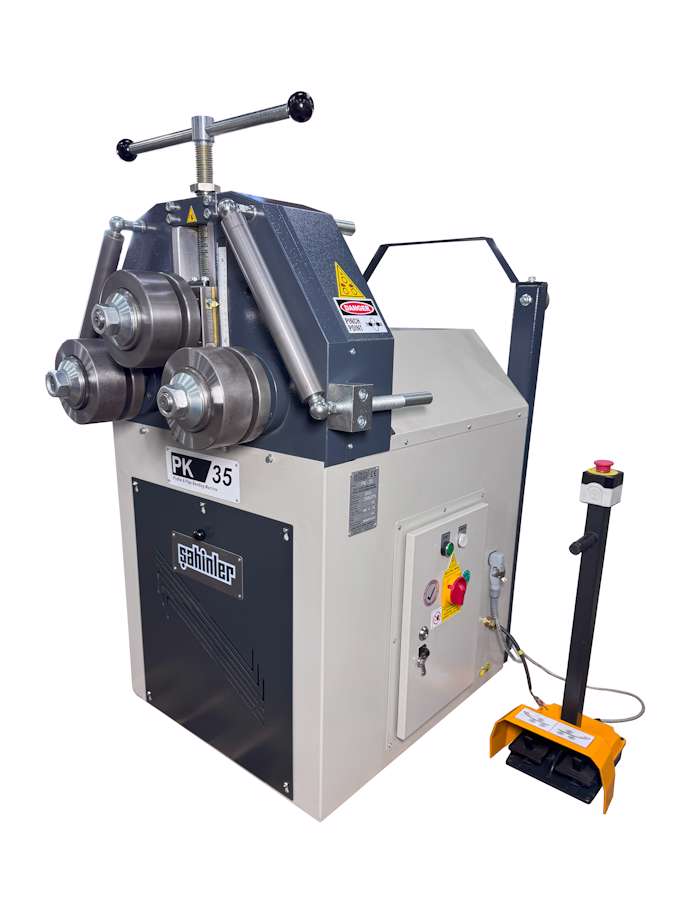

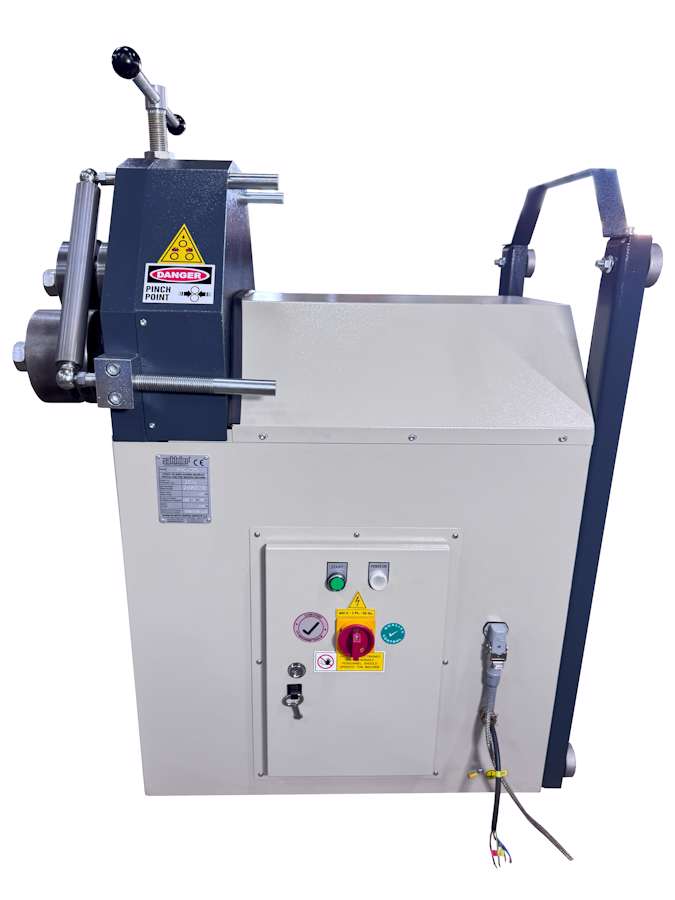

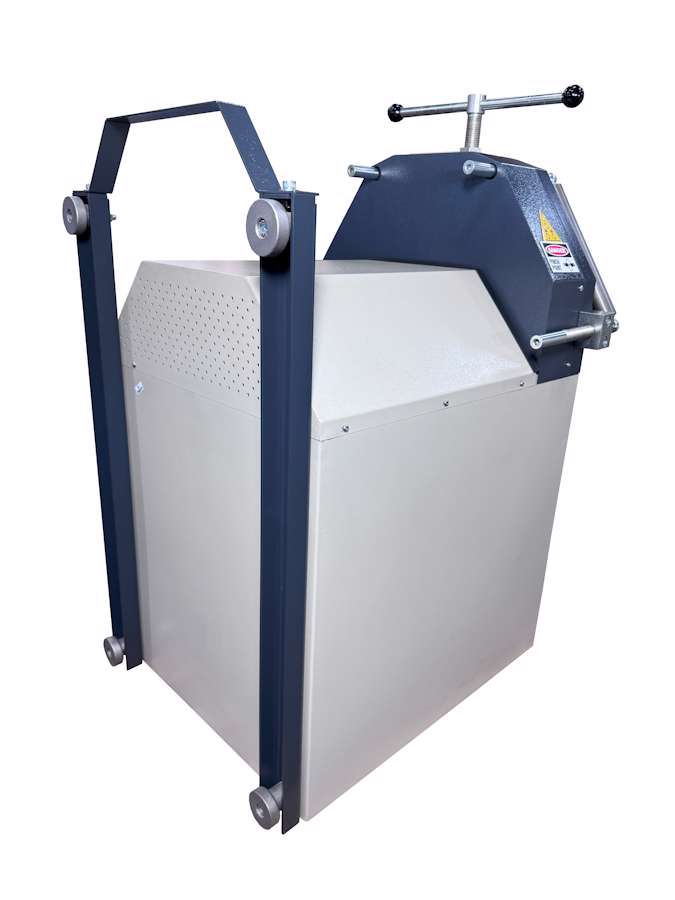

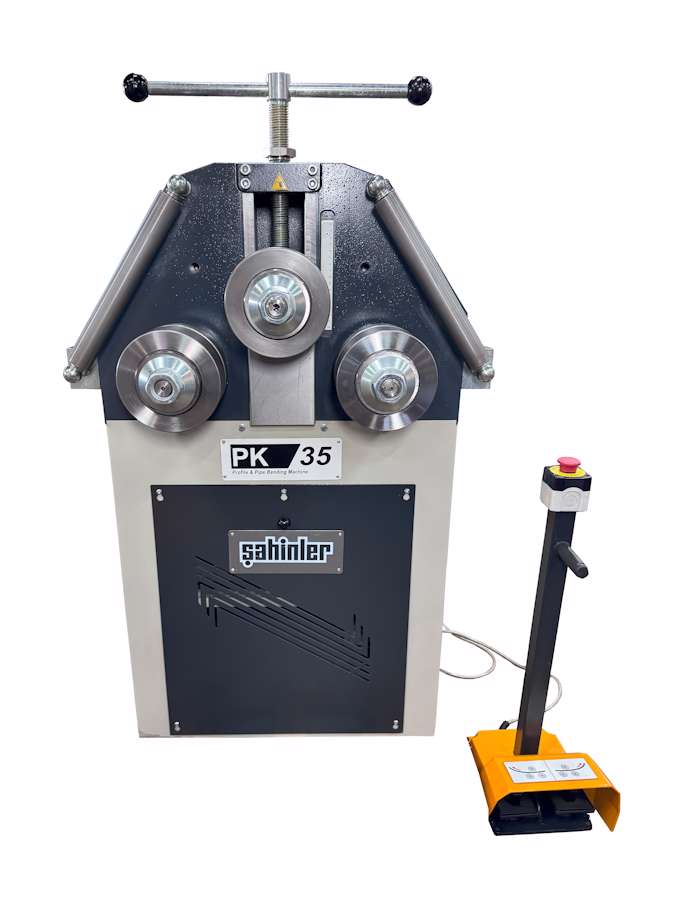

Sahinler PK35 Motorised Section Bender (1535)
New Sahinler PK35 Motorised Section Bender (1535)
Flat bar (easy way): 100 x 15 @ 450Ø, Single speed
Availability: In Stock (TBC)
Price: R 74 200.00 excl.
Technical Specifications
Rolls Shaft: 50 mm Ø
Roll Diameters: 155 mm Ø
Working Speed: 4,5 m/min
Motor Power: 1,5 kW
Dimensions: 750 x 1000 x 1400 mm
Weight: 400 Kg
Flat bar (flange): 60 x 10 @ 500 Ø / 40 x 10 @ 400 Ø (Standard rolls)
Flat bar (easy way): 100 x 15 @ 450 Ø / 60 x 10 @ 350 Ø (Standard rolls)
Square Bar: 35 x 35 @ 900 Ø / 20 x 20 @ 300 Ø (Standard rolls)
Round bar: 35 @ 600 Ø / 30 @ 400 Ø (Optional rolls)
Round Tubing: 70 x 2 @ 1000 Ø / 30 x 2 @ 500 Ø (Optional rolls)
Rectangular Tubing: 70 x 30 x 2 @ 1200 Ø / 50 x 40 x 30 @ 1200 Ø (Optional rolls)
Square tubing: 50 x 3 @ 1700 Ø / 40 x 3 @ 600 Ø (Optional rolls)
Angle Iron (Toe out) 50 x 50 x 5 @ 800 Ø / 40 x 40 x 5 @ 600 Ø (Optional rolls)
Angle Iron (Toe in) 50 x 50 x 6 @ 1000 Ø / 30 x 30 x 3 @ 500 Ø (Optional rolls)
Standard Accessories
Steel Frame
2 Rolls directly driven by a gear system
Rolls are hardened
Rolls shafts are made of special steel material - hardened and ground
Roll shafts housed by bearings
Single speed motor
Standard rolls
Guide rolls
Horizontal and vertical working position
Optional Equipment
Pipe / Tube Bending Rolls
Profile Bending Rolls
Angle Bending Rolls
Digital Read-Out
Special Lateral Angle Rolls
