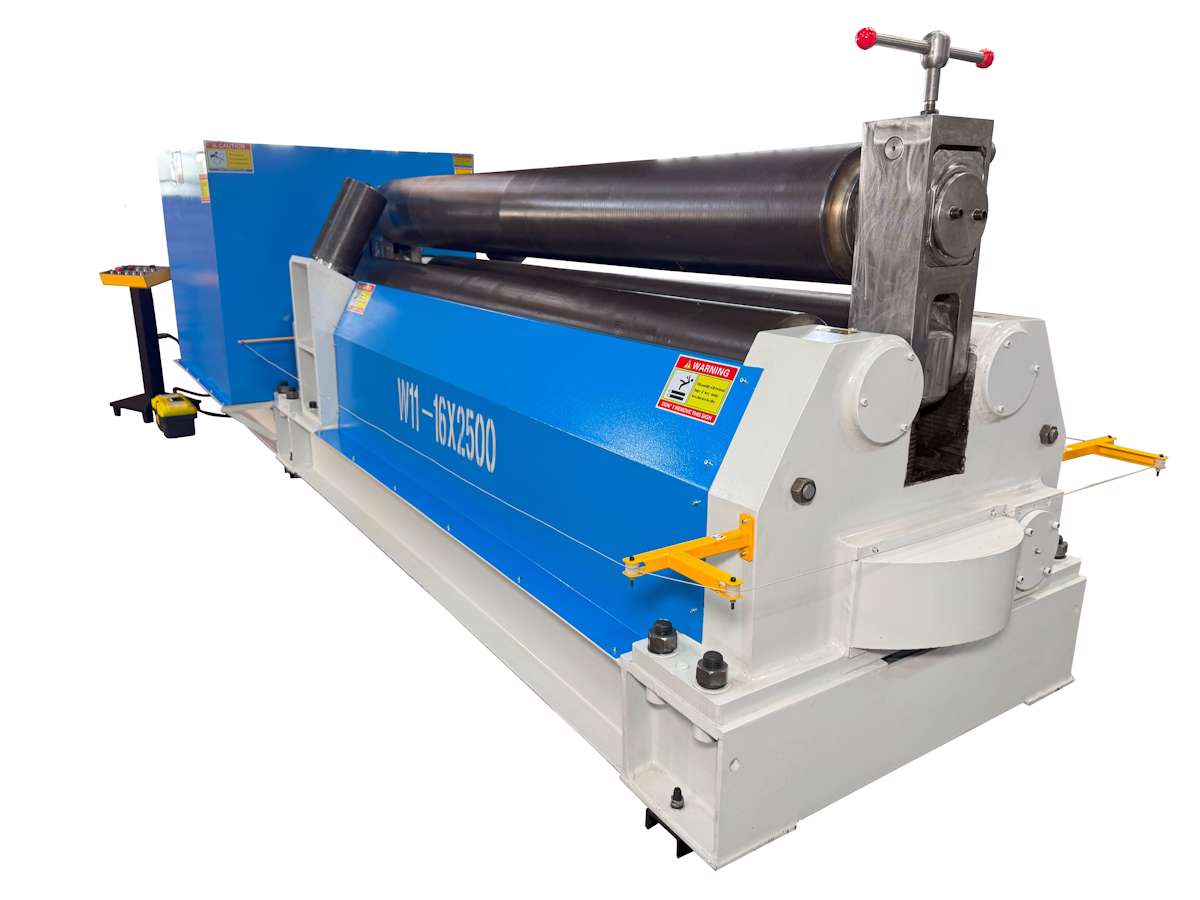

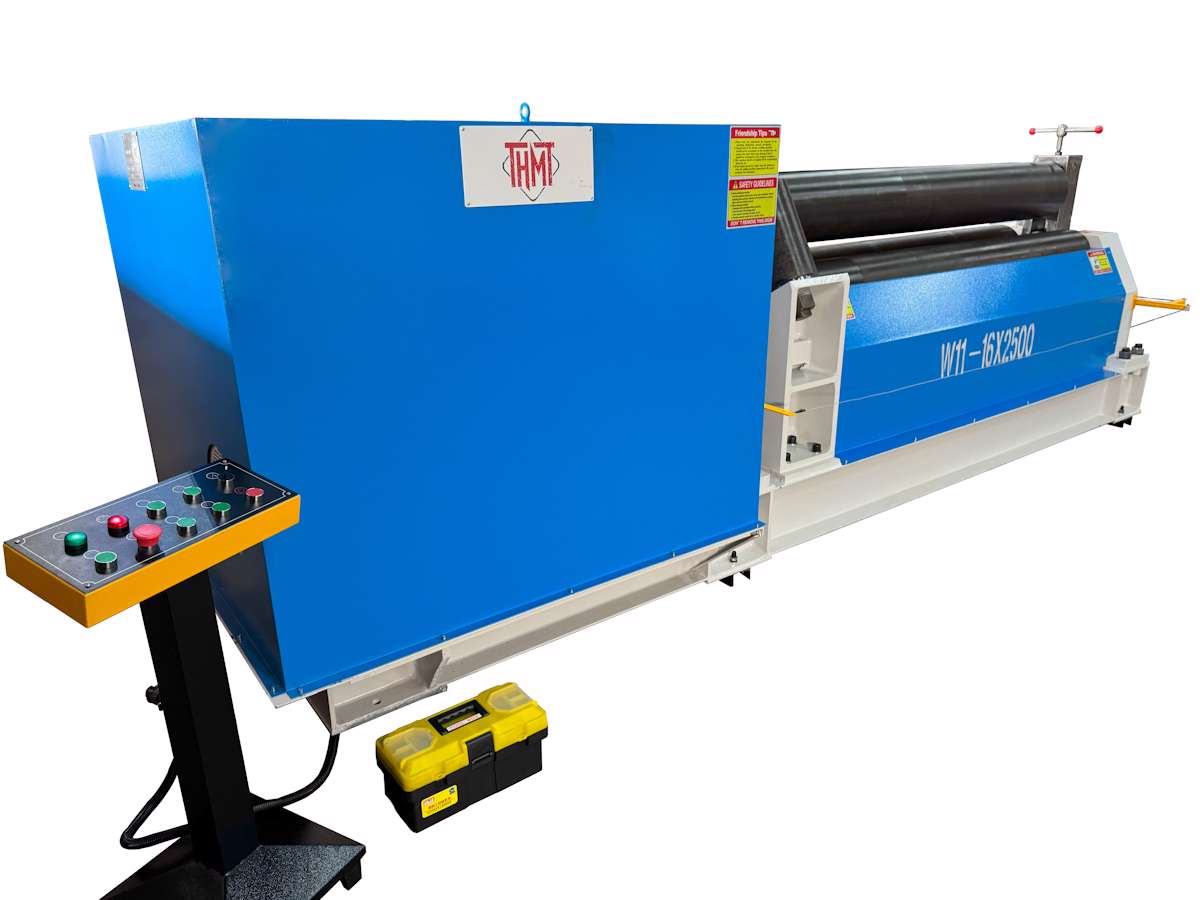

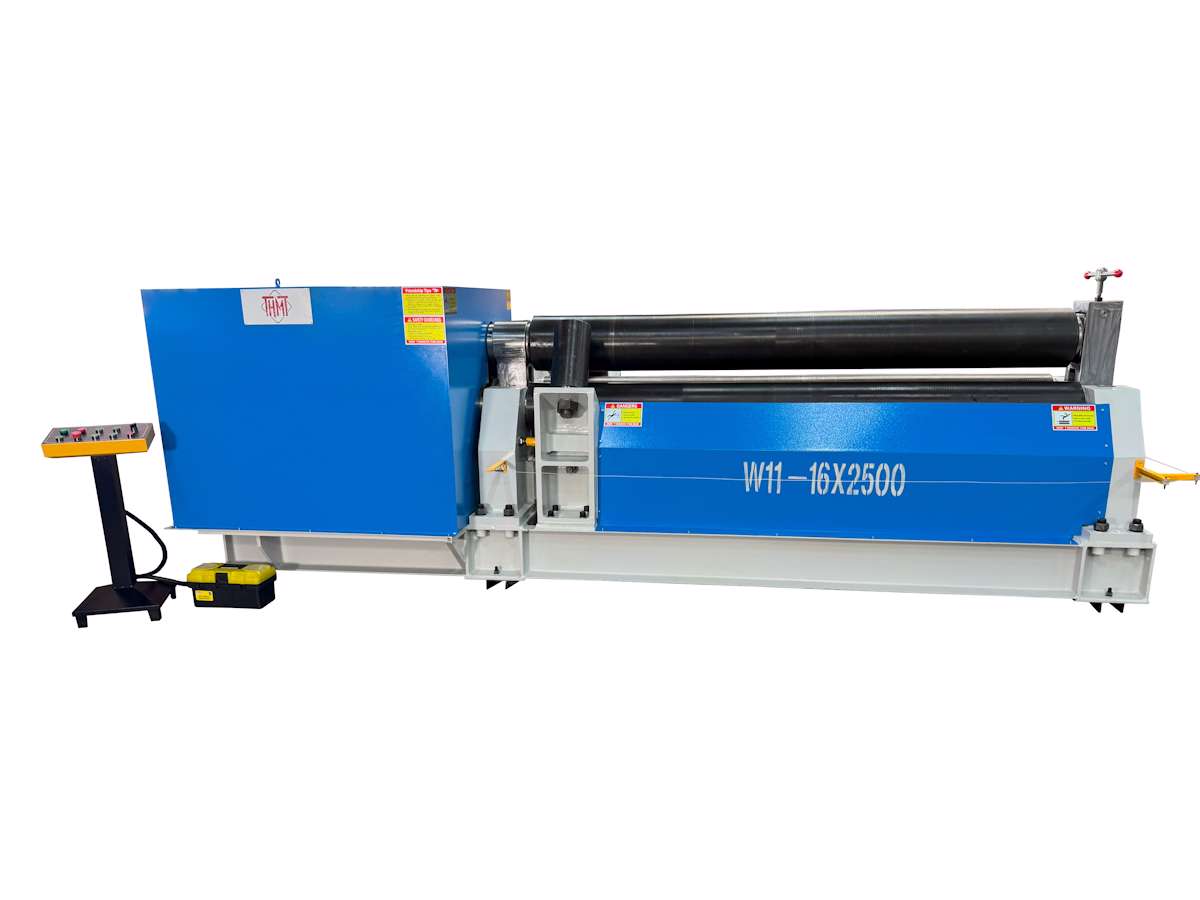

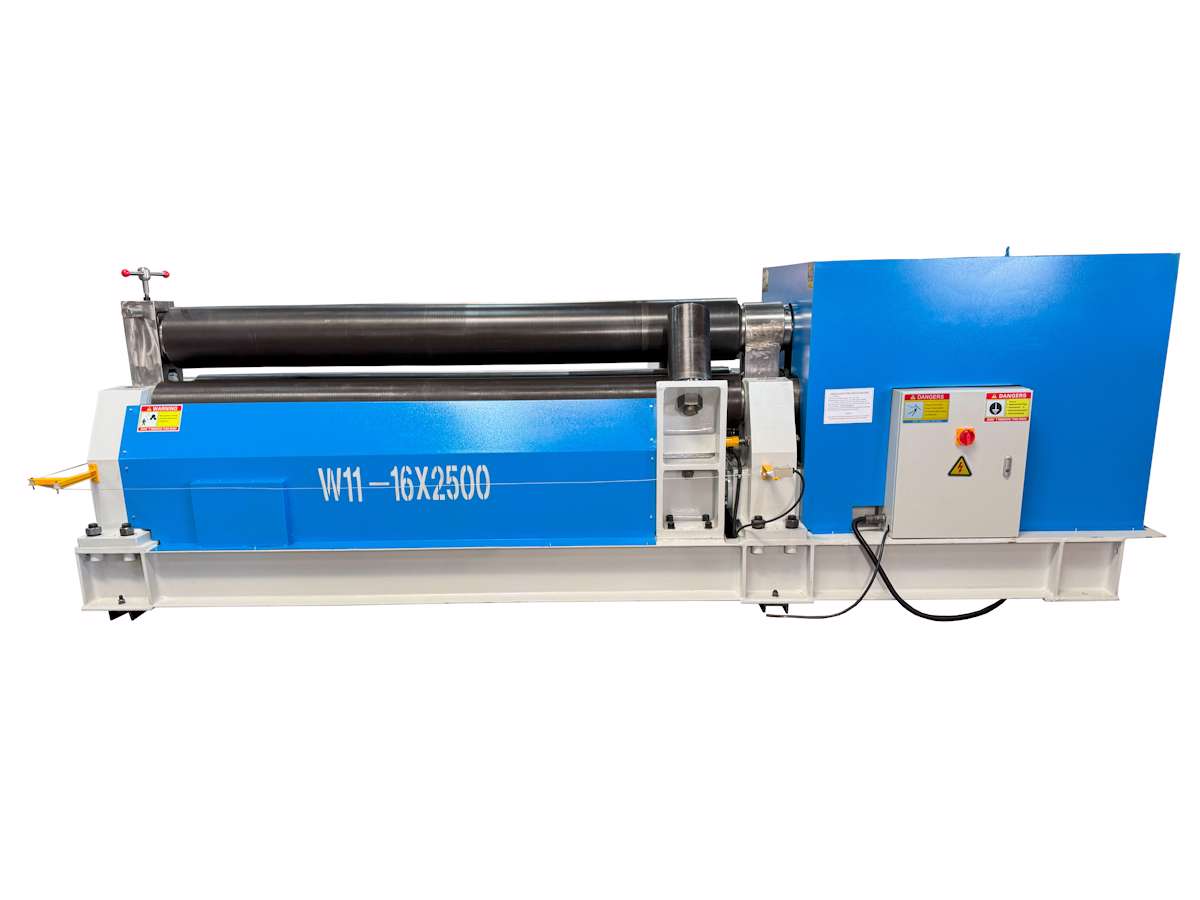

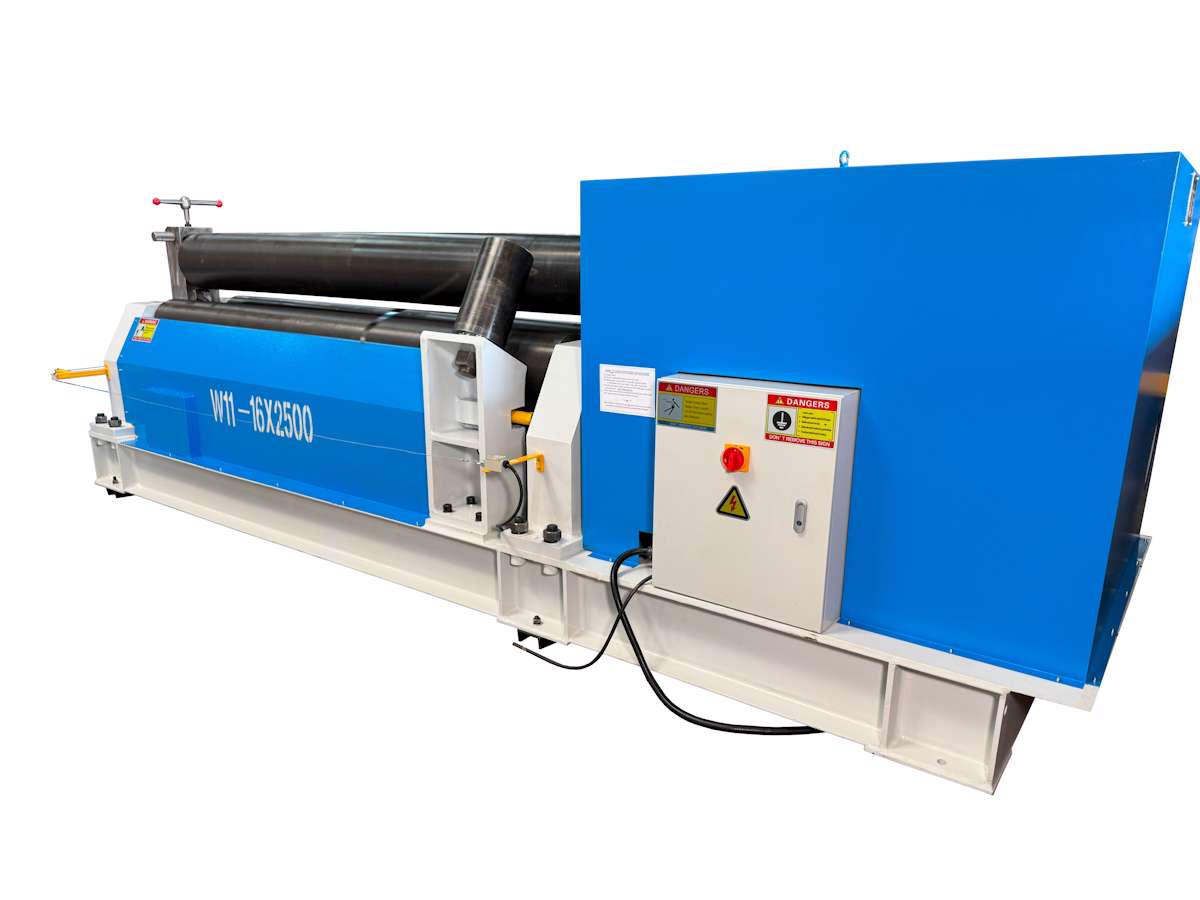

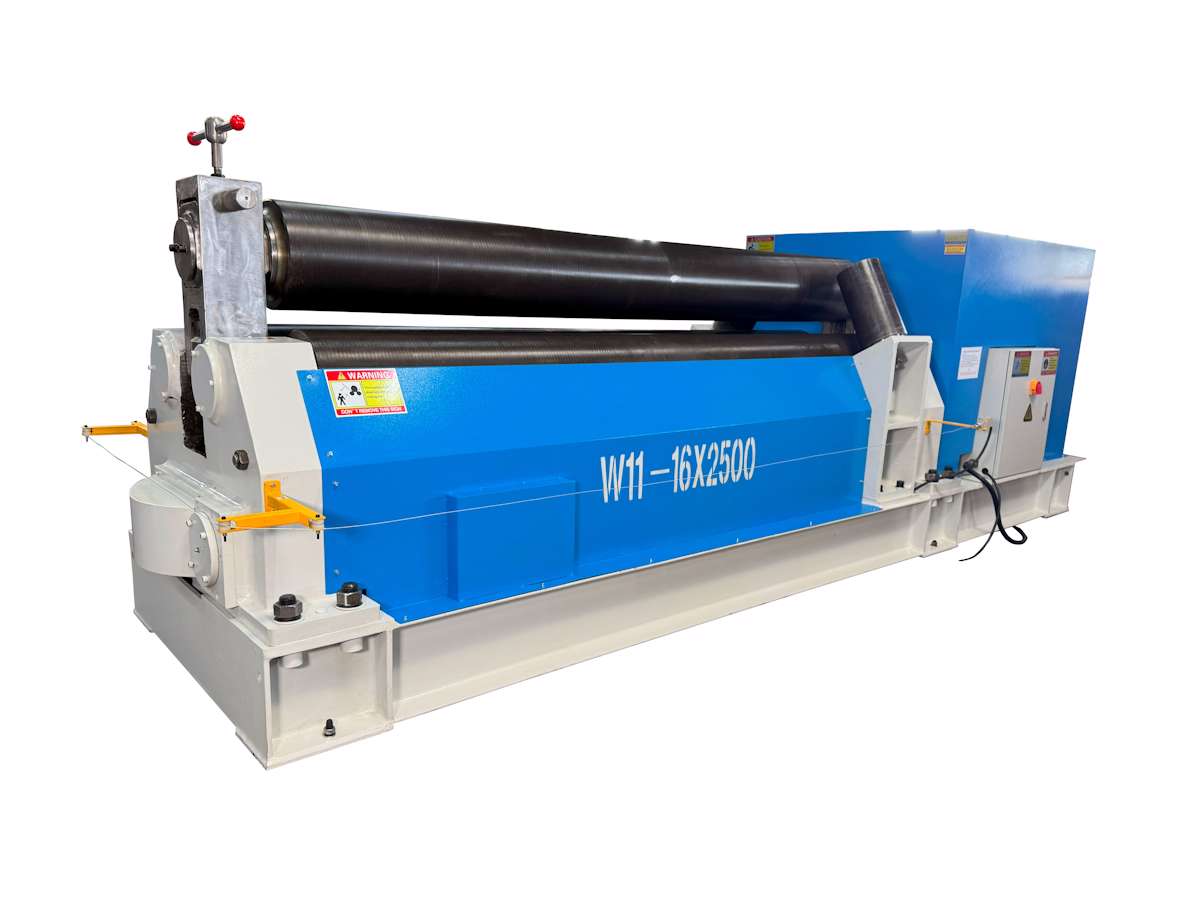

THMT W11-16x2500 Motorised Plate Roll (10454)
New THMT W11-16x2500 Motorised Plate Roll (10454)
16 x 2500mm, Cone Rolling Attachment
Availability: Ex-import
Price: POA
The W11 series plate rolling machines is a mechanical 3-roller symmetrical system with motorised up down movement of top idler roll which moves up and down in the centre of the two lower driven rolls.
Specifications:
Model: W11-16×2500
Maximum coil thickness: 16mm
Maximum coil width 2500mm
Sheet yield limit: 245mm
Rolling speed : 4m/min
Minimum coil diameter with full load: 700mm
Upper roll diameter: 280mm
Lower roll diameter: 240mm
Center distance between two lower rollers: 360mm
Main motor power: 15kW
Standard Features:

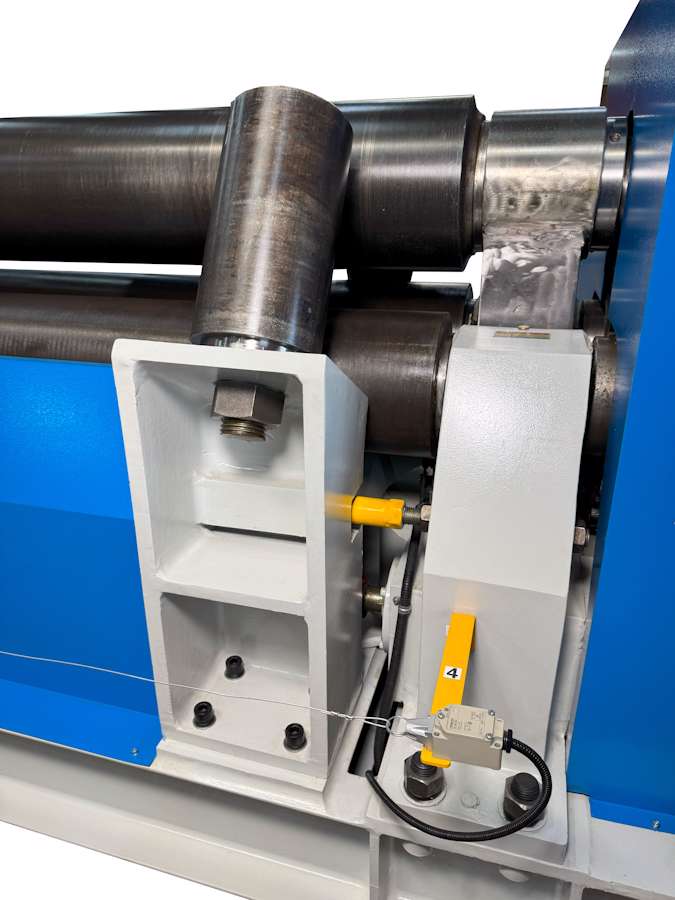

Cone rolling attachment
