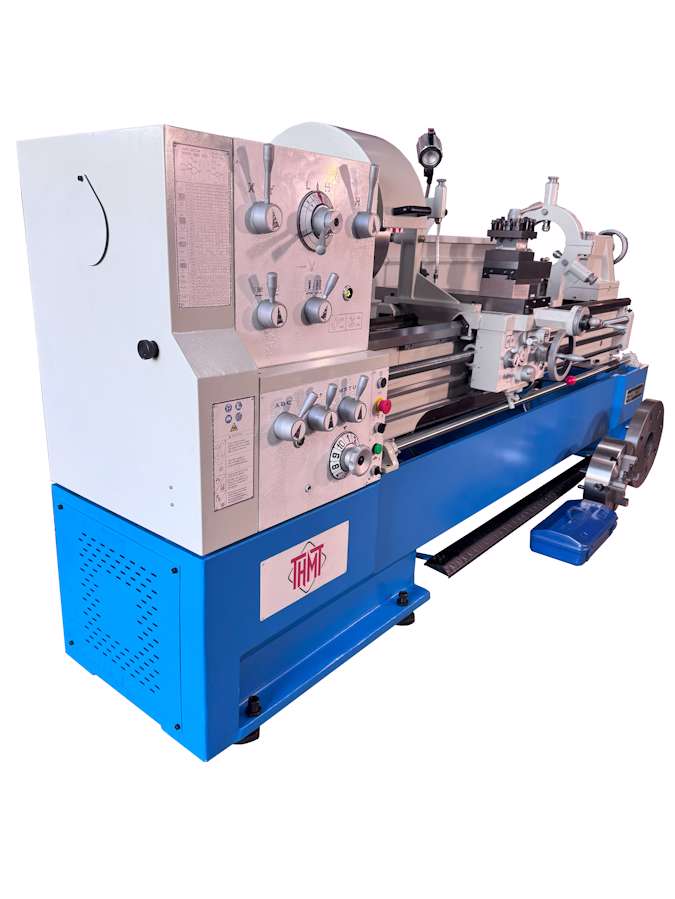

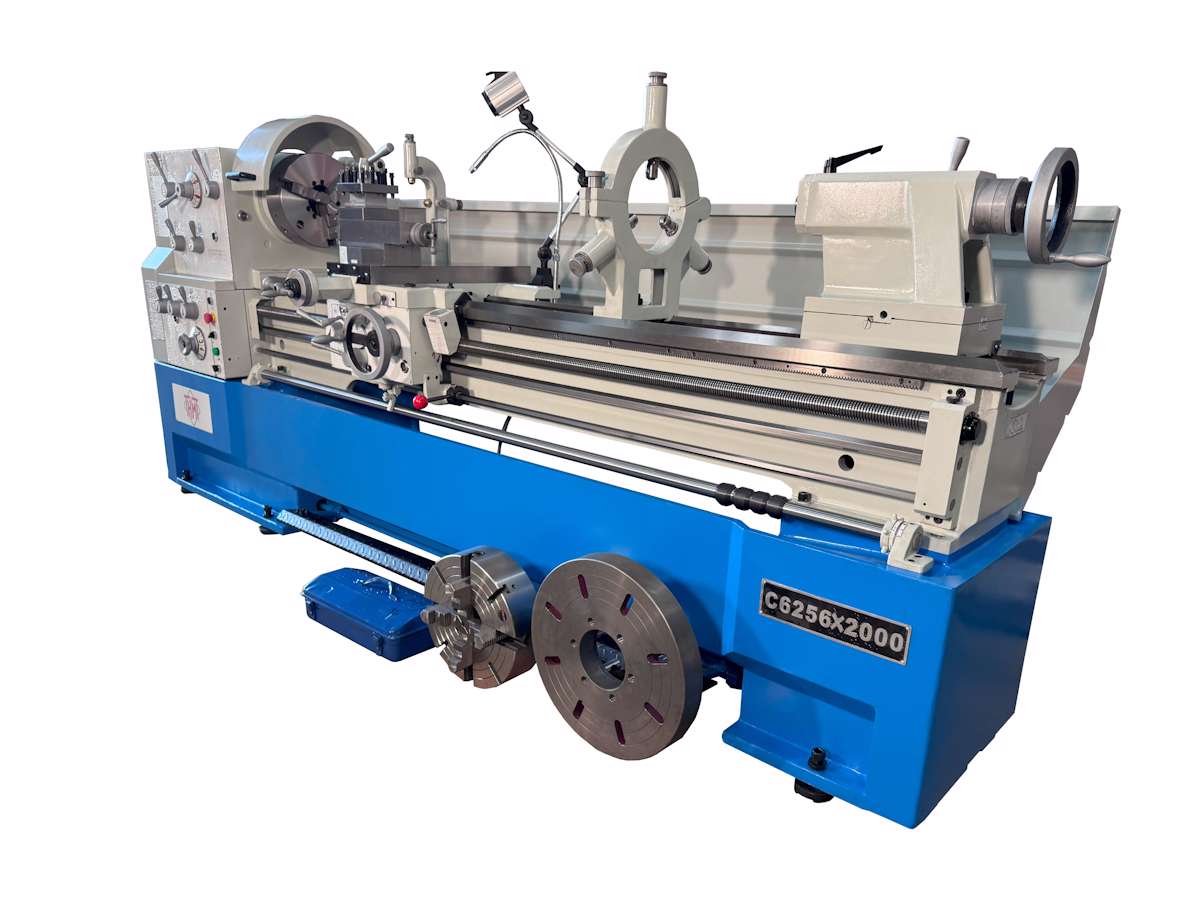

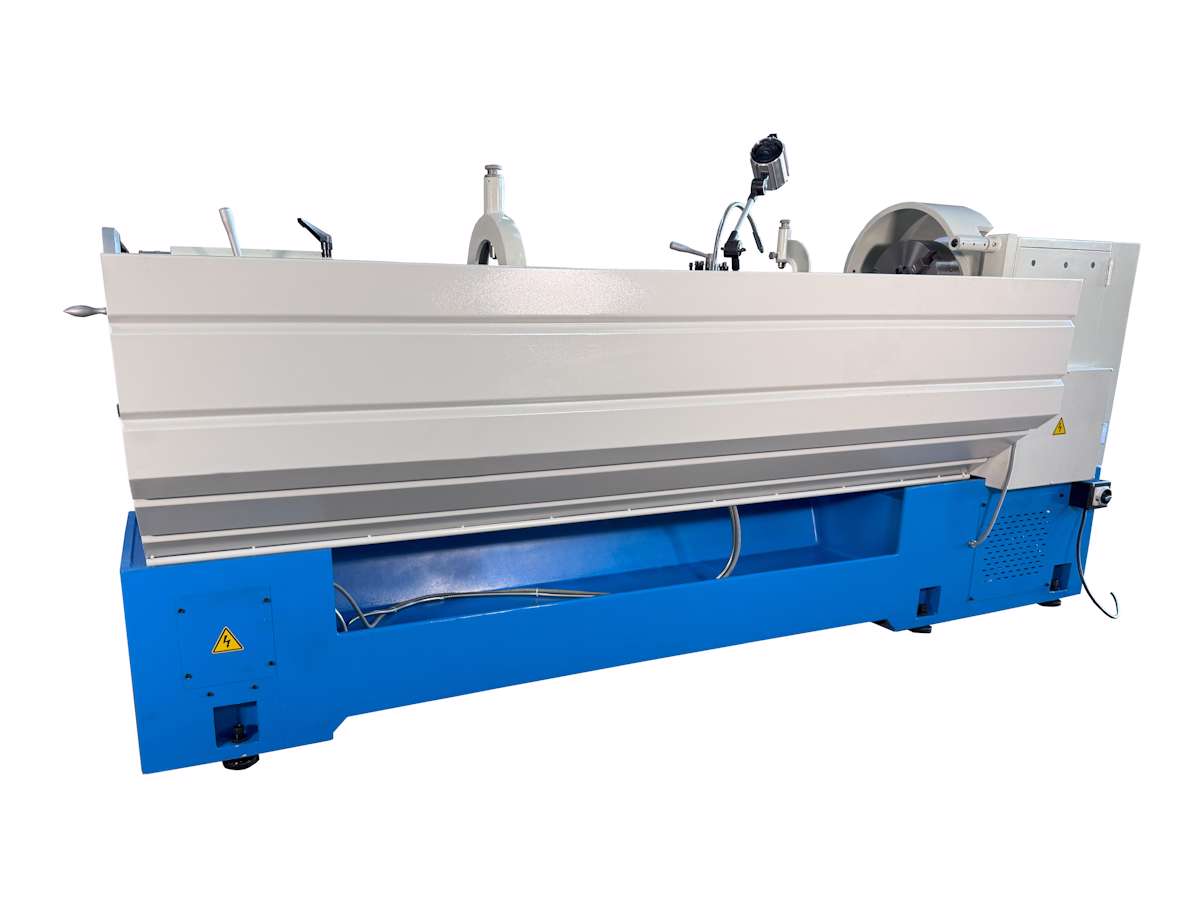

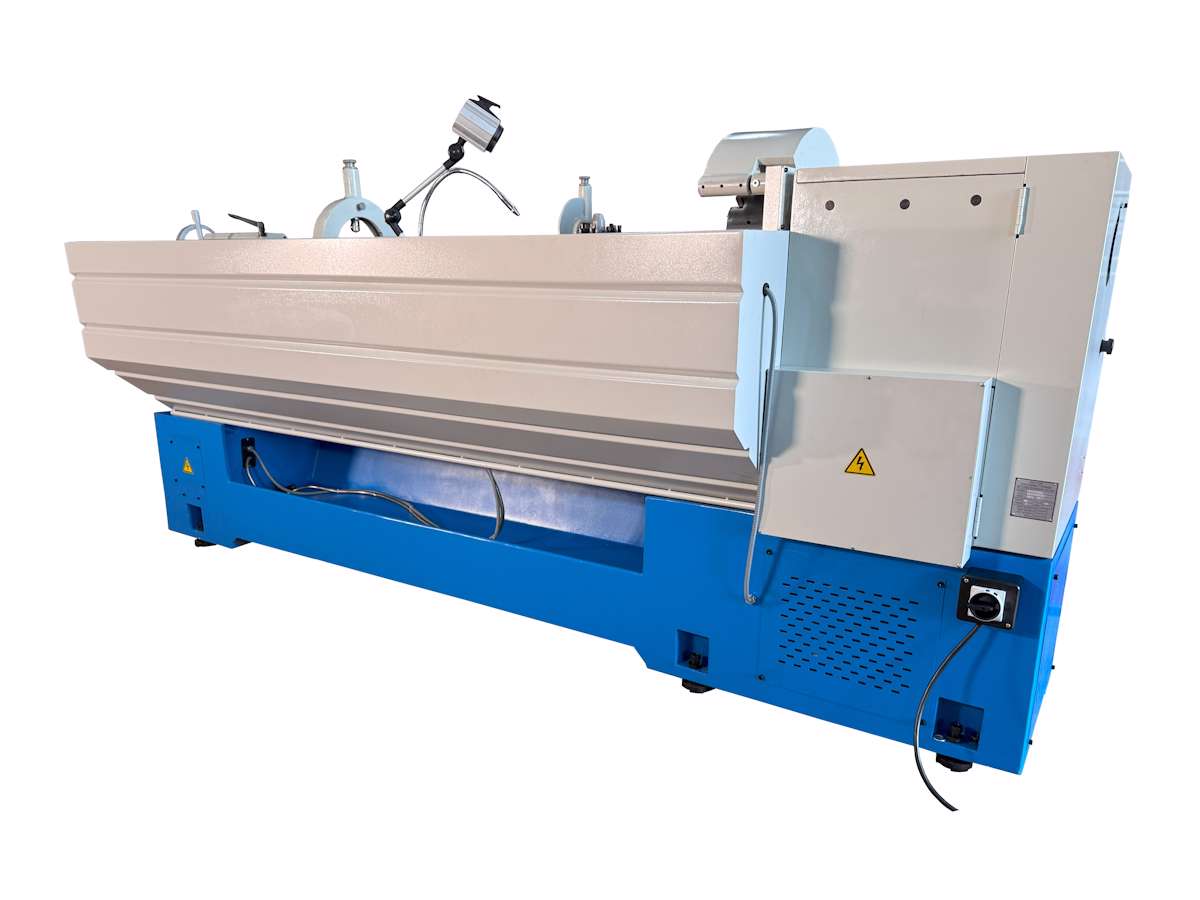

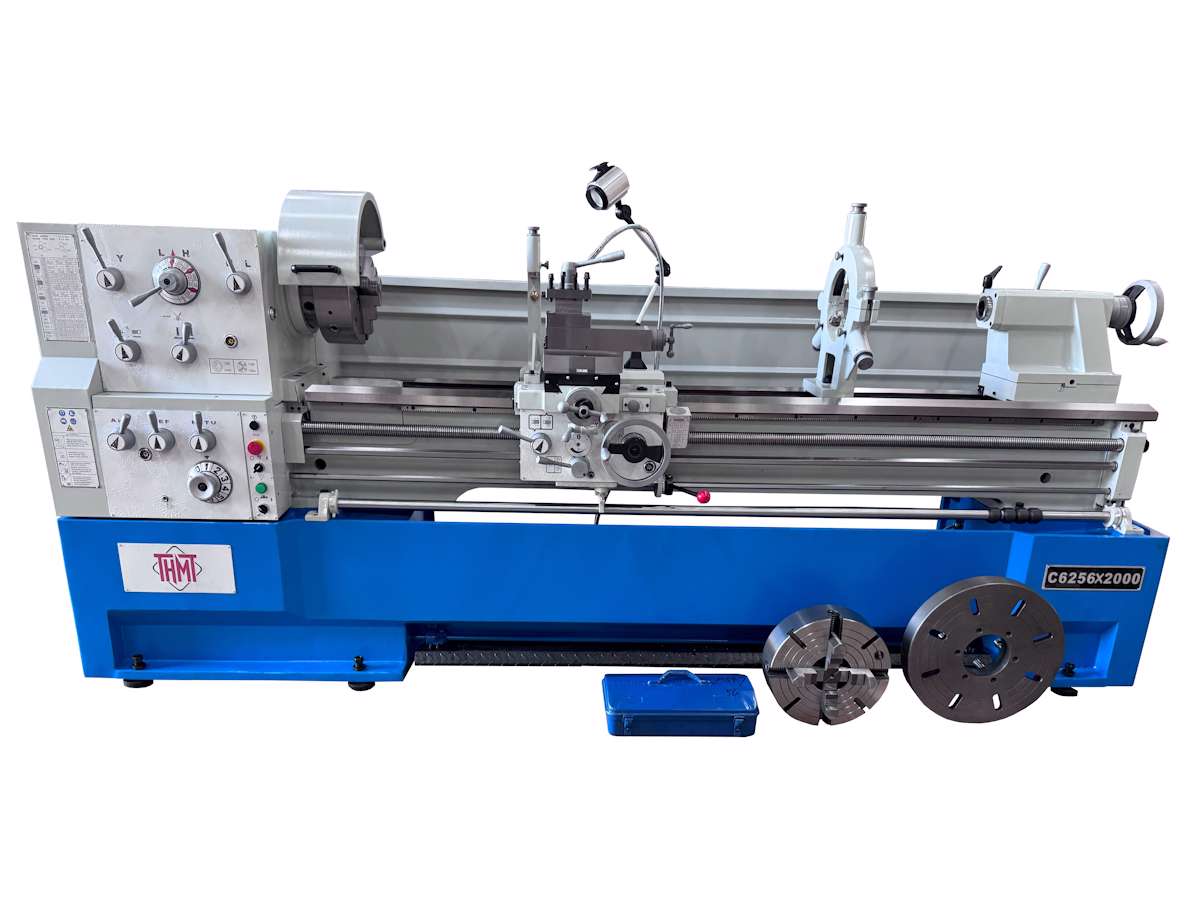

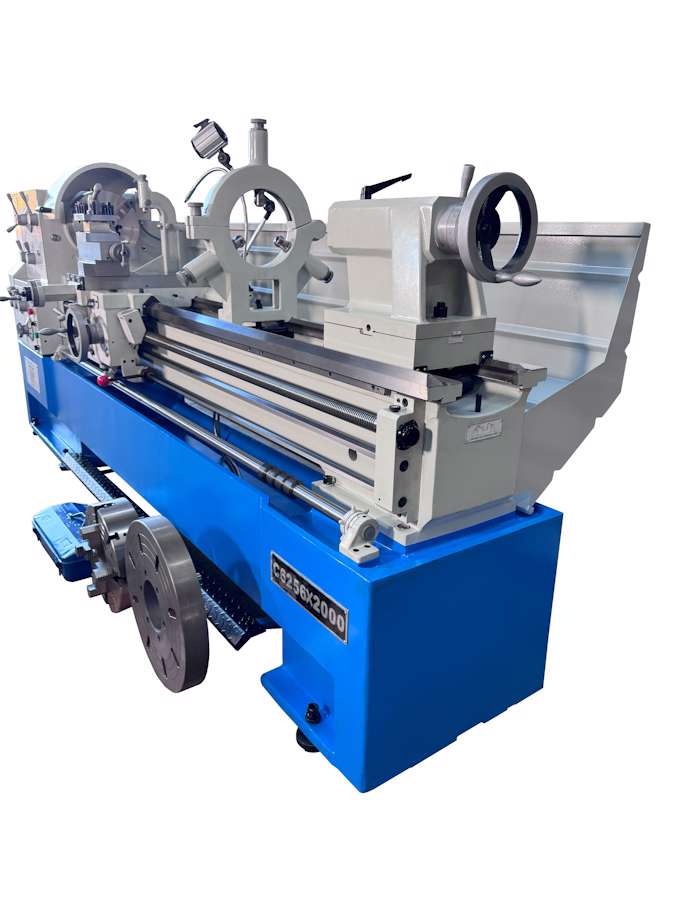

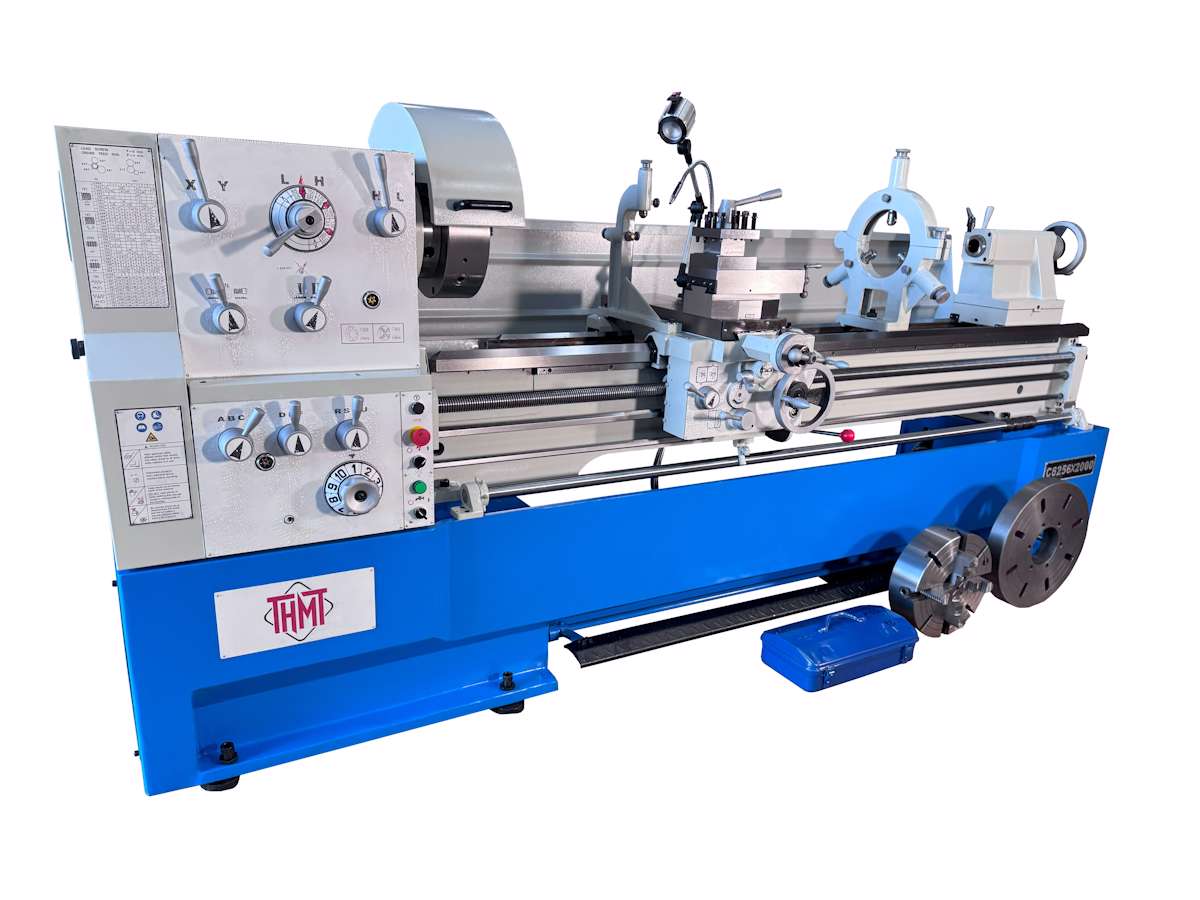

THMT C6256 2000b/c Centre Lathe (658)
New THMT C6256 2000b/c Centre Lathe (658)
swing Ø560, gap Ø788, bore Ø80, 7.5kW
Availability: Ex-import
Price: POA
Main Specs
Distance between centres: 2000mm
Max swing Ø over bed: 560mm
Max swing Ø over saddle: 350mm
Max swing Ø in gap: 788mm
Length in gap: 200mm

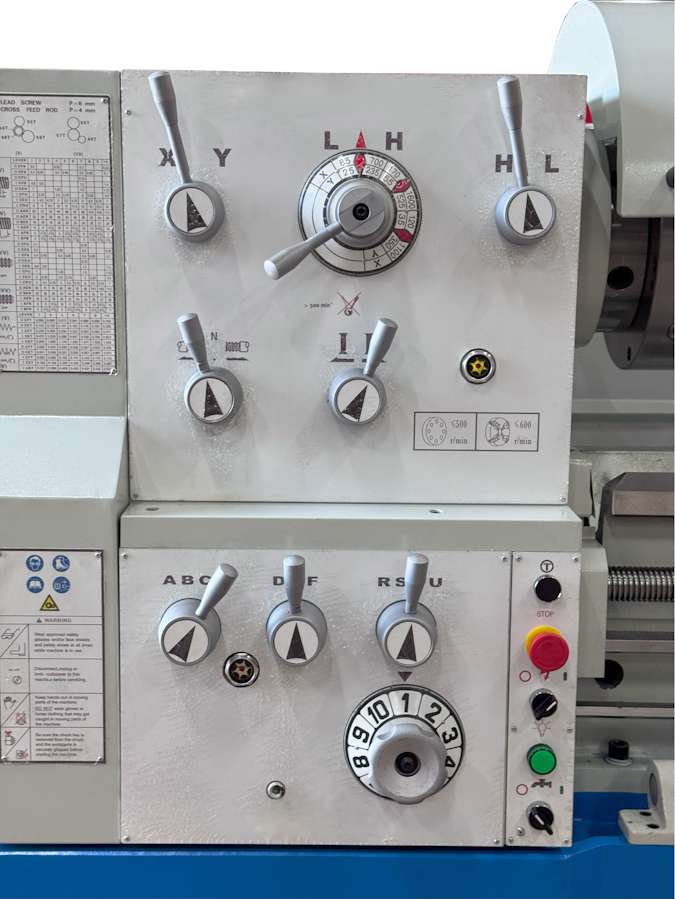

Headstock
Max Ø of spindle bore: 80mm
Spindle speed ranges: 12
Spindle speed range: 25~1600rpm

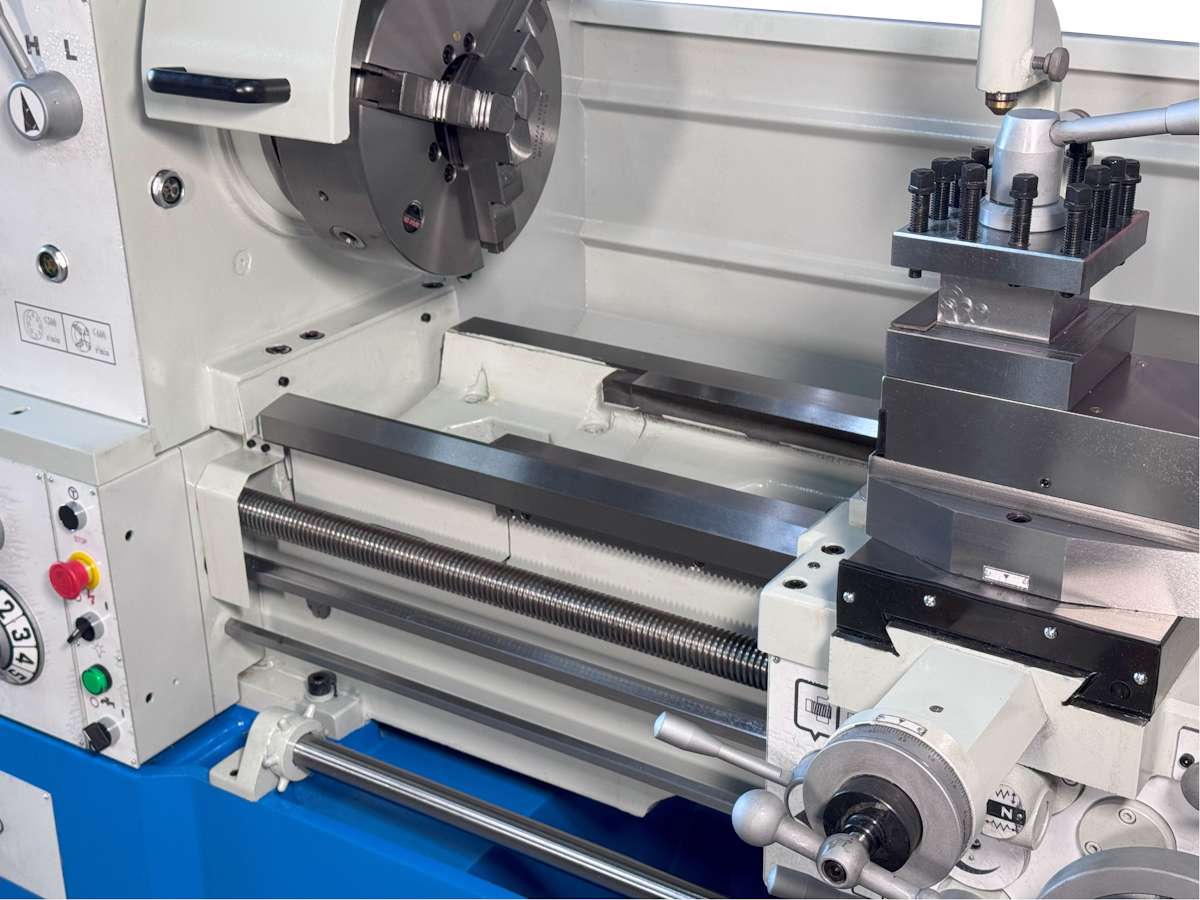

Crosslide and topslide
Travel of cross-slide: 326mm
Travel of top-slide: 130mm

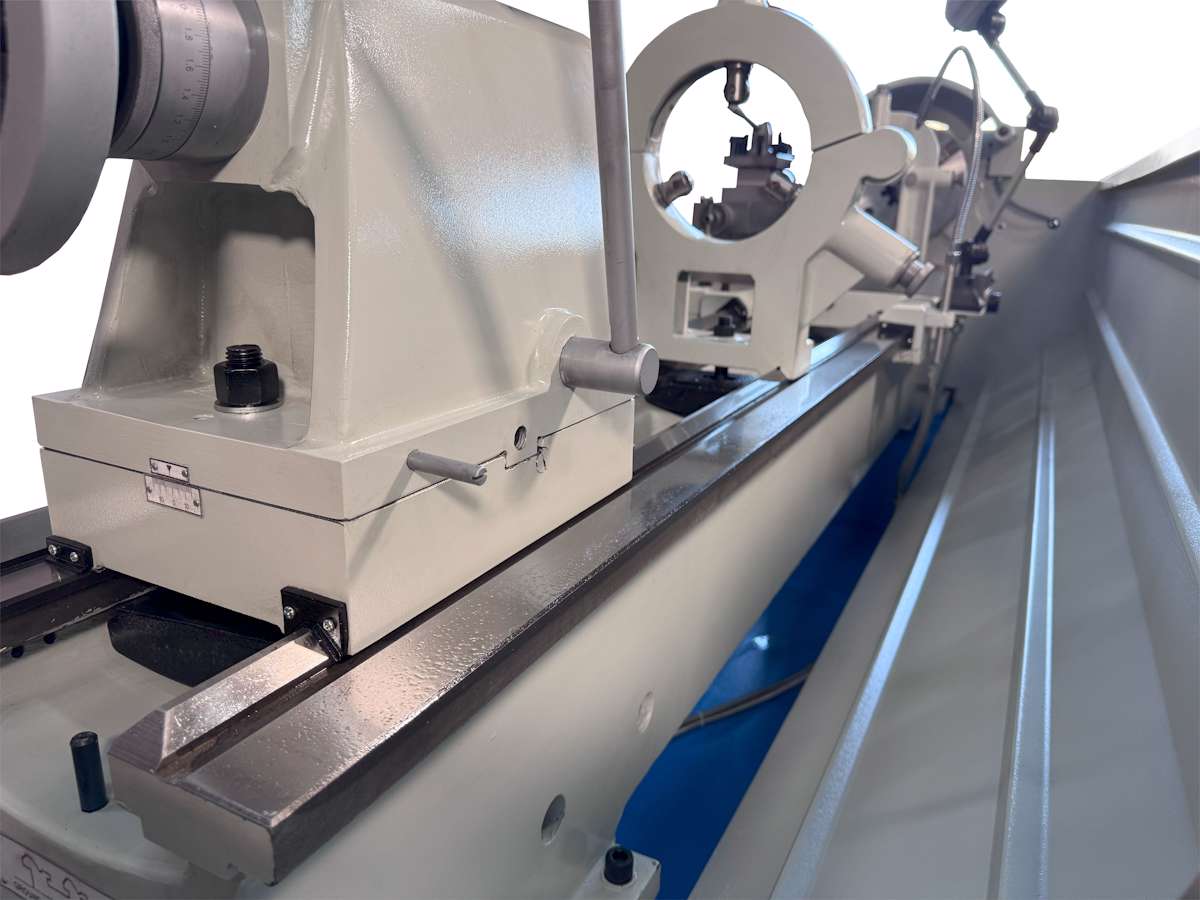

Tailstock
Tailstock: MT5
Motor
Power of main motor: 7.5kW
Dimensions & Weight
Dimensions: 3400 × 1120 × 1430mm (LxWxH)
Weight: 3110kg
Standard Accessories:
3-Jaw Chuck - Ø315mm
4-Jaw Chuck - Ø350mm
Faceplate - Ø450mm
Fixed Steady
Travel Steady
