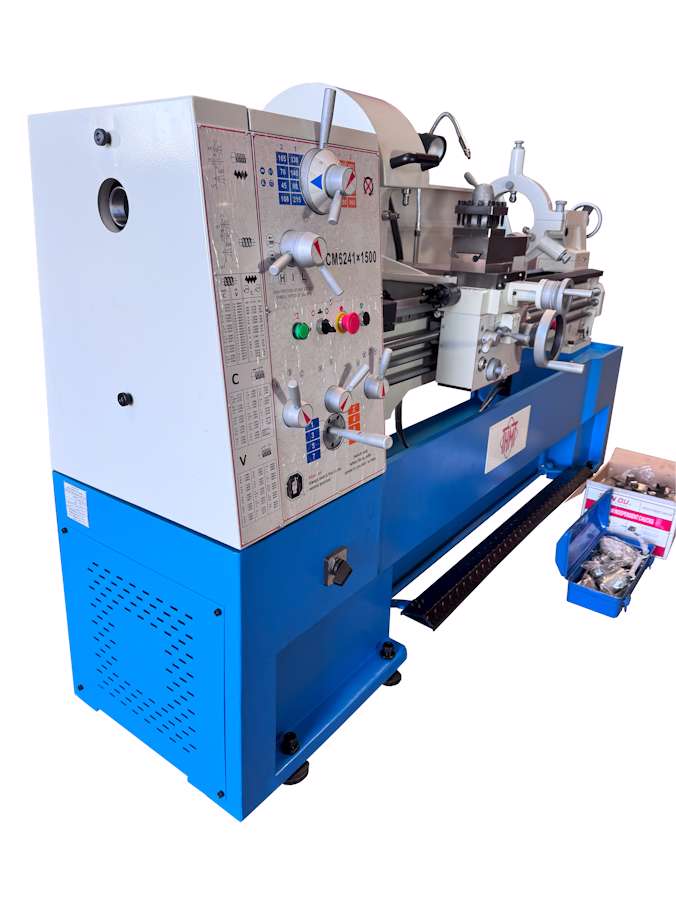

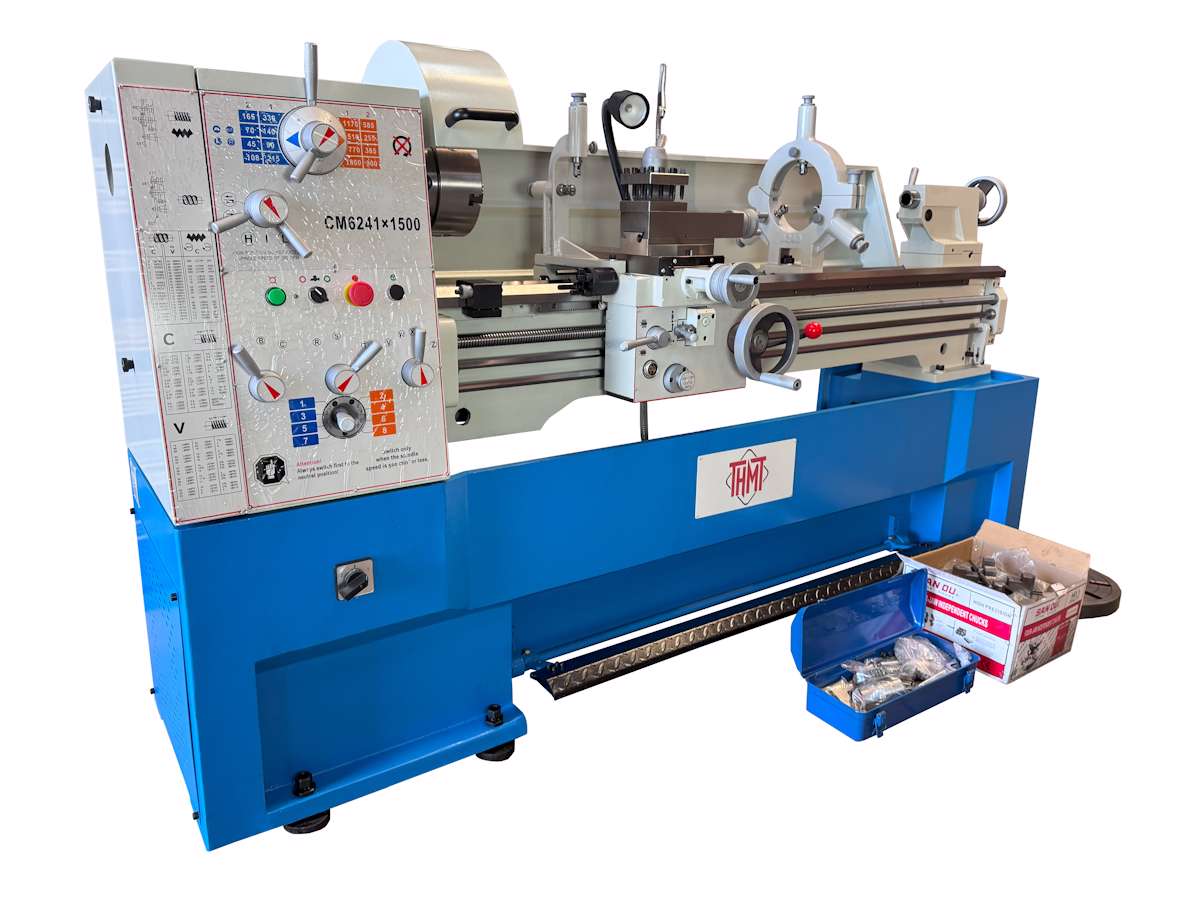

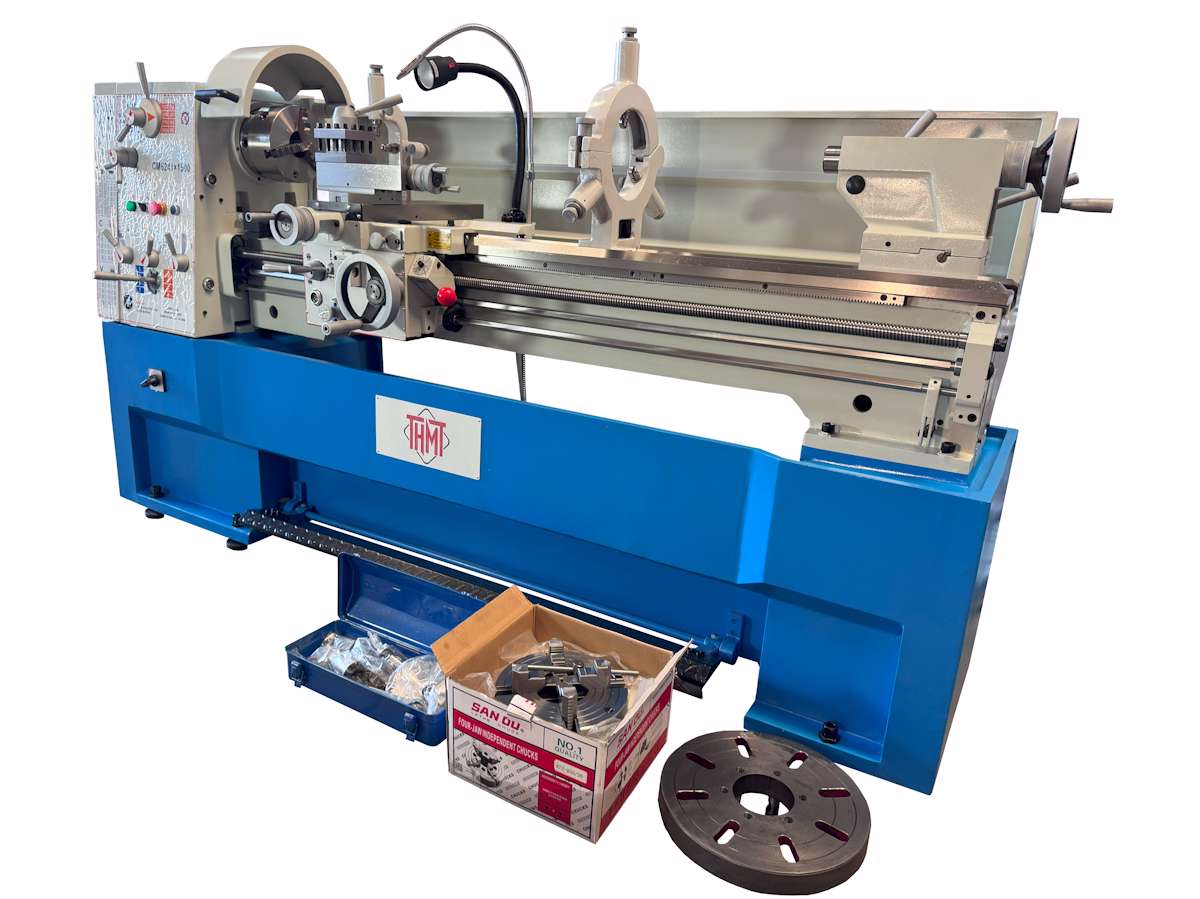

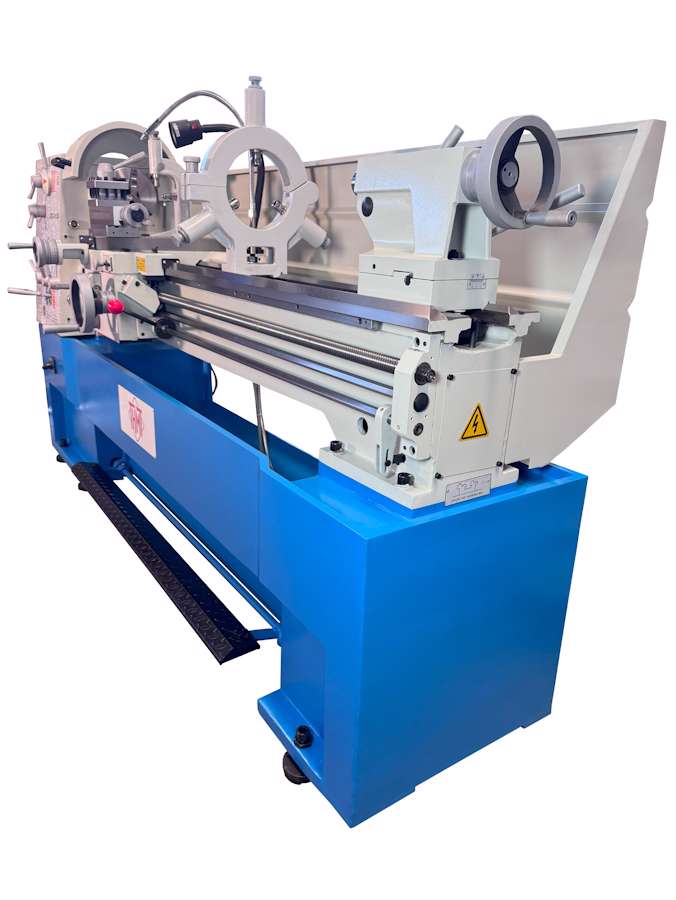

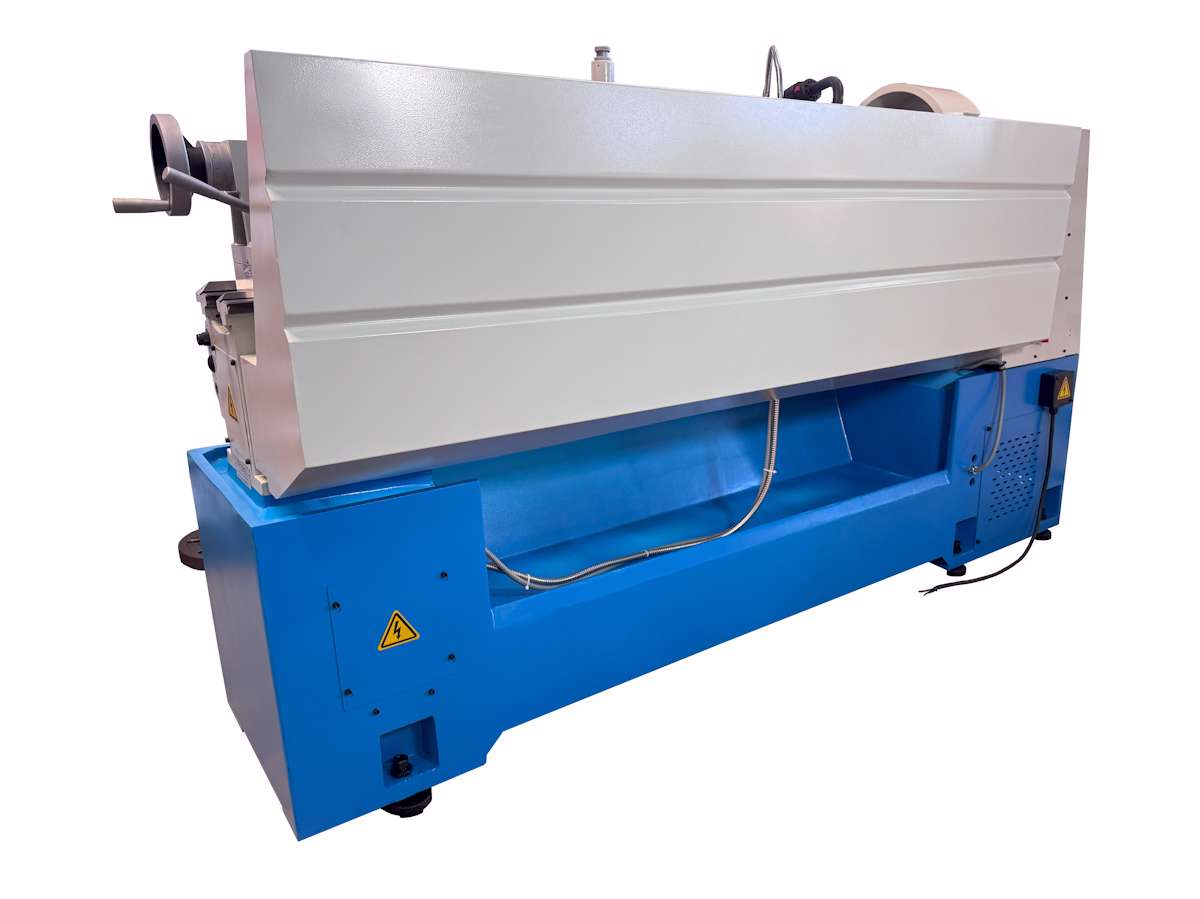

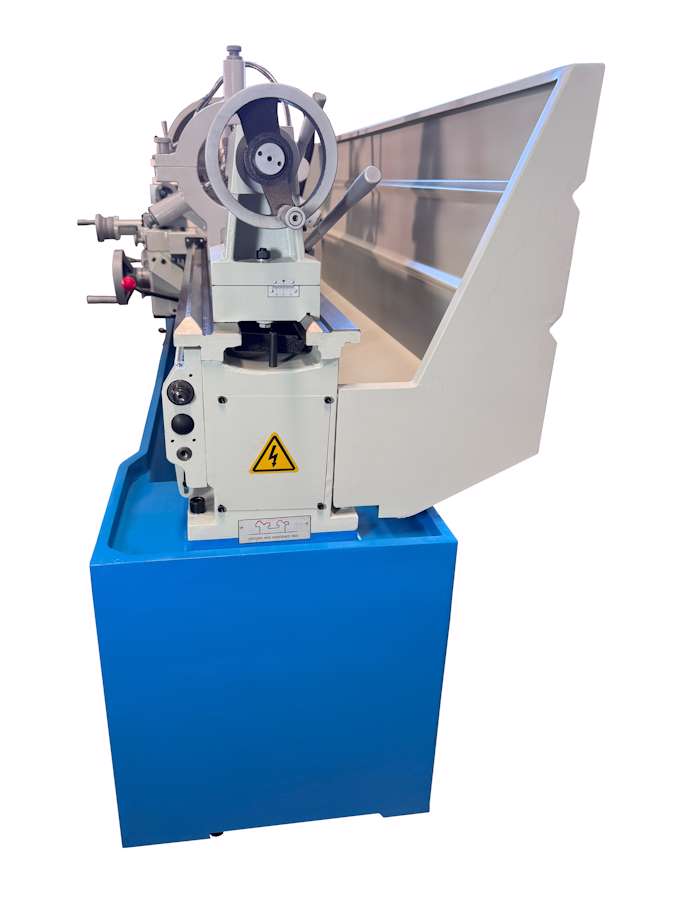

THMT CM6241 1500b/c Centre Lathe (529)
New THMT CM6241 1500b/c Centre Lathe (529)
swing Ø410, gap Ø580, bore Ø52
Availability: E.T.A. 04 Apr 2025
Price: R 177 000.00 excl.
Distance between centers: 1500mm
Max swing Ø over bed: 410mm
Max swing Ø over saddle: 255mm
Max swing Ø in gap: 580mm
Max Ø of spindle bore: 52mm
Spindle speed ranges: 16
Spindle speed range: 45~1800rpm
Travel of crosslide: 225mm
Travel of topslide: 140mm
Taper of tailstock: Morse No.4
Approx max workpiece weight: 550kg
Power of main motor: 2.8/3.3kW
Dimensions: 2440 x 850 x 1320 (LxWxH)
Weight: 1500kg

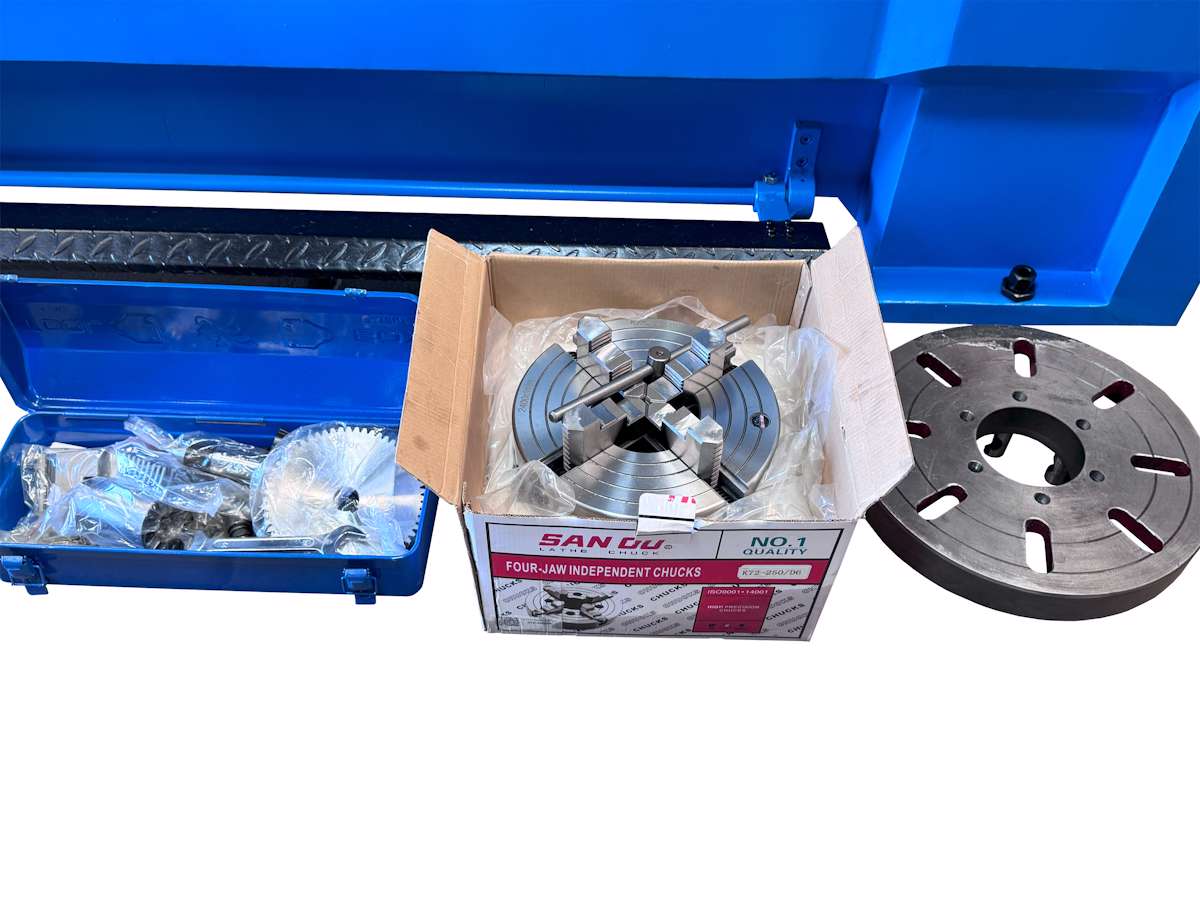

Machine Accessories
3-jaw chuck - Ø200mm
4-jaw chuck - Ø250mm
Reverse jaws for 3-jaw chuck
Faceplate - Ø350mm

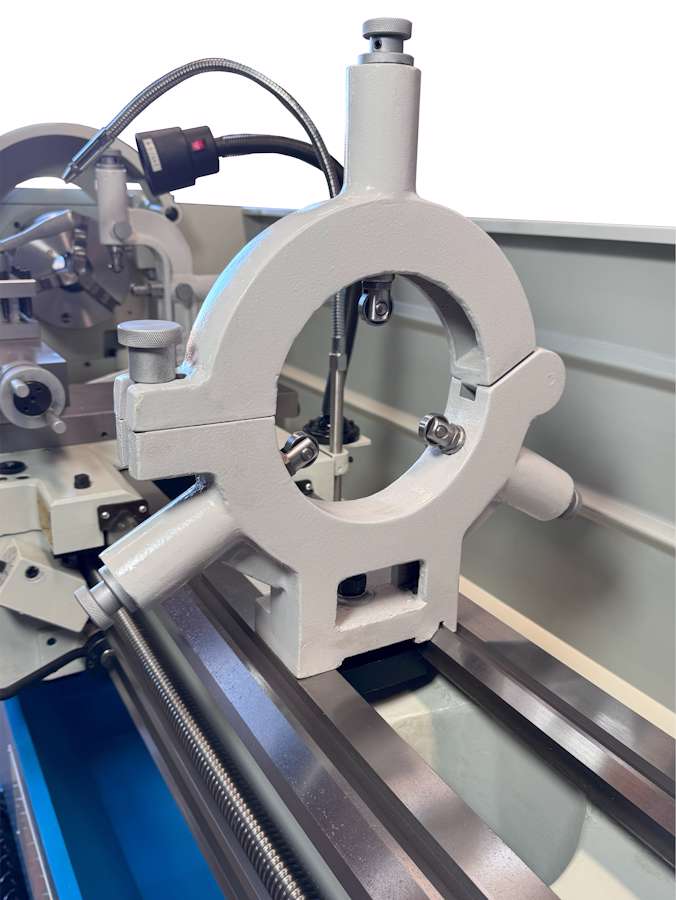

Fixed Steady
Traveling Steady
Changegears
Worklight
Coolant System
Levelling Pads
Adjustable Feed Stopper
