TZ SERIES
Heavy-duty Four-chuck Tube Fiber Laser Cutting Machine
Four-chuck 2+2 All-process Operation
Equipped With A Follow-up Support Device
Ultra-long Cutting

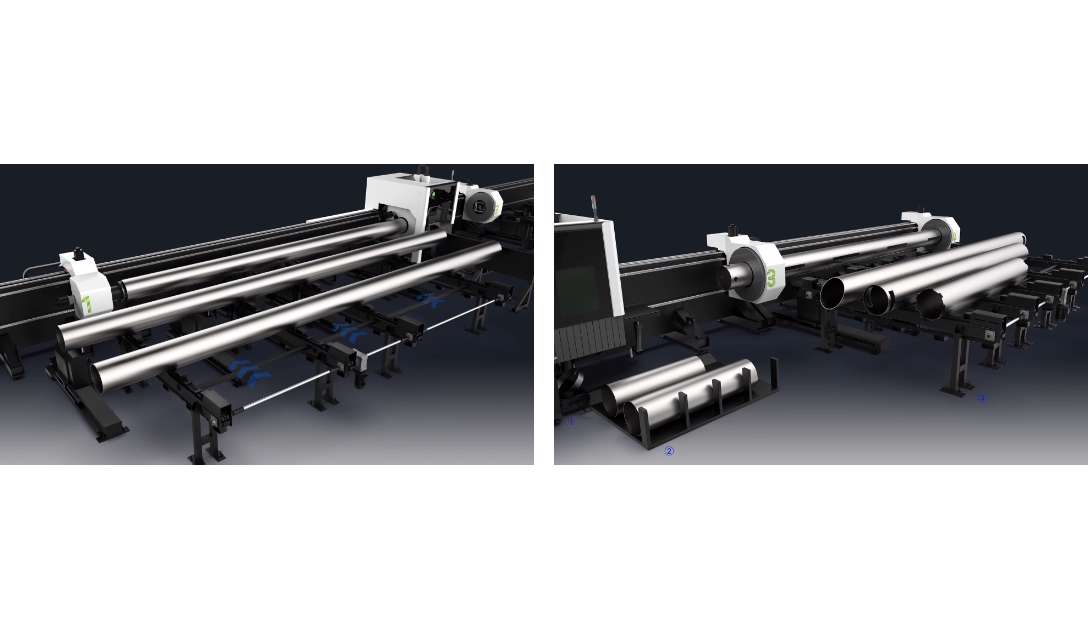

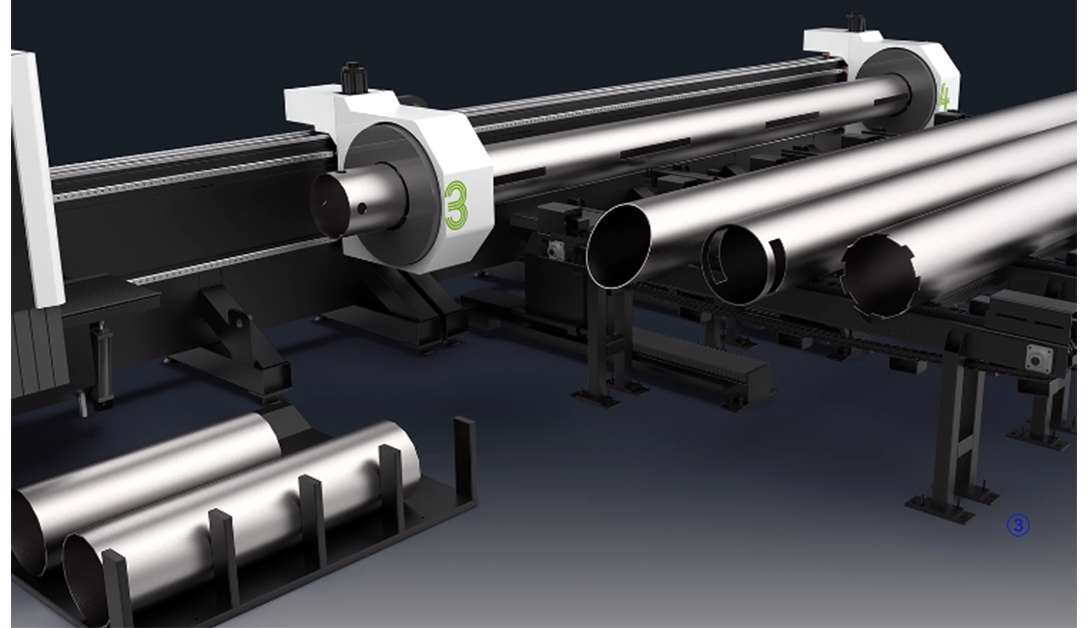

Automatic Loading/unloading System
Specifications:
Models: TZ12055
Laser power: 3-12kW
Max processing tube length: 12500mm
Positioning accuracy: 0.15mm
Repeated positioning accuracy: 0.15mm
Max. running speed: 50m/min
Round tubes: 40-550mm
Square tubes: 40-550mm
Angle beams: 40-400mm
Channel beams: 40-420mm
H beams: 40-500mm
X-axis stroke: 520mm
Y-axis stroke(main check): 12500mm
Z-axis travel: 620mm
Cutting Thickness:
Material | 3kW | 6kW | 12kW |
Carbon steel | 1-22 | 1-30 | 1-40 |
Stainless steel | 1-10 | 1-18 | 1-30 |
Brass | 1-6 | 1-14 | 1-18 |
Aluminium | 1-6 | 1-14 | 1-18 |
Side-mounted bed
Pipe blanking action is simpler, more stable and more efficient
The overall stress layout is more reasonable, with greater load bearing and stronger stability

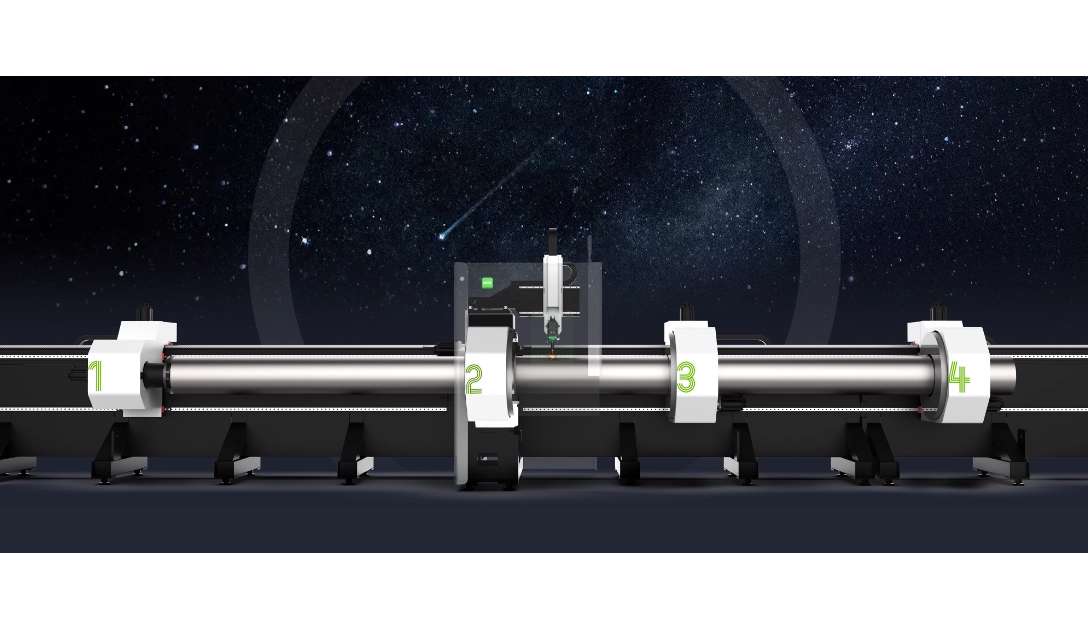

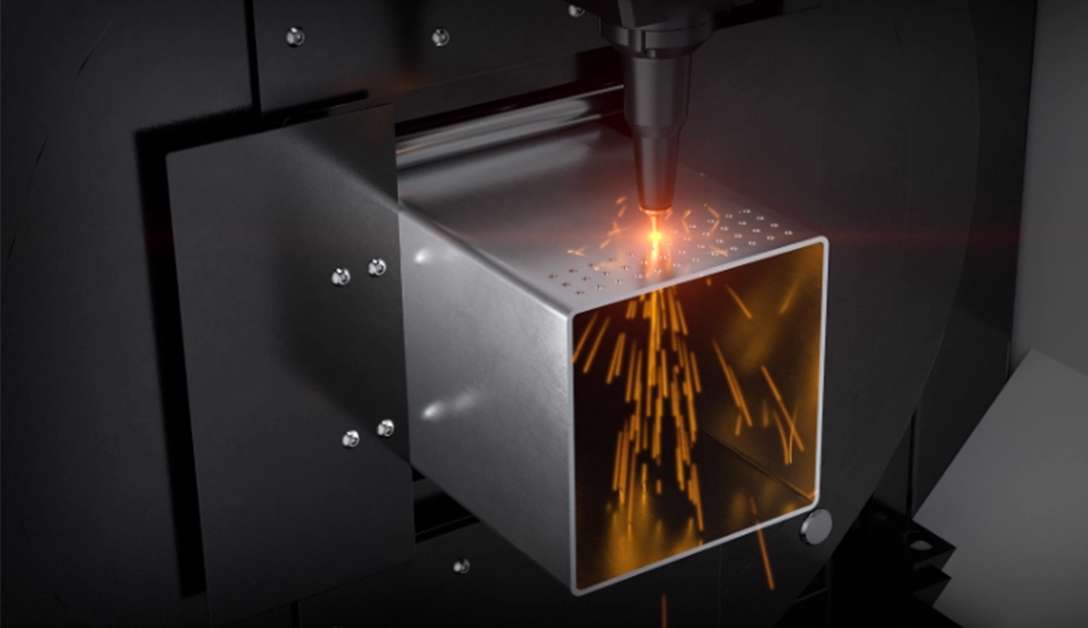

Four chucks clamping
One-button self-centering, fast clamping and fast cutting;
Four-point clamping to correct pipe bending and prevent inertial swinging;
The clamping force of the chuck is adjustable, and it can clamp pipes of different sizes and lengths.
Zero tailings, make the best use of materials

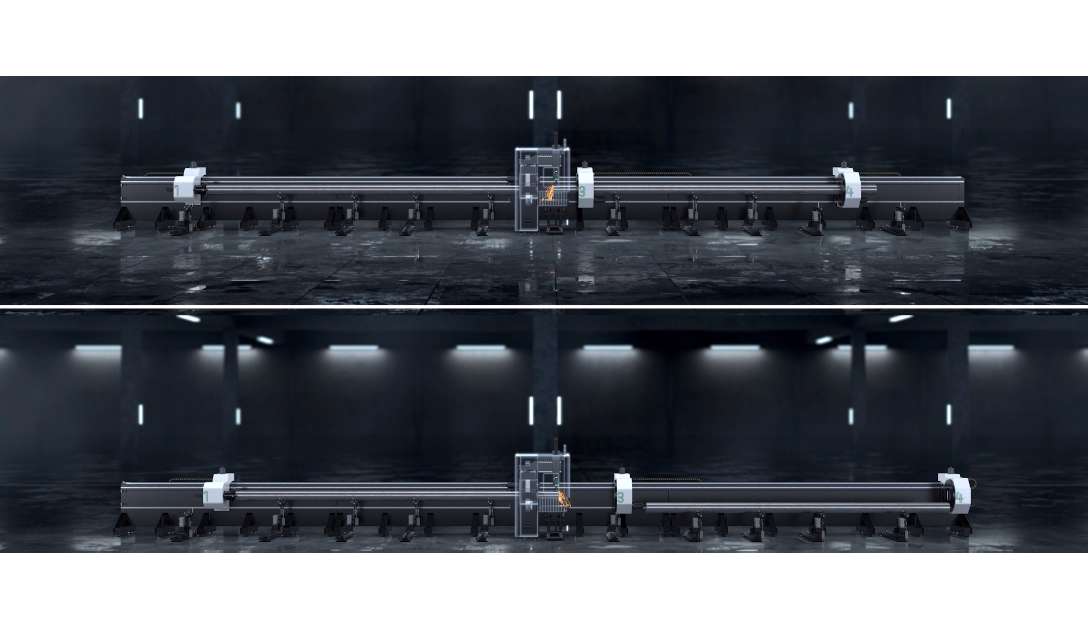

The end of the pipe can be pulled and cut to achieve true zero tailing;
Super long work piece processing, suitable for cutting long finished materials.
New follow-up support technology
The unique multi-stage follow-up support supports the pipe in real time and effectively prevents the pipe from sagging;
Protective grating, more secure
Set up a safe area to ensure the safety of personnel and equipment.
AORE Core Technology
Intelligent Bus Technology.
Overall Packaging Technology.
Constant Temperature Cooling Technology.
Precision Control Technology.
AORE Core Control System
Quick response, high efficiency - Utilizing EtherCAT bus technology.
Versatile, easy to master - Equipped with hundreds of process libraries.
Wide coverage, without barrier - Supports 15 file formats and 14 language.
Personalized - Provides unique manufacturing user experience.

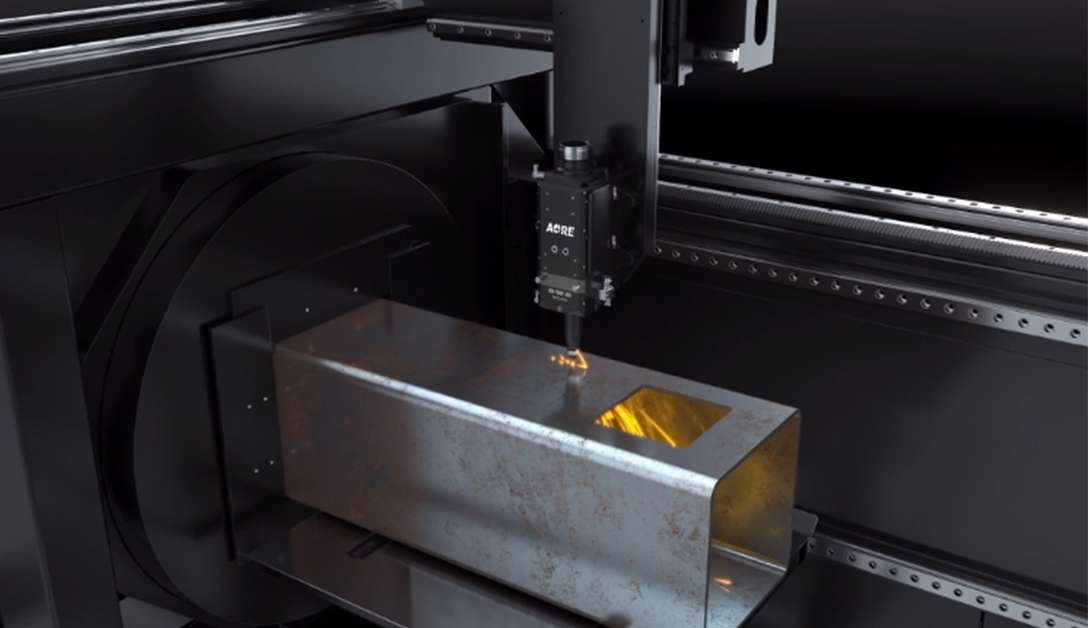

AORE Sword Laser Head
High intelligent, immediate awareness.
Resistant to interference, worry-free transmission.
Impact-resistant, zero maintenance.
Fully water-cooled, temperature control.
AORE Power Laser Source
High conversion rate, low energy consumption.
Resistant to high feedback, strong protection.
High integration, minimal footprint.
Optional
Screw compressor
Voltage stabilizer
