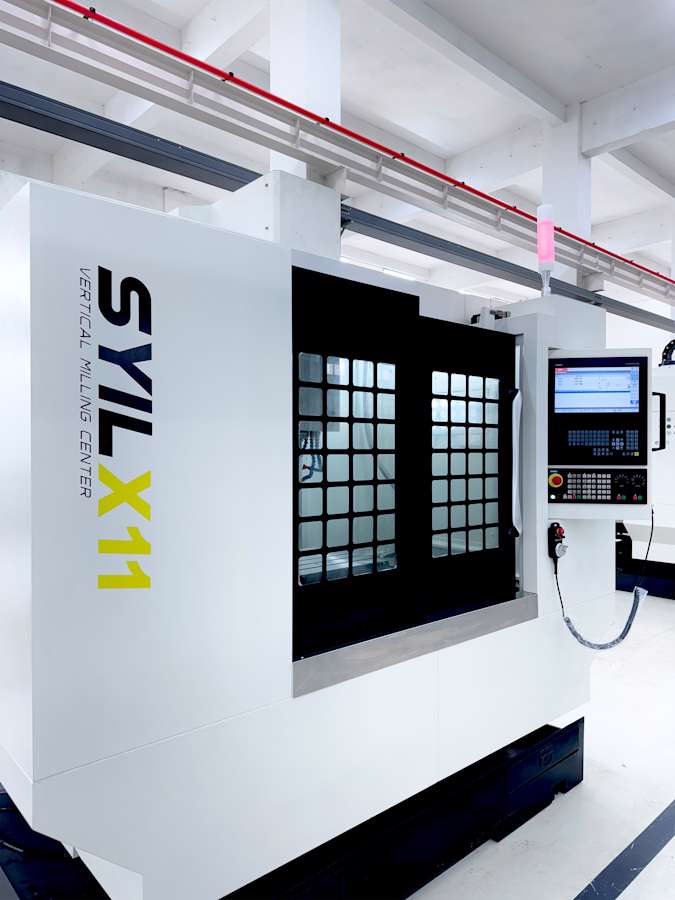

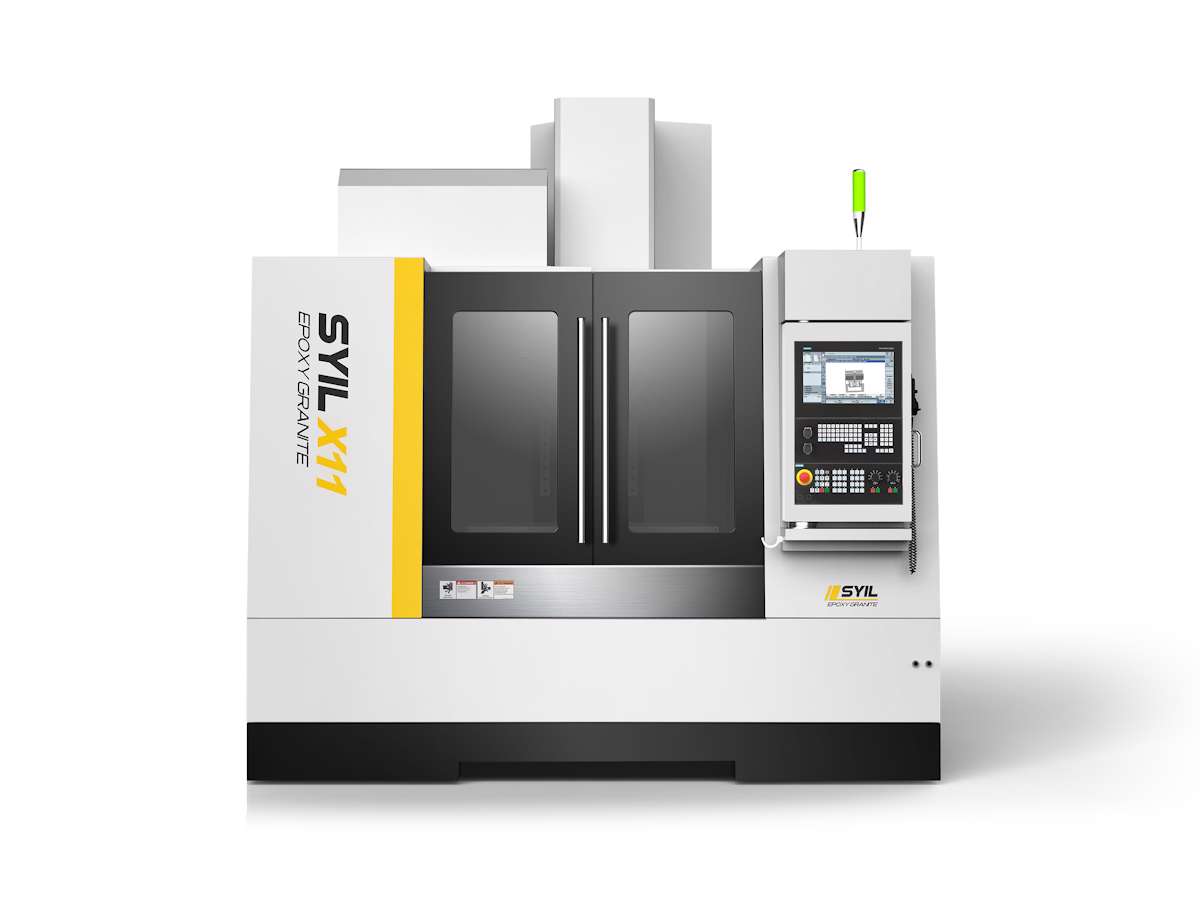

SYIL X11 Vertical CNC Machining Centre 3-Axis (13562)
New SYIL X11 Vertical CNC Machining Centre 3-Axis (13562)
Siemens 828D, BT40, Bed 1000x500, 17kW, 10,000rpm
Availability: E.T.A. 29 Aug 2025
Price: POA
Discover the Versatility of the SYIL X11 Vertical Machining Center
If you're a manufacturing company looking to enhance your production line, the SYIL X11 CNC machining centre is an affordable and efficient solution.
The SYIL X11 is a large-travel vertical machining centre designed for large and medium-sized workpiece applications. Offering improved damping and dynamic rigidity with a maximum workpiece weight capacity of 800kg.
Whether you're working with aluminium, steel, or other materials, this machining centre delivers high-quality results that meet industry standards.
Experience Precision and Power in a Compact Size:
·Strong and reliable performance
·Compact machine layout
·Mineral cast bed
·High rigidity and good thermal stability
·Electric spindle with water cooling function

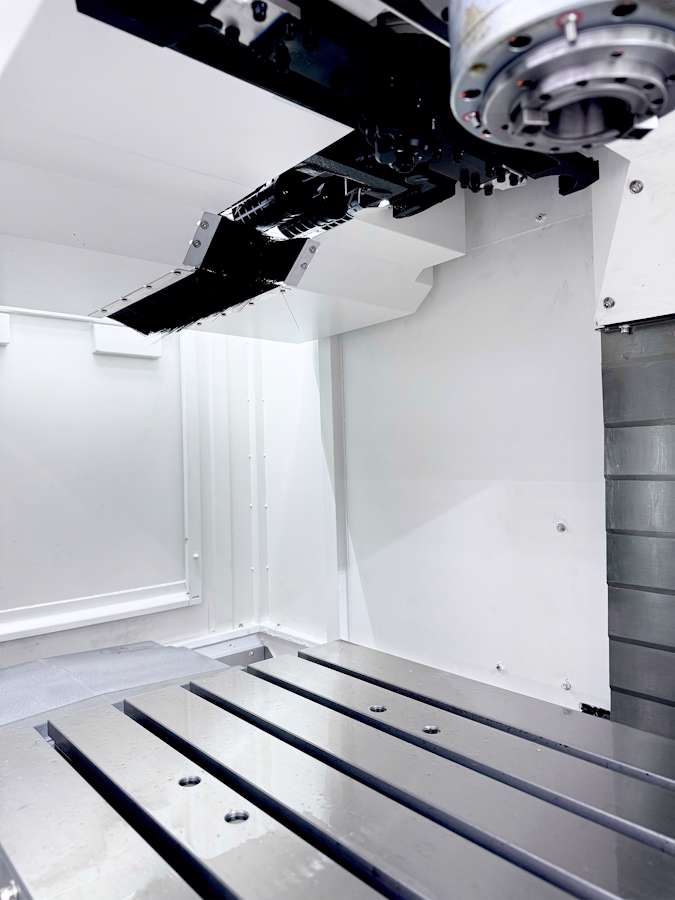

·Fully enclosed working area with stainless steel guard plate
·Easy chip removal design
·Ergonomic operation and workpiece loading and unloading design
·Easy access to equipment units for easy maintenance
·Expandable and customizable automation system
By default, the SYIL X11 includes:
SCHNEEBERGER high-quality mineral casting frame
10,000 RPM BT40 spindle
24 units ATC Arm Type

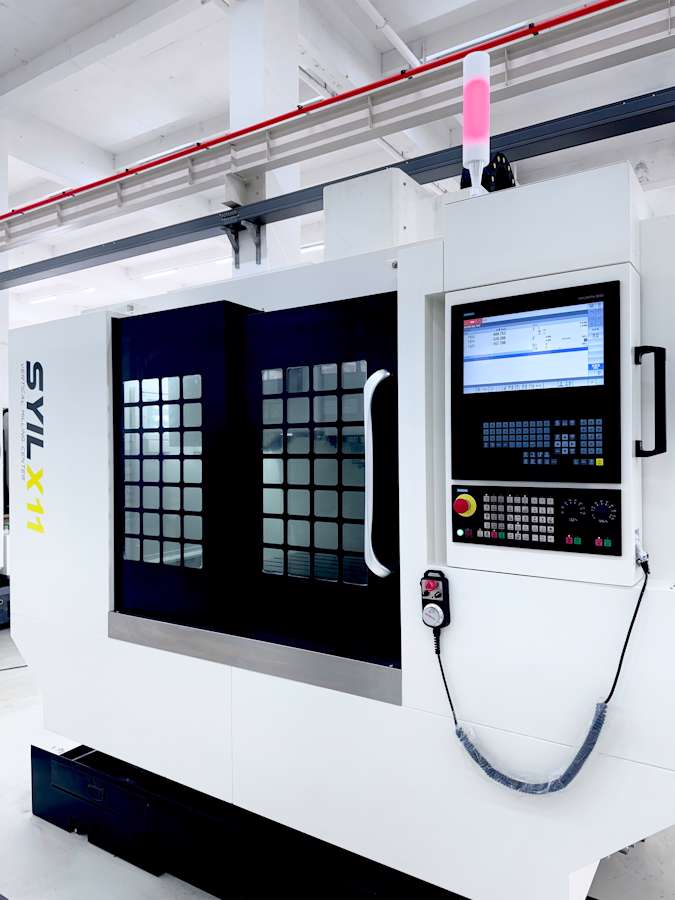

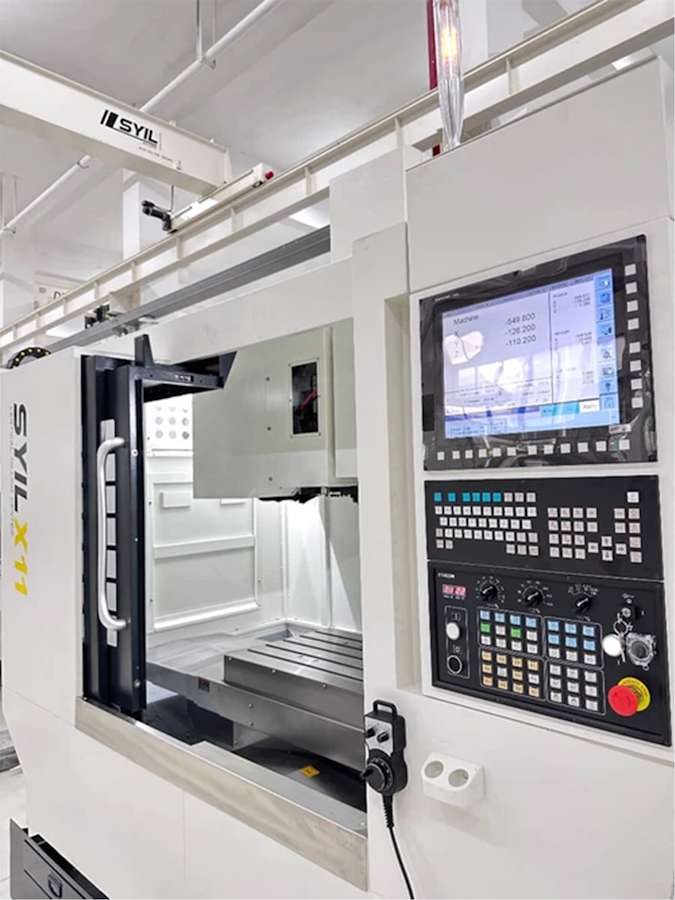

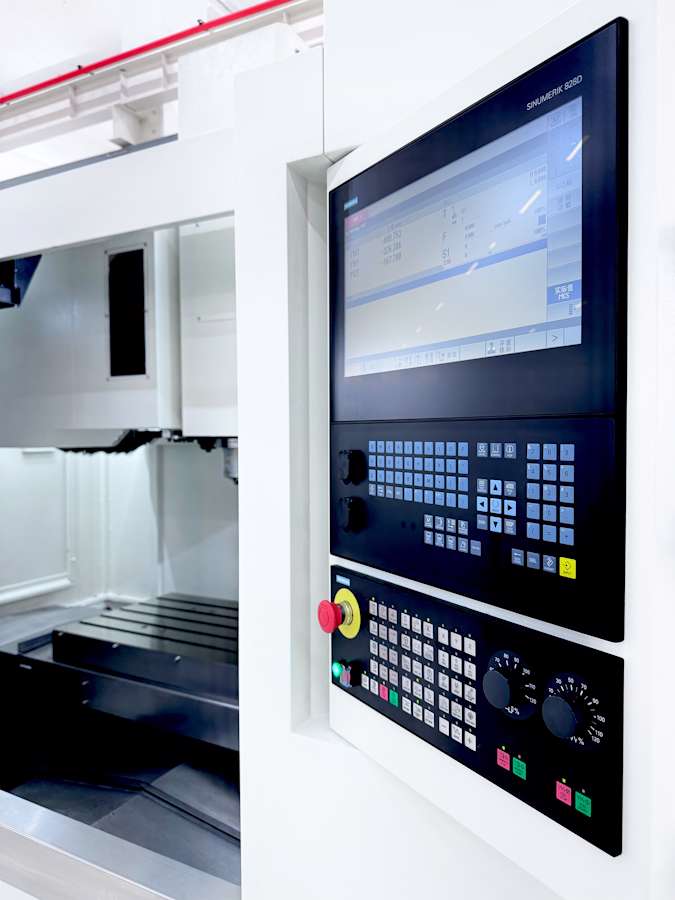

Siemens SINUMERIK 828D 15" screen CNC controller
Specifications
Table
Table Size: 1050x550 mm
T-Slots(number x size x distance): 18x5x90 mm
Maximum Table Load: 600 kg
Travel
X Travel: 1000 mm
Y Travel: 500 mm
Z Travel: 500 mm
Distance between spindle end and tabletop: 110-610 mm
Distance between spindle and column surface: 650 mm
Spindle
Spindle Nose: BT40
Spindle Speeds: 12,000 rpm/10000 rpm
Mechanism of Transmission: Direct/Belt
Feed
Cutting Feed: 10,000 mm/min
Rapid Traverse: 30,000 mm/min
Auto Tool Changer
Tool Type: Arm Type
Tool Storage Capacity: 24 pcs
Maximum Tool Diameter: 120 mm
Maximum Tool Length: 300 mm
Maximum Tool Weight: 7 kg
Tool to Tool: 2.5 s
Power
Spindle motor output (Rate/Max): 11/17 kW
Drive motors (X, Y, Z): 3.9/3.9/5.9 kW
Power Source: AC380V/ 3-Phase
Machine Size and Weight
Floor Size (LxWxH): 2600×2150×2500 mm
Weight: 5000 kg
Options:
Syntec 22MA CNC Controller with 3/4 Axis Servo Motors

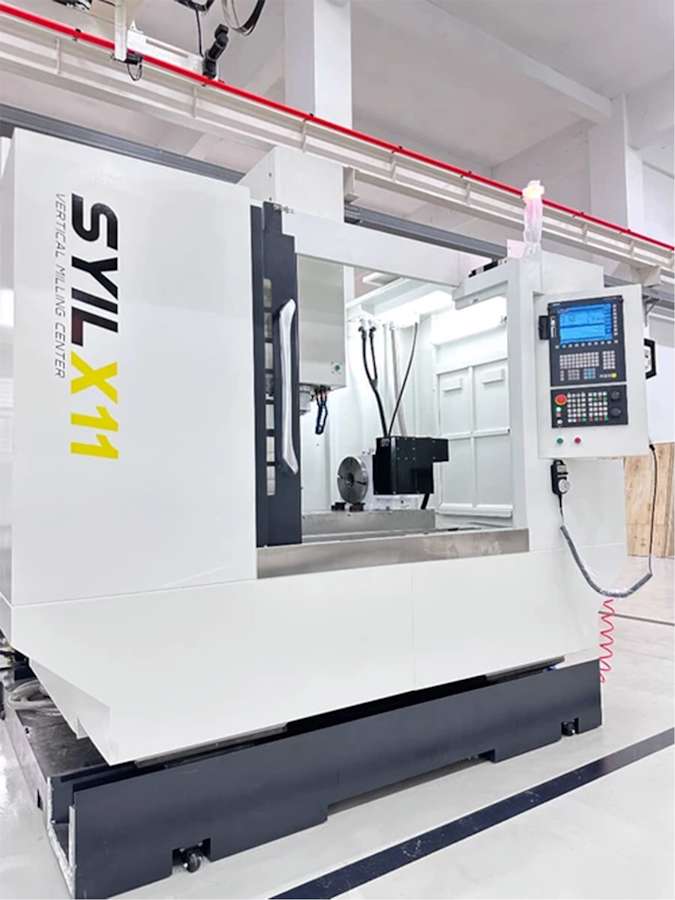

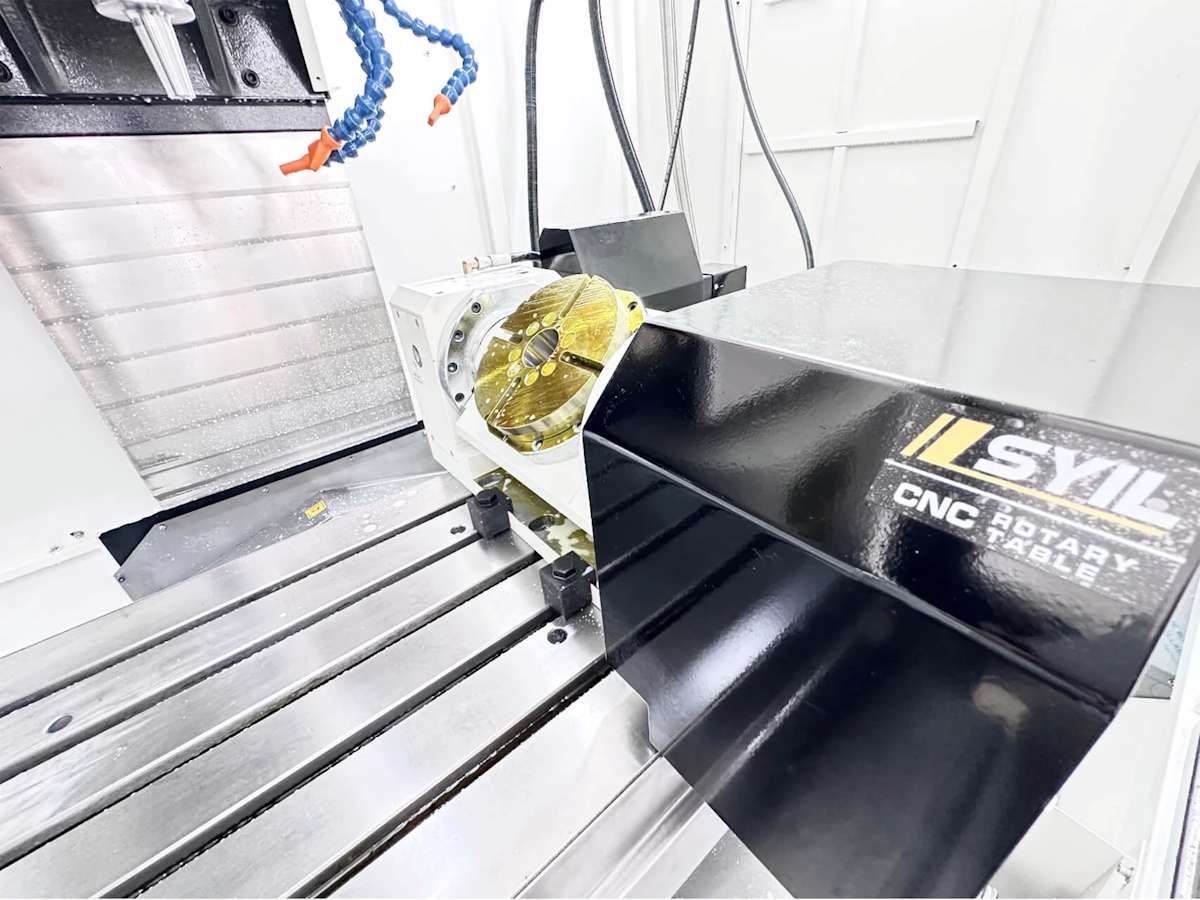

NC rotary table Servo | 4th axis 255 mm
Tail Stock for 255 mm NC rotary table
Probe System | Wireless type
Tool Setter Kits | Cable type TTC200
Filtermist
Coolant Through Spindle (CTS 20 Bar)
Chip Conveyor
Filtermist
Central Coolant System(CTS 20 Bar)
Chip Conveyor
SYIL Tooling Package
