S-Power S60 Portable Line Boring Machine (14727)
New S-Power S60 Portable Line Boring Machine (14727)
60x2200mm, Ø600mm, 3.8kW, Welding Attachment
Availability: In Stock (TBC)
Price: R 151 800.00 excl.
Standard Features:

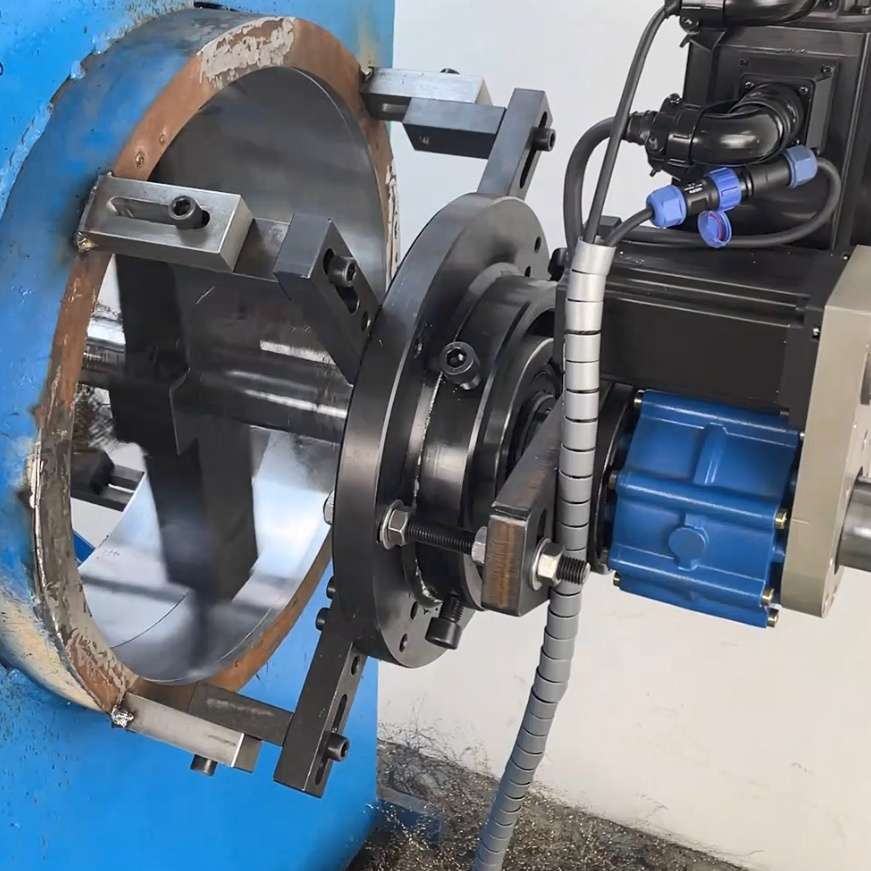

Line boring - Automatic and manual line boring with customized diameters
Automatic Welding - Easy operation, enter hole diameter and weld
Sector Welding - Elliptical hole repairs
Jump Welding - Skip grooves / keyways
Line Boring Specifications:
Boring bar diameter: 60mm
Boring bar length: 2200mm
Feeding length: mm
Working range: 40-600mm
Rated output power: 3.8KW
RPM: 30-133rpm
Output torque: 220N.m
Speed control mode: Stepless speed
Voltage selection: 220V/380V 50-60Hz
Feeding mode: Manual/Auto

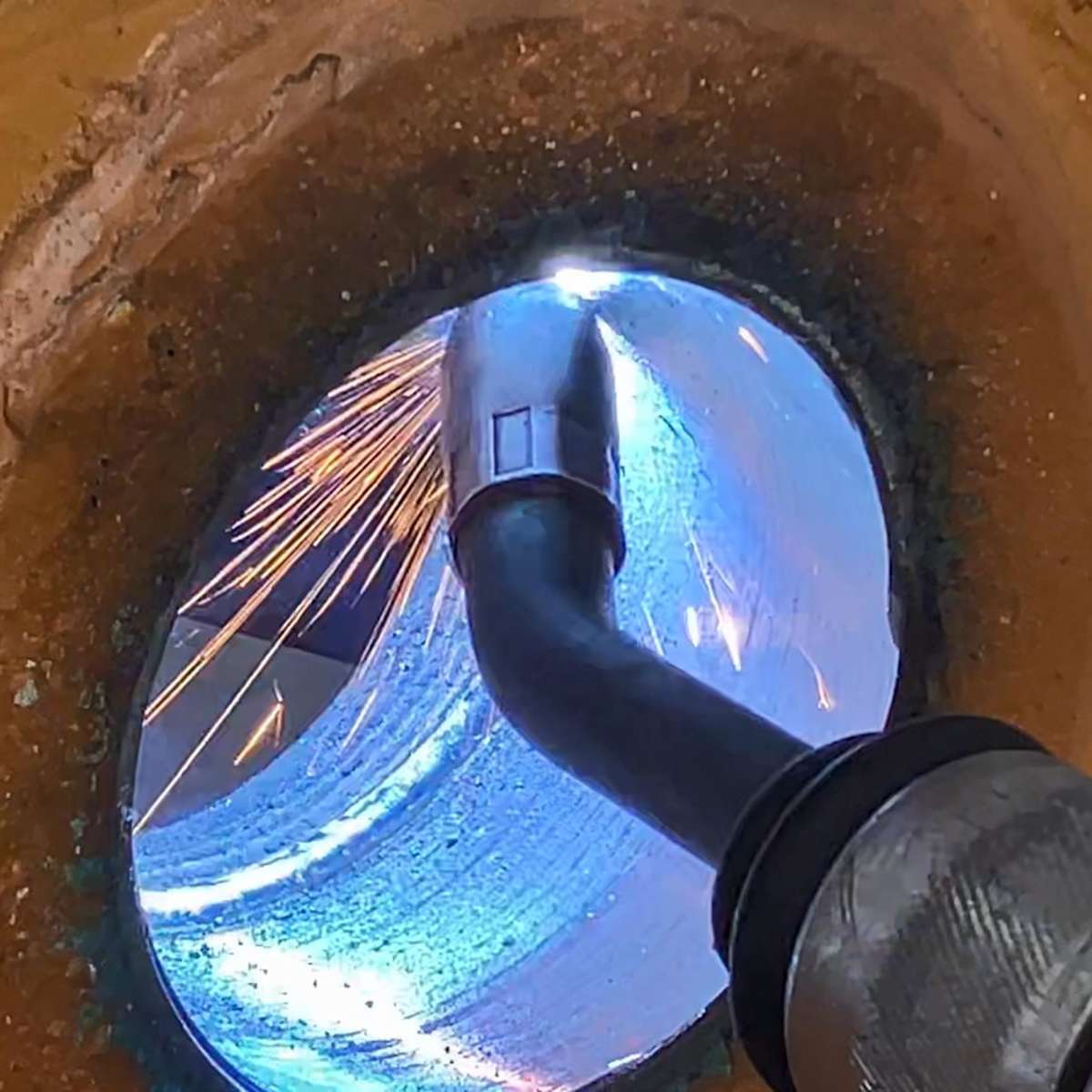

Bore Welding Specifications:
Welding bar diameter: 65-600mm
Applicable welding machine: MIG
Welding wire dia: 0.8/1.0/1.2mm

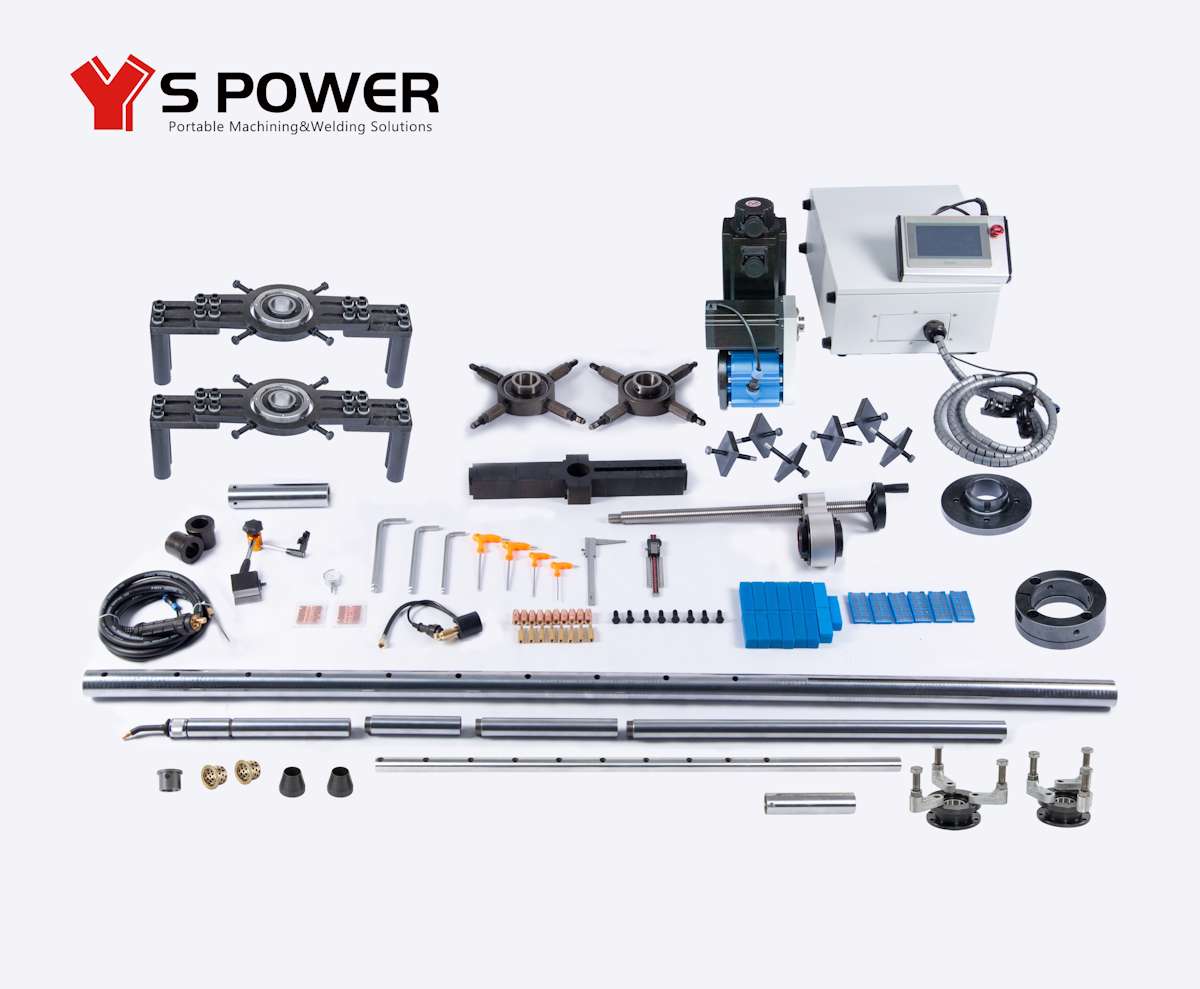

Standard Accessories:
Modular Tool holder
Reducing sleeve
Axial feed unit
Welding wire
Calipers
Welding converter head
Boring Bar
Welding bar
Bearing bracket
Insert holders
Boring inserts
Allen wrench
Anti-vibration bracket
Welding extension
Protective nozzles
Conductive nozzle
Positioning auxiliary
Graphite copper sleeves
Short reducing sleeves
Centering cones
Hexagon socket screws
Bearing seat screws
Nuts
Optional Accessories:
Flange Facing Tool F60 150-600mm
