Aore F Series CNC Fiber Laser (13913)
New Aore F Series CNC Fiber Laser (13913)
Open Type
Availability: Ex-import
Price: POA
F SERIES
Open Type Sheet Fiber Laser Cutting Machine
Efficient And Practical
Brand New Double Crossbeam Bed Structure

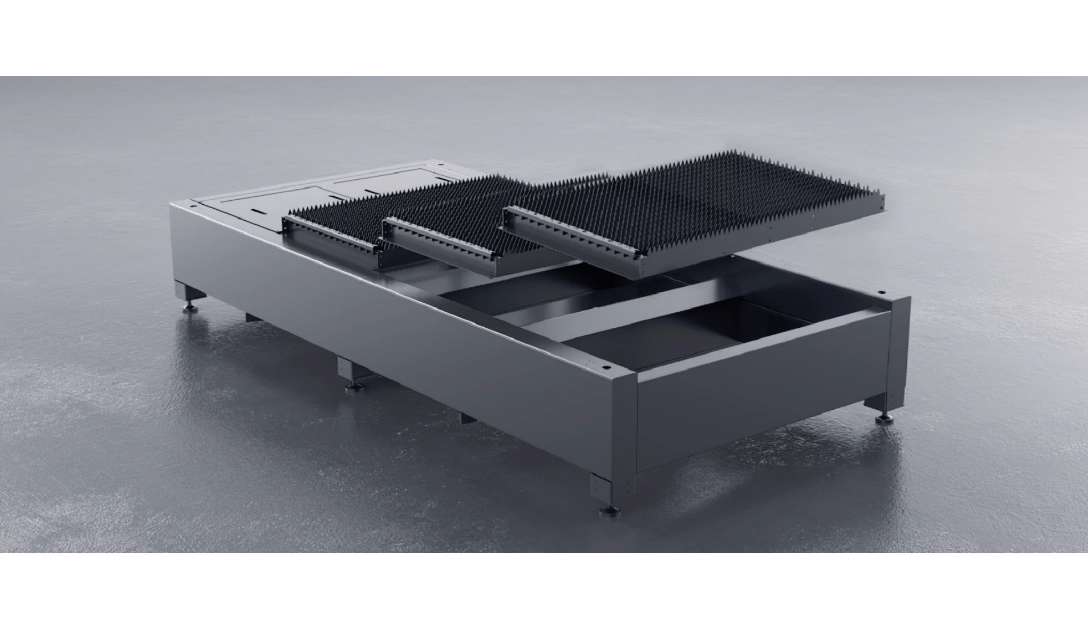

Modular Worktable Design
Specifications:
Models: F3015 / F4020 / F6020 / F8025
Laser power: 1.5-20kW
Working area: 3050*1530mm / 4050*2030mm / 6050*2030mm / 8050*2530mm
Cutting Thickness:
| Material | 1.5kW | 3kW | 6kW | 12kW | 20kW |
| Carbon steel | 1-16 | 1-22 | 1-30 | 1-40 | 1-60 |
| Stainless steel | 1-6 | 1-10 | 1-18 | 1-30 | 1-50 |
| Brass | 1-4 | 1-6 | 1-14 | 1-18 | 1-20 |
| Aluminium | 1-3 | 1-6 | 1-14 | 1-18 | 1-20 |
Positioning accuracy: 0.05mm
Repeated positioning accuracy: 0.03mm
Max. running speed: 115m/min

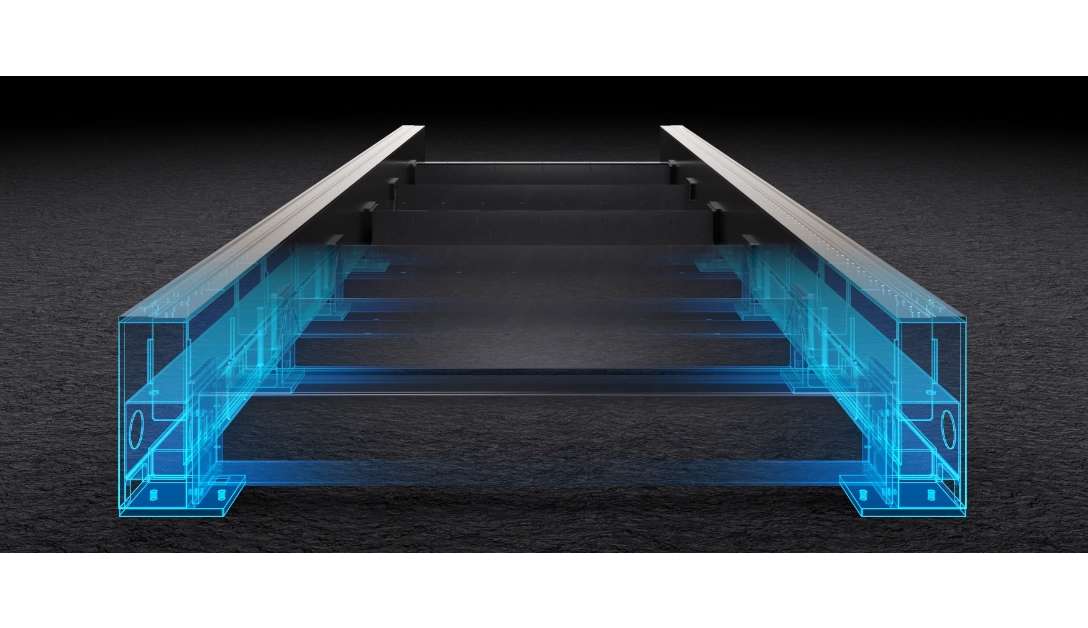

Double Bed Structure
Designed for high-efficiency processing needs.
Self-developed stopper plug-in double bed design.
No deformation in long-term cutting, ensuring stable operation.

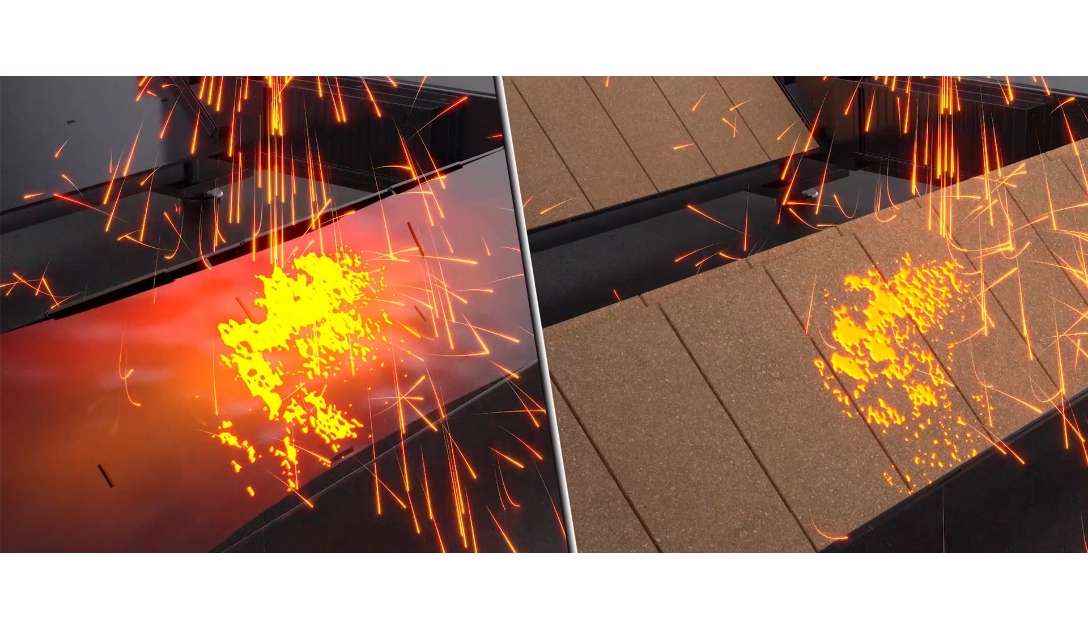

New Heat Insulation Technology
Adopting new fire-resistant and heat-insulating technology.
Improving equipment lifespan.
Intelligent Dust Removal for Clean Production
Large-diameter air duct design.
Independent control, sectional dust removal.
Improves smoke and heat removal effectiveness.

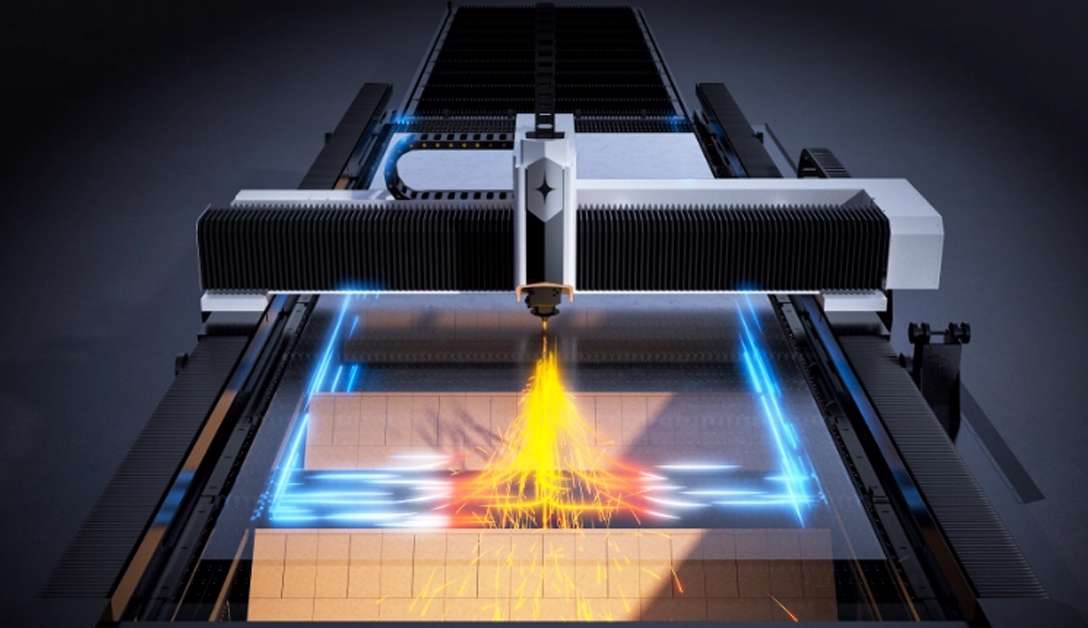

Dynamic collision sensing
Detects potential warping of the sheet in advance, automatically avoids obstacles and reducing maintenance costs on the laser head.

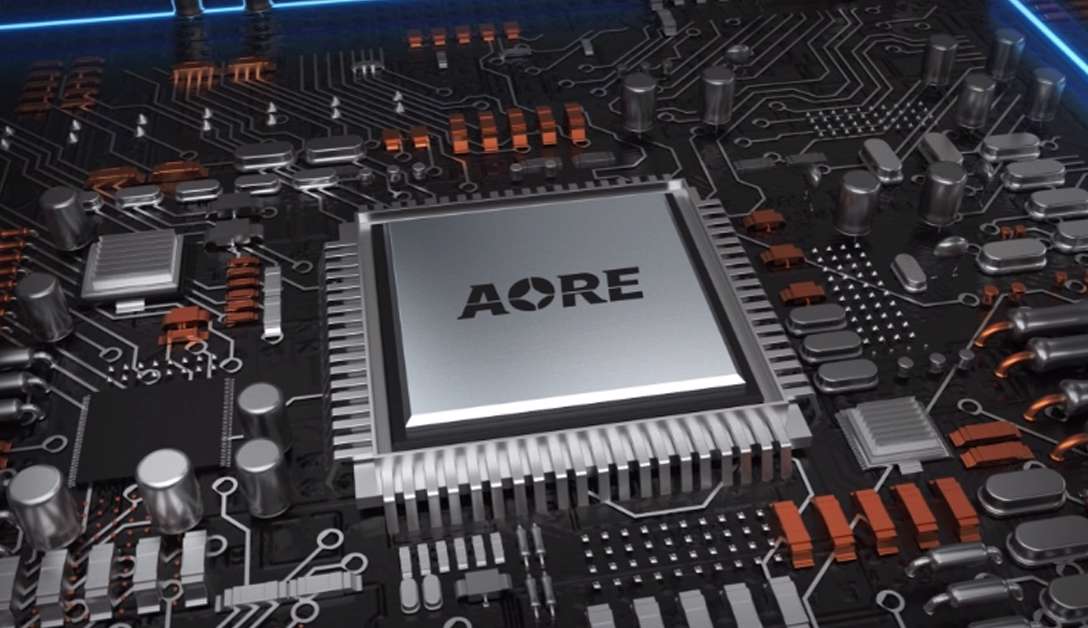

AORE Core Technology
Intelligent Bus Technology.
Overall Packaging Technology.
Constant Temperature Cooling Technology.
Precision Control Technology.
AORE Core Control System
Quick response, high efficiency - Utilizing EtherCAT bus technology.
Versatile, easy to master - Equipped with hundreds of process libraries.
Wide coverage, without barrier - Supports 15 file formats and 14 language.
Personalized - Provides unique manufacturing user experience.

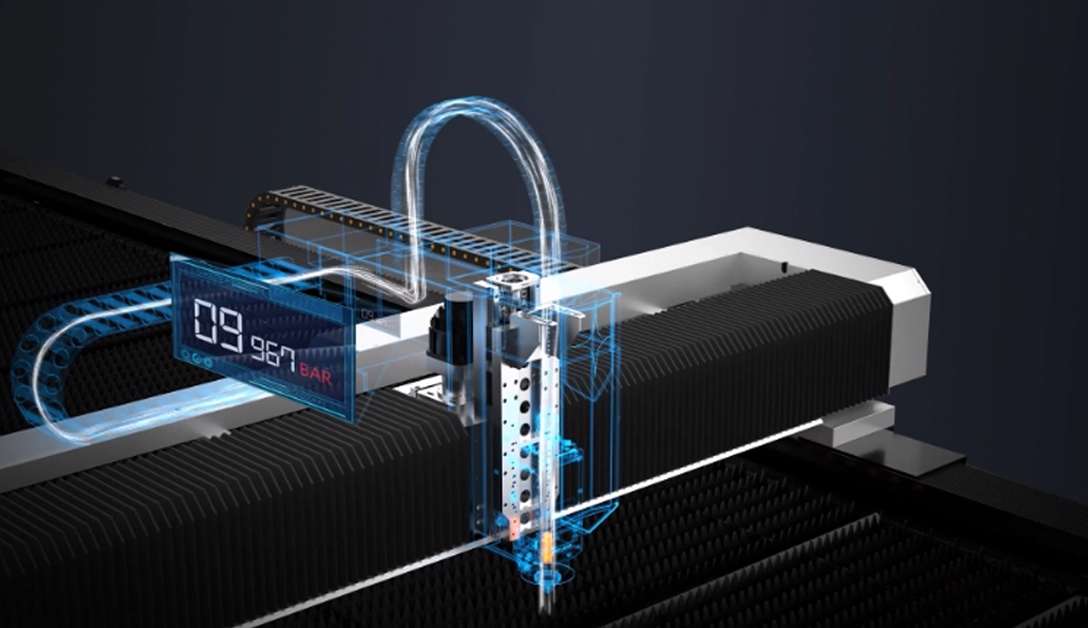

AORE Sword Laser Head
High intelligent, immediate awareness.
Resistant to interference, worry-free transmission.
Impact-resistant, zero maintenance.
Fully water-cooled, temperature control.
AORE Power Laser Source
High conversion rate, low energy consumption.
Resistant to high feedback, strong protection.
High integration, minimal footprint.
Optional
Screw compressor
Voltage stabilizer
Dust collector
