Aore PG Series CNC Fiber Laser (13912)

New Aore PG Series CNC Fiber Laser (13912)

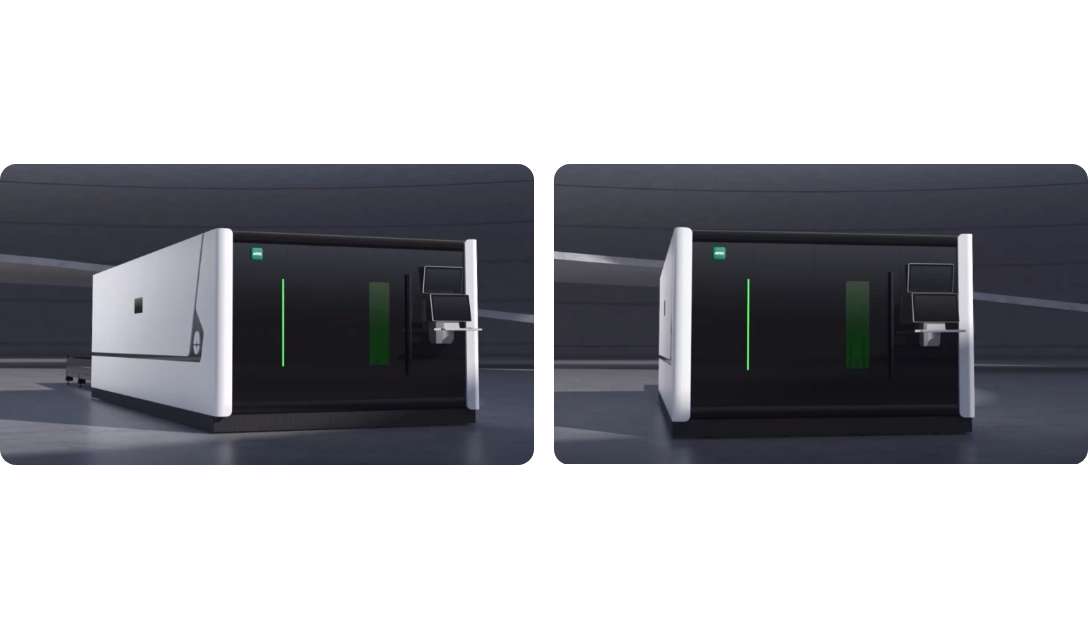

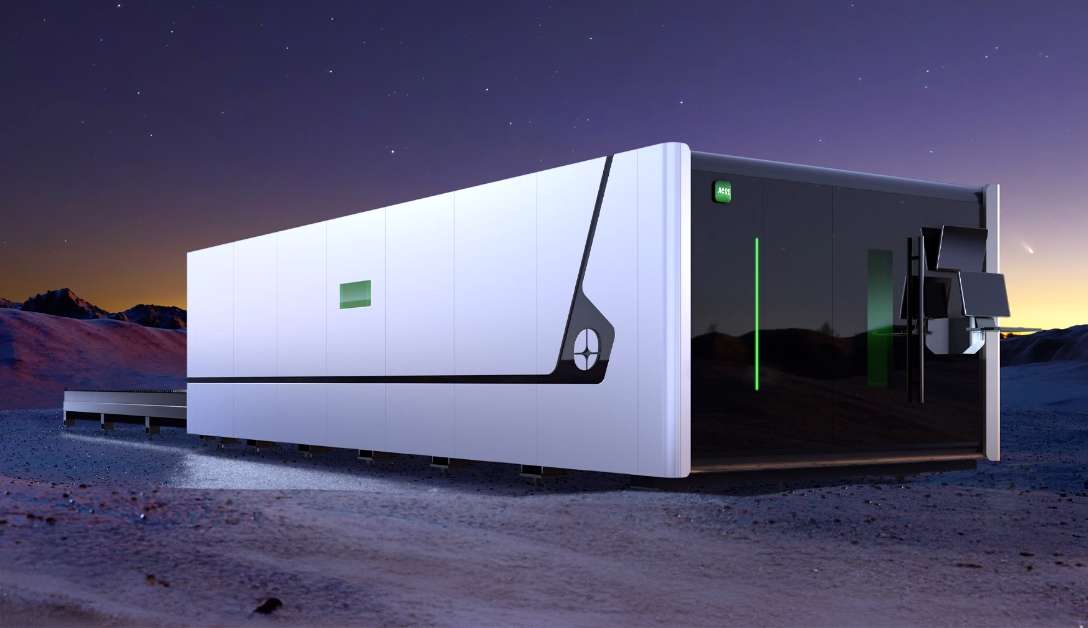

Full Protective Cover

Availability: Ex-import

Price: POA

PG SERIES
Full Protective Cover Sheet Fiber Laser Cutting Machine

Efficient And Practical

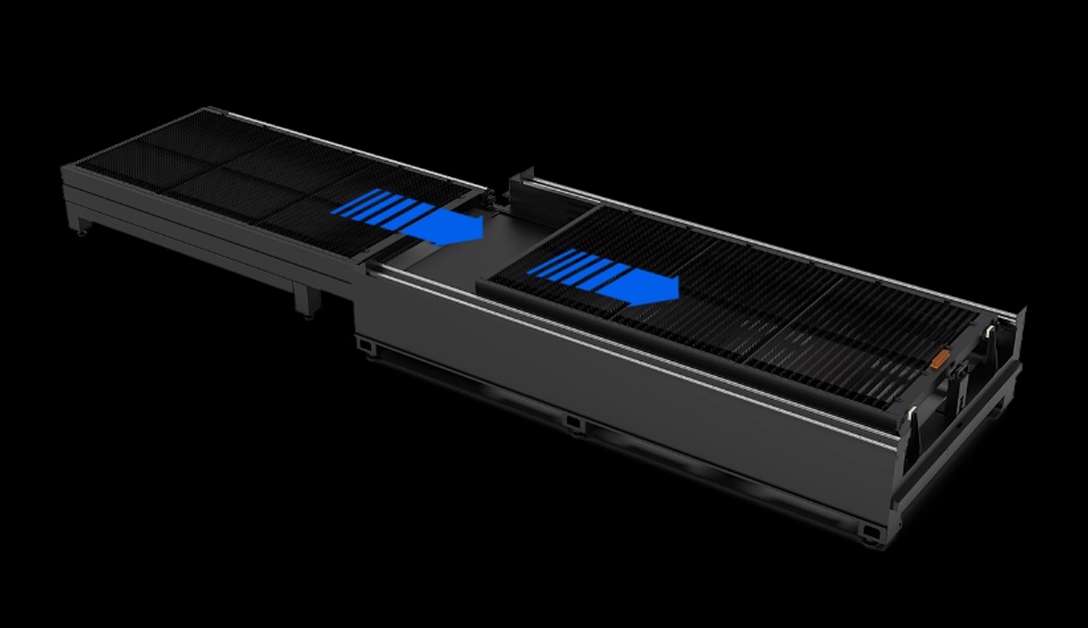

Intelligent Exchange Platform For Rapid Swapping
Brand New Double Crossbeam Bed Structure

Specifications:
Models: PG3015 / PG4020 / PG6020 / PG8025
Laser power: 1.5-40kW
Working area: 3050*1530mm / 4050*2030mm / 6050*2030mm / 8050*2530mm
Cutting thickness:

Material	1.5kW	3kW	6kW	12kW	20kW
Carbon steel	1-16	1-22	1-30	1-40	1-60
Stainless steel	1-6	1-10	1-18	1-30	1-50
Brass	1-4	1-6	1-14	1-18	1-20
Aluminium	1-3	1-6	1-14	1-18	1-20

Positioning accuracy: 0.03mm
Repeated positioning accuracy: 0.02mm
Max. running speed: 120m/min

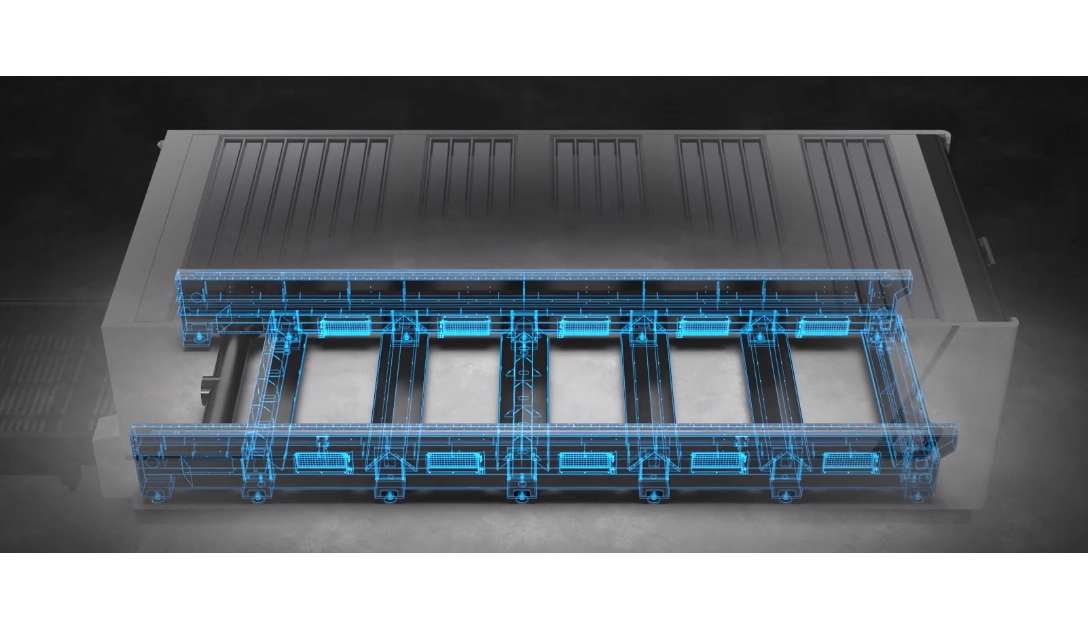

Double Bed Structure
Designed for high-efficiency processing needs.
Self-developed stopper plug-in double bed design.
No deformation in long-term cutting, ensuring stable operation.

New Heat Insulation Technology
Adopting new fire-resistant and heat-insulating technology.
Improving equipment lifespan.

Intelligent Dust Removal for Clean Production
Large-diameter air duct design.
Independent control, sectional dust removal.
Improves smoke and heat removal effectiveness.

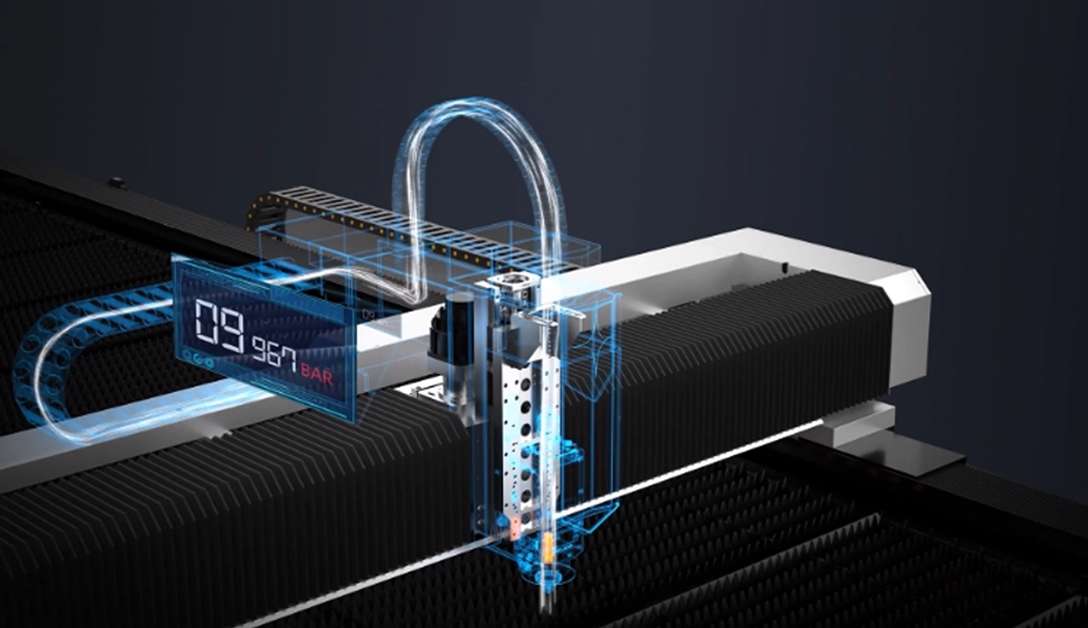

Dynamic collision sensing
Detects potential warping of the sheet in advance, automatically avoids obstacles and reducing maintenance costs on the laser head.

AORE Core Technology
Intelligent Bus Technology.
Overall Packaging Technology.
Constant Temperature Cooling Technology.
Precision Control Technology.

AORE Core Control System
Quick response, high efficiency - Utilizing EtherCAT bus technology.
Versatile, easy to master - Equipped with hundreds of process libraries.
Wide coverage, without barrier - Supports 15 file formats and 14 language.
Personalized - Provides unique manufacturing user experience.

AORE Sword Laser Head
High intelligent, immediate awareness.
Resistant to interference, worry-free transmission.
Impact-resistant, zero maintenance.
Fully water-cooled, temperature control.

AORE Power Laser Source
High conversion rate, low energy consumption.
Resistant to high feedback, strong protection.
High integration, minimal footprint.

Optional
Screw compressor
Voltage stabilizer
Dust collector
