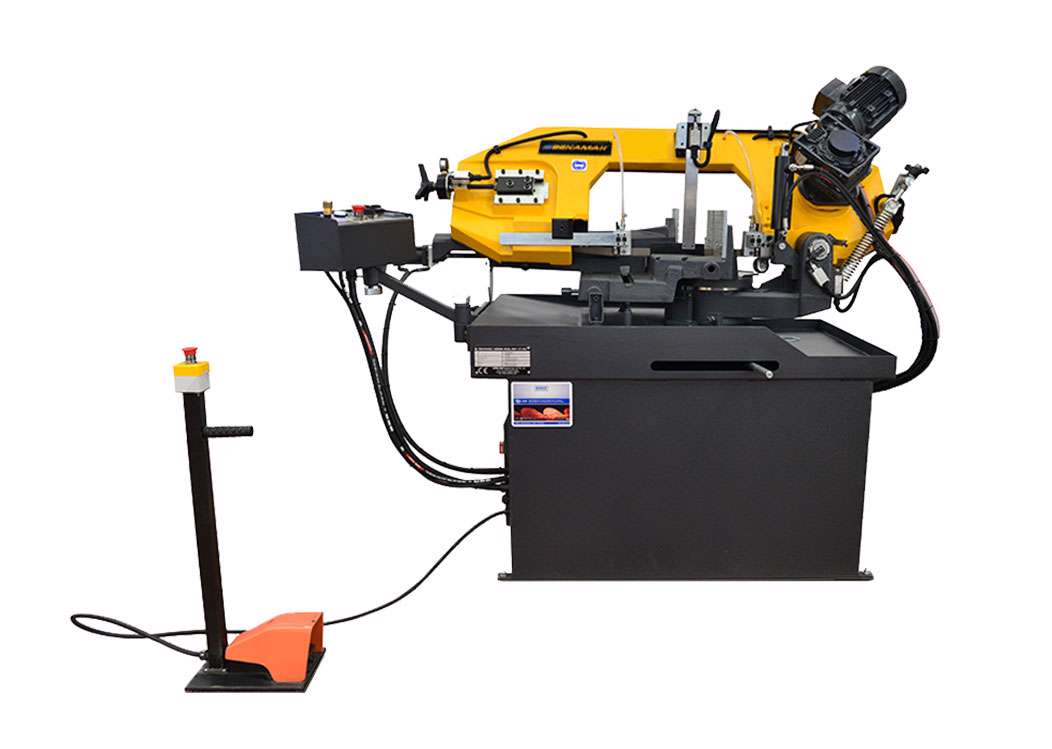

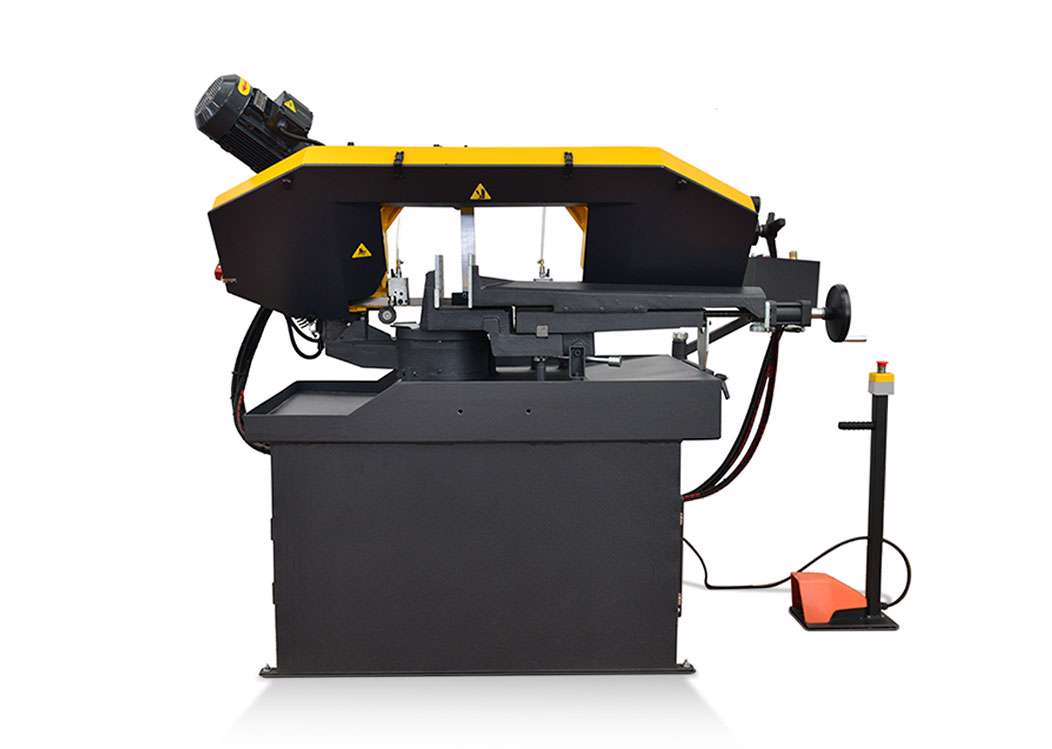

New Bekamak BMSY-270DGH Horizontal Band Saw (4701)

Ø270, 350 x 220, 1.5kW, Semi-Auto, Double Mitre

Availability: In Stock (TBC)

Price: R 169 500.00 excl.

https://www.thmachinetools.co.za/product/4701

• Specification
• Downloads
• Videos
• T & C's
• Delivery
• Financing

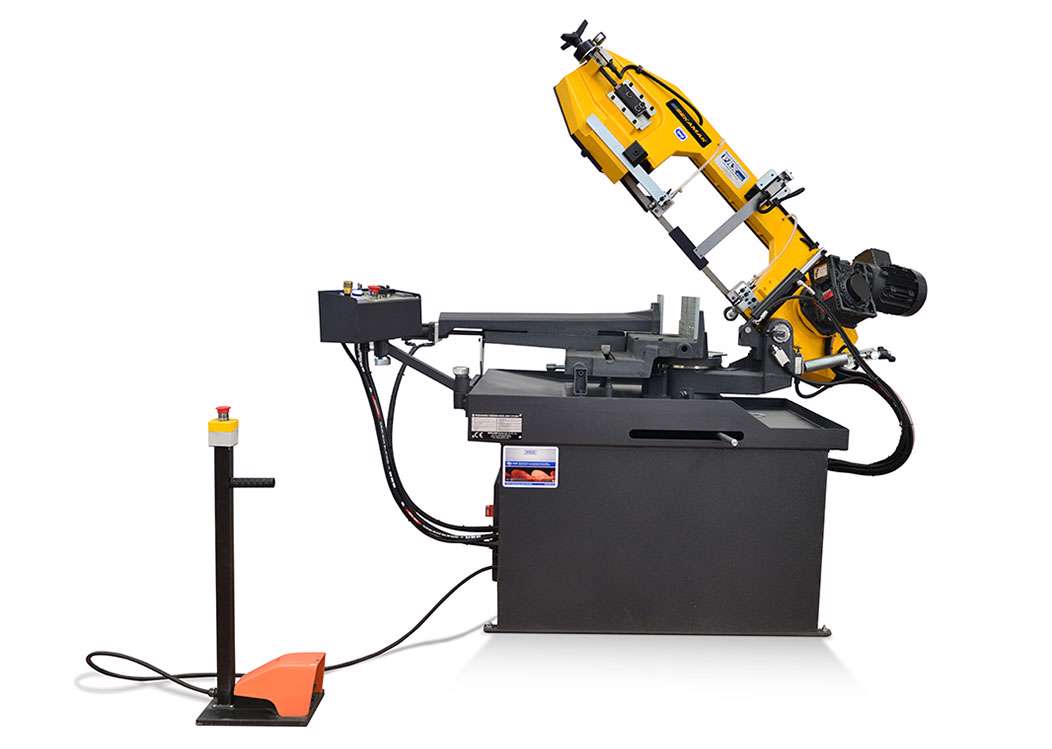

Semi-automatic double miter for cutting profiles, solid steel and non-ferrous material
Robust constructed monoblock saw frame
Hydraulic clamping of horizontal vise (not BMSY 230 DG)
Automatic saw frame raising on cut end
Continuously adjustable belt speed 34-68 m / min BMSY 270 DGH / 20-100 m / min BMSY DGH 360 /440 DGH
Sensitive cutting pressure regulation function
Hydraulic-mechanical belt tension

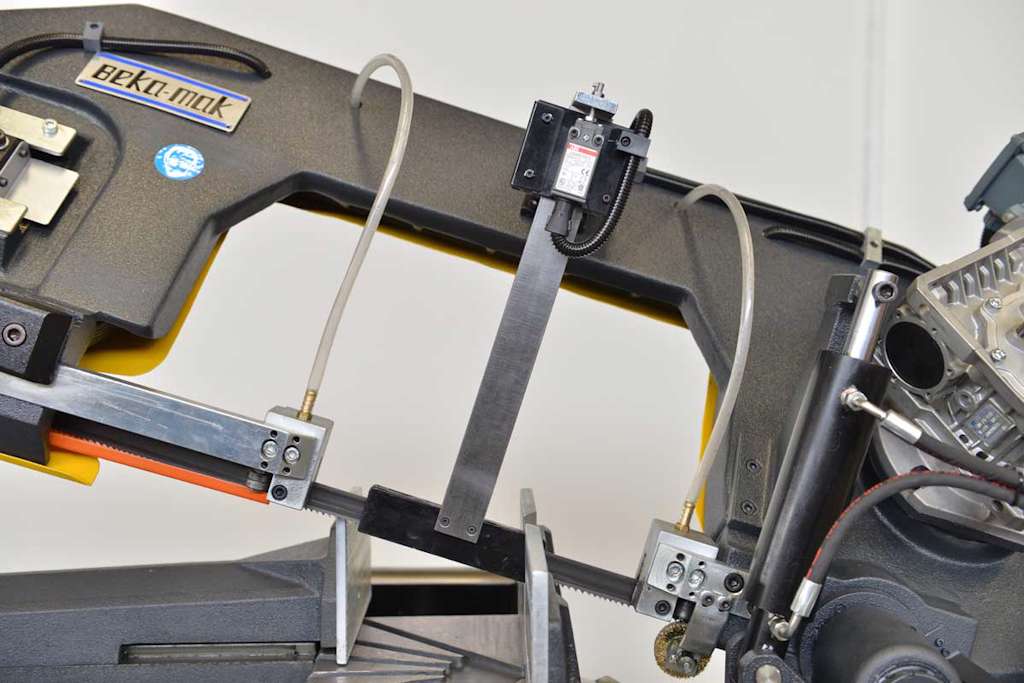

Tape guide with hard metal pads sheets and rolls
Thermal overload protection
Automatic shut-off after cut end
Automatic belt break protection


Technical Details

0° Round Cutting Capacity

270mm

0° Round Cutting Capacity	270mm
0° Flat Cutting Capacity	350 x 220mm
0° Square Cutting Capacity	270mm
-45° Round Cutting Capacity	210mm
-45° Flat Cutting Capacity	270 x 210mm
-45° Square Cutting Capacity	180mm
+45° Round Cutting Capacity	240mm
+45° Flat Cutting Capacity	270 x 200mm
+45° Square Cutting Capacity	170mm
+60° Round Cutting Capacity	150mm
+60° Flat Cutting Capacity	150 x 100mm
+60° Square Cutting Capacity	100mm
Main Drive Motor	1,5kW

Hydraulic Motor0,37kW
Coolant Pump	0,12kW
Cutting Speeds	20 - 100m/min.
Band Dimensions	3160x27x0,9mm
Working Height	910mm
L/W/H:	1730vmm / 770mm/1460mm
Weight	527kg

Standard Features
Saw Blade 27
Height Adjustment Switch

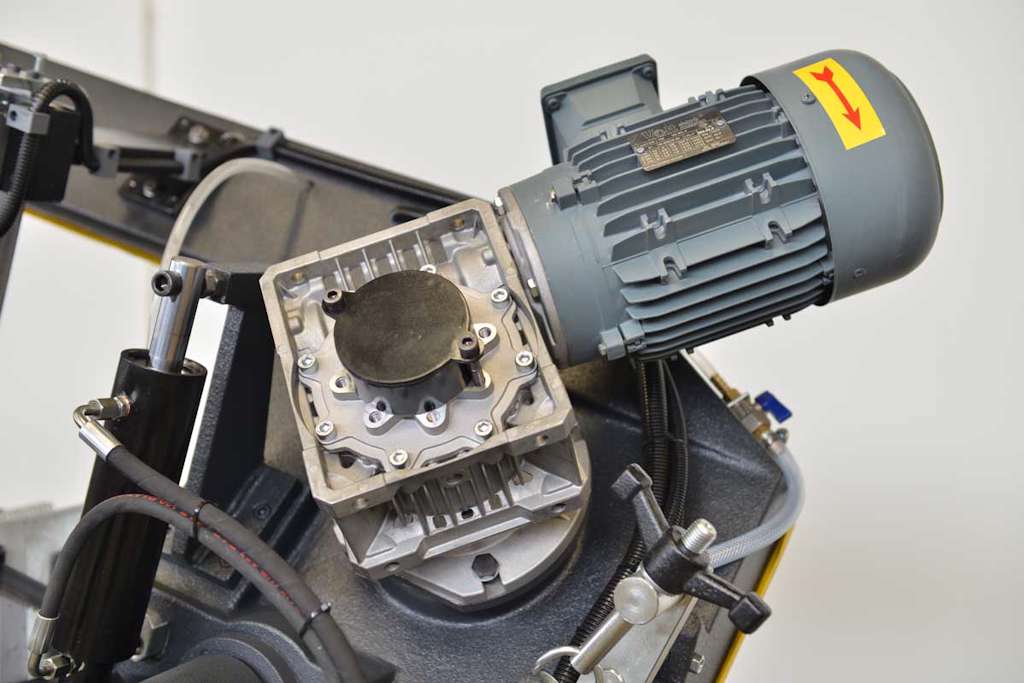

Heavy Duty Gearbox

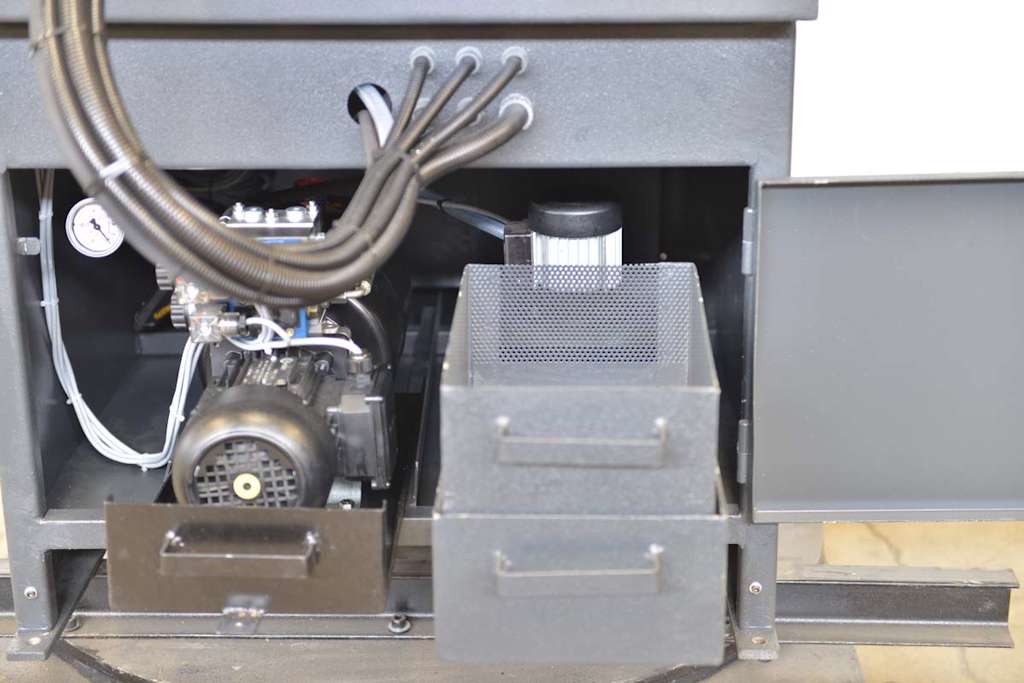

Coolant Pump

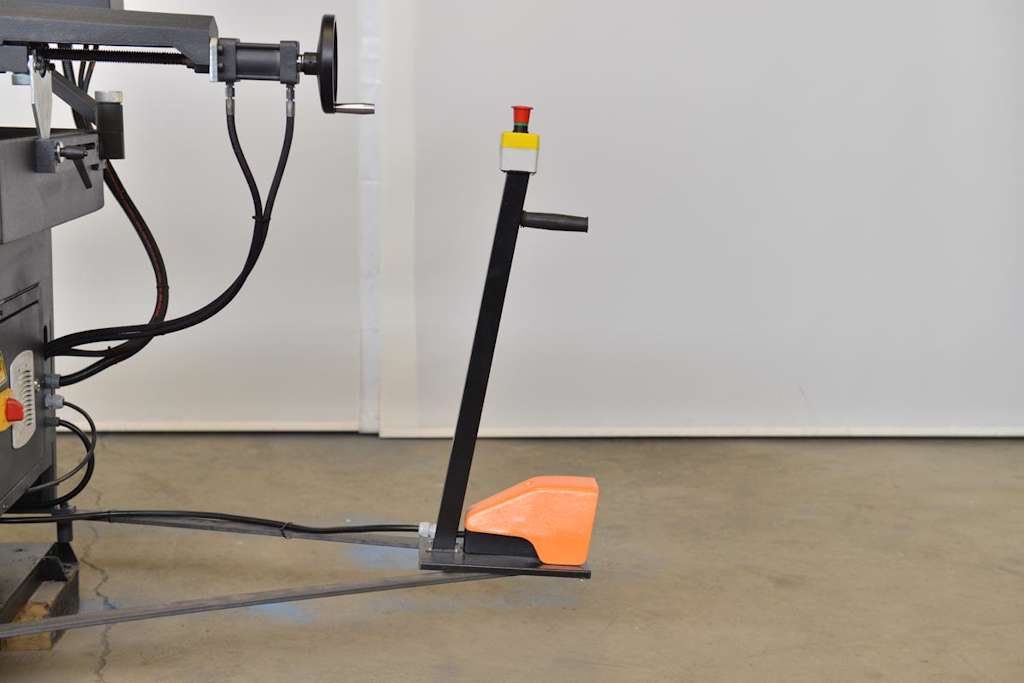

Foot Pedal

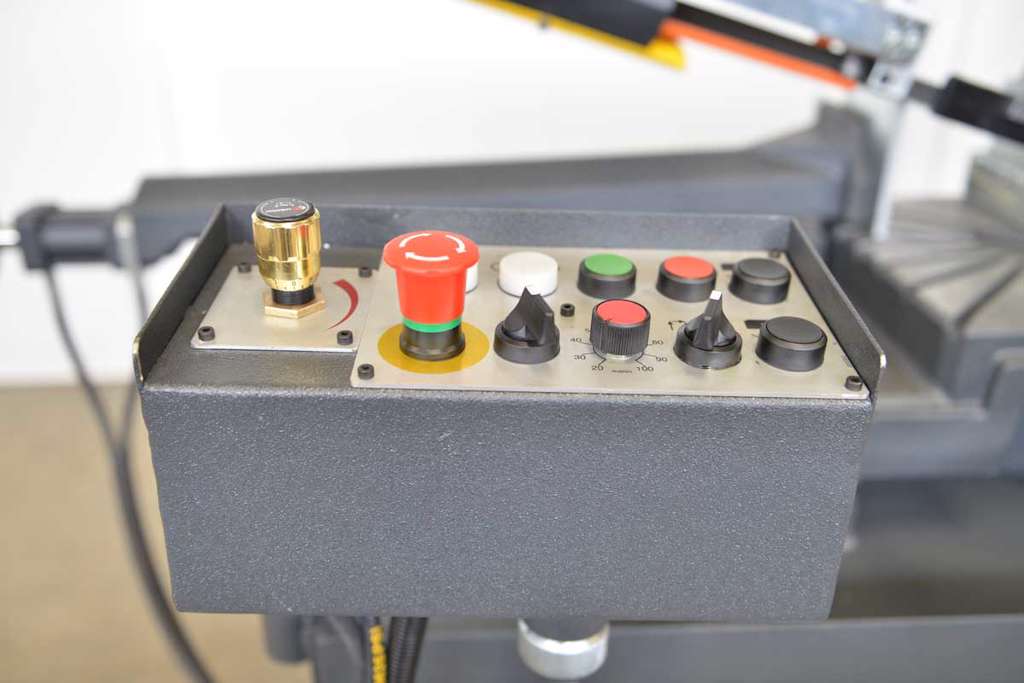

Control Panel

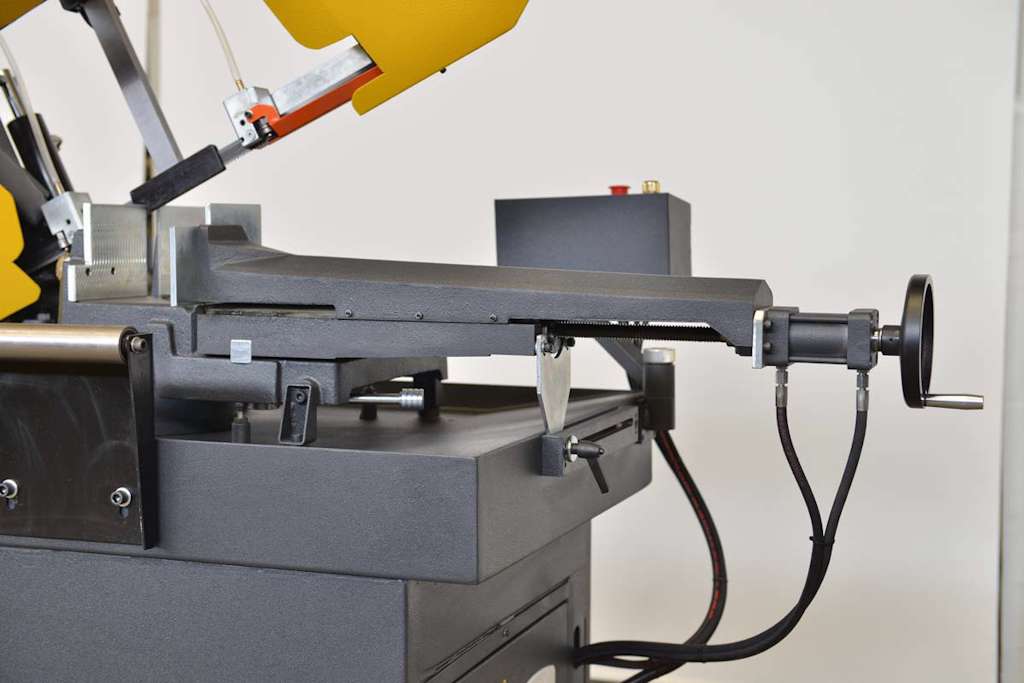

Hydraulic Vice

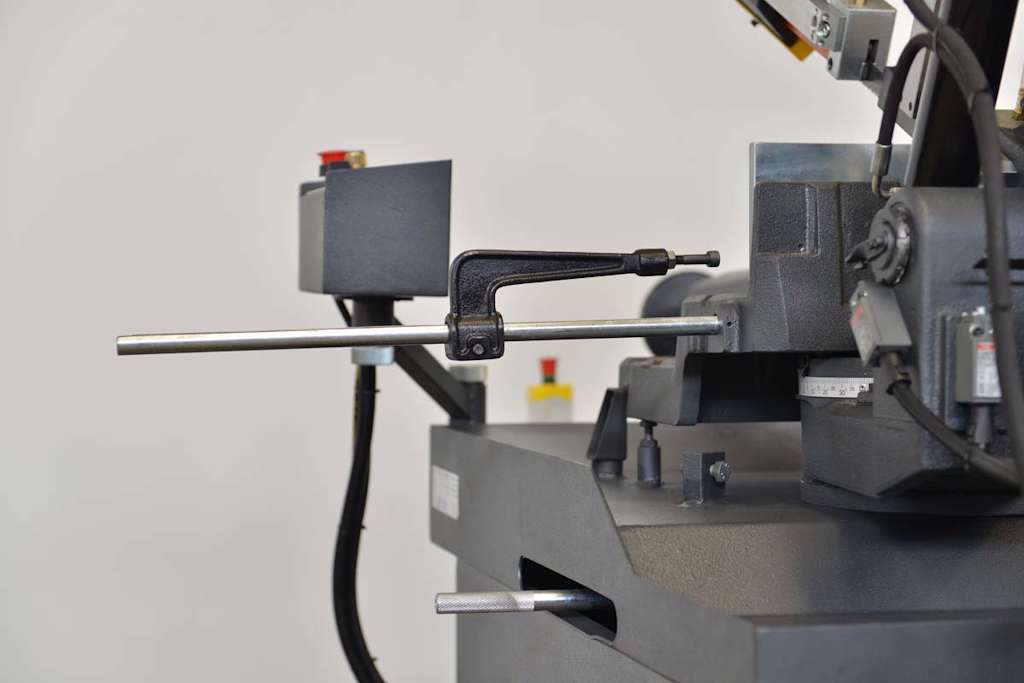

Material Limit Shaft

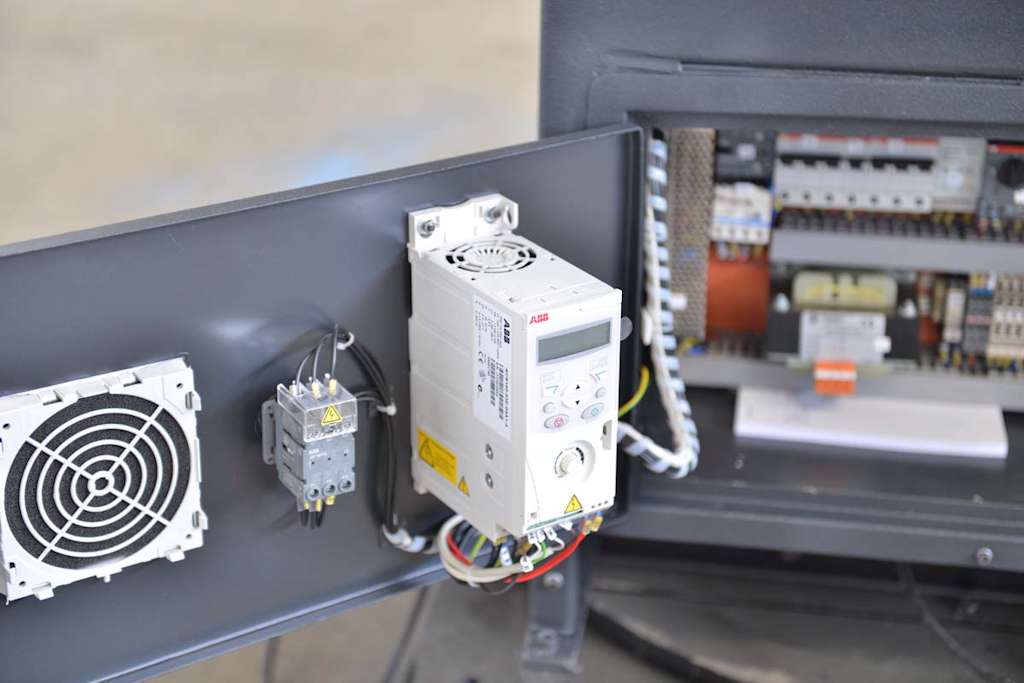

Inverter

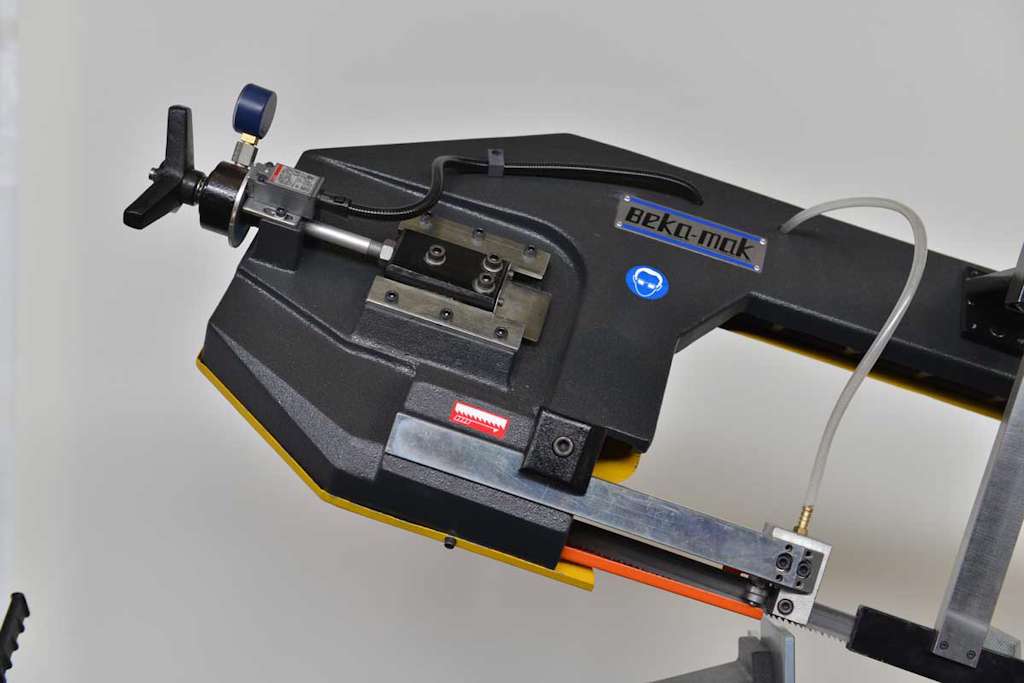

Hydromechanical Blade Tension

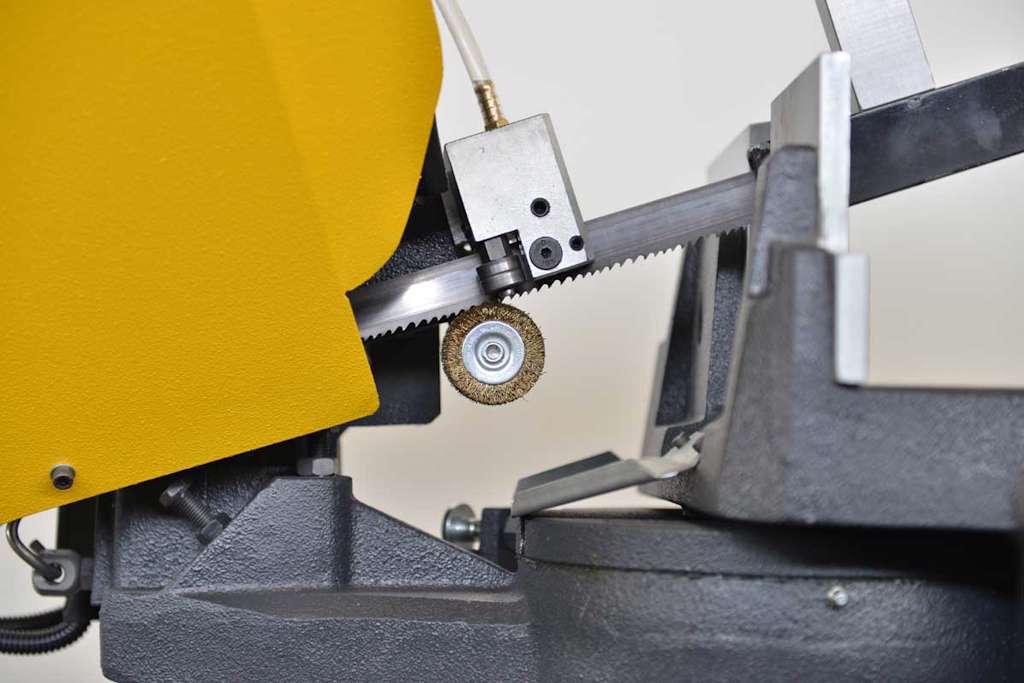

Blade Brush

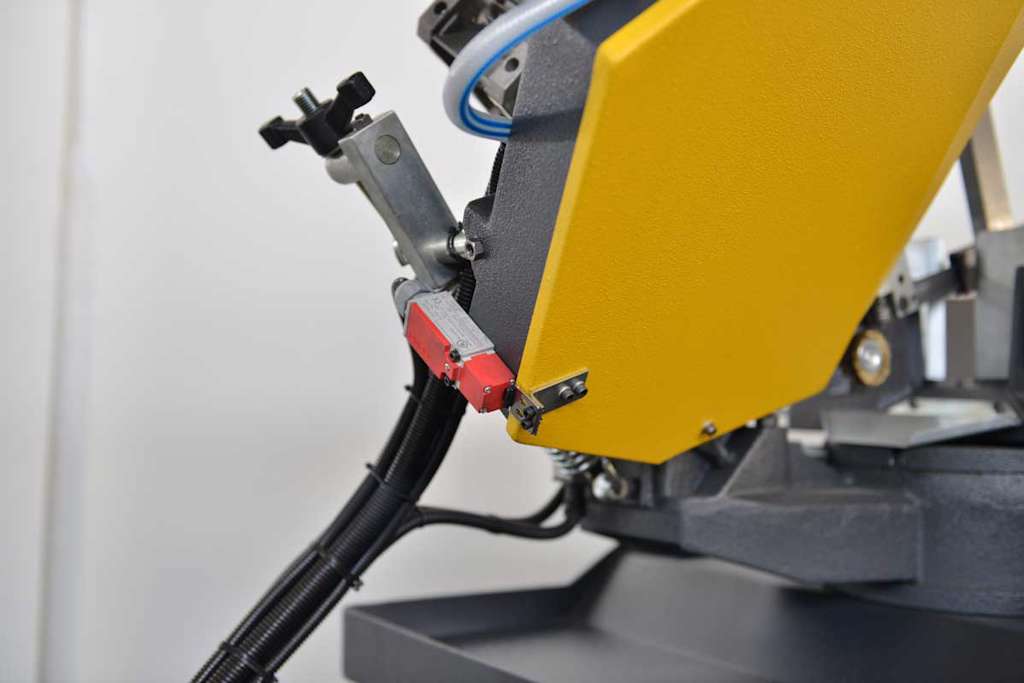

Security Switch


Optional Features

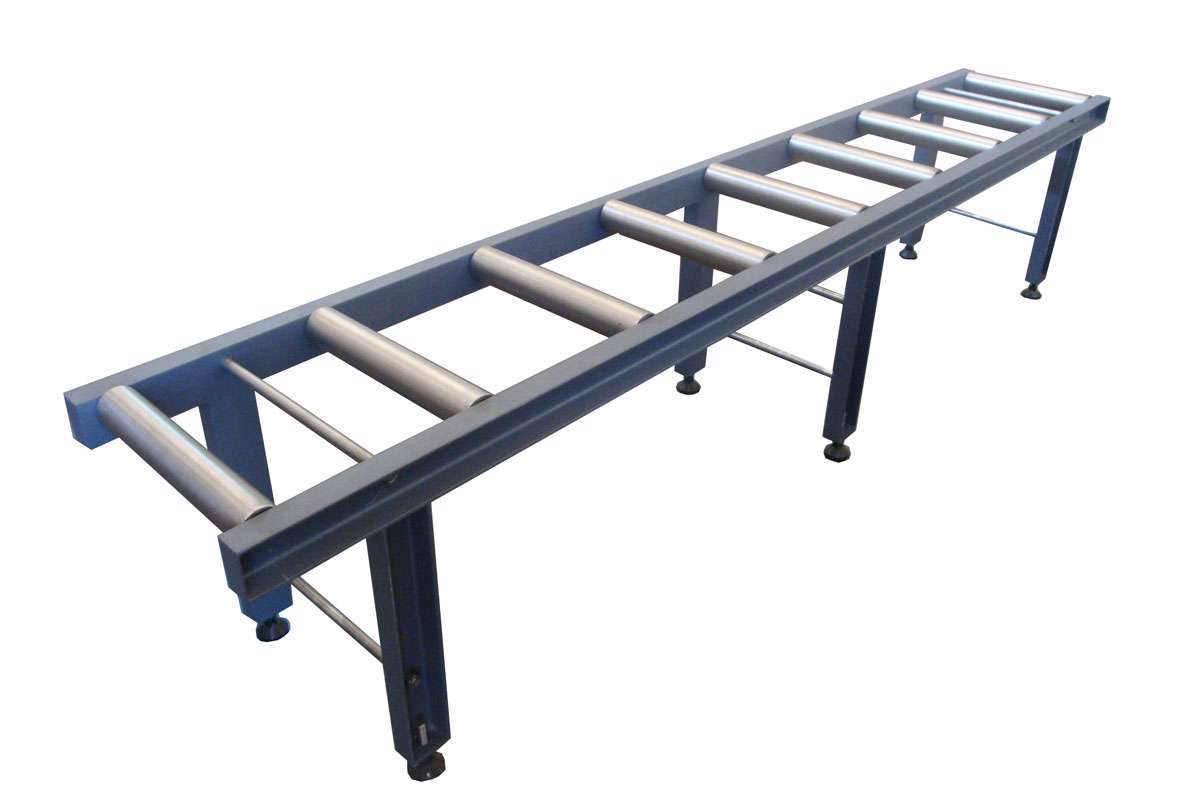

3 Mt Material Roller Table

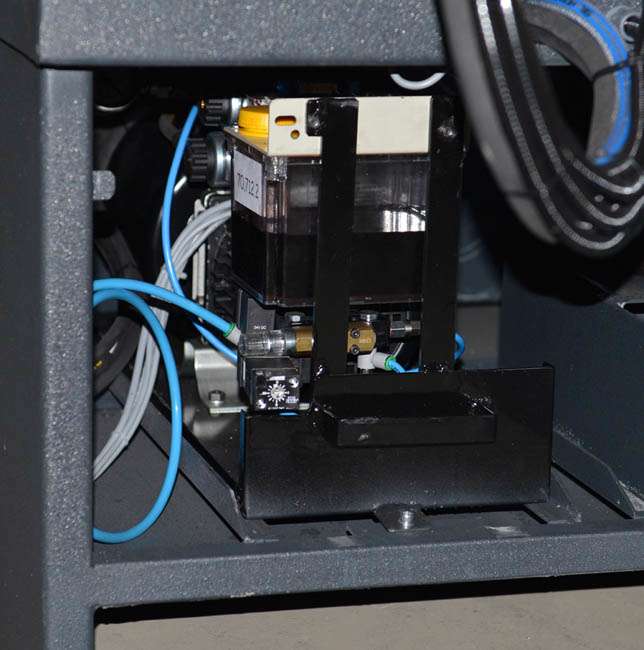

Microspray Device
