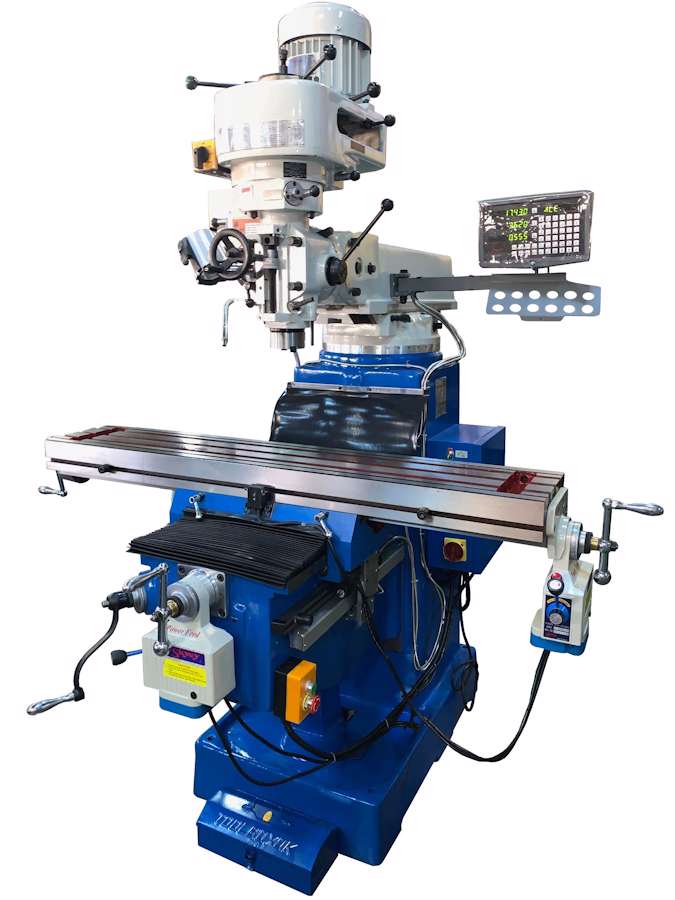

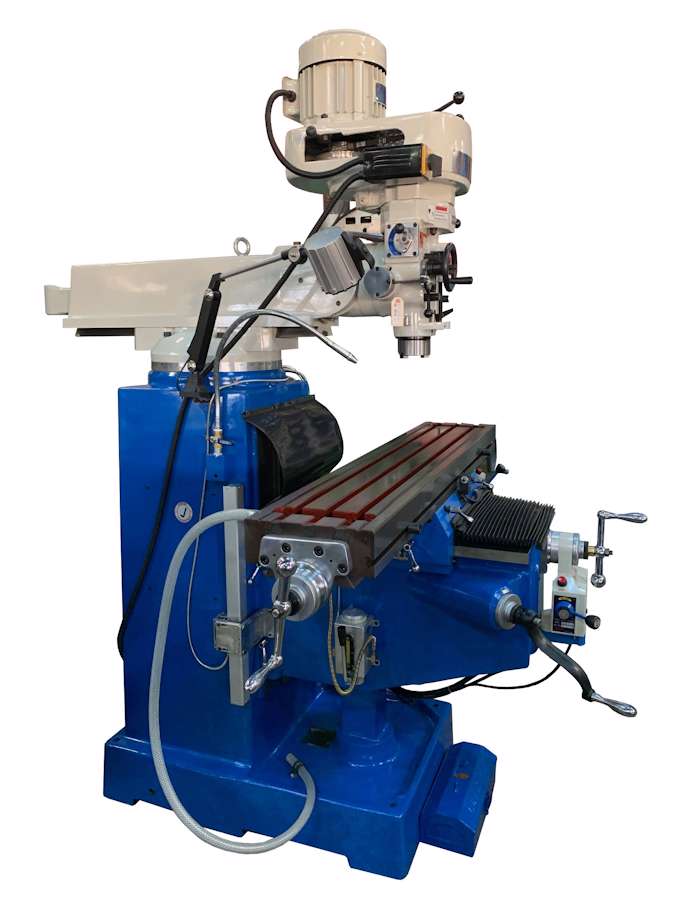

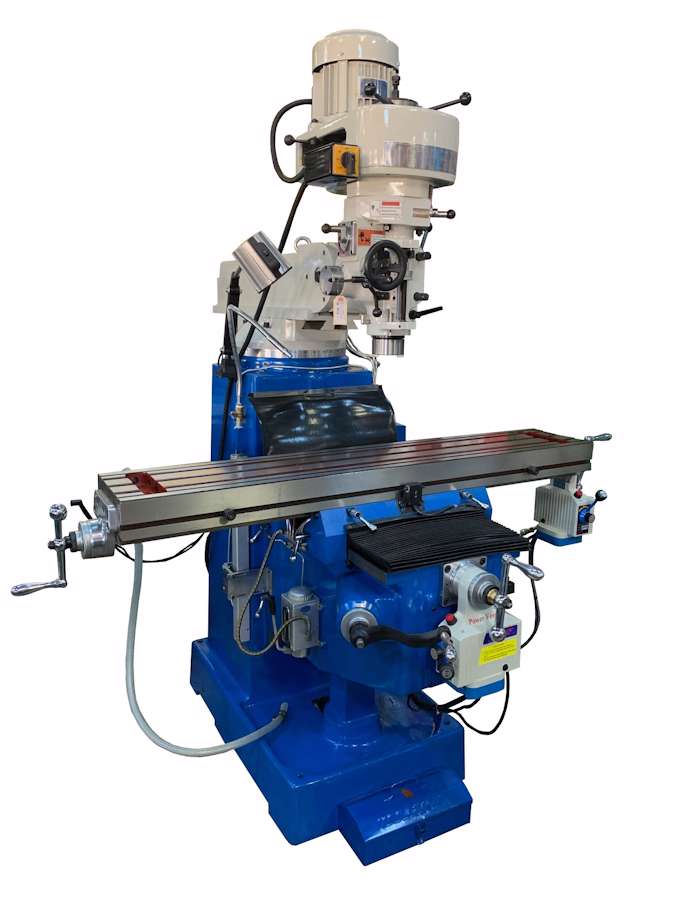

SMAC X6325 Turret Milling Machine (6202)
New SMAC X6325 Turret Milling Machine (6202)
Step Pulley, ISO40,Bed 254 x 1370, 3-axis DRO
Availability: E.T.A. 13 Nov 2024
Price: R 159 100.00 excl.
Step pulley
Bed size: 254 x 1370mm
Bed travel: 800mm
Cross travel: 405mm
Knee travel: 405mm

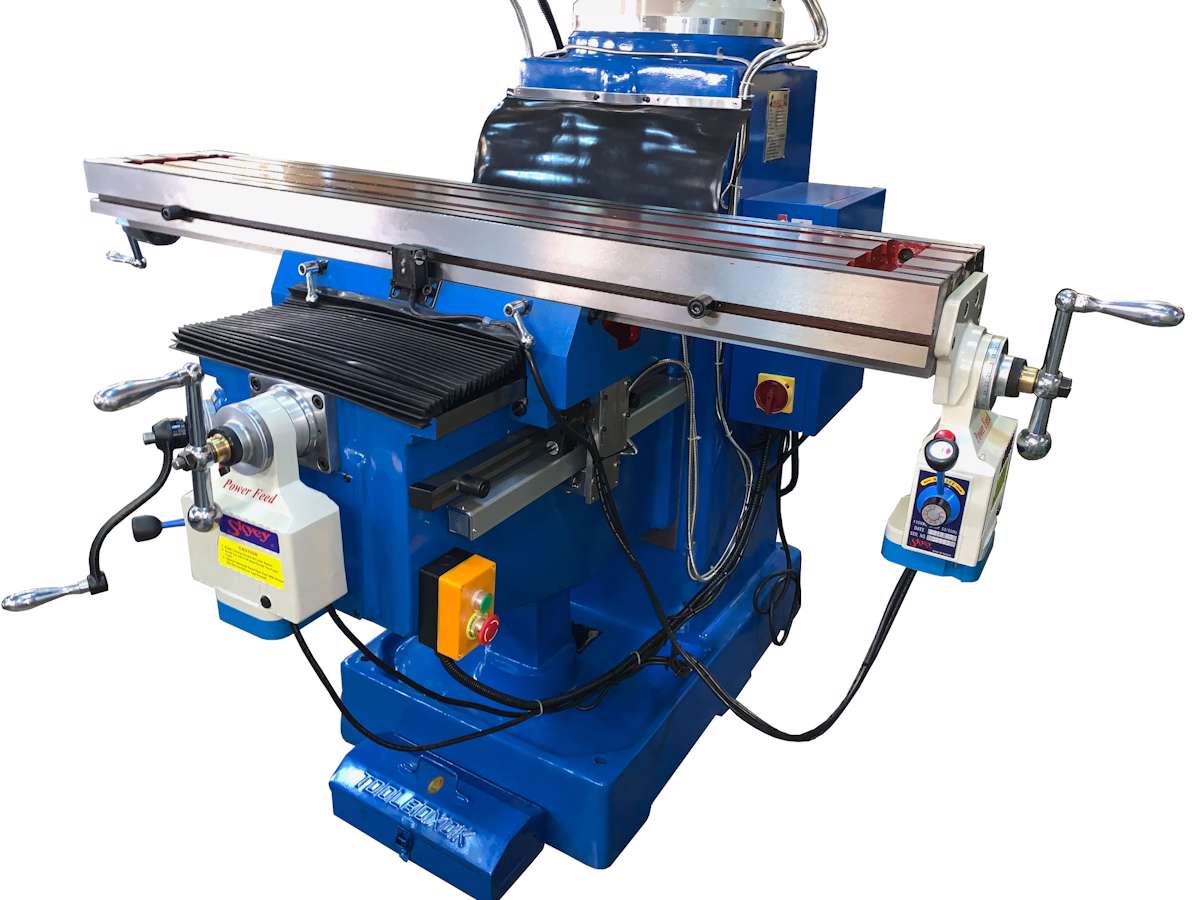

2x Powerfeed
Spindle taper: ISO40
Spindle travel: 127mm
Spindle speed: 60~3600rpm
Spindle motor: 3HP
Dimensions: 1905 x 1879 x 2235 (LxWxH)
Weight: 1180kg
MACHINE ACCESSORIES:

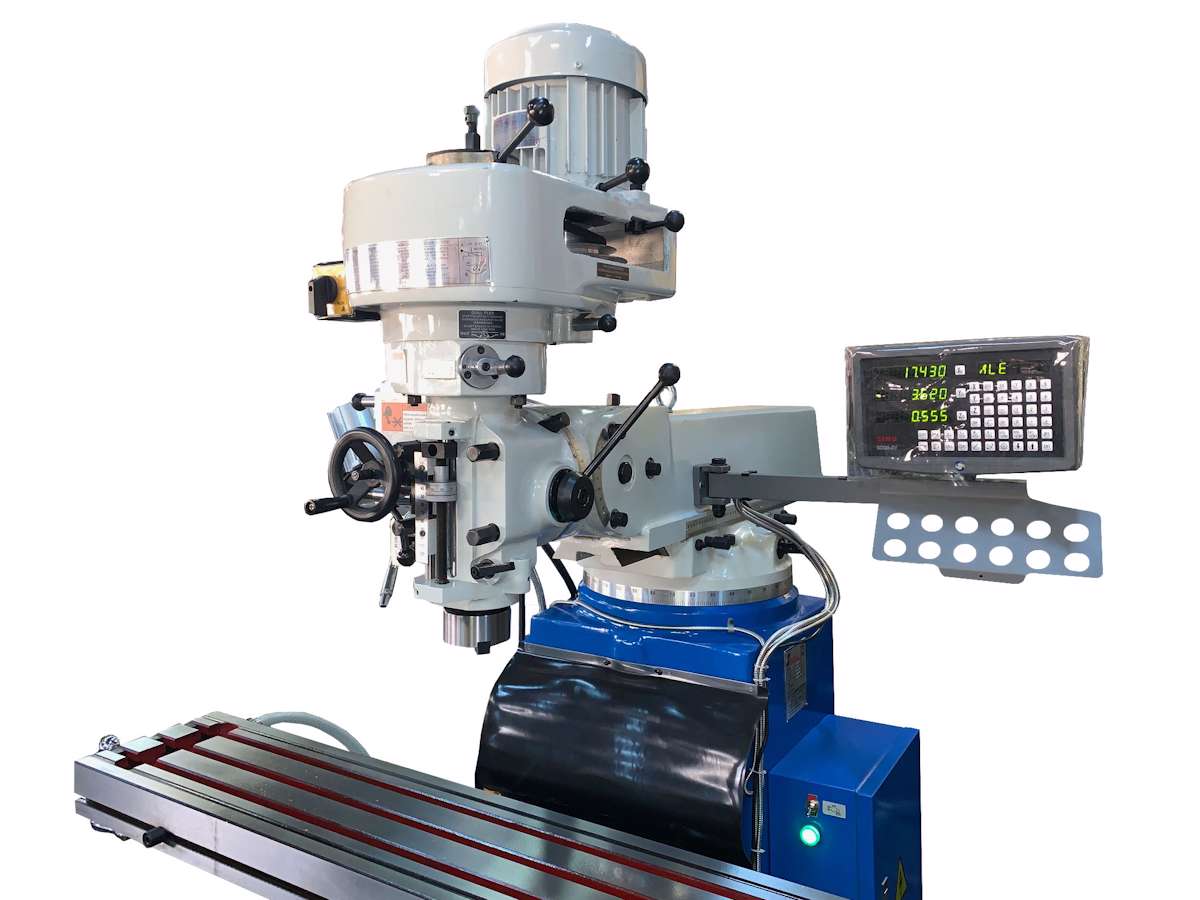

3-axis Sino DRO
Drawbar
Toolbox
Halogen lamp
Coolant Pump
