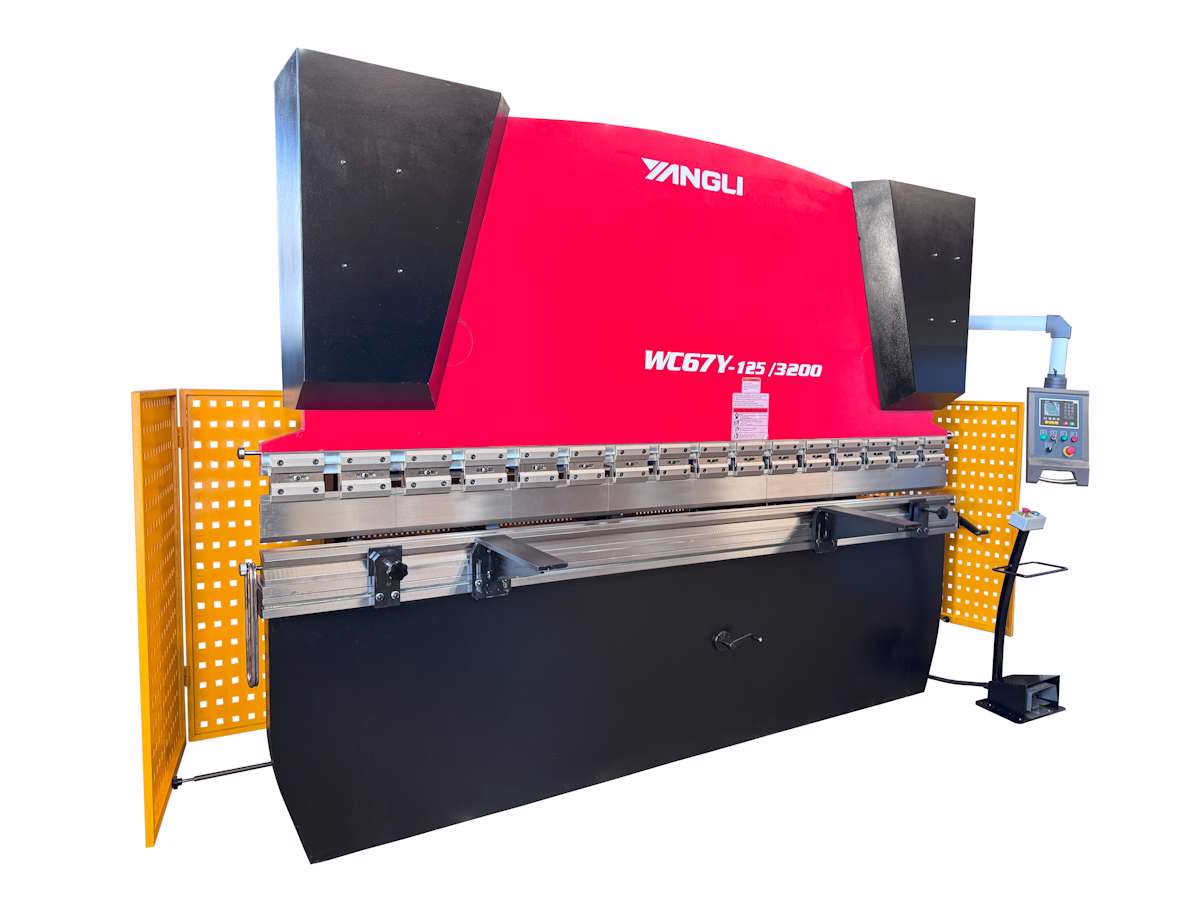

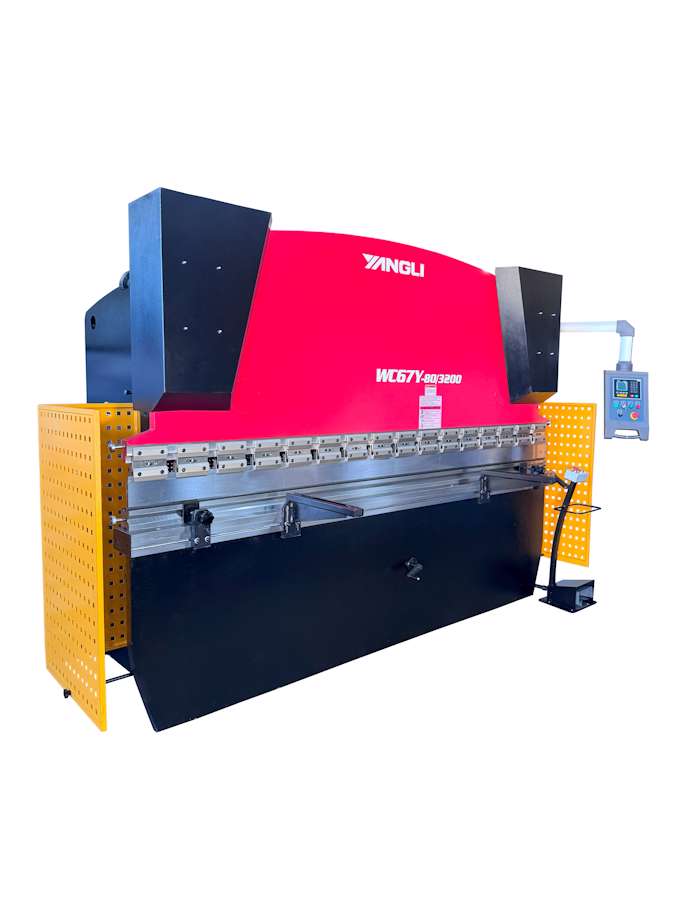

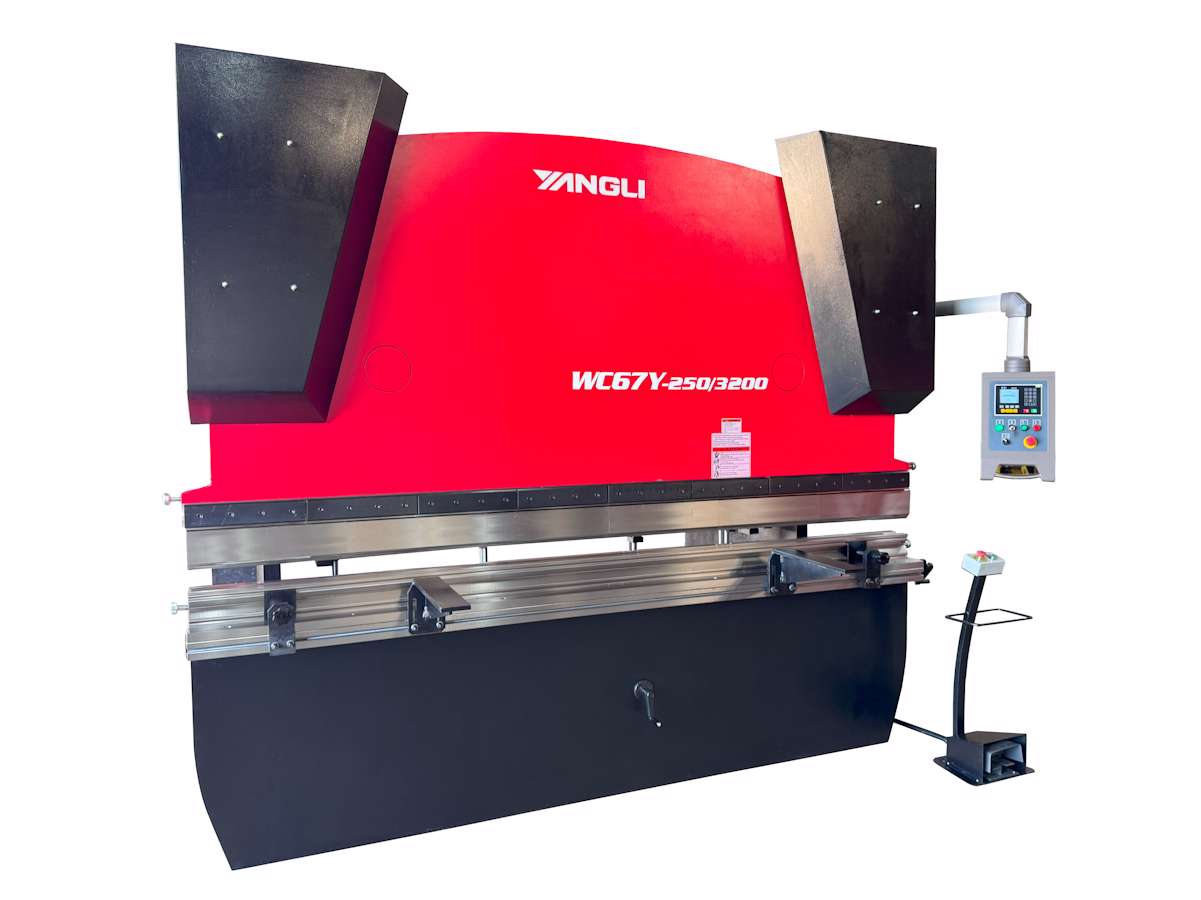

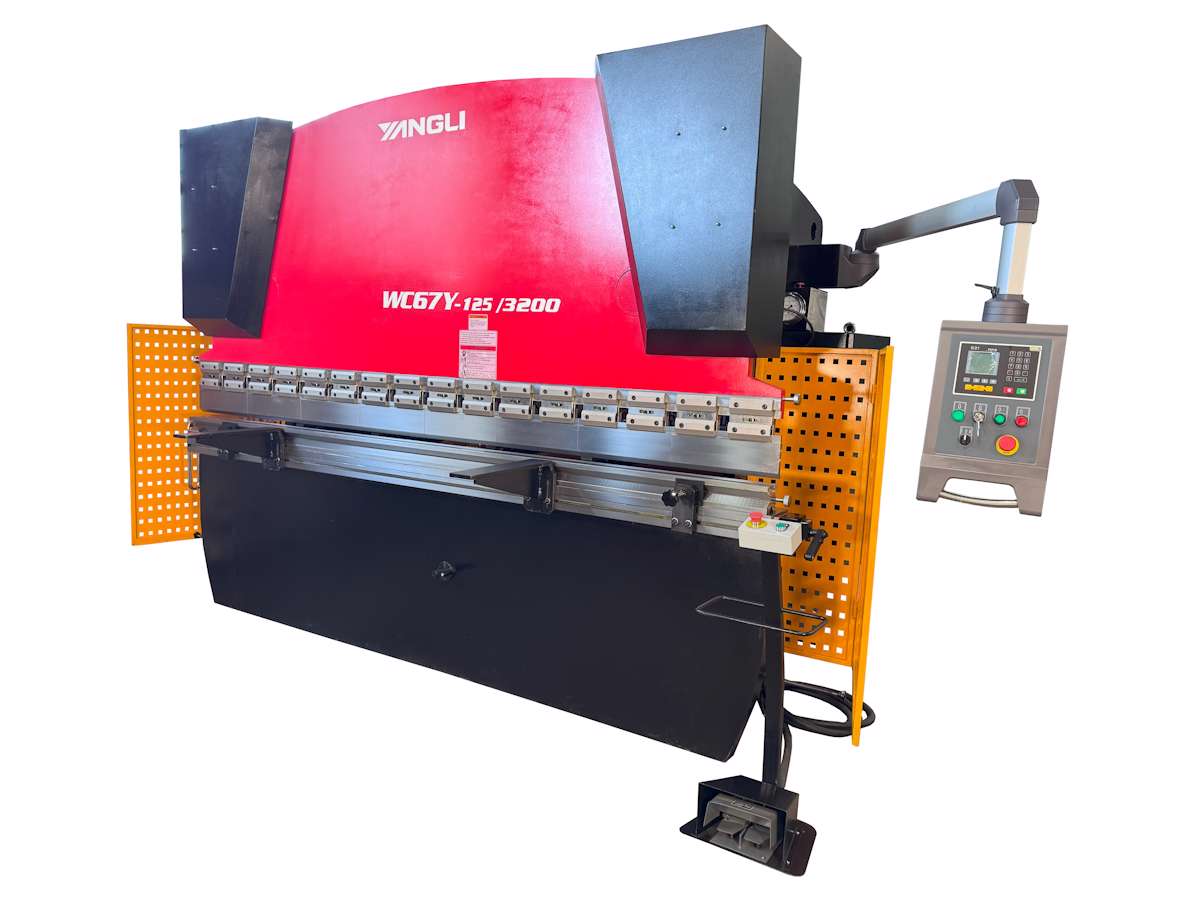

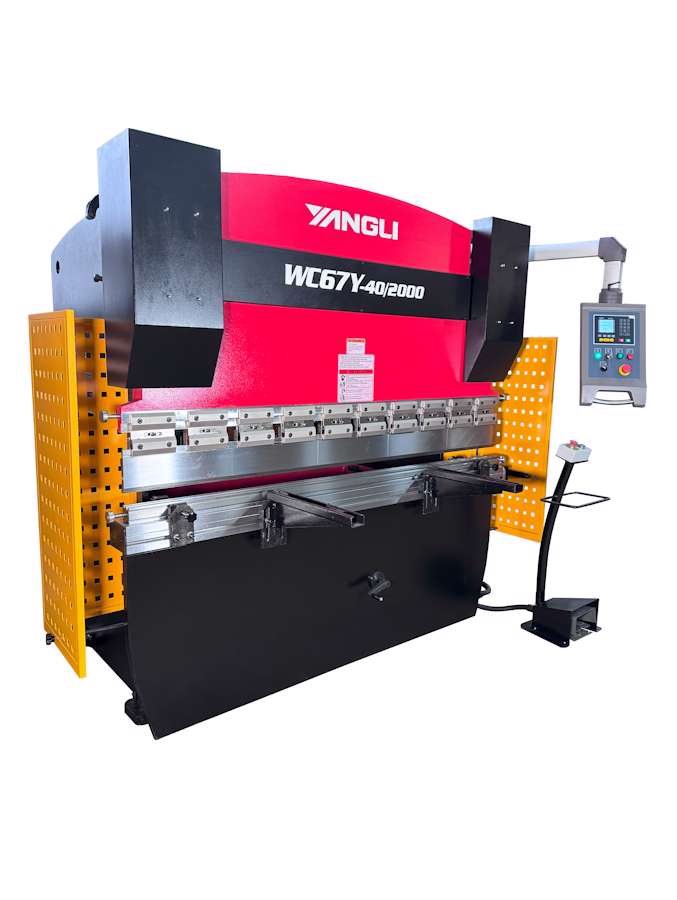

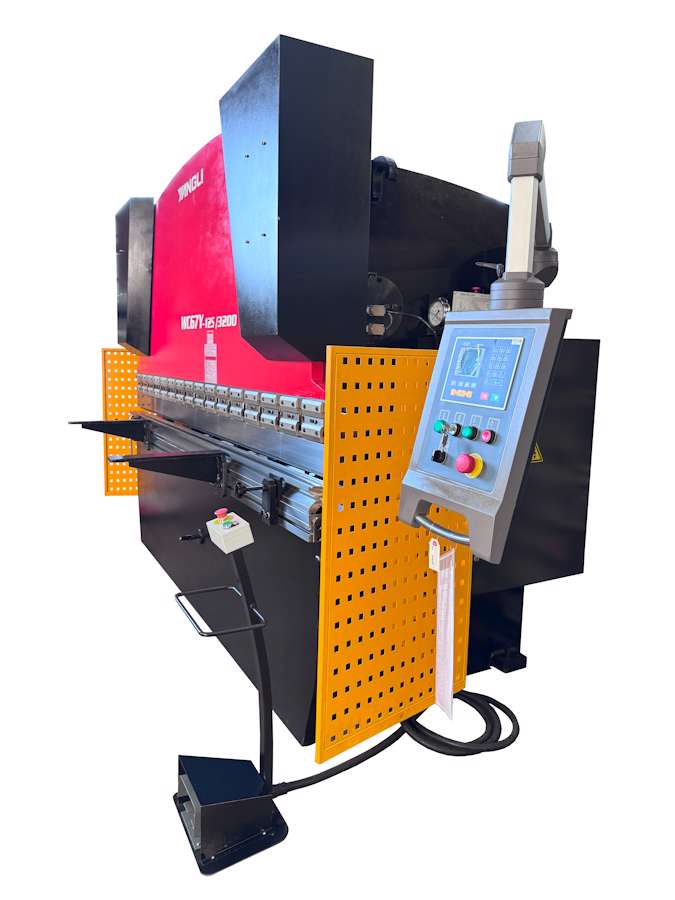

Yangli WC67Y NC Series Hydraulic Press Brake (13297)

New Yangli WC67Y NC Series Hydraulic Press Brake (13297)

Estun E21 2-axis NC Control

Availability: Ex-import

Price: POA

Yangli delivers quality you can trust and lasting performance you can rely on.
Press brakes designed to deliver maximum performance through quality features and
robust built strength durability.

Standard Features:

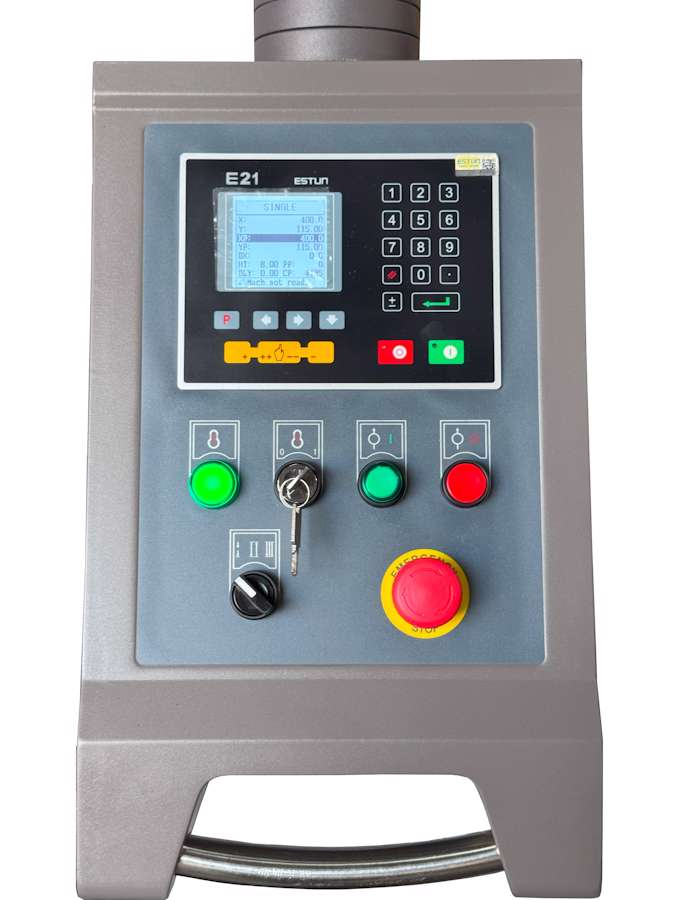

Control: Estun E21 NC
Crowning: Mechanical
Foot pedal: Up and down, with safety switch.

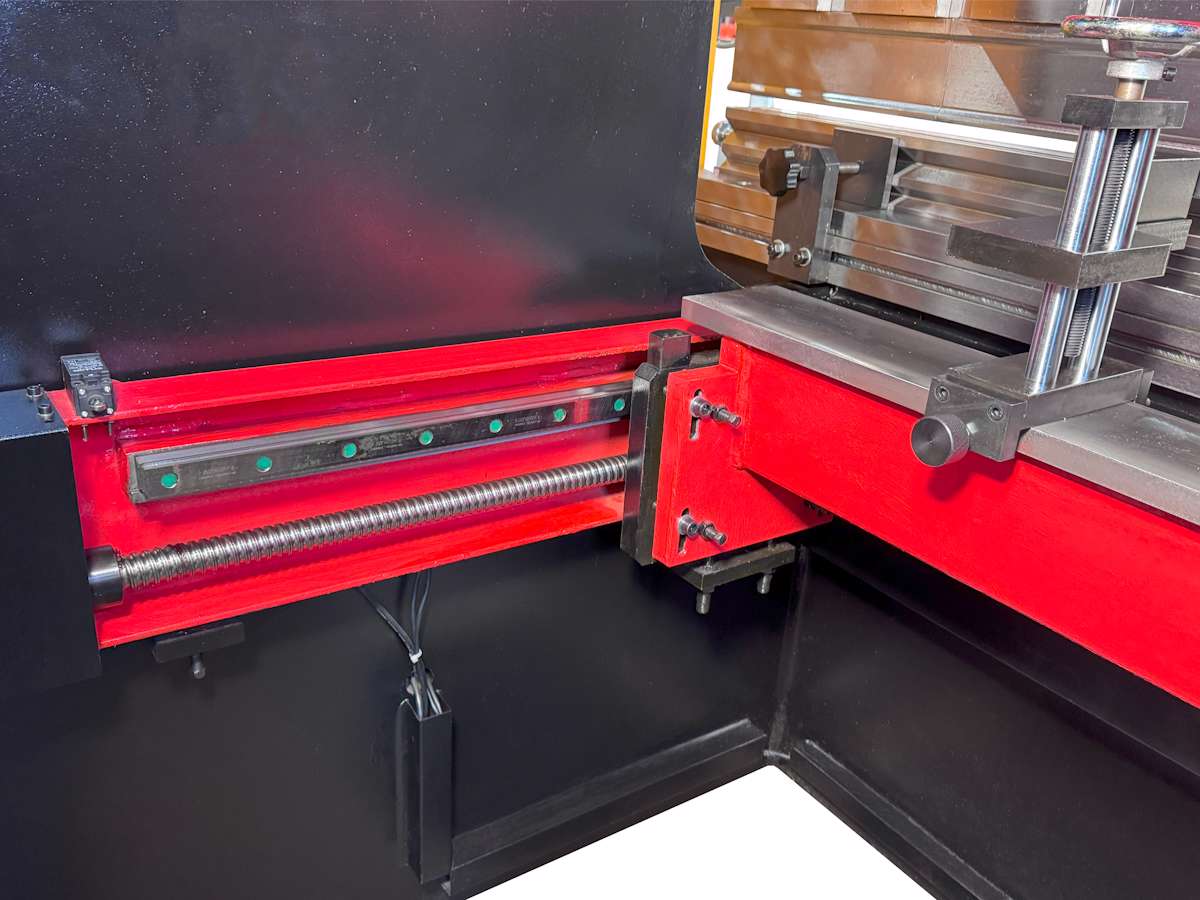

Backstops: Running on ball screws with linear guides.

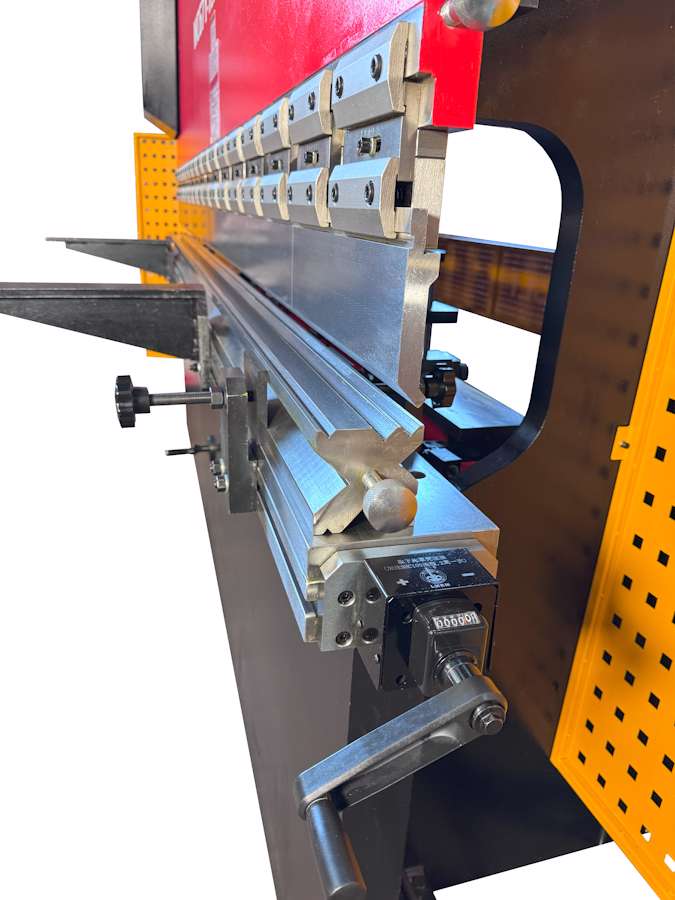

Fingers: Quick release, flip up, multi-level backgauge fingers with R axis height adjustment.

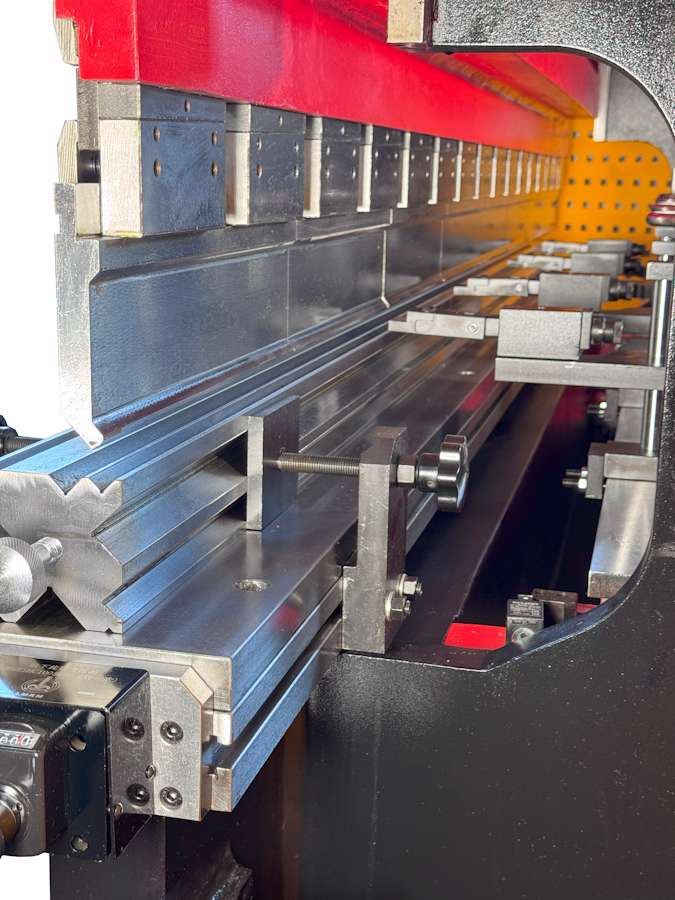

Bottom tools: Multi-vee die.
Top tools: Semi goose neck top tooling.
Clamping: Adjustable wedge quick release top tooling clamps.

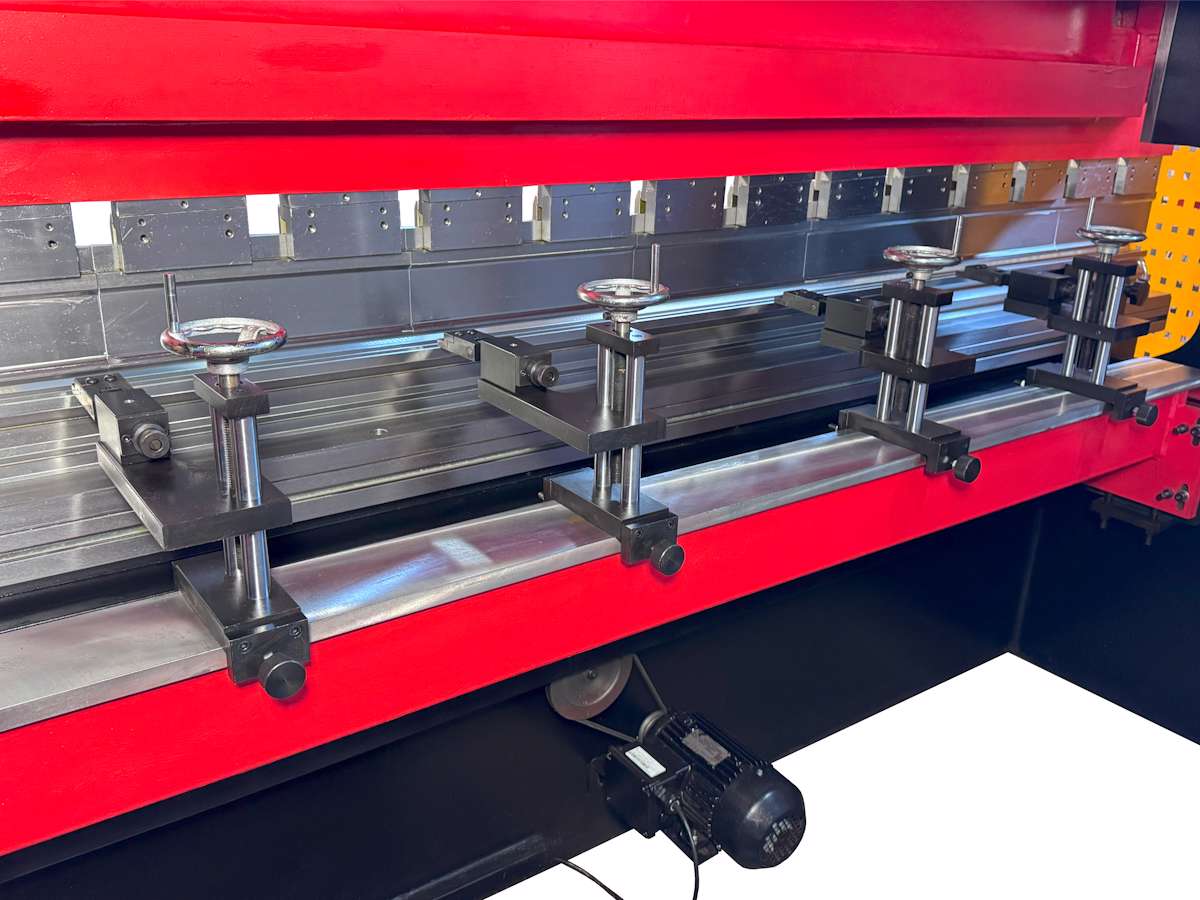

Workpiece support: Adjustable left, right, up and down front support arms.

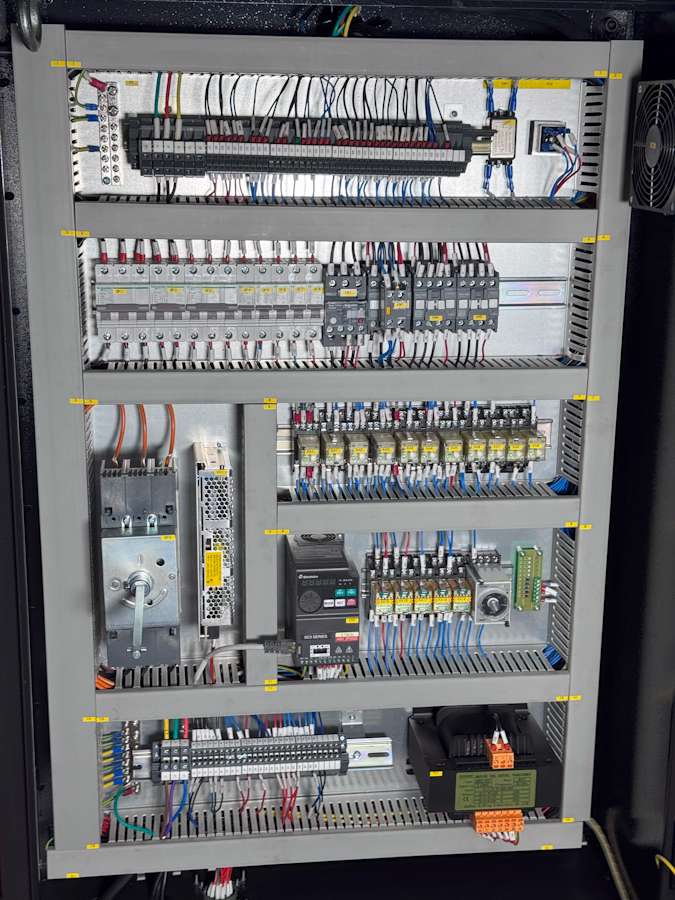

Inverter: Controls X & Y axis.

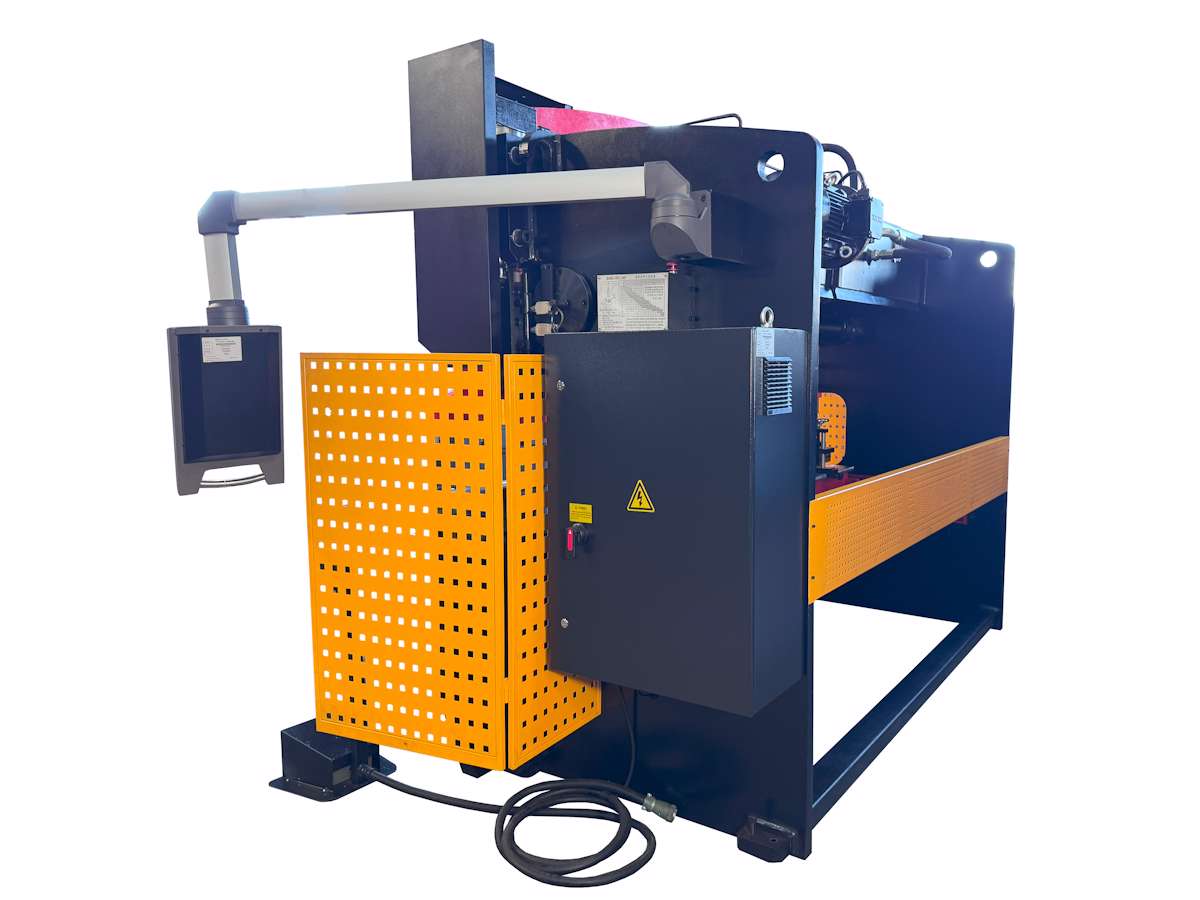

Safety rear: Full cage rear safety system.
Safety side: Side safety guards.

Entire welded frame, press with tempering.

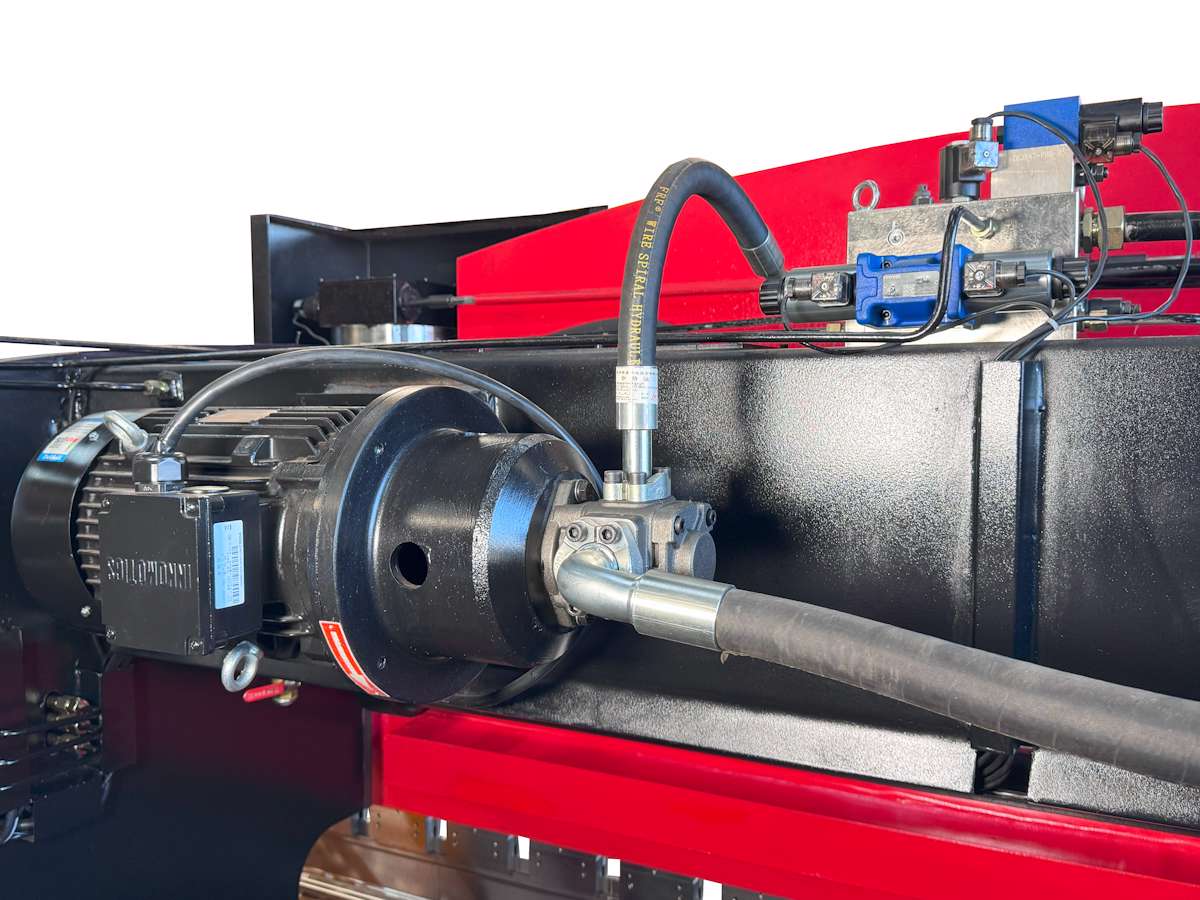

Hydraulic top drive, stepless pressure adjusting, imported seals with high quality to ensure reliability.
Mechanism synchronous with up and down composite compensation to increase machining accuracy (160T superior: lower bolster compensation).
Slide stroke adjusting device & back gauge device: electric quick adjusting, manual micro adjusting, numeric display.
Inch, single & continuous mode, time relay: control reversing time, pressurizing time.
Safety railing, door-open power-off device ( 40T & 200T superior: no rear).

Specification		WC67Y-40/2000	WC67Y-40/2500	WC67Y-63/2500	WC67Y-80/2500	WC67Y-80/3200
Nominal force	kW	400	400	630	800	800
Table length	mm	2000	2500	2500	2500	3200
Between columns	mm	1650	2000	2000	1990	2600
Throat depth	mm	200	200	250	280	280
Slide stroke	mm	100	100	100	100	100
Stroke adjustment	mm	80	80	80	80	80
Max. Open height	mm	330	330	340	360	360
SPM	min-1	≥16	≥16	≥20	≥22	≥22
Main motor power	kW	4	4	5.5	7.5	7.5
Net weight	kg	2663	3075	4100	4700	6080
Overall dimensions (LxWxH)	mm	2210 x 1250 x 2240	2710 x 1250 x 2240	2680 x 1350 x 2260	2690 x 1320 x 2300	3410 x 1370 x 2300

Specification		WC67Y-100/2500	WC67Y-100/3200	WC67Y-100/4000	WC67Y-125/3200	WC67Y-160/2500
Nominal force	kW	1000	1000	1000	1250	1600
Table length	mm	2500	3200	4000	3200	2500
Between columns	mm	1850	2550	3350	2550	1950
Throat depth	mm	320	320	320	320	330
Slide stroke	mm	130	130	130	130	200
Stroke adjustment	mm	100	100	100	100	150
Max. Open height	mm	390	390	390	390	465
SPM	min-1	≥18	≥18	≥18	≥11	≥10
Main motor power	kW	7.5	7.5	7.5	7.5	15
Net weight	kg	5880	6880	7800	7200	8800
Overall dimensions (LxWxH)	mm	2680 x 1400 x 2450	3380 x 1400 x 2450	4180 x 1400 x 2450	3380 x 1450 x 2450	3050 x 1600 x 2550

Specification		WC67Y-160/3200	WC67Y-160/4000	WC67Y-160/6000	WC67Y-200/3200	WC67Y-200/4000
Nominal force	kW	1600	1600	1600	2000	2000
Table length	mm	3200	4000	6000	3200	4000
Between columns	mm	2540	3140	4800	2550	3260
Throat depth	mm	330	330	330	350	350
Slide stroke	mm	200	200	200	200	200
Stroke adjustment	mm	150	150	150	150	150
Max. Open height	mm	465	465	465	450	450
SPM	min-1	≥10	≥10	≥10	≥9	≥9
Main motor power	kW	15	15	15	15	15
Net weight	kg	9325	10740	18500	11340	13300
Overall dimensions (LxWxH)	mm	3660 x 1600 x 2550	4260 x 1600 x 2550	6140 x 1710 x 2850	3340 x 1855 x 2745	4110 x 1855 x 2745

Specification		WC67Y-200/6000	WC67Y-250/3200	WC67Y-250/4200	WC67Y-250/5000	WC67Y-250/6000
Nominal force	kW	2000	2500	2500	2500	2500
Table length	mm	6000	3200	4200	5000	6000
Between columns	mm	4800	2540	3140	4000	5000
Throat depth	mm	350	400	400	400	400
Slide stroke	mm	200	250	250	250	250
Stroke adjustment	mm	150	180	180	180	180
Max. Open height	mm	450	500	500	500	500
SPM	min-1	≥9	≥8	≥8	≥8	≥8
Main motor power	kW	15	18.5	18.5	18.5	18.5
Net weight	kg	23000	12080	14200	17000	18500
Overall dimensions (LxWxH)	mm	6120 x 2065 x 3055	3310 x 1970 x 2915	4310 x 1970 x 2915	5120 x 2210 x 2980	6120 x 2210 x 2980

Specification		WC67Y-300/4000	WC67Y-300/5000	WC67Y-300/6000	WC67Y-400/4000	WC67Y-400/6000
Nominal force	kW	3000	3000	3000	4000	4000
Table length	mm	4000	5000	6000	4000	6000
Between columns	mm	2900	3900	4900	3140	5000
Throat depth	mm	400	400	400	400	400
Slide stroke	mm	250	250	250	320	320
Stroke adjustment	mm	180	180	180	220	220
Max. Open height	mm	535	535	535	600	600
SPM	min-1	≥4	≥4	≥4	≥3	≥3
Main motor power	kW	22	22	22	37	37
Net weight	kg	19700	24400	29200	29500	41000
Overall dimensions (LxWxH)	mm	4150 x 1950 x 3115	5150 x 1950 x 3115	6120 x 1950 x 3520	4130 x 2625 x 3700	6150 x 3250 x 3900

Specification		WC67Y-500/4000	WC67Y-500/6000
Nominal force	kW	5000	5000
Table length	mm	4000	6000
Between columns	mm	3050	4760
Throat depth	mm	400	400
Slide stroke	mm	320	320
Stroke adjustment	mm	220	220
Max. Open height	mm	630	630
SPM	min-1	≥3	≥3
Main motor power	kW	37	37
Net weight	kg	42000	51000
Overall dimensions (LxWxH)	mm	4200 x 4115 x 4760	6200 x 4115 x 4760
