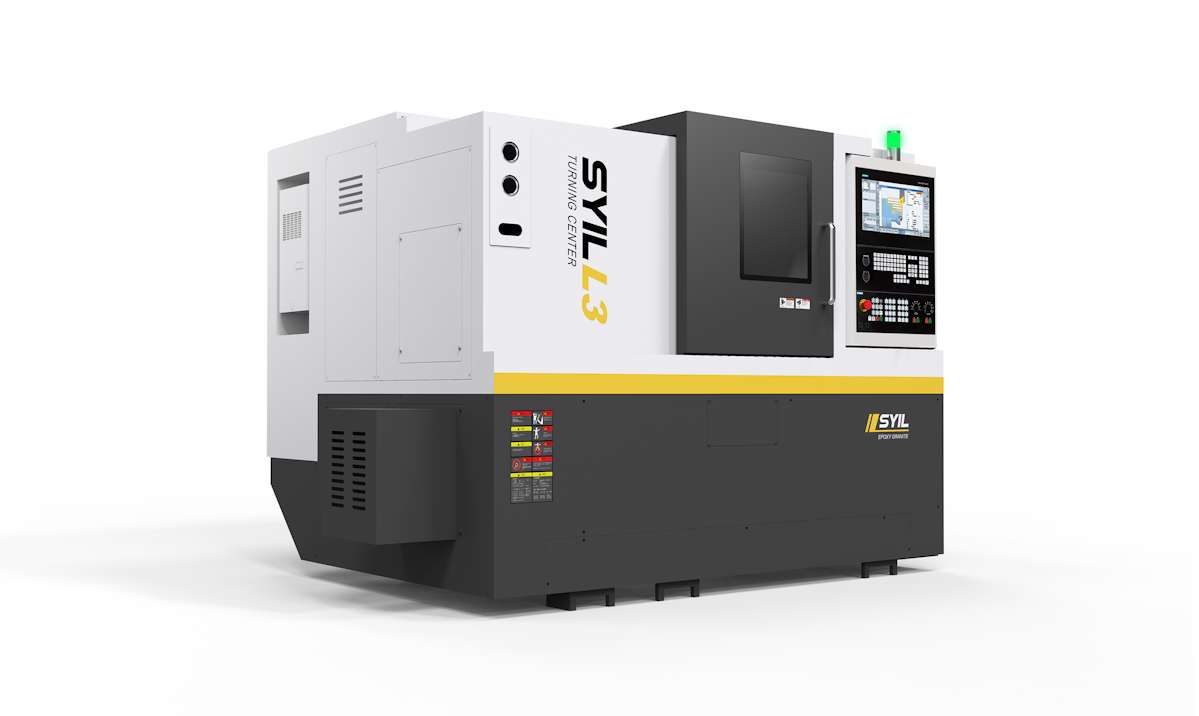

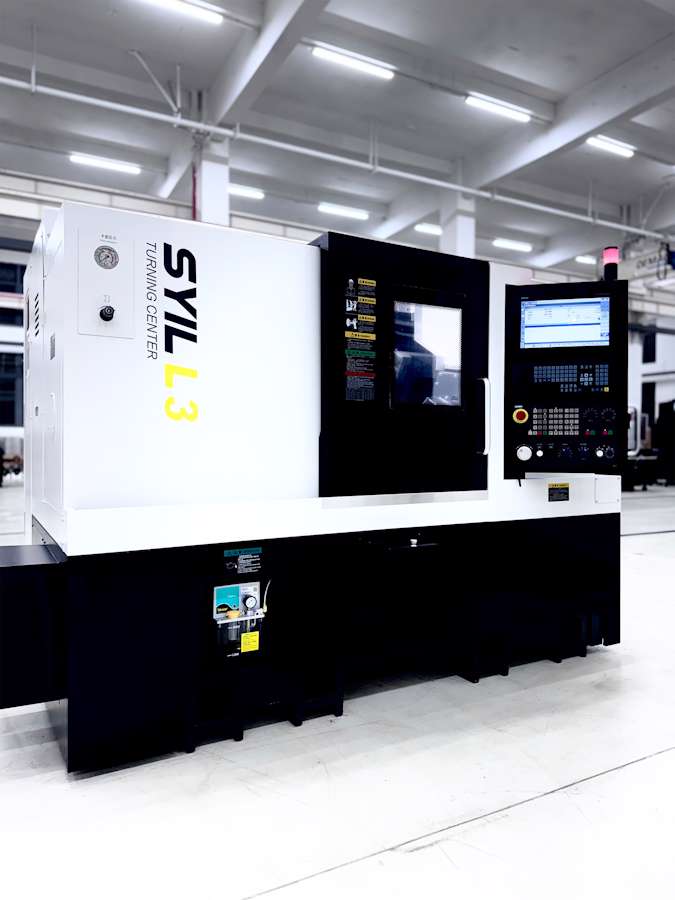

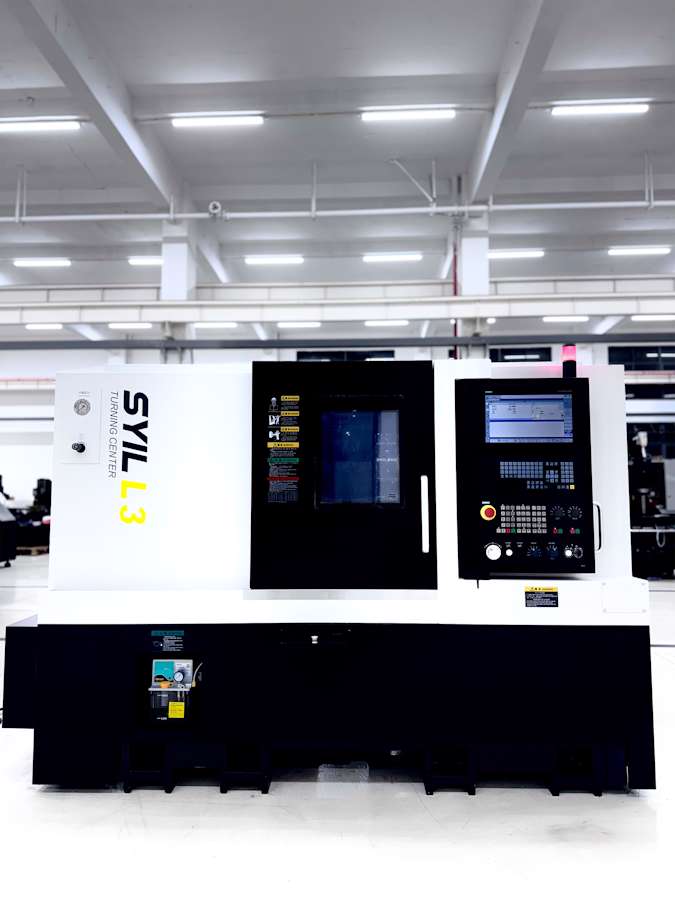

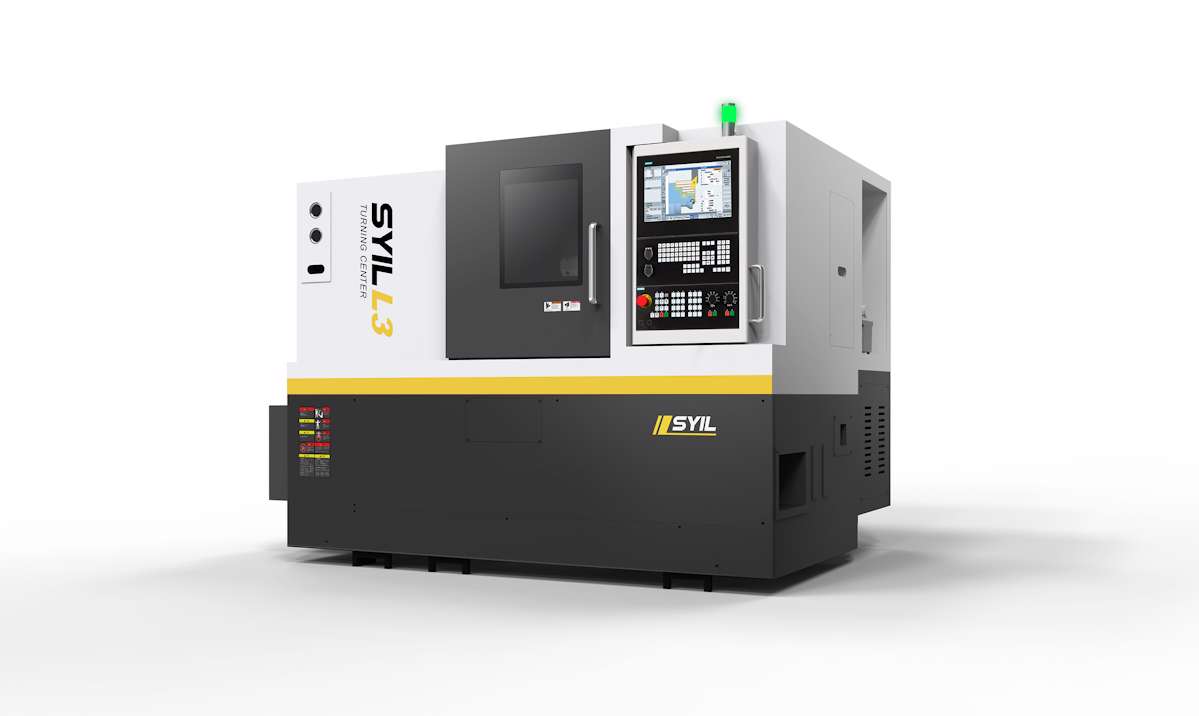

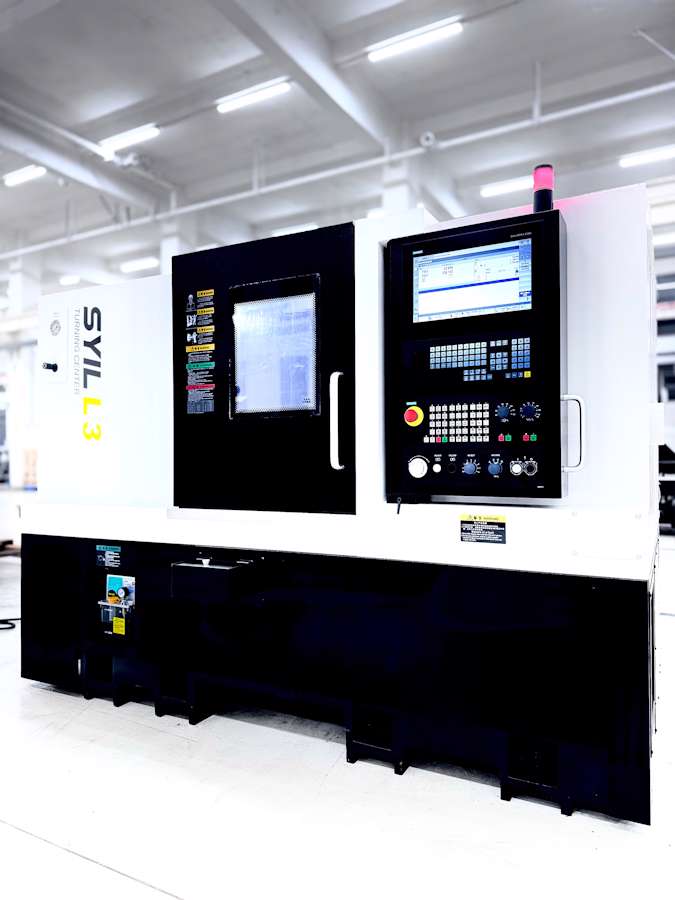

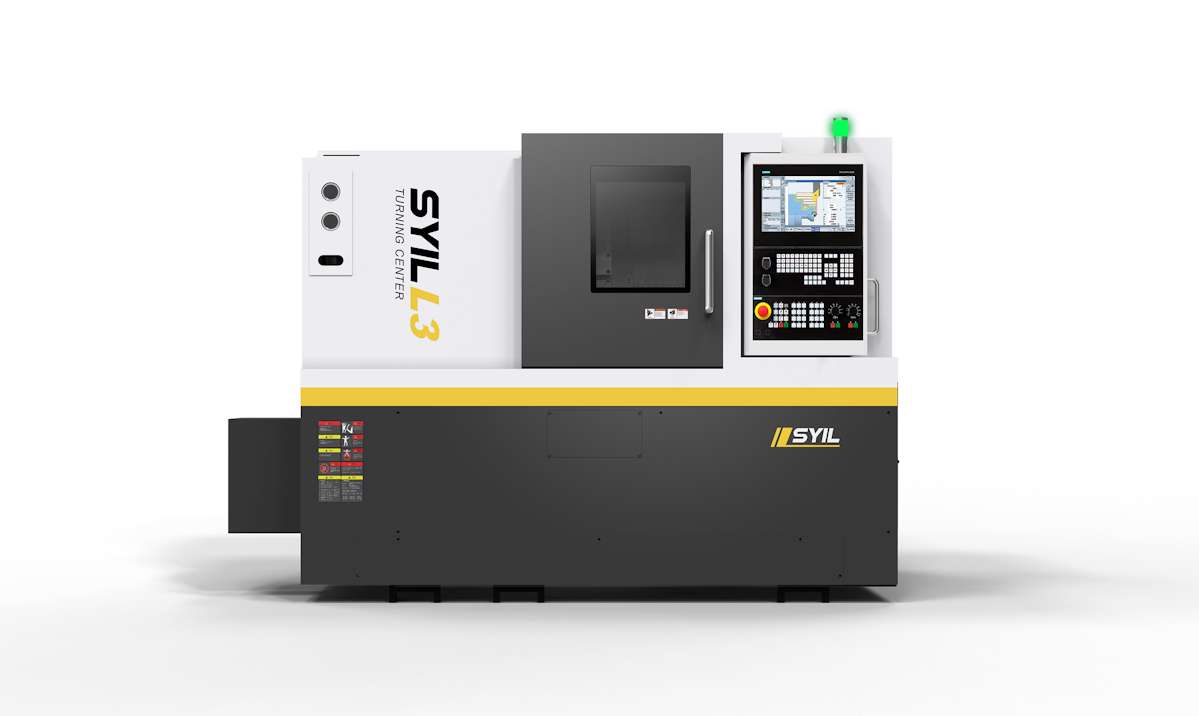

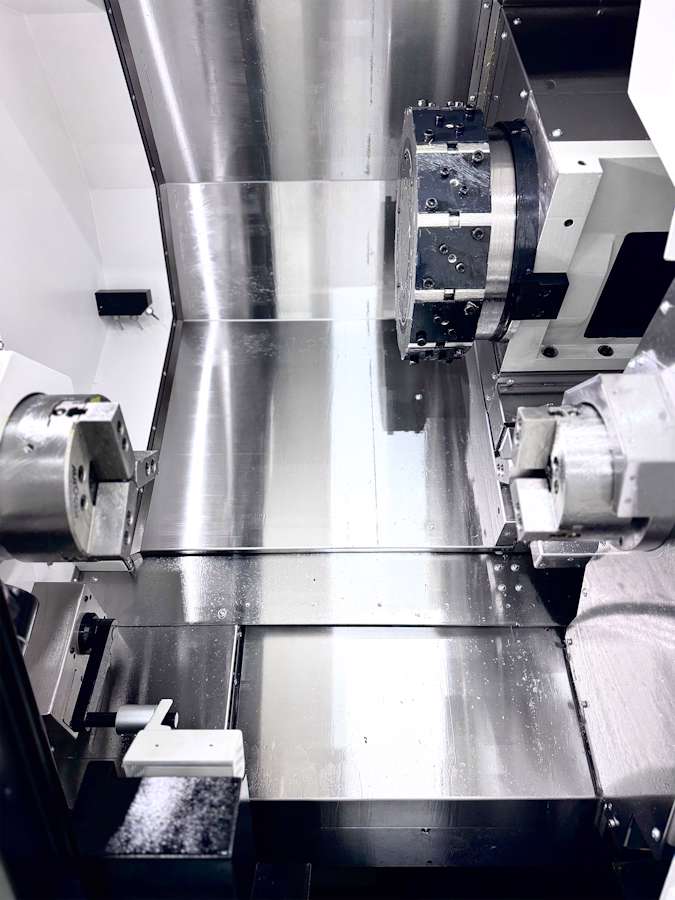

SYIL L3 8" Siemens 828D Live Tool CNC Turning Centre - Multi Axis (14203)
New SYIL L3 8" Siemens 828D Live Tool CNC Turning Centre - Multi Axis (14203)
500 t/l, swing Ø 550, bore Ø 52, 11kW, 4,000rpm
Availability: E.T.A. 15 Jul 2025
Price: POA
SYIL L3 Turning Center is the ideal choice for prototyping or small metal parts manufacturing with option Y-axis and option Sub-spindle.
Standard Features:

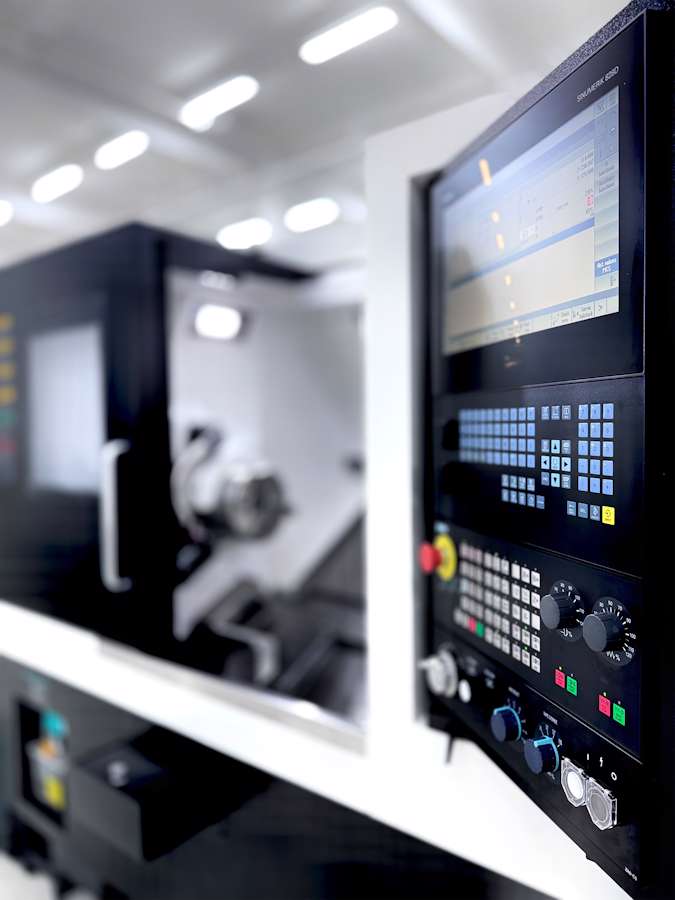

Siemens SINUMERIK 828D 15" Control
8-inch hollow hydraulic three-jaw chuck
A2-6 spindle
Maximum swing diameter of ø500 mm
Through-hole diameter of ø63 mm
Optional SAUTER servo turret
BMT55 power turret
Power-driven tool speed of 5000RPM
Boring Tool Holder (Out of Water)
External Cutter Holder
End Tool Holder
Processing Capacity:
Chuck size: 8"
Maximum swing diameter over bed: ø550mm
Maximum swing diameter over carriage: ø290mm (with Y axis: 200mm)
Maximum workpiece length: 500mm (with Y axis: 530mm, with Sub Spindle: 450mm)
Maximum workpiece diameter: ø380mm
Spindle:
Maximum speed: 4000rpm
Spindle nose: A2-6
Spindle bore diameter: ø63mm
Through spindle bore diameter: ø52mm
Spindle power: 11/15kW
Minimum C-axis indexing: 0.001°
Sub Spindle:
Chuck size: 6"
Rate speed / Max speed: 1750/6000rpm
Spindle nose: A2-5
Spindle bore diameter: ø56mm
Through spindle bore diameter: ø45mm
Spindle power: 11kW
Travels: 530m
Rapid traverse: 30m/min

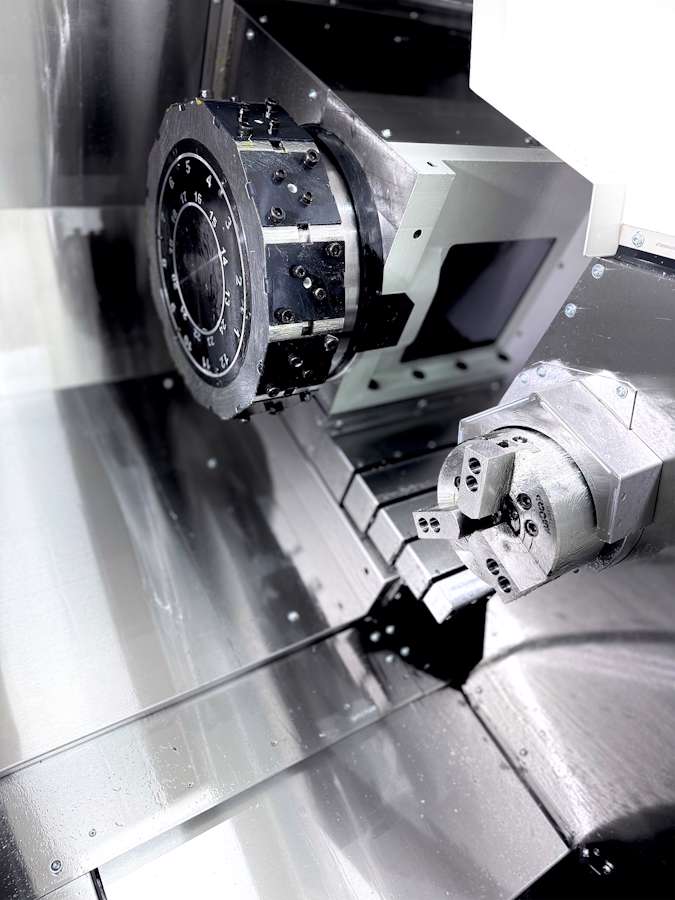

Tool Holder:
Type: Power Turret
Tools: 12
Minimum Tool to Tool: 0.2s
Maximum Tool to Tool: 0.5s
Maximum tool shank size: 25x25mm
Maximum tool shank diameter: ø40mm
Maximum Live Tooling Speed: 5000rpm
Live Tooling Model: BMT55
Travels:
X Rapid traverse: 30m/min
Z Rapid traverse: 30m/min
Y Rapid traverse: 15m/min
X Travels: 190+10mm
Z Travels: 550mm (with Y axis: 490+-50mm)
Tail Stock:
Travels from Tail Stock to Chunk: 465mm (with Y axis: 500mm)
Tail Stock Rapid Traverse: 30m/min
Sleeve taper: MT4
Accuracy:
Finish turning cylindrical accuracy: IT6
Finish turning parts surface: Ra0.4-1.6
Finished turning parts roundness: ≤0.003mm
Position accuracy (?Ø): 0.005mm
Position accuracy (Ｚ): 0.008mm
Repeat accuracy (?Ø): 0.002mm
Repeat accuracy (Ｚ): 0.004mm
Dimensions and Weight
Dimensions (LxWxH): 250x172x174cm (with Y axis: 268x175x185cm, with Counter Spindle: 268x175x185cm)
Net Weight: 4000kg
Options:
FANUC 0iMF Plus / SYNTEC 22TA Control
Y Axis
Sub-Spindle
Hydraulic Tail Stock
Servo Tail Stock
Chip Conveyor (incl. chip pickup trolley)
Tool Setter | Renishaw
Chuck option 8 inch four-jaw chucks
Splicing device
Sub-spindle actuator
Oil Mist Collector
20KG High Pressure Water Pump
70KG High Pressure Water Pump
Bar Feeder (EL 65)
power head (out of water) a set (including a 0 degree and a 90 degree)
Tailstock Live Center (PC-MT4)
Parts catcher
