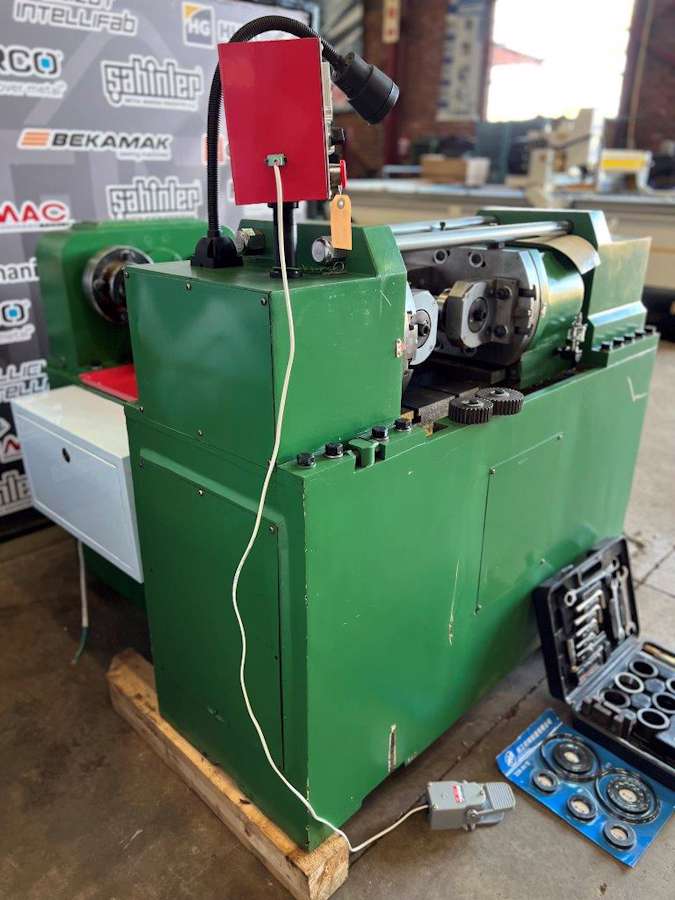

Crown Z28-80 Hydraulic Thread Rolling Machine (12880)
Used Crown Z28-80 Hydraulic Thread Rolling Machine (12880)
SOLD
Pressure of roller max: 150KN
Rotary speed of main shaft: 36,47,60,78(r/min)
Working dia: 4-48mm
Feed speed of movable shaft: 5mm/s
OD of roller: 120-170mm
Thread length: no limit
BD of roller: 54mm
Main power: 4kw
Roller width max: 100mm

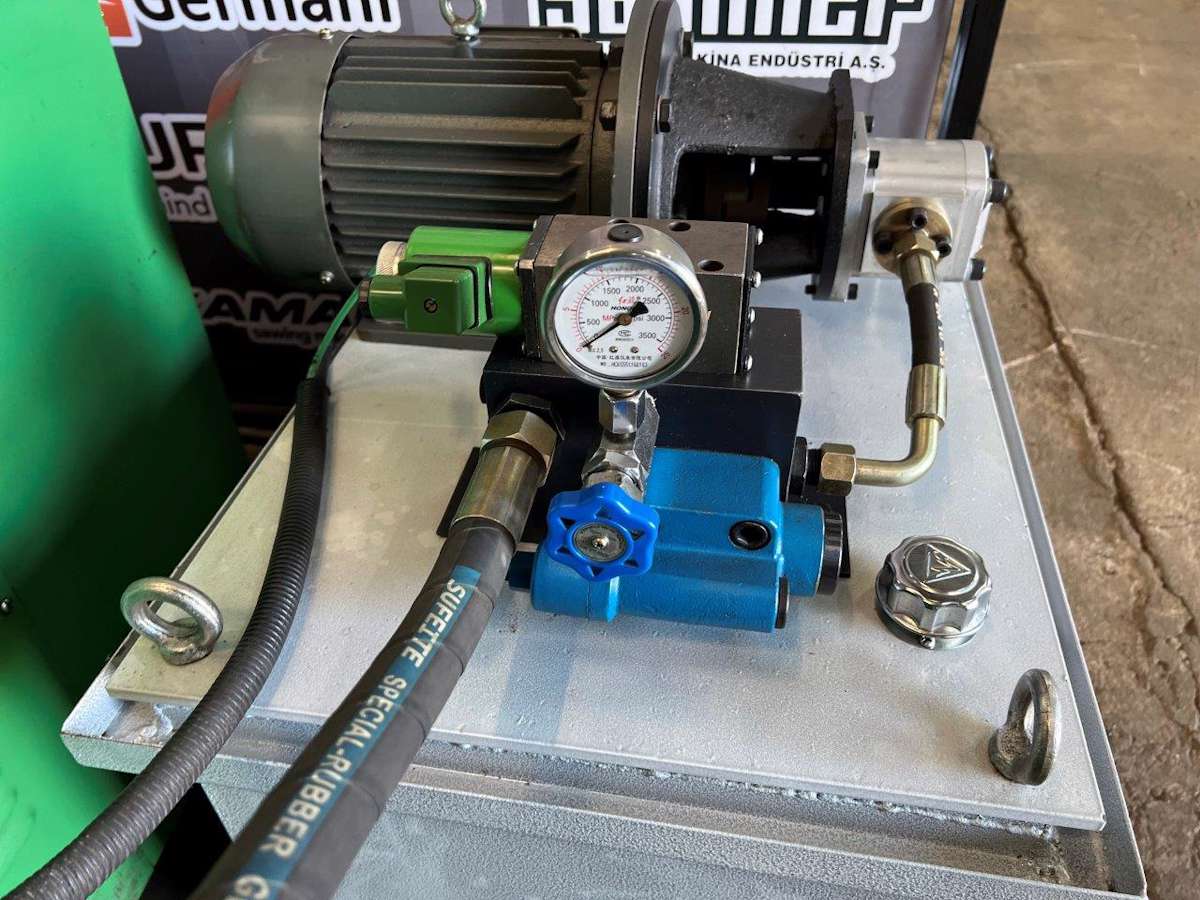

Hydraulic power: 2.2kw
Dip angle of main shaft: +-5degree
Center distance of main shaft( stroke): 120-240mm
Dimensions: 1500 x 1380 x 1140mm
Weight: 1700kg

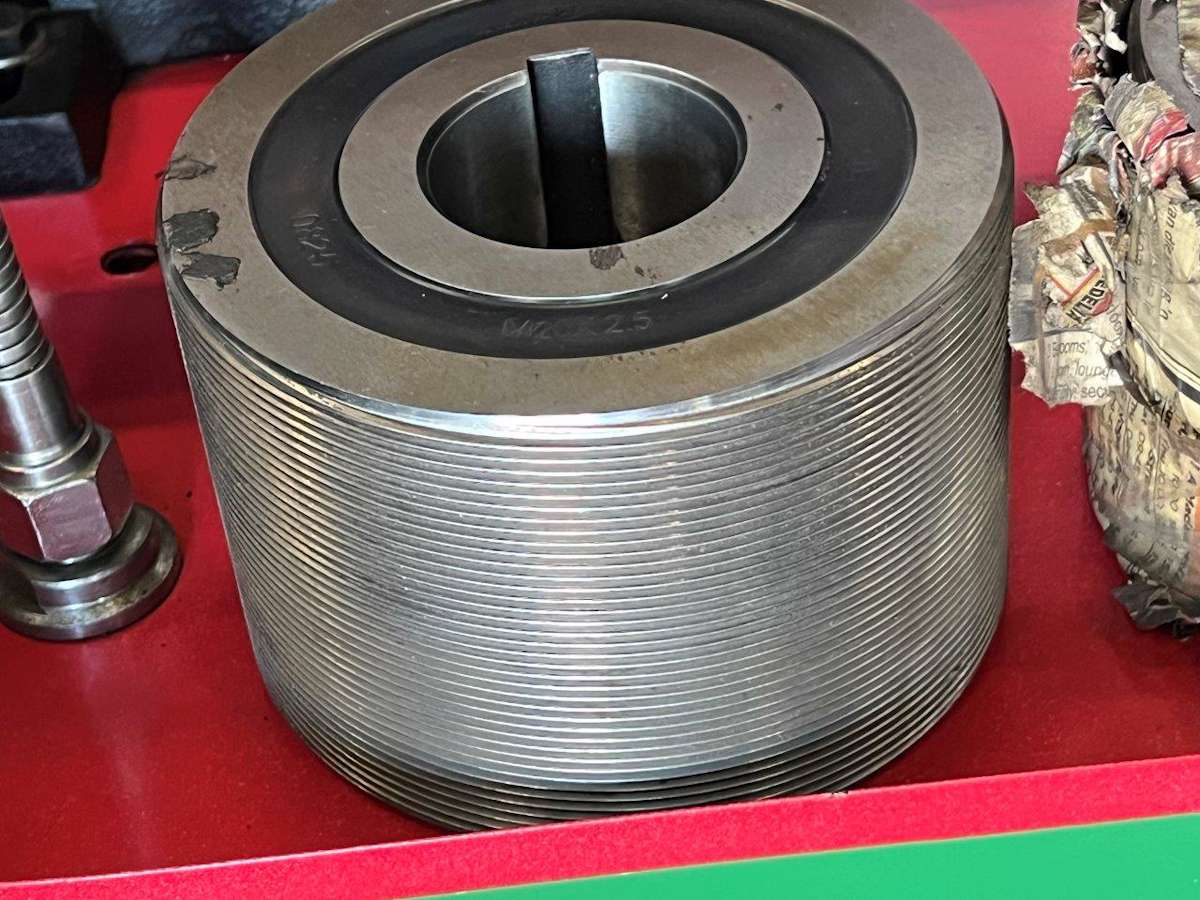

M20 x 2.5mm roller set
Never been used!
