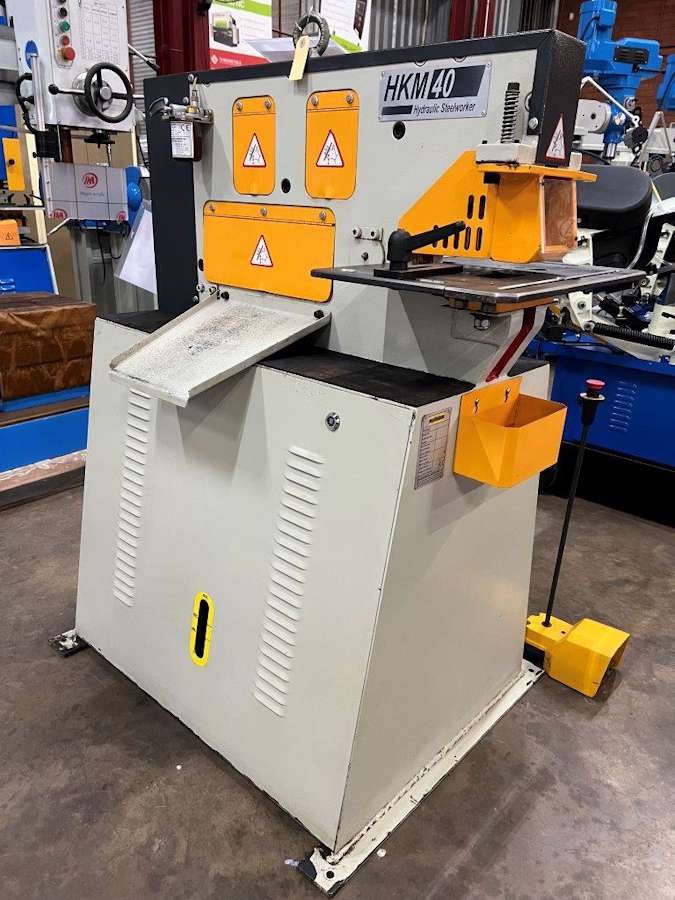

Sahinler HKM 40 Hydraulic Cropper (12522)
Used Sahinler HKM 40 Hydraulic Cropper (12522)
40 Ton, Punch Ø 20 in 15/30 Ø in 10/38 Ø in 8
SOLD
Technical Specifications
Technical Data
Motor Power: 3 kW
Weight: 580 Kg
Machine Dimentions: 1100 x 800 x 1520 mm
Power (Pressure): 40 Ton
Punching
Diameter x Maximum Thickness: Ø20 x 15 mm
Diameter x Thickness: Ø30 x 10 mm
Maximum Diameter: Ø38 x 8 mm
Stroke: 50mm
Stroke Count in (20 mm): x 20
Throat Depth: 175 mm
Working Height: 970 mm
Steel bar shear
Round: Ø 30
Square: 25 mm
Angle Shear
Angle Section (90ᵒ): 80 x 80 x 8 mm
Angle Section (45ᵒ): 50 x 6 mm
Working Height: 1110 mm
Sheet Metal Shear
Sheet Metal: 200 x 13 mm
Sheet Metal: 300 x 6 mm
Blade Length: 356 mm
Shearing With Angle: 80 x 10 mm
Working Height: 980mm
No Notching Station
Standard Accessories
More productivity with adjustable piston stroke distance
Central Lubrication System
Four individual working stations on machine:
- 22 mm Ø punch and die and standard punching tools
- Steel solid round and square bar cutting blade set
- Angle cutting blade set
- Sheet metal cutting shear
Very good condition!
