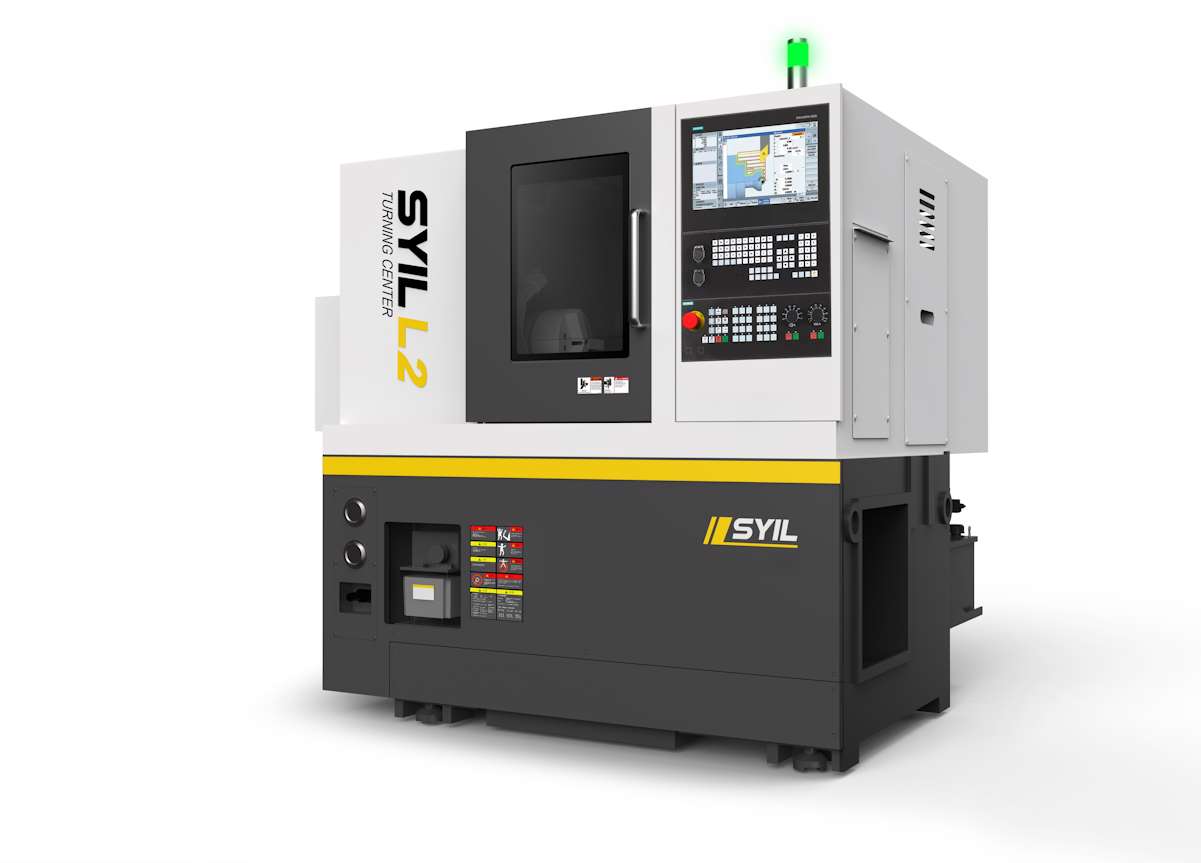

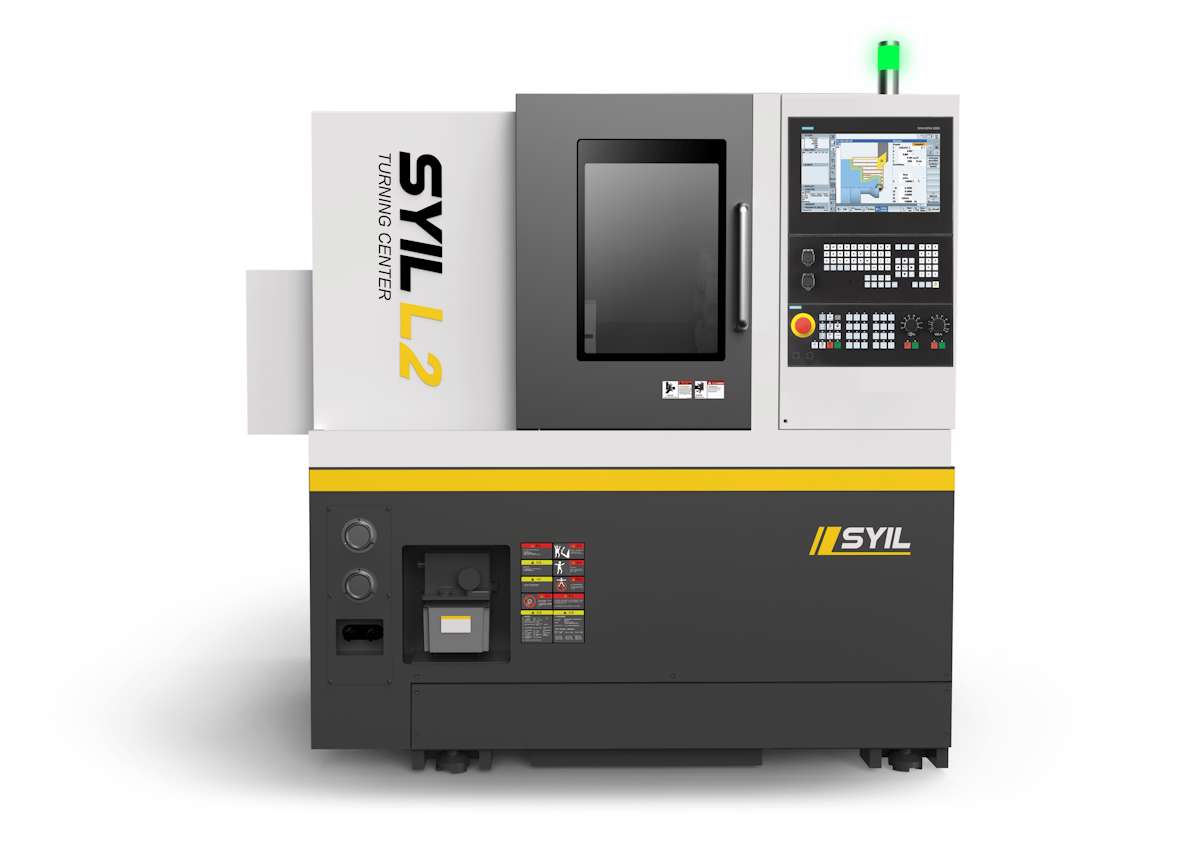

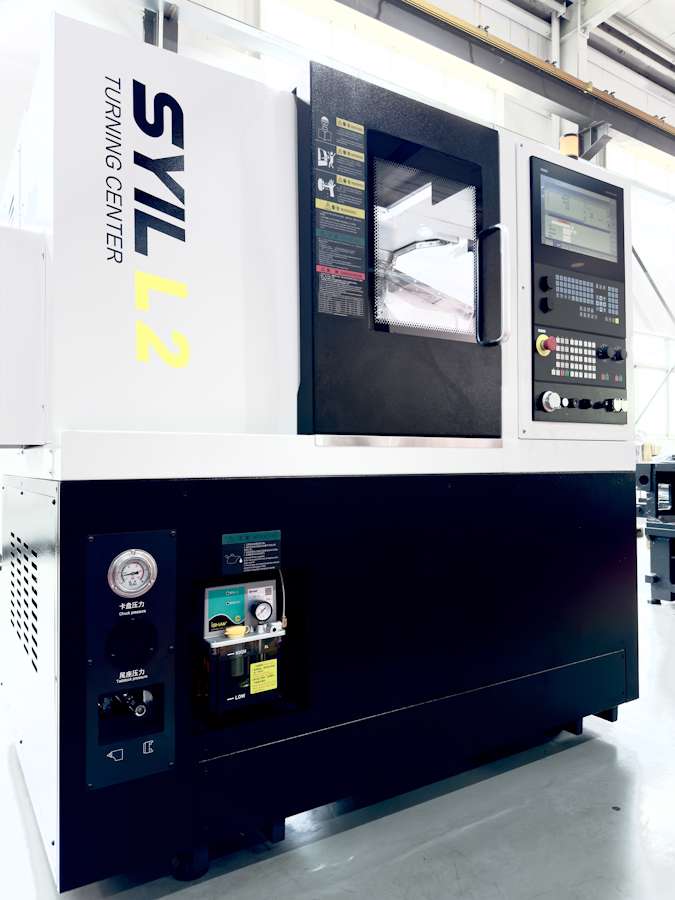

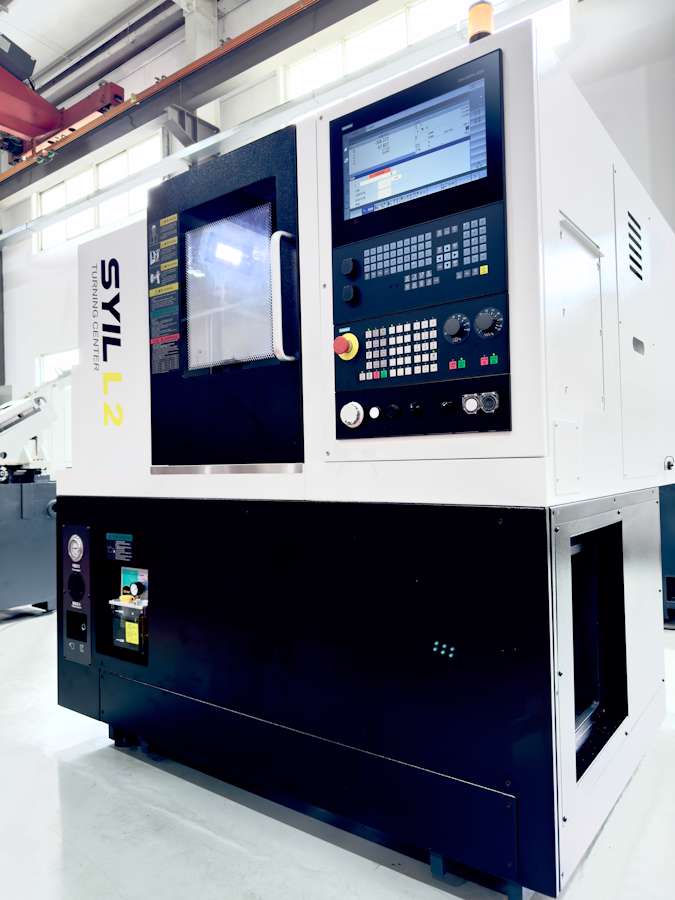

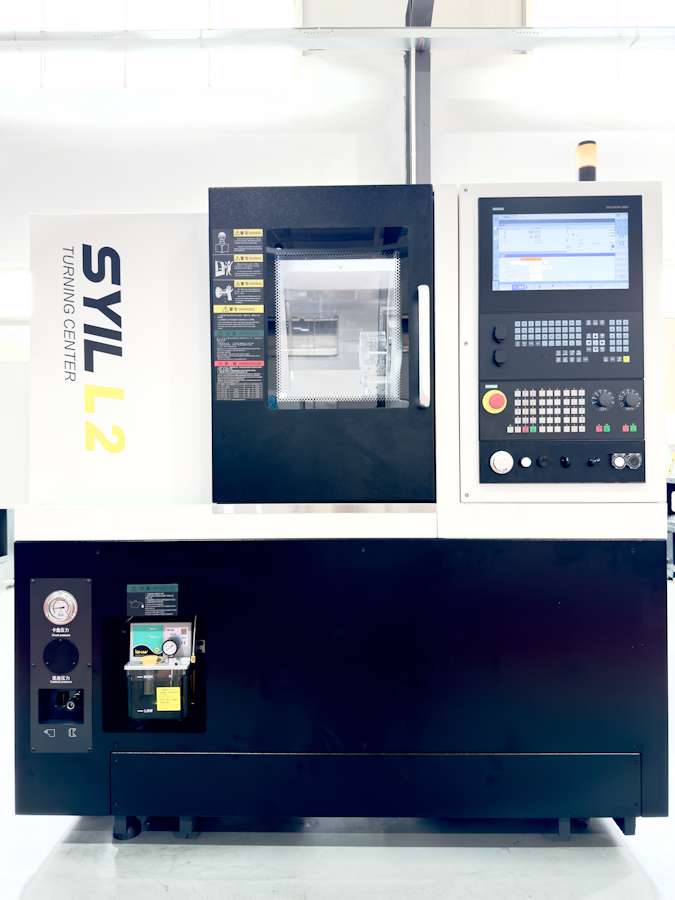

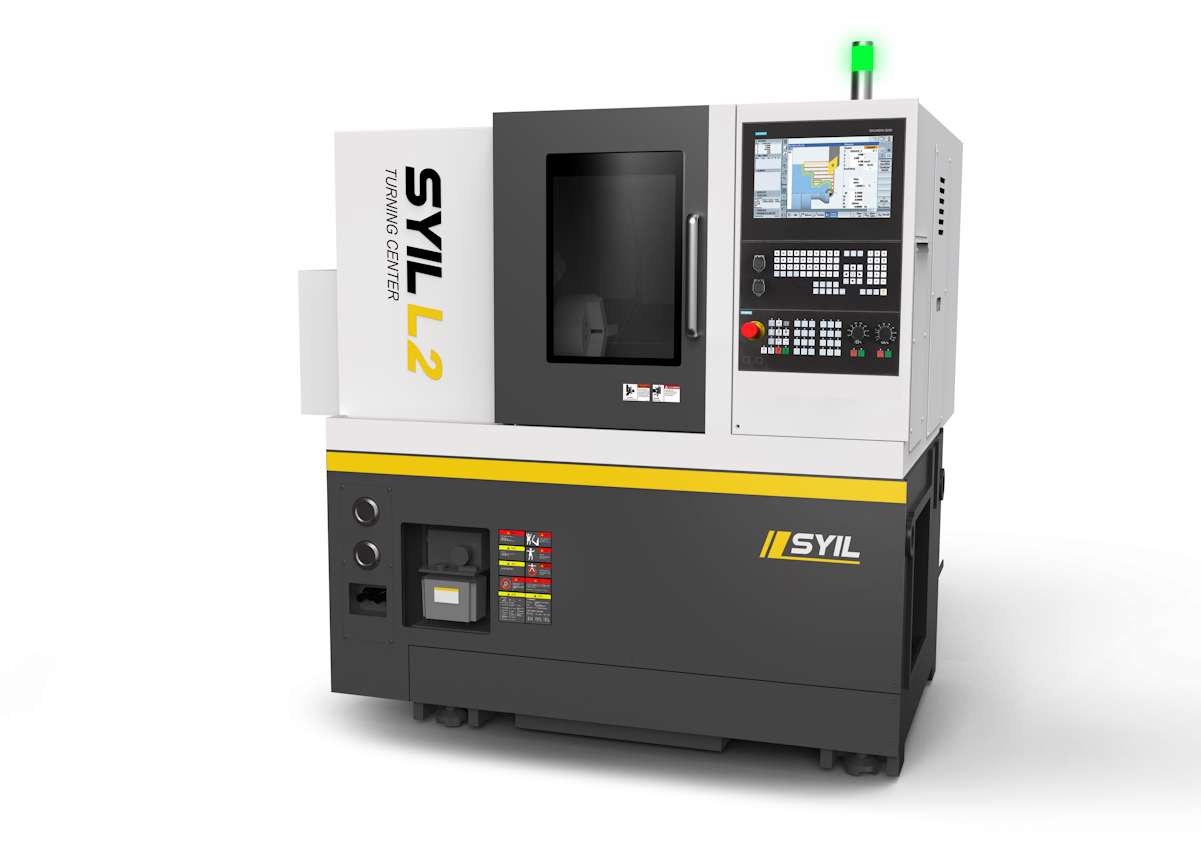

SYIL L2 8" Siemens 828D 2-Axis CNC Turning Centre - Slant Bed (13863)
New SYIL L2 8" Siemens 828D 2-Axis CNC Turning Centre - Slant Bed (13863)
300 t/l, swing Ø 510, bore Ø 52, 11kW, 4,000rpm
Availability: E.T.A. 13 Jan 2025
Price: R 642 700.00 excl.
SYIL L2 Turning Center Packages Specs
When it comes to small parts manufacturing, precision and efficiency are essential. That's where SYIL CNC lathes come in. The SYIL L2 CNC lathes are designed to revolutionize turning centers and provide unmatched performance in small-scale production.
Discover the Advantages of SYIL Lathes for Small Parts Manufacturing
SYIL L2 adopts a platform-based and modular design, featuring a compact footprint and a comfortable operating space with expandability. It reserves interfaces for various expansion functions to realize automated processing, such as loading and unloading robots, automatic doors, automatic feeders, tool setters, online workpiece inspection, etc.
Performance powerful and reliable
·Modular design with powerful expansion capabilities
·A compact machine layout; can be combined into a production line
·Optional mineral-cast bed structure
·High rigidity and thermal stability
·Direct drive servo system and high-precision guide rails
·Fully enclosed working area with stainless steel protective panels
·Easy chip removal design
·Ergonomic design for operation and loading/Unloading
·Easy access to each Unit for simple maintenance
·A customizable automation system can be added for expansion
Specifications:
Processing Capacity
Chuck size: 8 inch
Max. swing diameter over bed: ø510mm
Max. swing diameter over carriage: ø260mm
Max. workpiece Length: 300mm
Max. work piece diameter: ø380mm
Travels
X Rapid traverse: 30m/min
Z Rapid traverse: 30m/min
X Travels: 200mm
Z Travels: 360mm
Spindle
Max speed: 4000rpm
Spindle nose: A2-6
Spindle bore diameter: ø66mm
Through spindle bore diameter: ø52mm
Spindle power: 11/15kW
Tool Holder

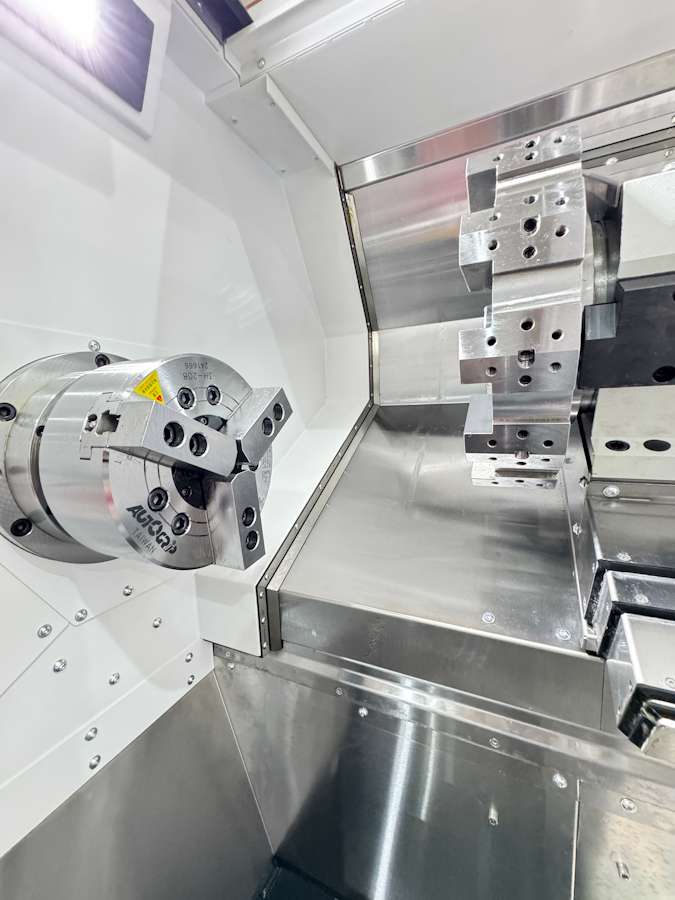

Type: Servo turret
Tools: 8 (12 Tools - Optional)
Tool shank size: 25x25 (20x20mm)
Tool shank diameter: ø40 (ø32m)
Accuracy
Finish turning cylindrical accuracy: IT6
Finish turning parts surface: Ra0.4-1.6
Finished turning parts roundness: ≤0.003mm
Position accuracy (Ｘ): 0.005mm
Position accuracy (Ｚ): 0.008mm
Repeat accuracy (Ｘ): 0.002mm
Repeat accuracy (Ｚ): 0.004mm
Machine Size and Weight
Dimensions(LxWxH): 1775x1600x1690mm
Weight.: 3050kg
By default, the SYIL L2 includes:

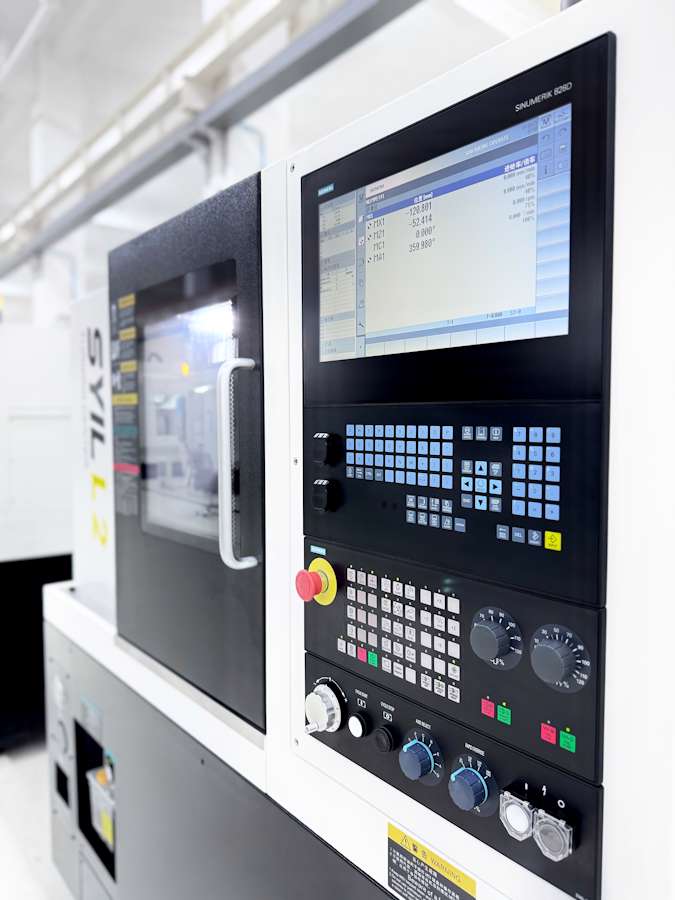

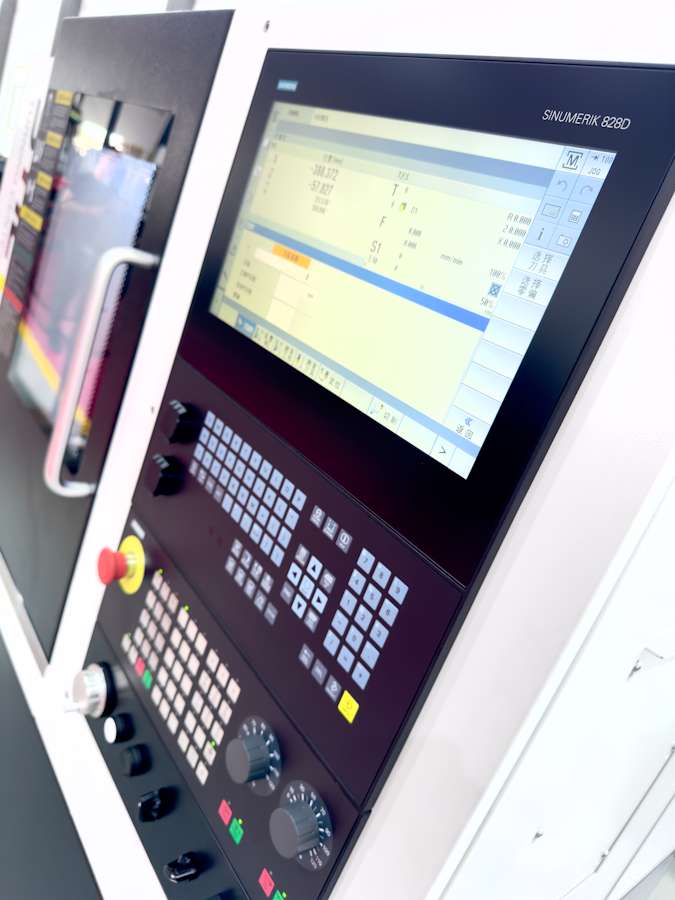

Siemens 828D Control
High-precision ballscrew and linear guide by THK/HIWIN
4,000 RPM Spindle
8 Tools Turret
Options:
Syntec 22TA Control / Fanuc 0iMF Plus Control
12 Tools Turret
Tail Stock Unit
Tool Setter | Renishaw
Chip Conveyor
Parts Catcher
Bar Feeder
