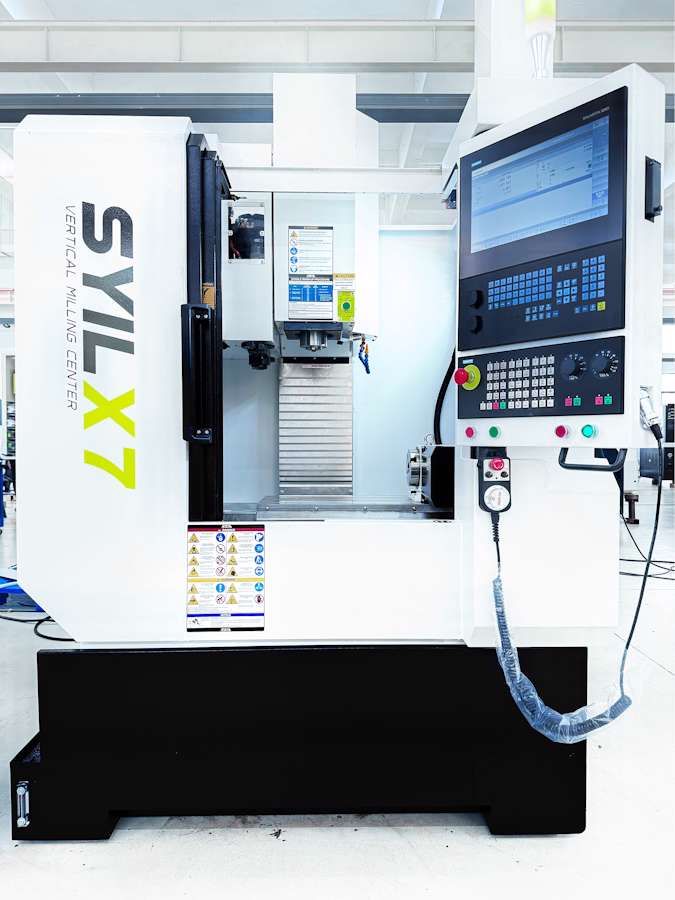

SYIL X7 Vertical CNC Machining Centre 3-Axis (13524)
New SYIL X7 Vertical CNC Machining Centre 3-Axis (13524)
Siemens 828D, BT30, Bed 700x300, 11kW, 12,000rpm
Availability: E.T.A. 13 Jan 2025
Price: R 696 300.00 excl.
X7 CNC Milling Machine: Small Size, Big Benefits
Are you a small-scale business looking to boost production efficiency and increase profits? Look no further than the SYIL X7, a compact and cost-effective CNC milling machine. With its power and precision, the SYIL X7 is perfect for a wide range of projects. The SYIL X7 CNC machine is specially designed for heavy machine work. Its innovative and robust design enables it to cut through the toughest material. The SYIL X7 has the best in-built standard features to provide excellent surface-cutting results.
Powered by the Best In-Built Components
·Powerful and stable performance
·Compact machine layout
·Mineral cast bed with high rigidity and good thermal stability
·Electric spindle with water cooling function
·Fully enclosed workspace with stainless steel protection panels
·Easy chip evacuation design
·Ergonomic operation and workpiece loading/Unloading design
·Easy access to all machine components for convenient maintenance
·Expandable and customizable automation system
Features:
Small Size, Big Benefits
400x300x380mm axis travels

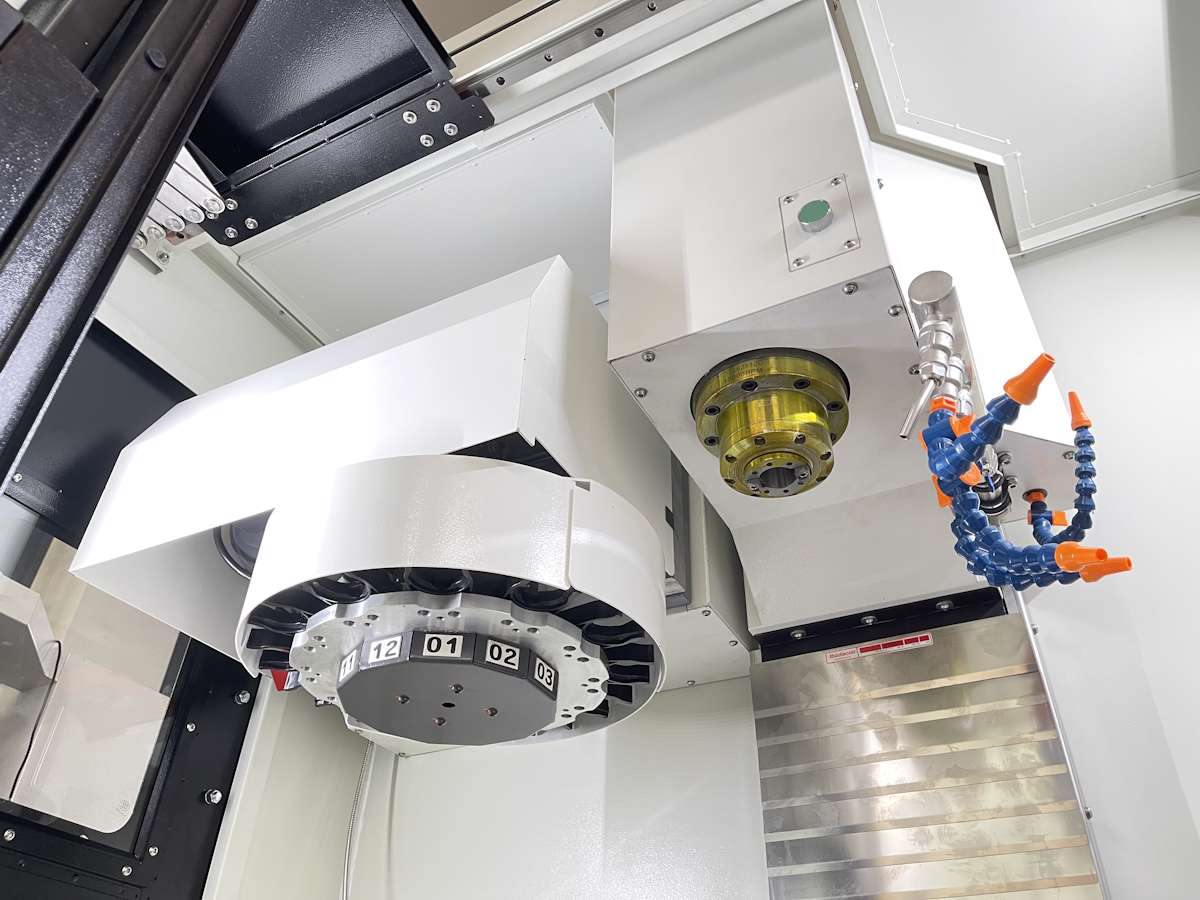

12-pocket umbrella automatic tool changer
12,000 RPM BT30 spindle
SCHNEEBERGER - Mineral casting machine frame
THK - High-precision ball screws and linear guide
Fourth Axis - Optional fourth axis available

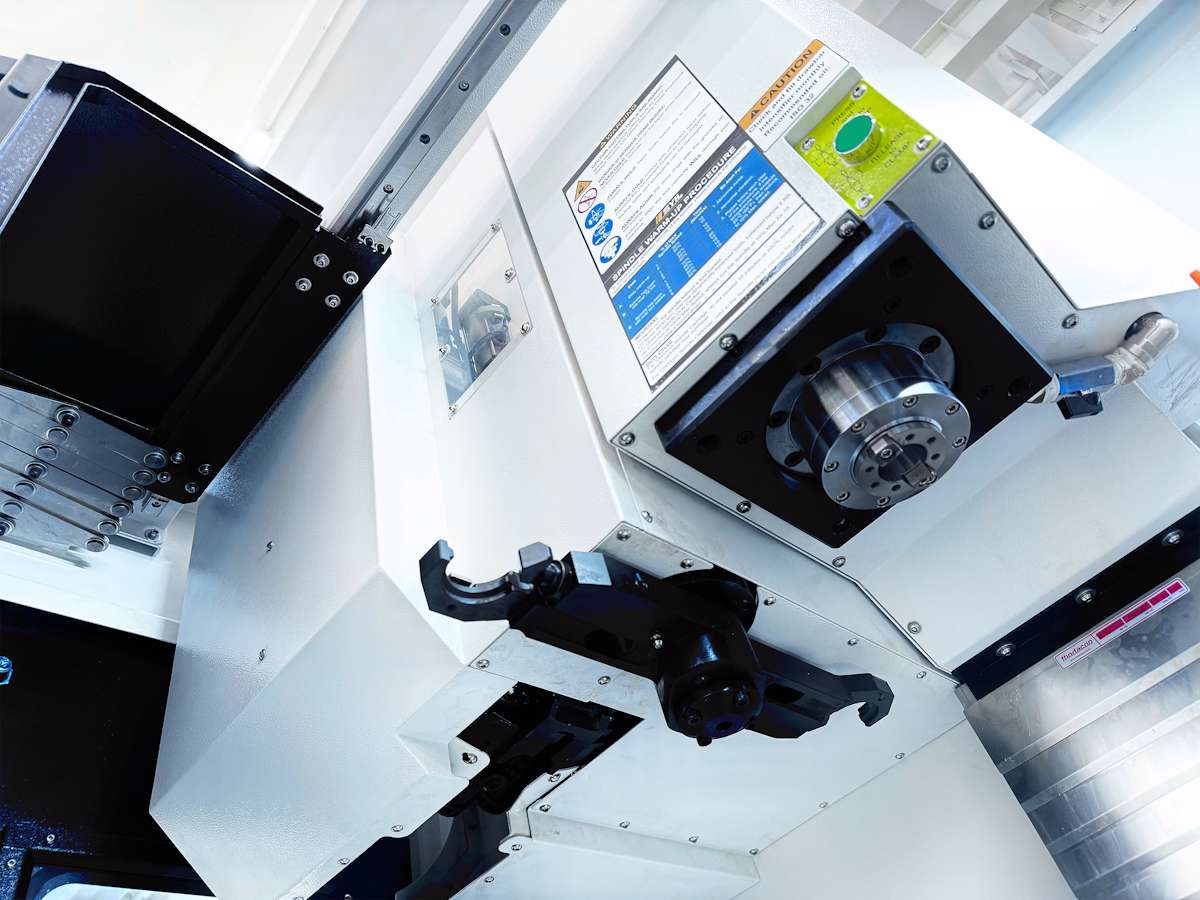

Optional High-Speed Servo Tool Changer - 16 Units BT30
Specifications:
Table
Table Size: 700x300mm
T-Slots (Number x Size x Distance): 3x14x100mm
Max. Table Load: 150kg
Travel
X Travel: 400mm
Y Travel: 300mm
Z Travel: 380mm
Distance between spindle end and tabletop: 150-530mm
Distance between spindle and column surface: 358mm
Spindle
Spindle Nose: BT30/HSKE40
Spindle Speeds: 12,000rpm/30,000rpm
Mechanism of Transmission: Belt
Feed
Cutting Feed: 10,000mm/min
Rapid Traverse: 30,000mm/min
Auto Tool Changer
Tool Type: Umbrella Type/Arm Type (Optional)
Tool Storage Capacity: 12 pcs/16 pcs (Optional)
Max. Tool Diameter: 63mm
Max. Tool Length: 200mm
Max. Tool Weight: 3kg
Tool to Tool: 1.5s
Power

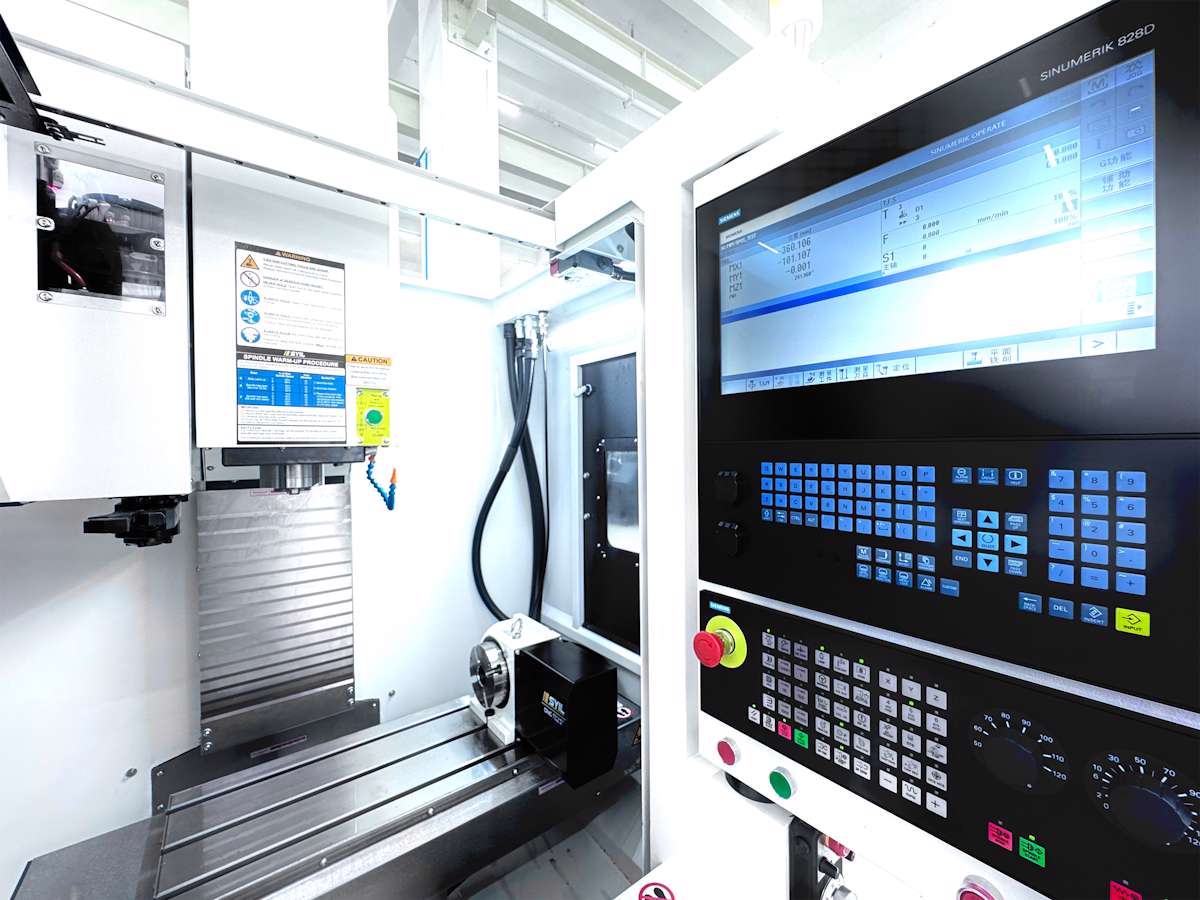

Siemens 828D
Spindle motor output (Rate/Max): 7.5/11kW
Drive motors(X,Y,Z): 1.1/2.2/2.2kW
Power Source: AC380V/3-Phase
Power: 14kVA
Syntec 220MA (Optional)
Spindle motor output (Rate/Max): 8.2/12kW
Drive motors(X,Y,Z): 1.1/1.7/2.4kW
Power Source: AC380V/3-Phase
Power: 14kVA
FANUC 0iMF Plus (Optional)
Spindle motor output (Rate/Max): 3.7/5.5kW
Drive motors(X,Y,Z): 2.2/2.2/2.7kW
Power Source: AC220V/3-phase
Power: 12kVA
Machine Size and Weight
Floor Size (LxWxH): 150x180x225cm
Net Weight: 2000kg
Gross Weight: 2200kg
Options:
16 positions arm type ATC
Probing system
Tool setter system
NC rotary table
Filter mist
Automatic door
Chip conveyor
Central Coolant System (CTS 20 Bar)
