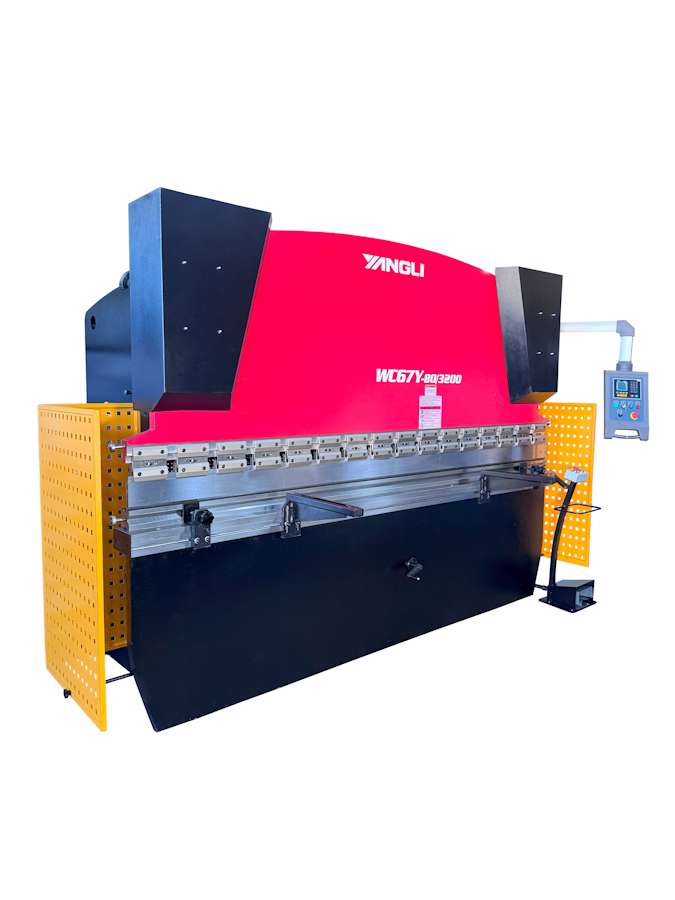

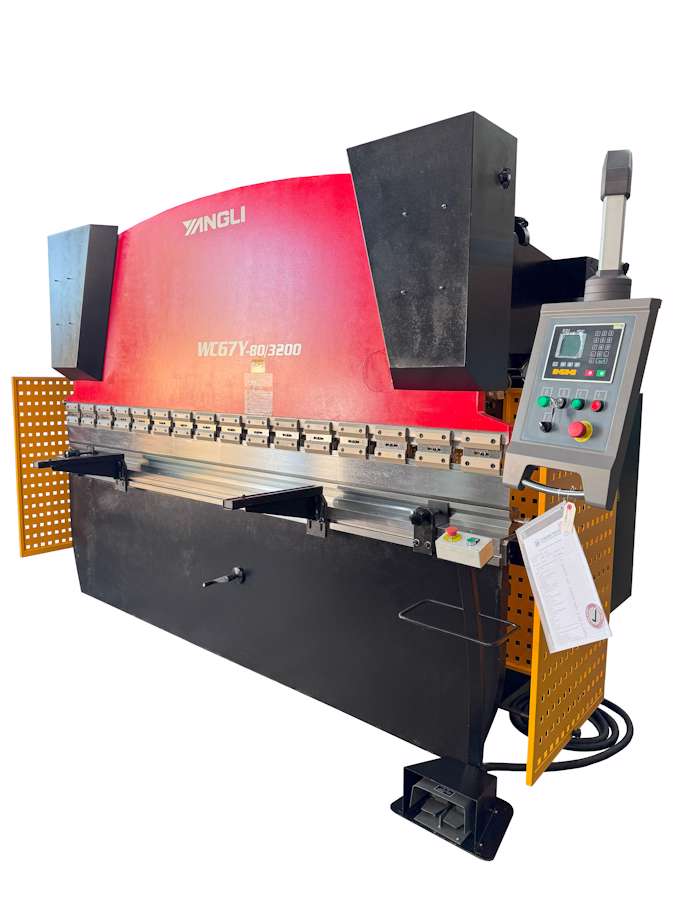

Yangli WC67Y-63x2500 NC (13028)
New Yangli WC67Y-63x2500 NC (13028)
63 Ton x 2500, Estun E21 2-axis NC Control
Availability: E.T.A. 15 Jun 2026
Price: POA
Yangli delivers quality you can trust and lasting performance you can rely on.
Press brakes designed to deliver maximum performance through quality features and
robust built strength durability.
Standard Features:

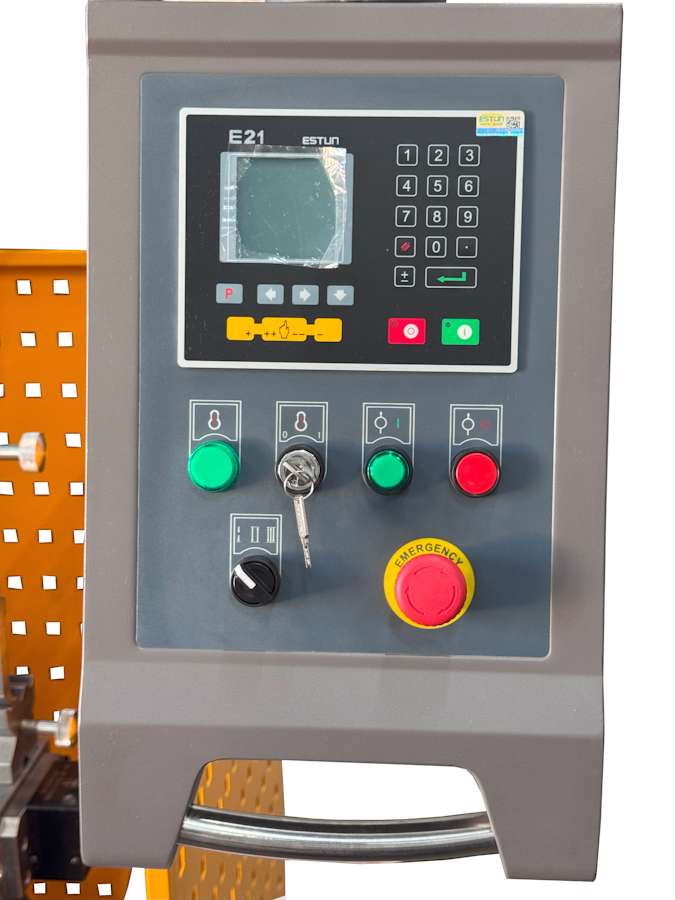

Control: Estun E21 NC
Crowning: Mechanical
Foot pedal: Up and down, with safety switch.

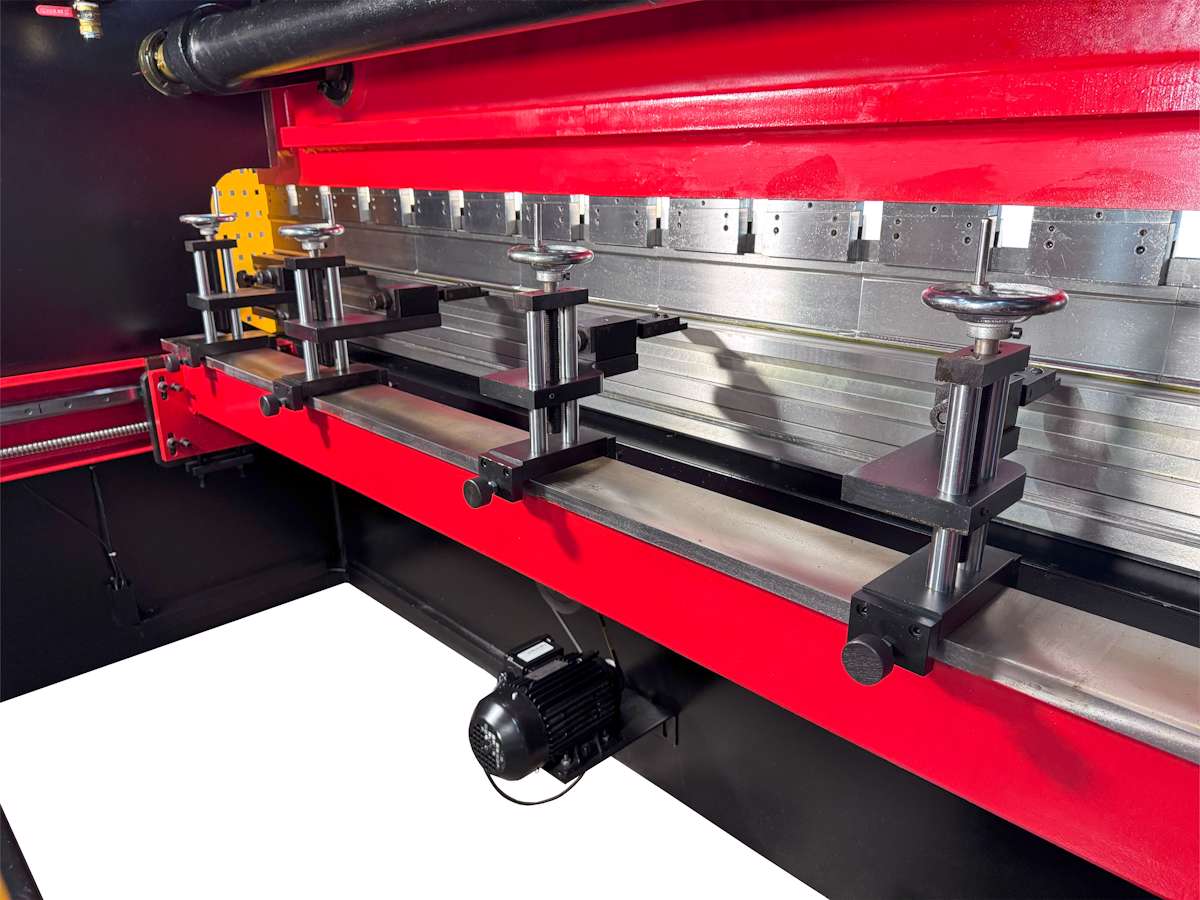

Backstops: Running on ball screws with linear guides.
Fingers: Quick release, flip up, multi-level backgauge fingers with R axis height adjustment.

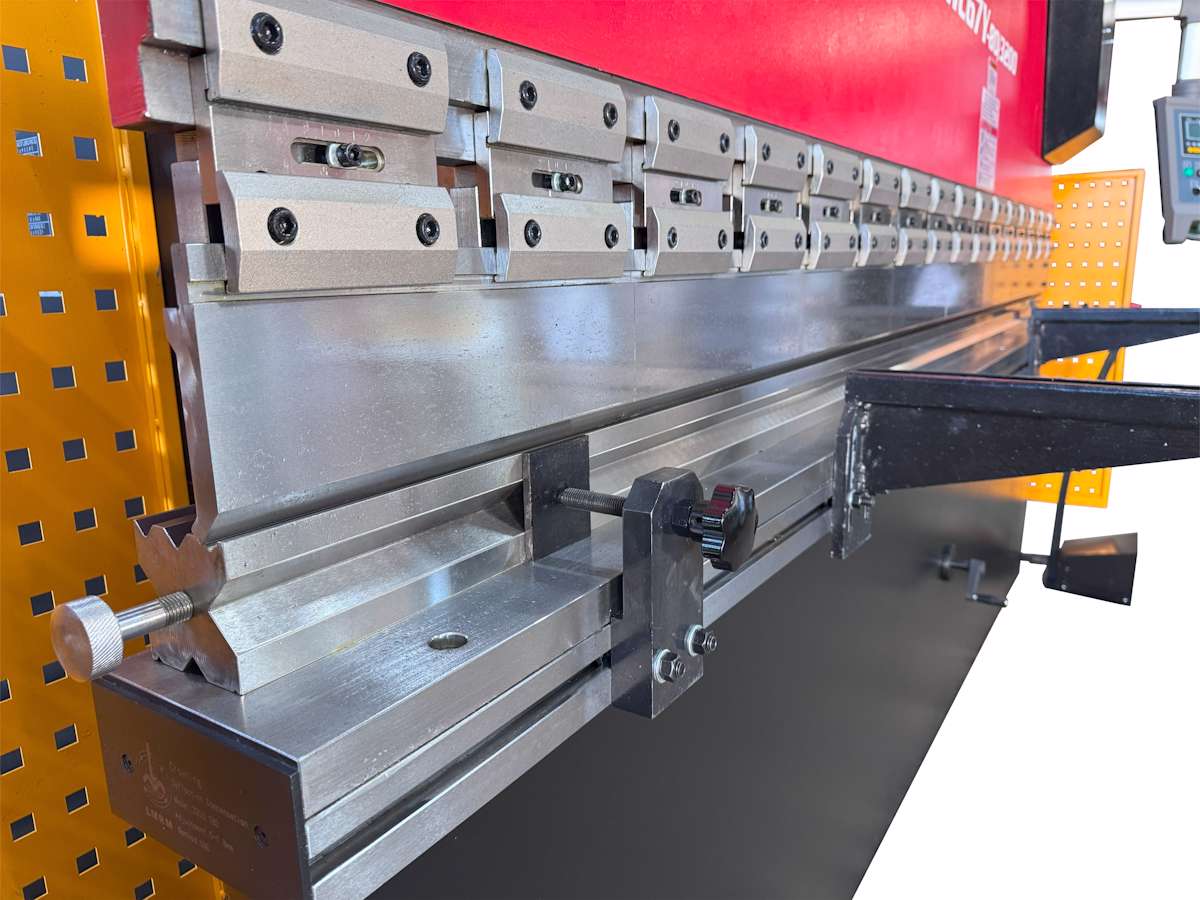

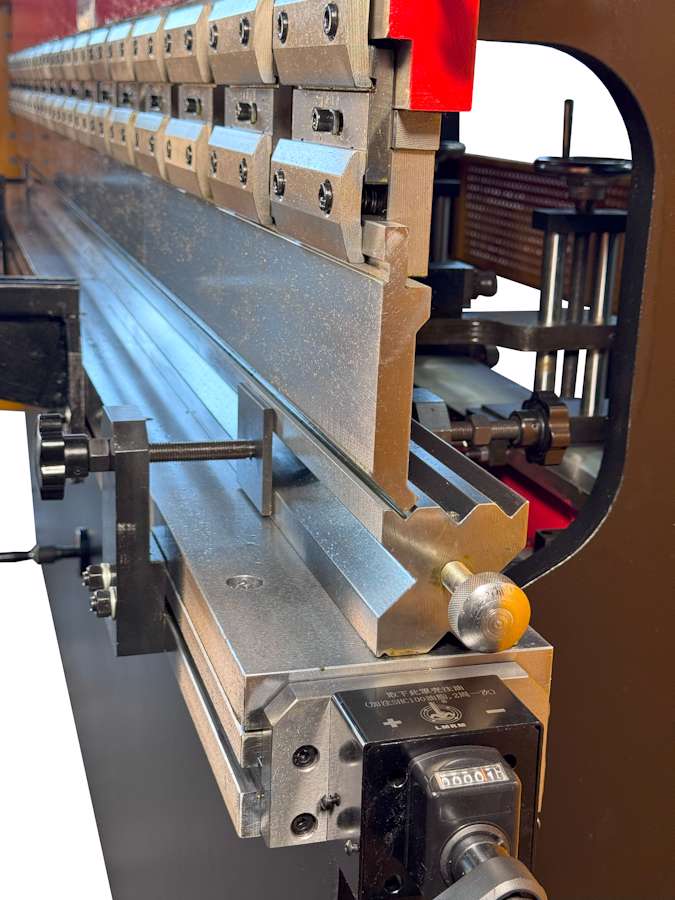

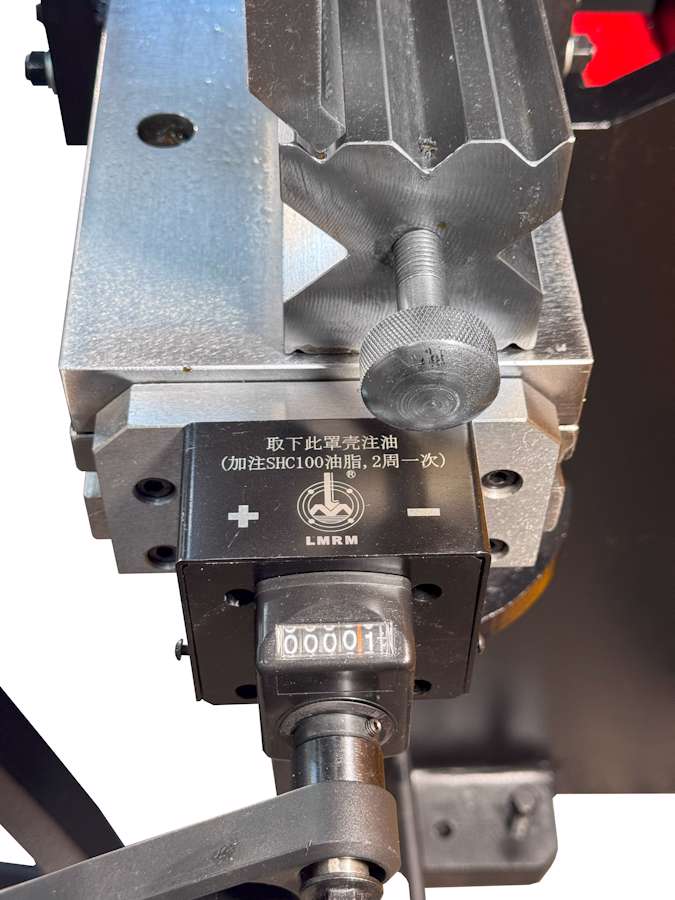

Bottom tools: Multi-vee die.
Top tools: Semi goose neck top tooling.
Clamping: Adjustable wedge quick release top tooling clamps.
Workpiece support: Adjustable left, right, up and down front support arms.

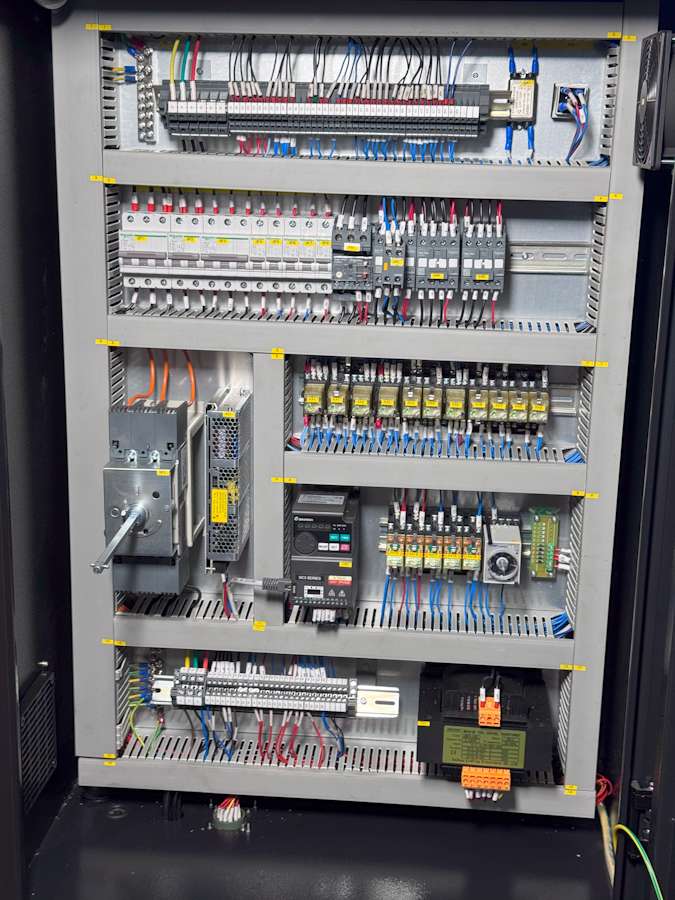

Inverter: Controls X & Y axis.

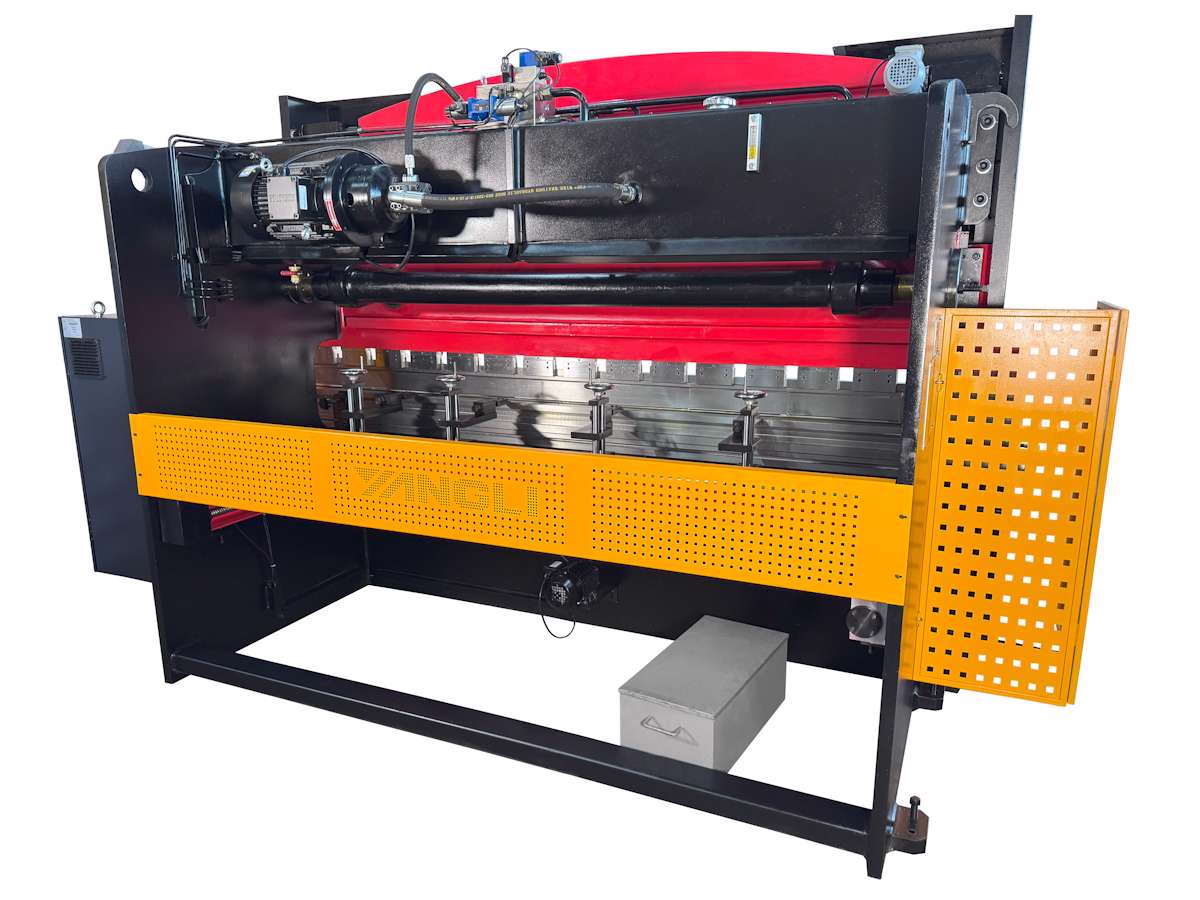

Safety rear: Full cage rear safety system.

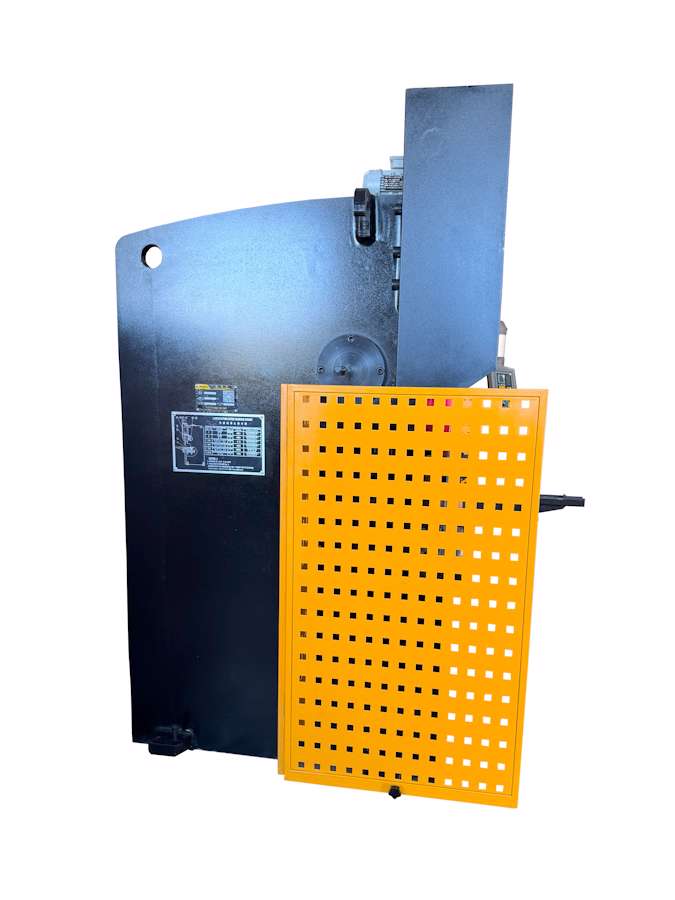

Safety side: Side safety guards.
Entire welded frame, press with tempering.
Hydraulic top drive, stepless pressure adjusting, imported seals with high quality to ensure reliability.
Mechanism synchronous with up and down composite compensation to increase machining accuracy.
Slide stroke adjusting device & back gauge device: electric quick adjusting, manual micro adjusting, numeric display.
Inch, single & continuous mode, time relay: control reversing time, pressurizing time.
Nominal force: 630kN
Table length: 2500mm
Between columns: 2000mm
Throat depth: 250mm
Slide stroke: 100mm
Stroke adjustment: 80mm
Max. Open height: 360mm
V-Block size: 65x65mm
V-block V sizes: 4, 8, 12, 16, 20, 32 & 40mm
Hydraulic tank capacity: 150L
Main motor power: 5.5kW
Net weight: 4100kg
Overall dimensions (LxWxH): 2680 x 1350 x 2260mm
