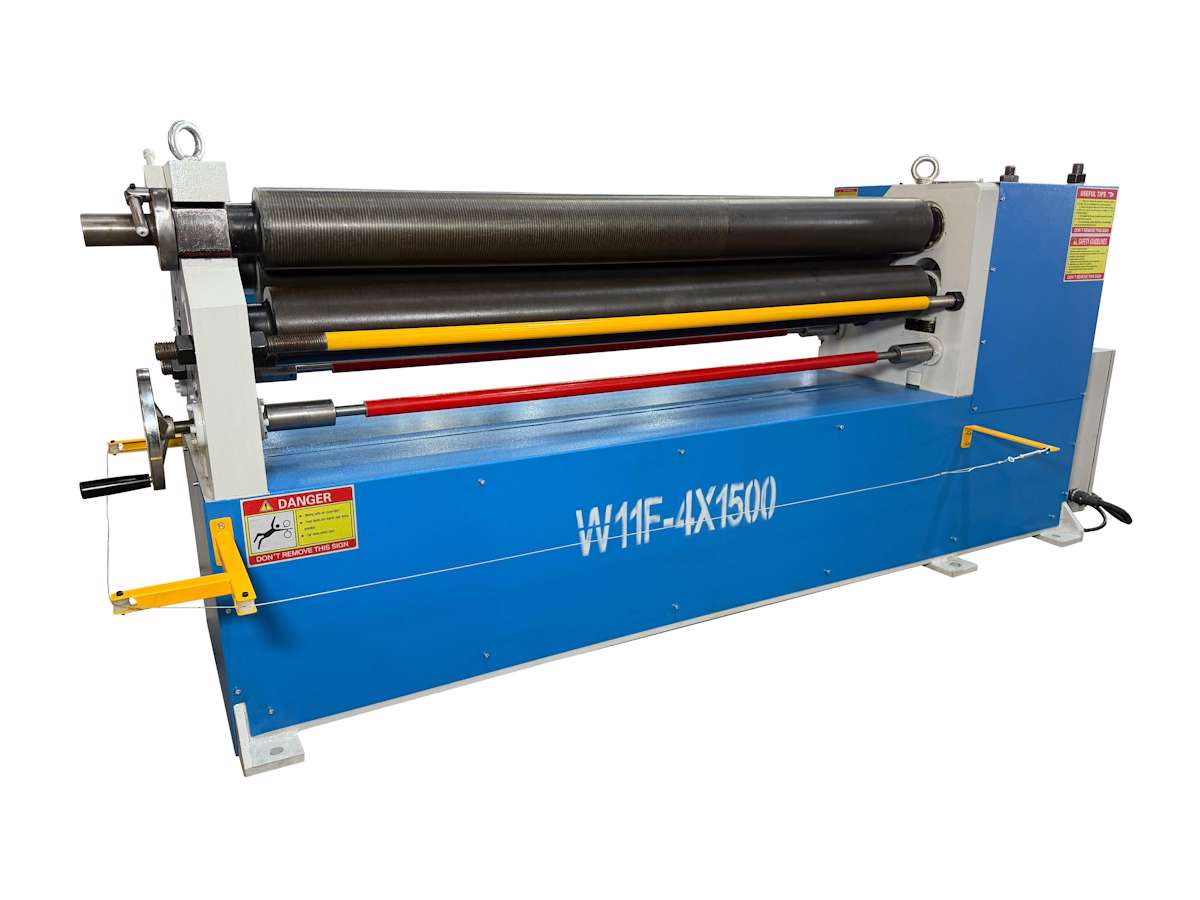

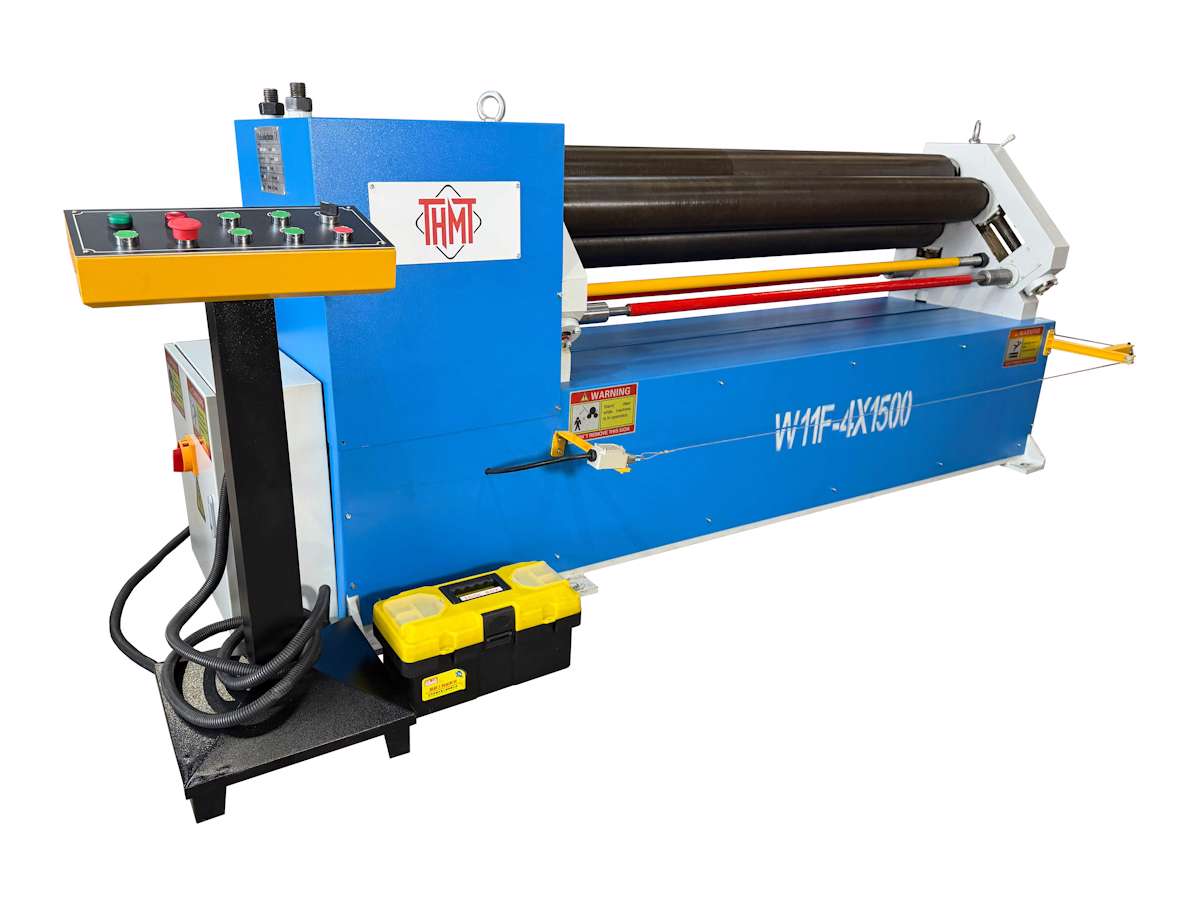

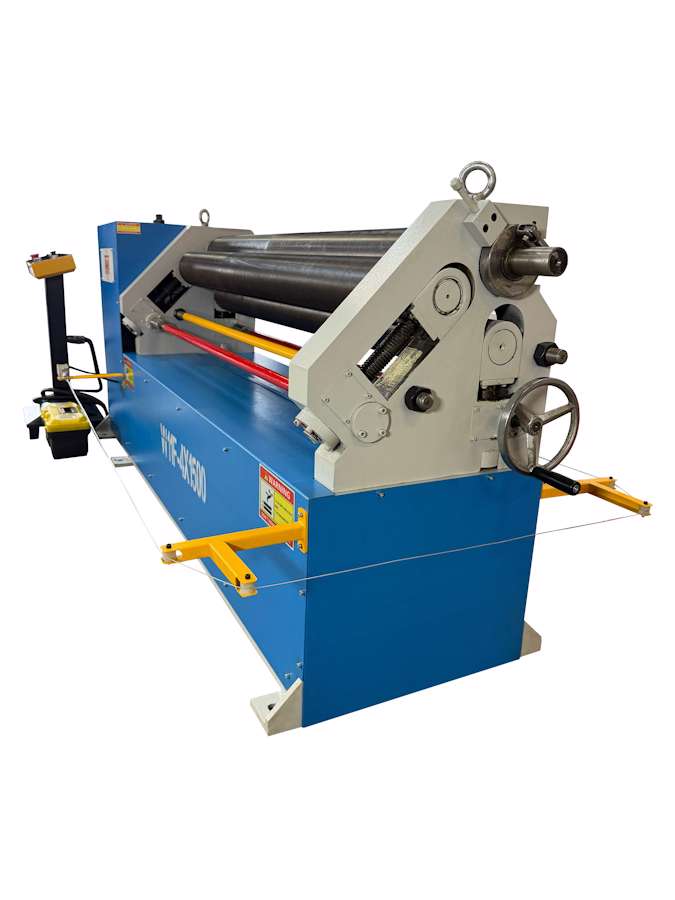

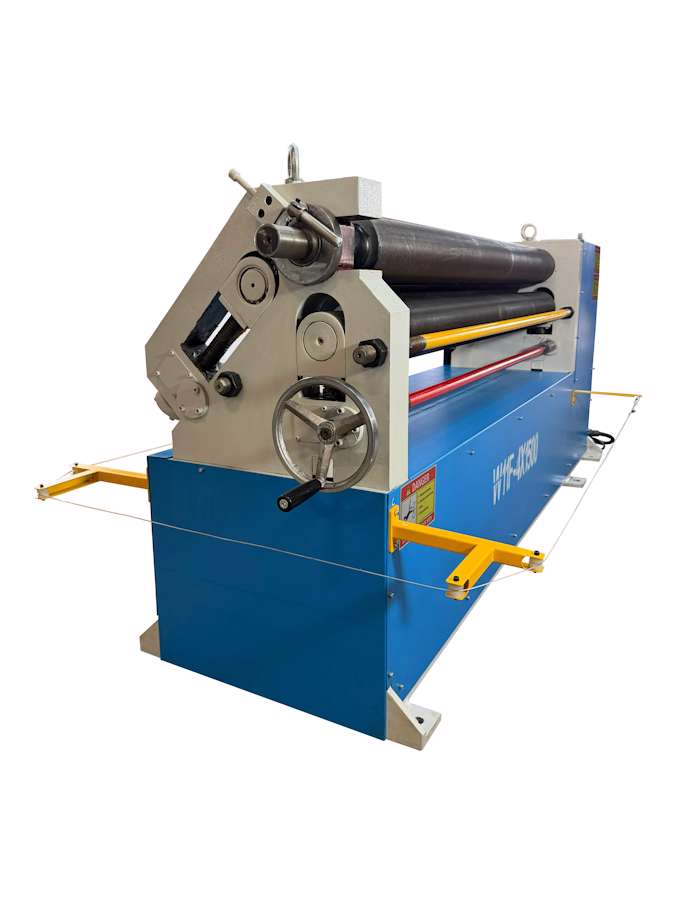

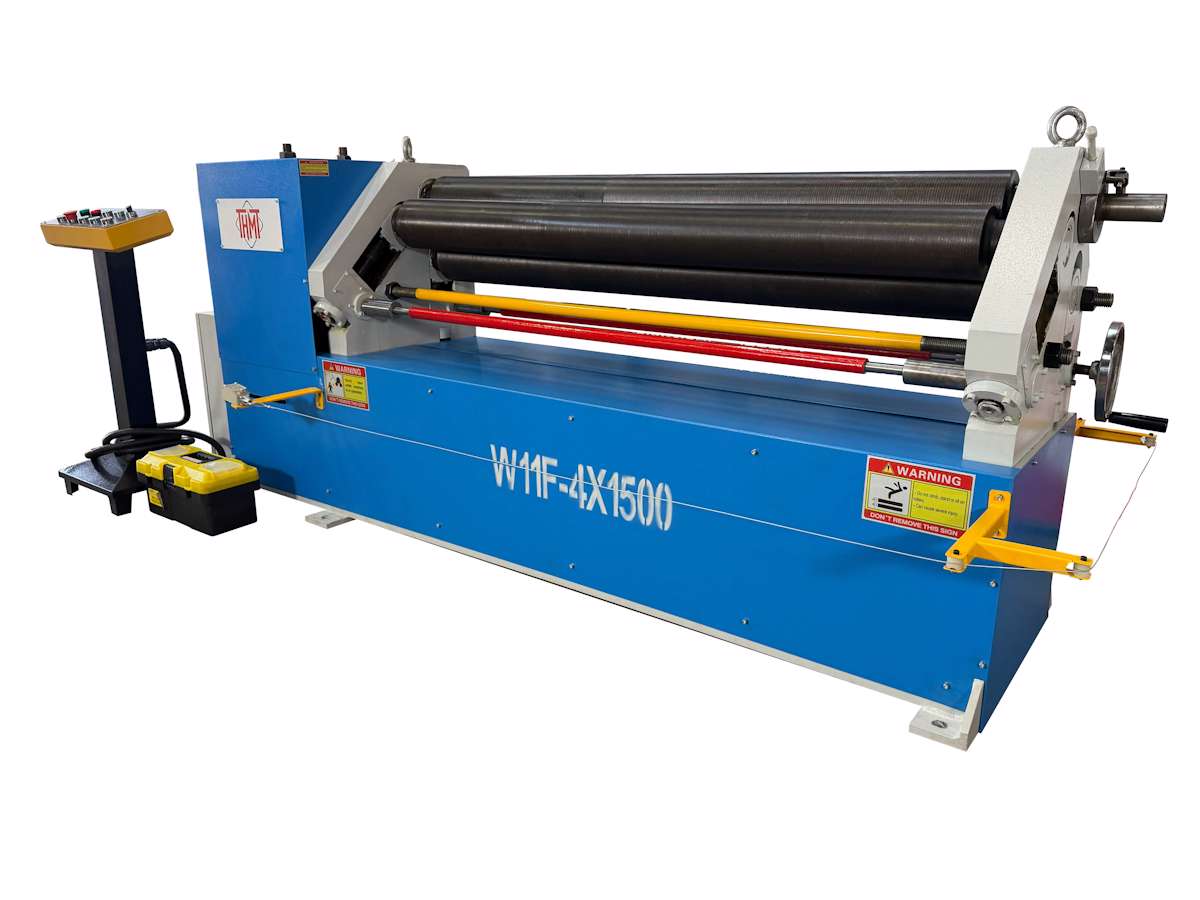

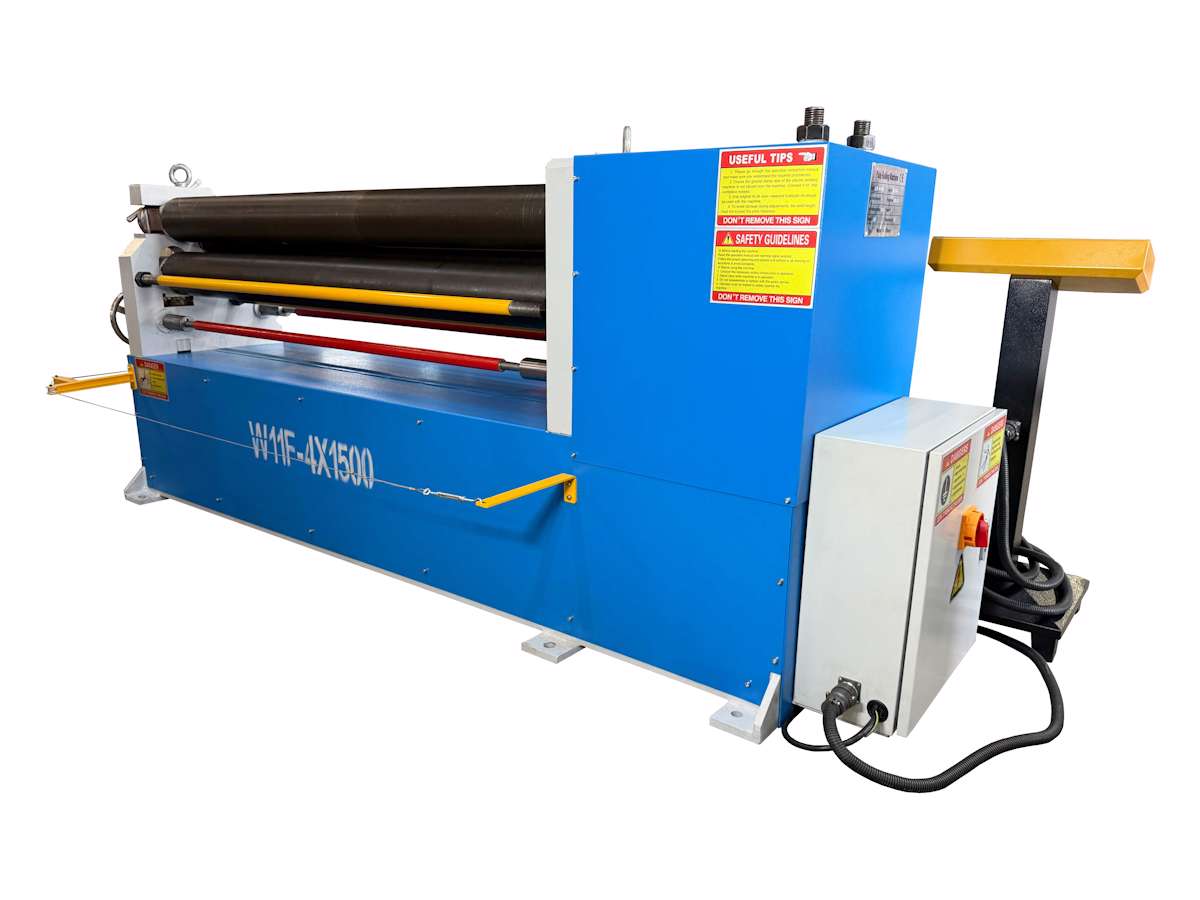

THMT W11F-4x1500 Motorised Plate Roll (14788)
New THMT W11F-4x1500 Motorised Plate Roll (14788)
4 x 1500mm, Pinch
Availability: In Stock (TBC)
Price: R 167 400.00 excl.
The W11F is a mechanical three-roll asymmetrical plate-rolling machine with initial pinch and pre-bending capability.
Max bending thickness: 4:mm
Max bending width: 1500:mm
Yield limit: 245:mpa
Minimum bending diameter: 220:mm
Upper roller diameter: 135mm
Down roller diameter: 135mm
Side roller diameter: 135mm
Bending speed: 4.5m/min
Main power: 4kW
Auxiliary power: 0.75kW
Main features:
Upper and lower rolls are driven for positive plate feeding.
Lower roll moves vertically to pinch the plate.
Side roll movement performs pre-bending and diameter adjustment.
Suitable for producing cylinders and curved sections from thin sheet.
Welded steel machine frame.
