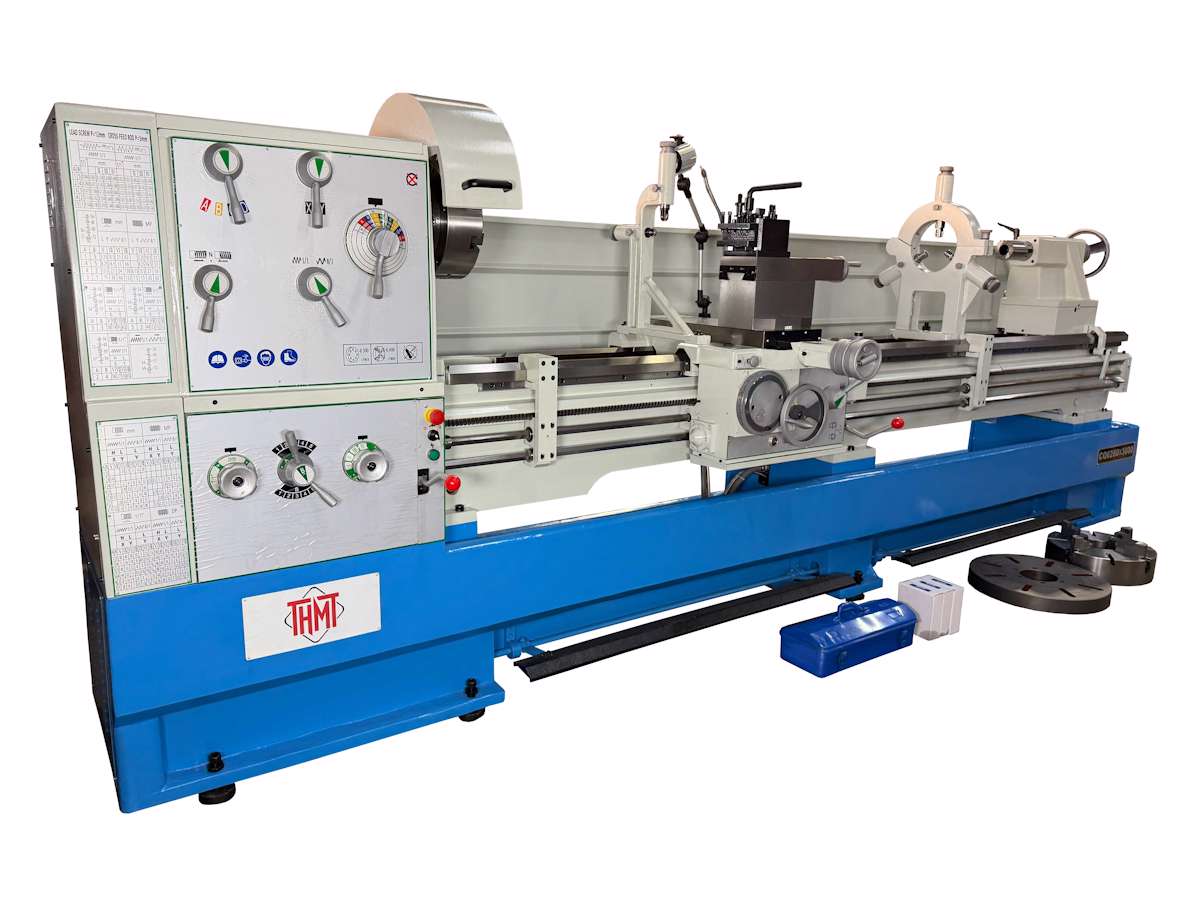

THMT CQ6280 x 3000 Centre Lathe (14070)
New THMT CQ6280 x 3000 Centre Lathe (14070)
3000b/c, swing Ø800, gap Ø1035, bore Ø105, QCTP
Availability: In Stock (TBC)
Price: R 410 700.00 excl.
Included:
Quick Change Tool Post
3 Jaw chuck Ø 315mm

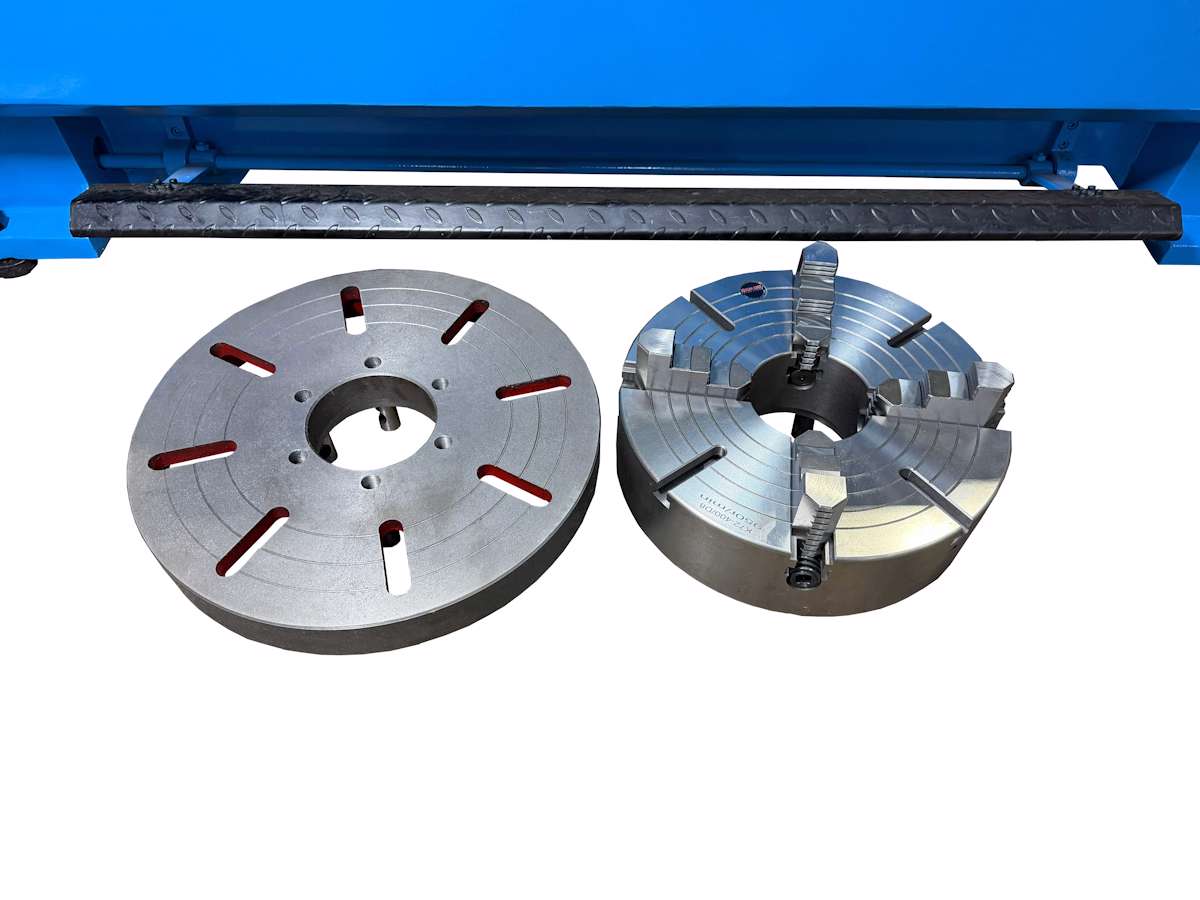

4 Jaw chuck Ø 400mm
Faceplate Ø 445mm
8x Foot mounts
Travelling steady
Fixed steady
Distance between centres: 3000mm
Swing over bed: Ø800mm
Swing in gap: Ø1035mm
Swing over cross slide: Ø570mm
Spindle bore: Ø105mm
Length of gap: 250mm
Width of bed: 400mm
Maximum travel of cross slide: 418mm
Maximum travel of top slide: 230mm
Spindle head joining style: D1-8
Spindle reducing bush taper: Φ113mm (1:20)/ MT5
Spindle speed grade: 16
Spindle speed range: 25~1600rpm
Travel of tailstock sleeve: 235mm
Diameter of tailstock sleeve: Φ 90mm
Inside taper of tailstock sleeve: MT5
Power of main motor: 7.5kW (10PH)
Power of cooling pump: 0.09kW (1/8HP)
Dimensions: 4710 x 1230 x 1670mm (L x W x H)
Weight: 3820kg
Cutting Thread & Feed Range:
Large screw size: Φ48mm x 2T.P.I. or Φ48mm x 12mm
Inch thread range & kind: 7/16~80 T.P.I. (54 kinds)
Metric thread range & kind: 0.45~120mm (54 kinds)
Diameter pitch range & kind: 7/8~160DP (42 kinds)
Module range & kind: 0.25 ~ 60MP (46 kinds)
Metric spindle longitudinal feed per revolution: 0.044~1.48mm/rev (25 kinds)
Inch spindle longitudinal feed per revolution: 0.0016498~0.05497” /rev (25 kinds)
Metric spindle cross feed per revolution: 0.022~0.74mm/rev (25 kinds)
Inch spindle cross feed per revolution: 0.0008326~0.02774” /rev (25 kinds)
