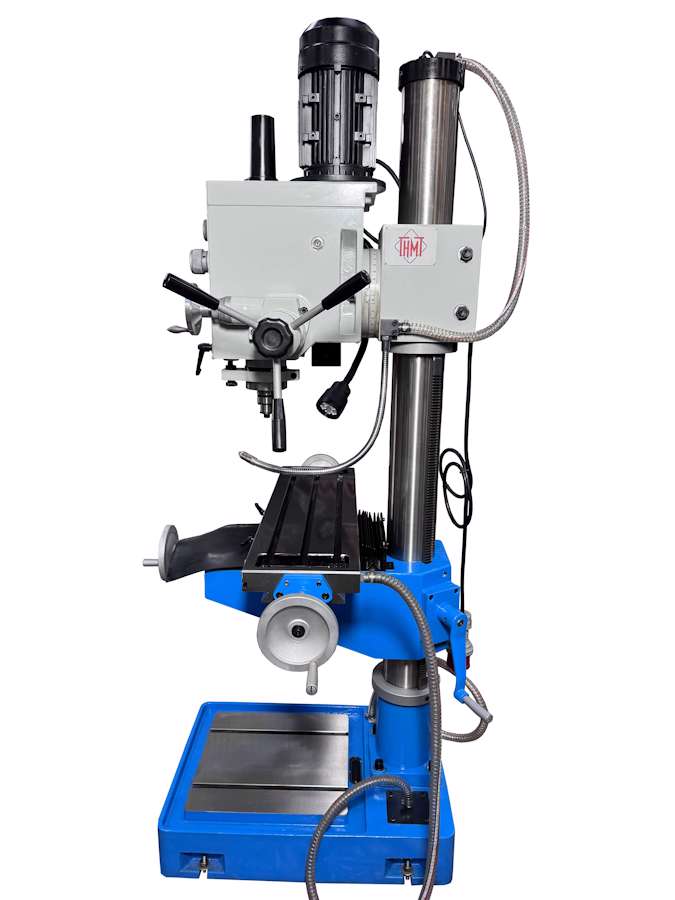

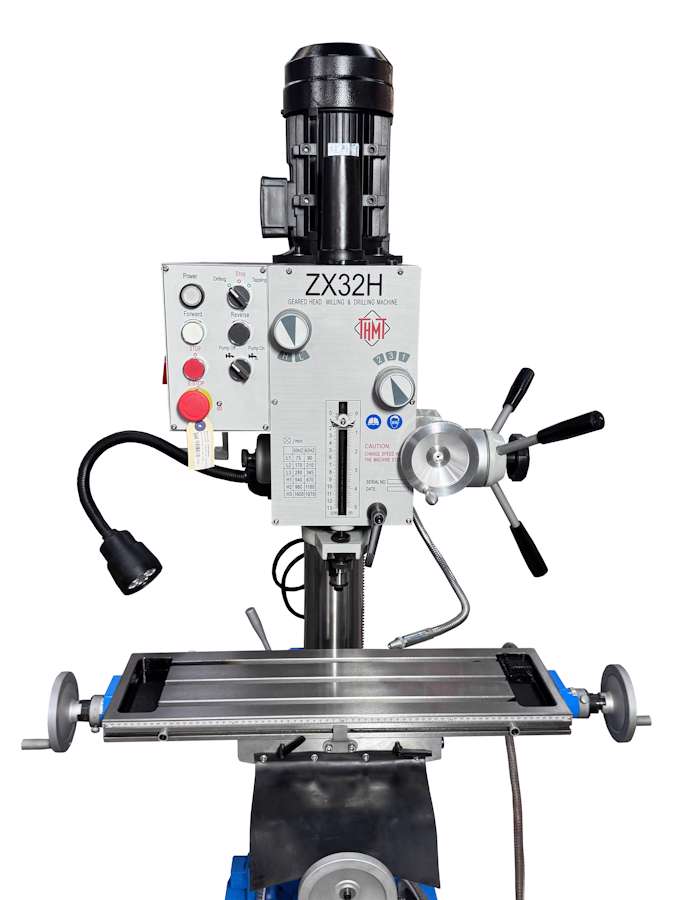

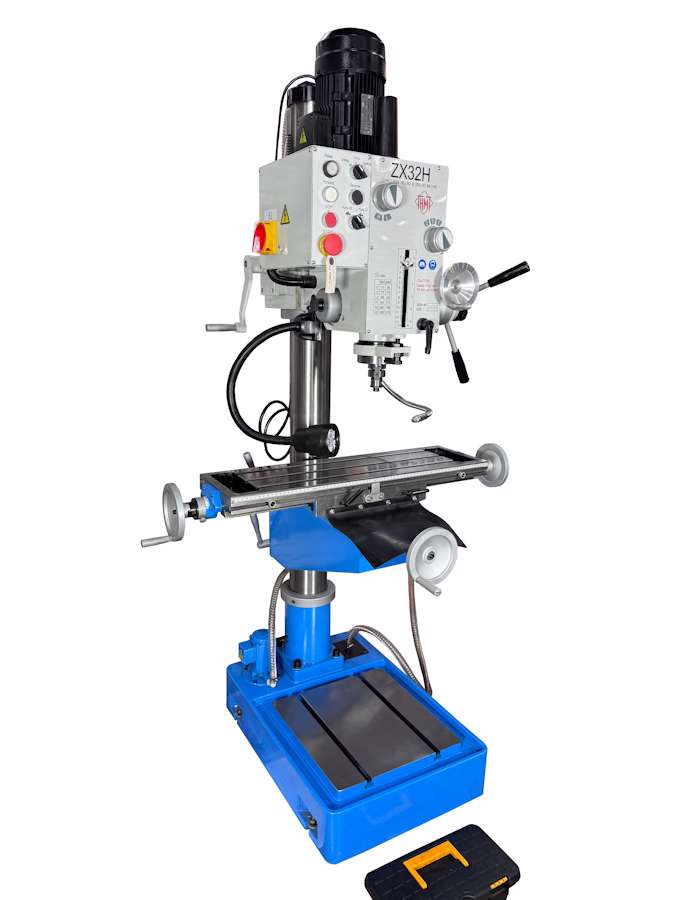

THMT ZX32H Geared Head Drilling Machine (14200)
New THMT ZX32H Geared Head Drilling Machine (14200)
MT3, 31.5mm, 1.5kW
Availability: E.T.A. 15 Dec 2026
Price: POA
Max drilling capacity: 25mm (Max 31.5mm)
Spindle Taper: MT3
Dimension of base: 670x470mm
Spindle Speed: 75-1600rpm (50Hz)
Distance of Spindle axis to column: 278mm

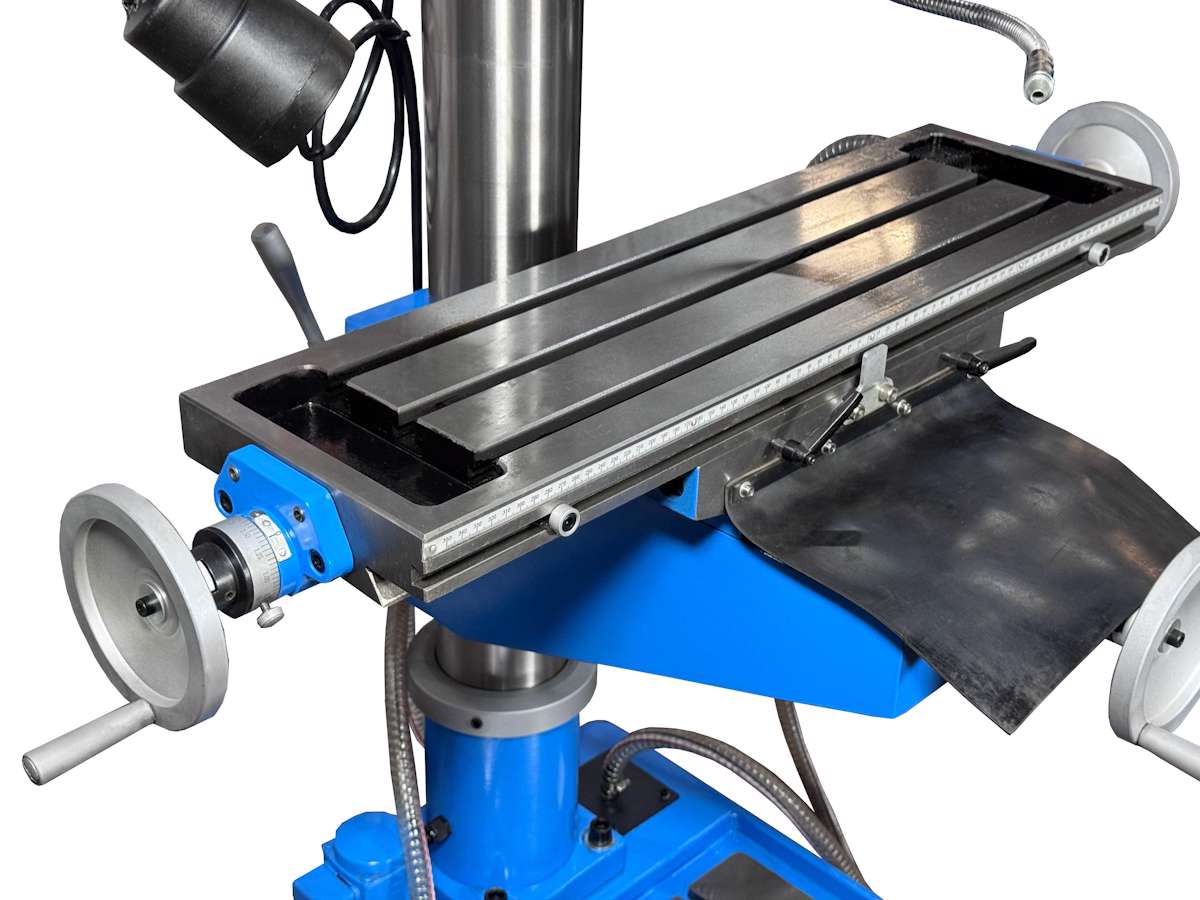

Work table size: 730x210mm
Work table travel: X=480mm, Y=180mm
Spindle travel: 120mm
Motor Power: 1.5kW
Column Ø: 115mm
Max. Dist. spindle nose to worktable: 610mm
Max. Dist. Spindle nose to base: 1180mm
Packing Dimensions: 965x760x1885mm
Weight: 365kg
Standard Features:
LED worklight

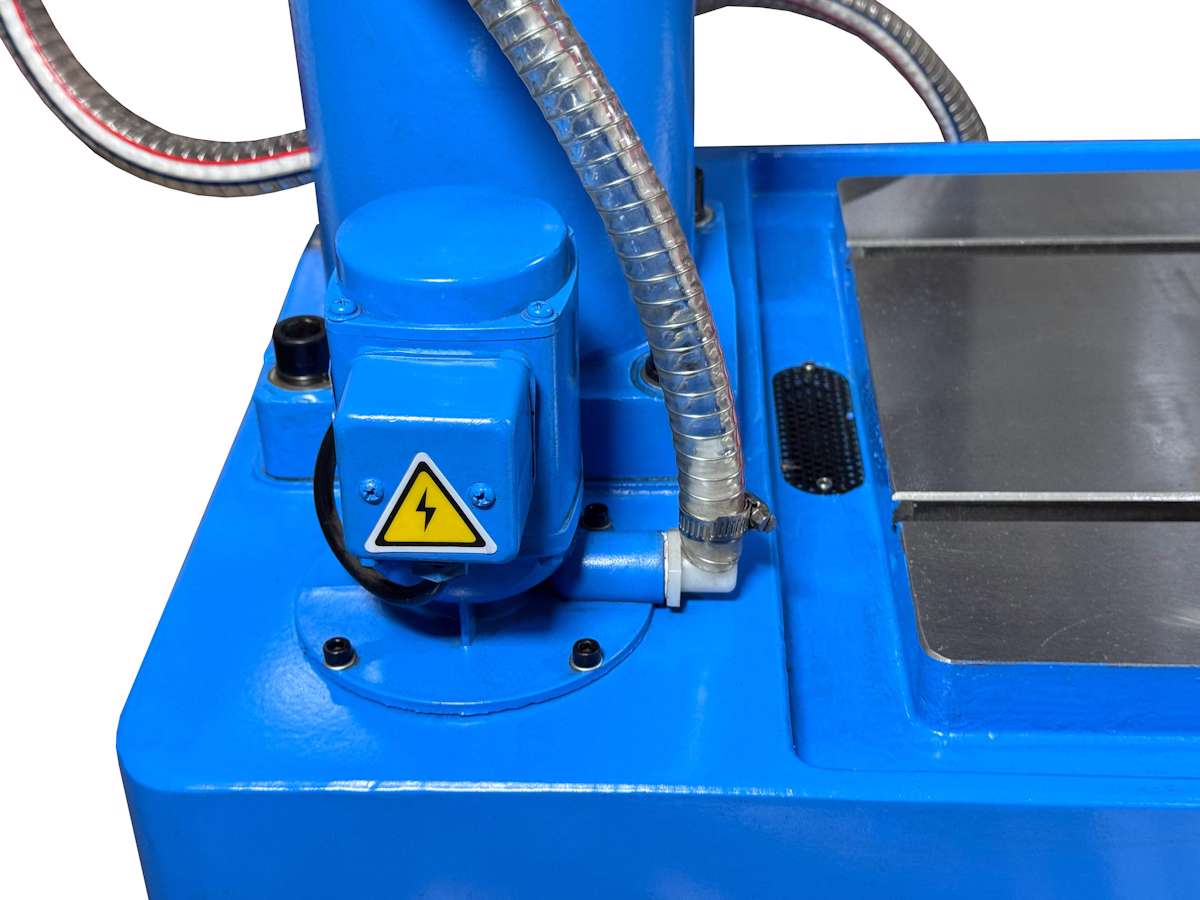

Coolant System

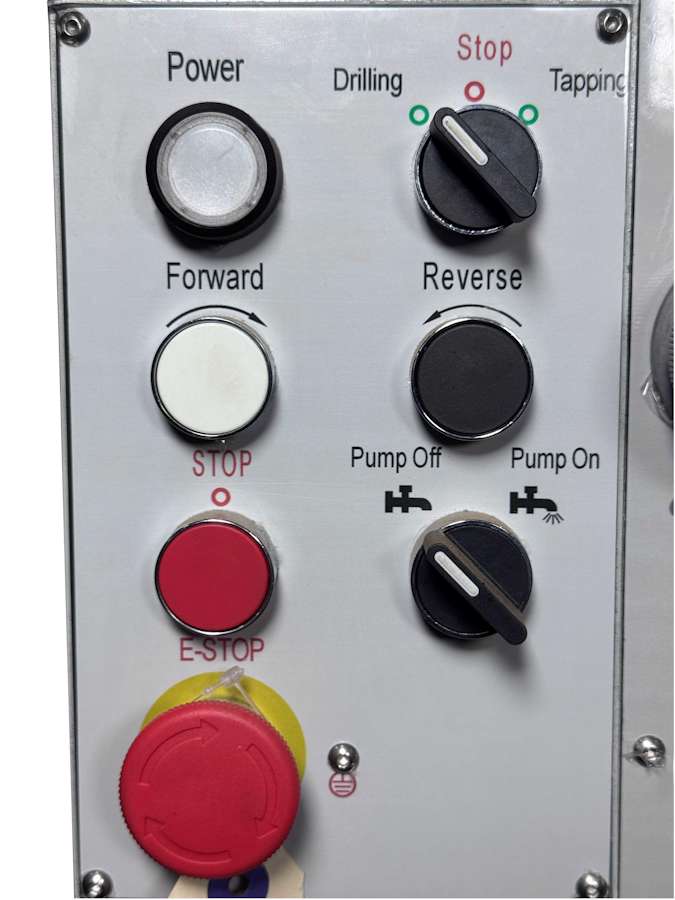

Forward reverse tapping function
360° head swivel
Precision Micro feed
Heavy-duty roller bearing spindle
Positive spindle lock
Gear driven
