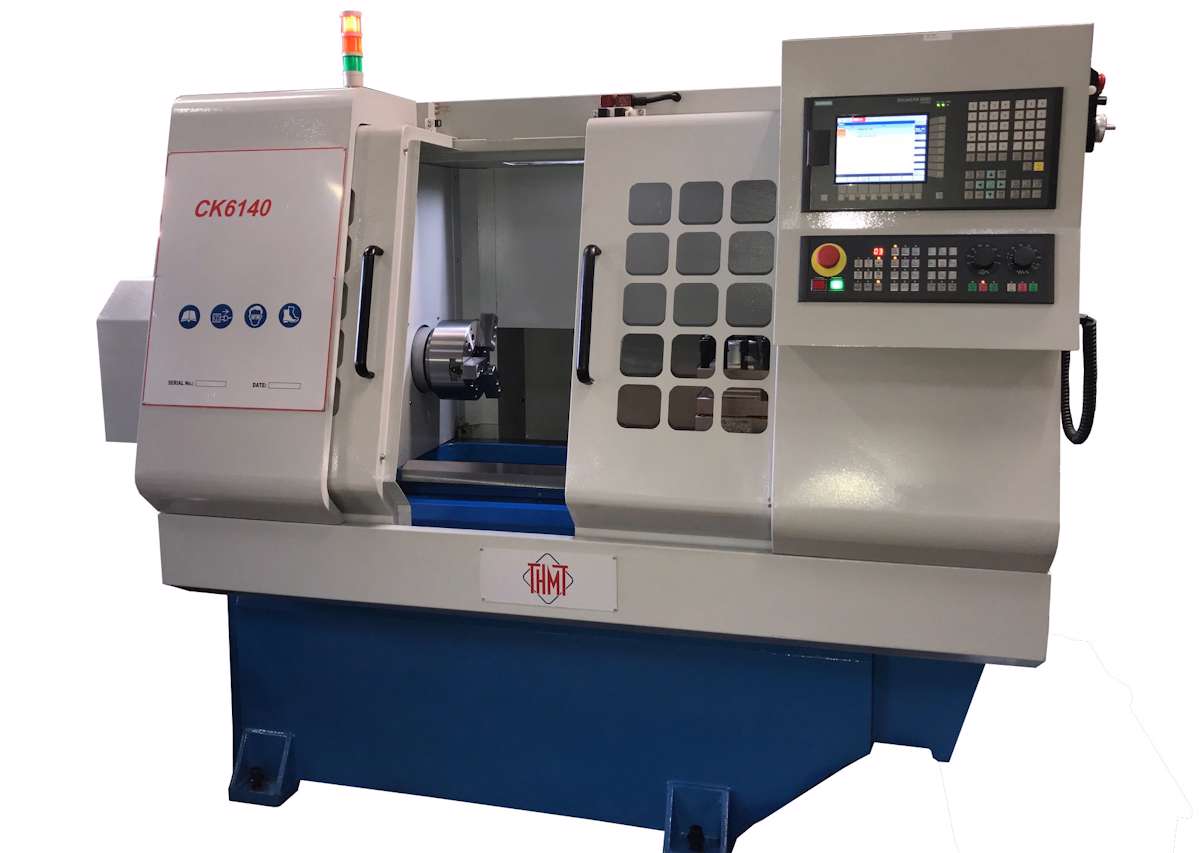

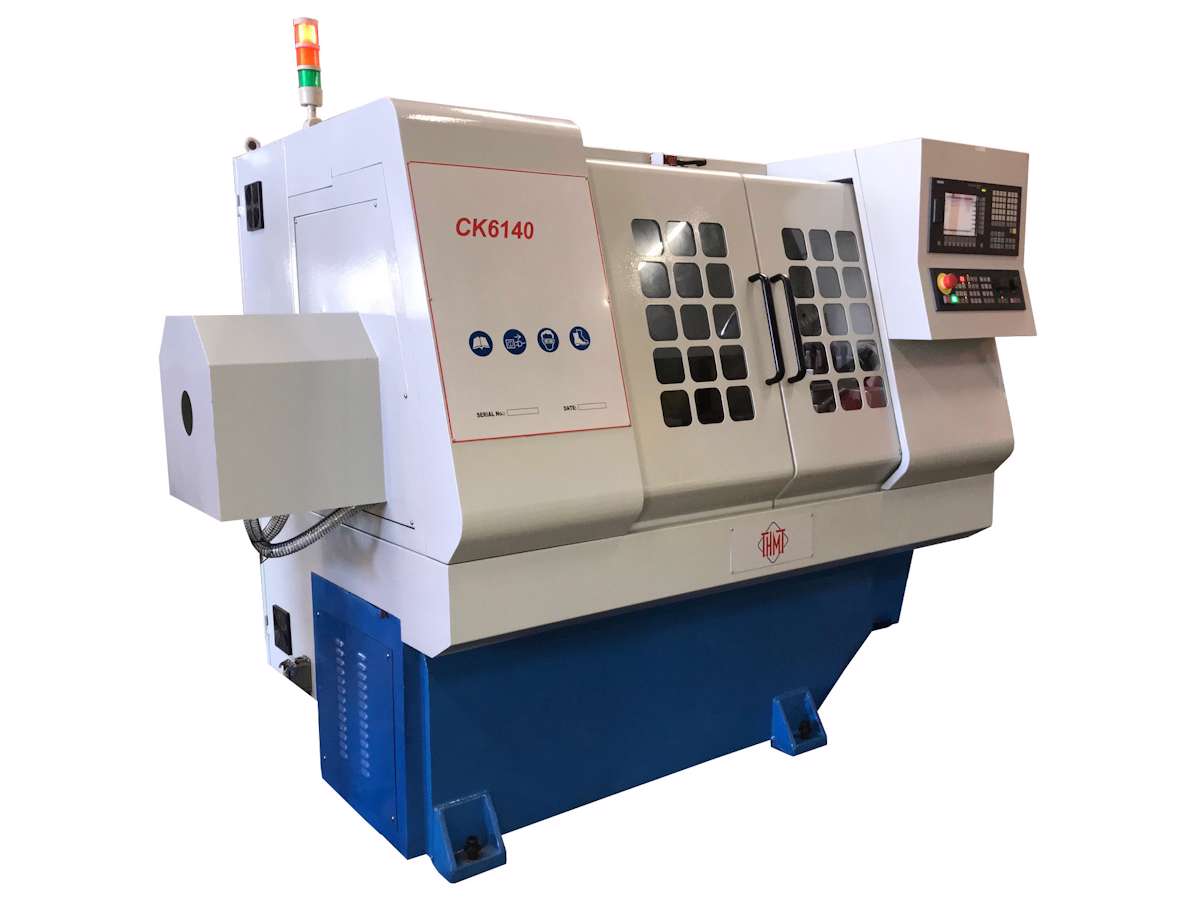

New THMT CK6140 (8815)

630 t/l, swing Ø 530, bore Ø 56, Siemens 808D

Availability: In Stock (TBC)

Price: R 337 400.00 excl.

https://www.thmachinetools.co.za/product/8815

• Specification
• Downloads
• T & C's
• Delivery
• Financing

Standard Features

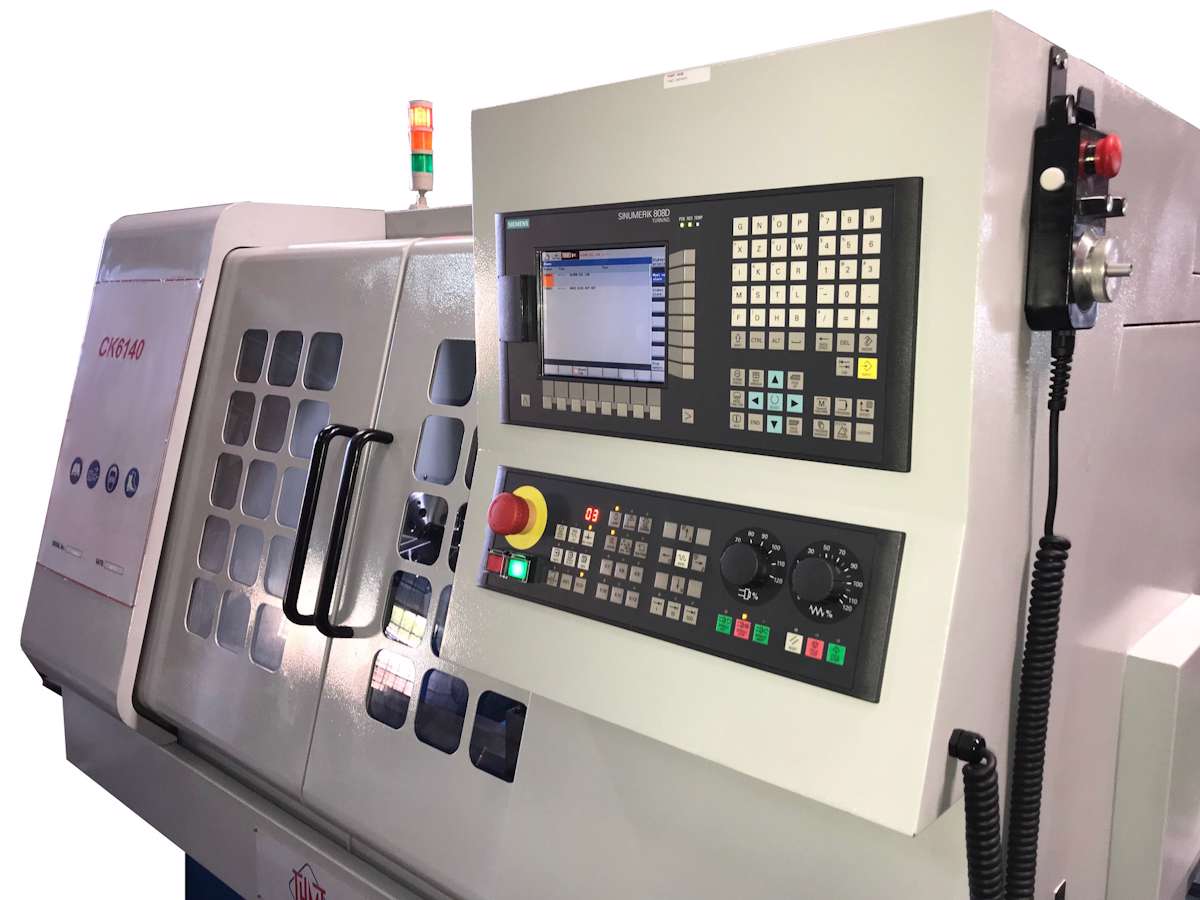

SIEMENS 808D CNC Control

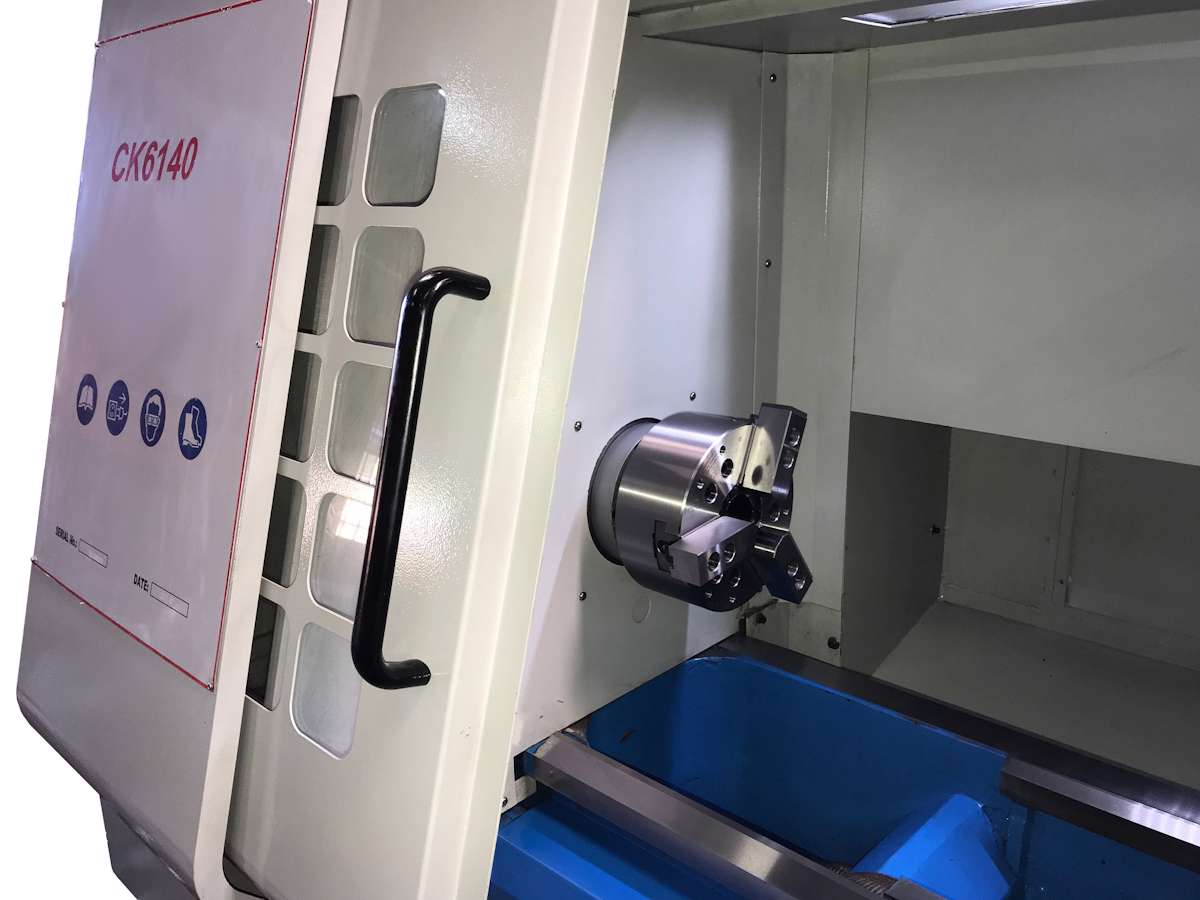

Manual 200mm 3 Jaw Chuck
5.5KW frequency conversion spindle unit
X/Z 2 axis Linear guideway

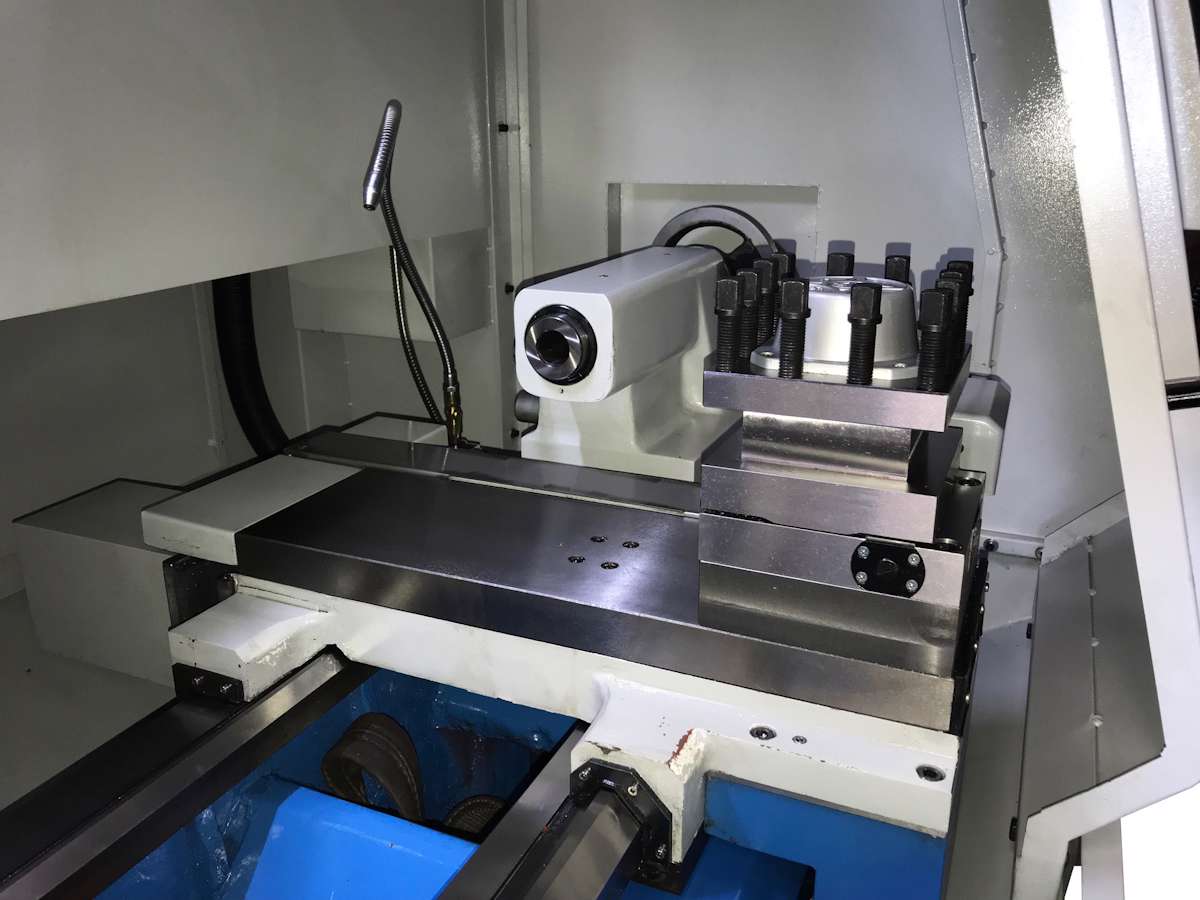

6 station vertical electric turret

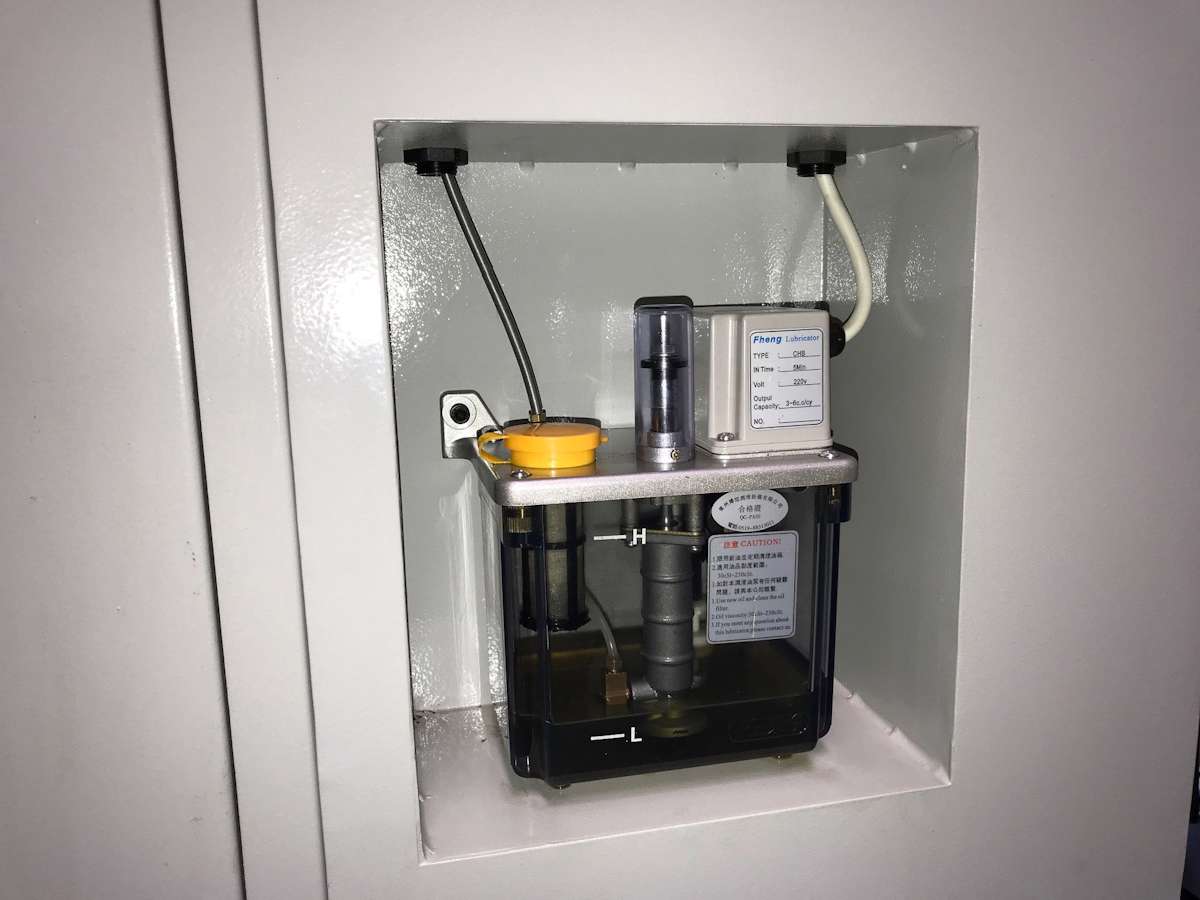

Auto central lubrication, coolant system, working lamp
Closed type protection cover
Full casting stand and bed with high rigidity


Specifications

Swing over bed	530mm
Swing over cross slide	200mm
Length of work piece	630mm
Distance between centers	730mm
Z-travel	630mm
X-travel	240mm
Spindle bore	56mm
Taper of spindle bore	MT6
Spindle nose	A2-6
Range of spindle speed	200-2400r/min
Z rapid speed	15000mm/min
Z cutting feed	1-5000mm/min
X rapid speed	12500mm/min
X cutting feed	1-3000mm/min
Power of main motor	5.5kW
Max. Spindle torque	70N.m
Repositioning accuracy	± 0.003mm
Min. Input	0.001mm
Nos. of tool position	4
Max tool shrank	20 x 20mm

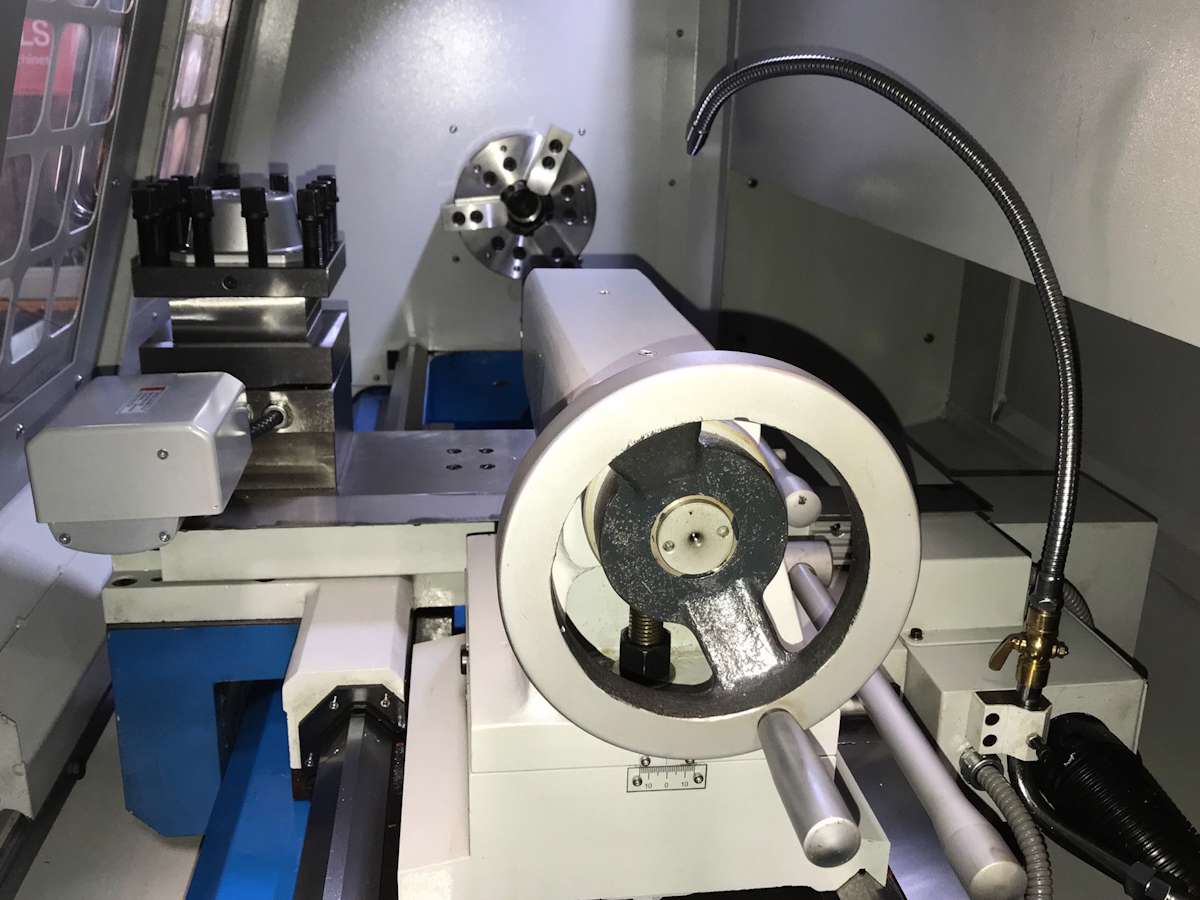

Tailstock diameter	60mm
Tailstock taper	MT4
Tailstock travel	188mm
Power supply	15kVA
Packing size (L x W x H)	228 x 154 x 210cm
Net weight/Gross weight	1500kg/1600kg

Optional configuration
200mm hollow type hydraulic 3 Jaw chuck with powerpack (bore 45mm)
