Hurco ProCobots Cobot Automation (14971)
New Hurco ProCobots Cobot Automation (14971)
Machine Tending System
Availability: Ex-import
Price: POA
Cobot Automation Solutions
HIGH-MIX/LOW-VOLUME AFFORDABLE AUTOMATION

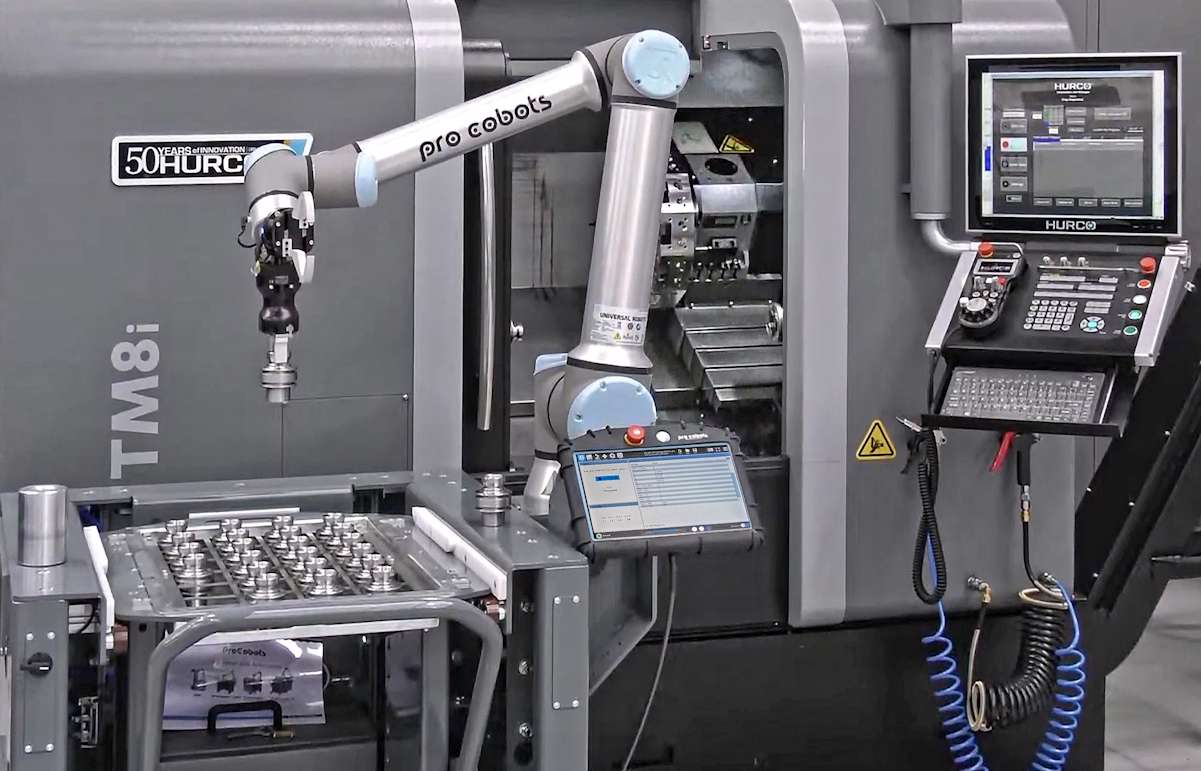

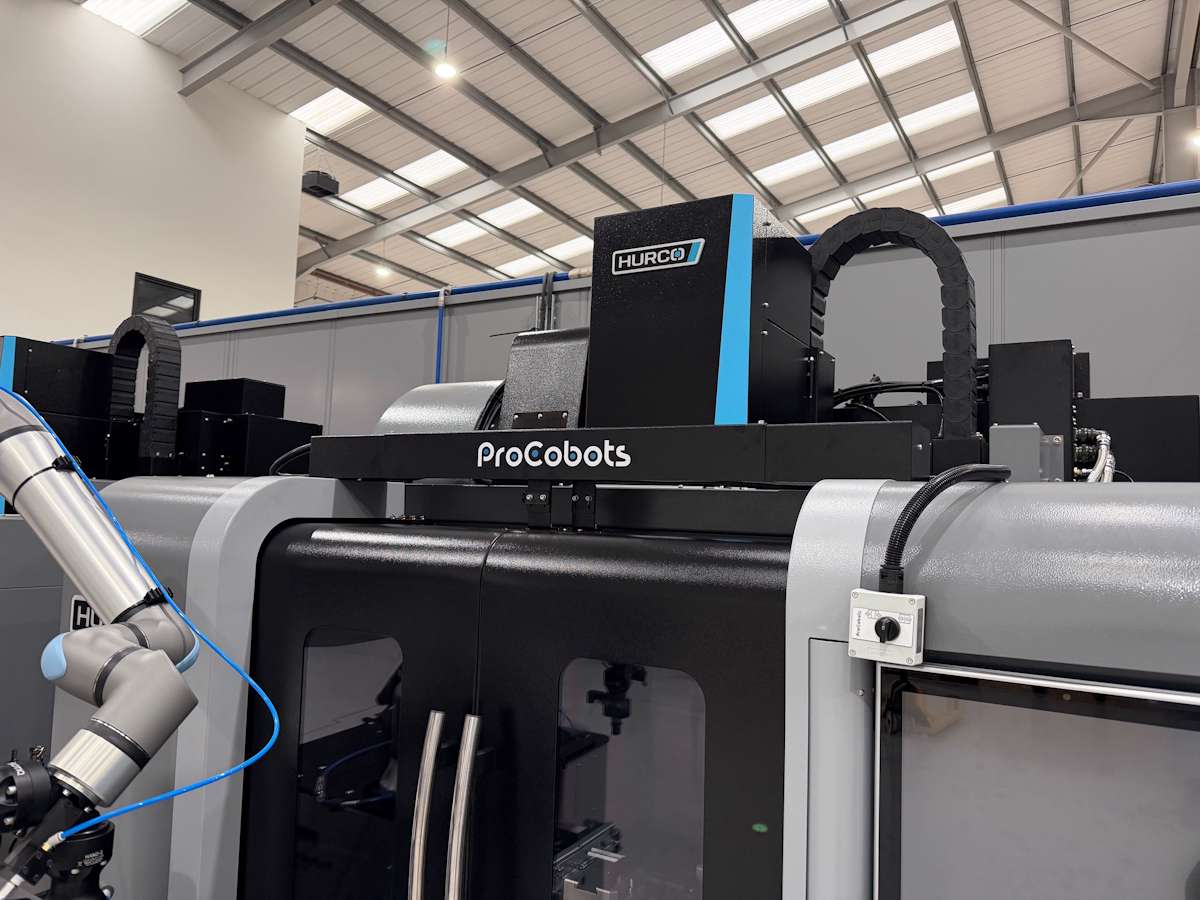

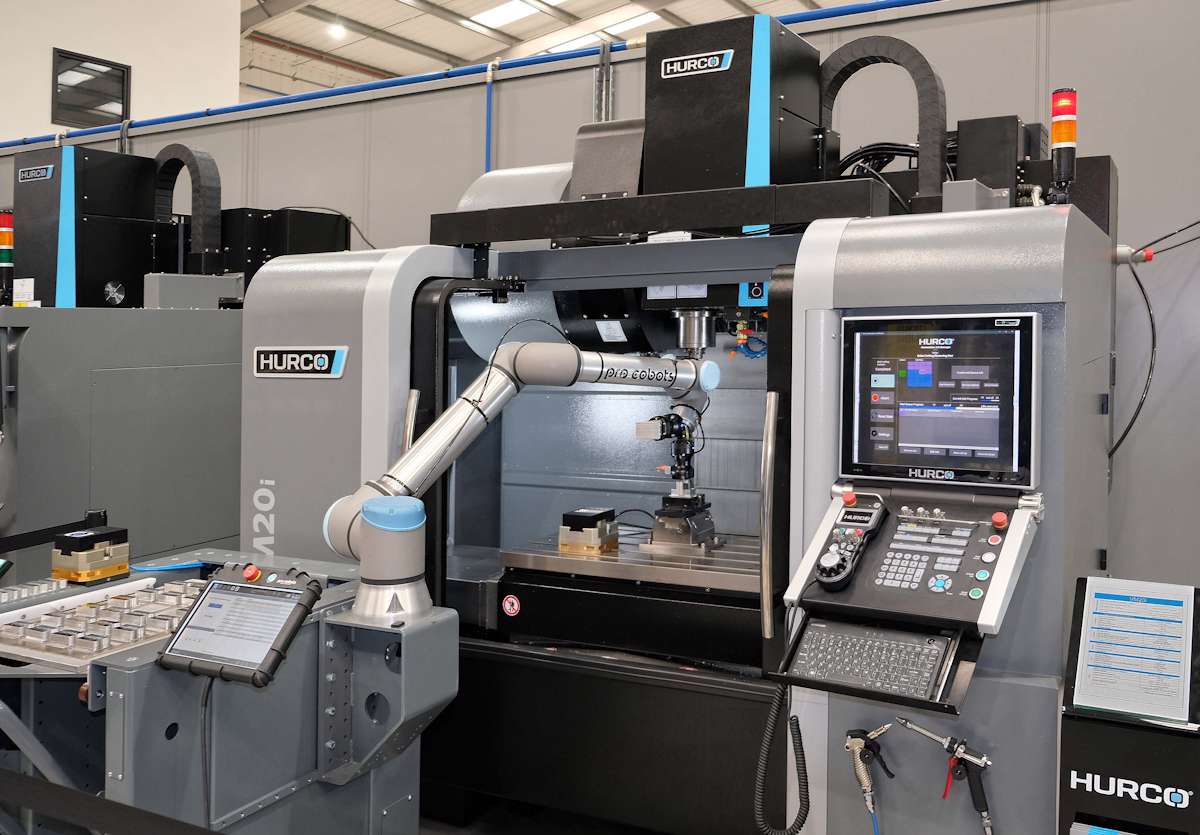

Hurco has eliminated all of the obstacles associated with traditional automation. With Hurco’s job shop automation, high-mix manufacturing can have all the benefits of advanced robotics without the hassle (and cost) associated with traditional automation. The collaborative robots (cobots) from ProCobots, combined with Hurco technology, ensure the cobots
are easy to set up and easy to program. Bonus: No shielded work cells needed.
EXPAND YOUR PEOPLE POWER
Cobots let you expand your people power so one operator can run three or four machines at once. With ProCobots, your machinists are free to utilize their skills and expertise to optimize your manufacturing operations while the cobots do the monotonous and low-skill tasks.
MAXIMIZE YOUR PROFITS
Reduce production downtime and increase quality with precision and high repeatability. Cobots can work 24 hours a day and seven days a week–even when you’re not there!
Product Line-up

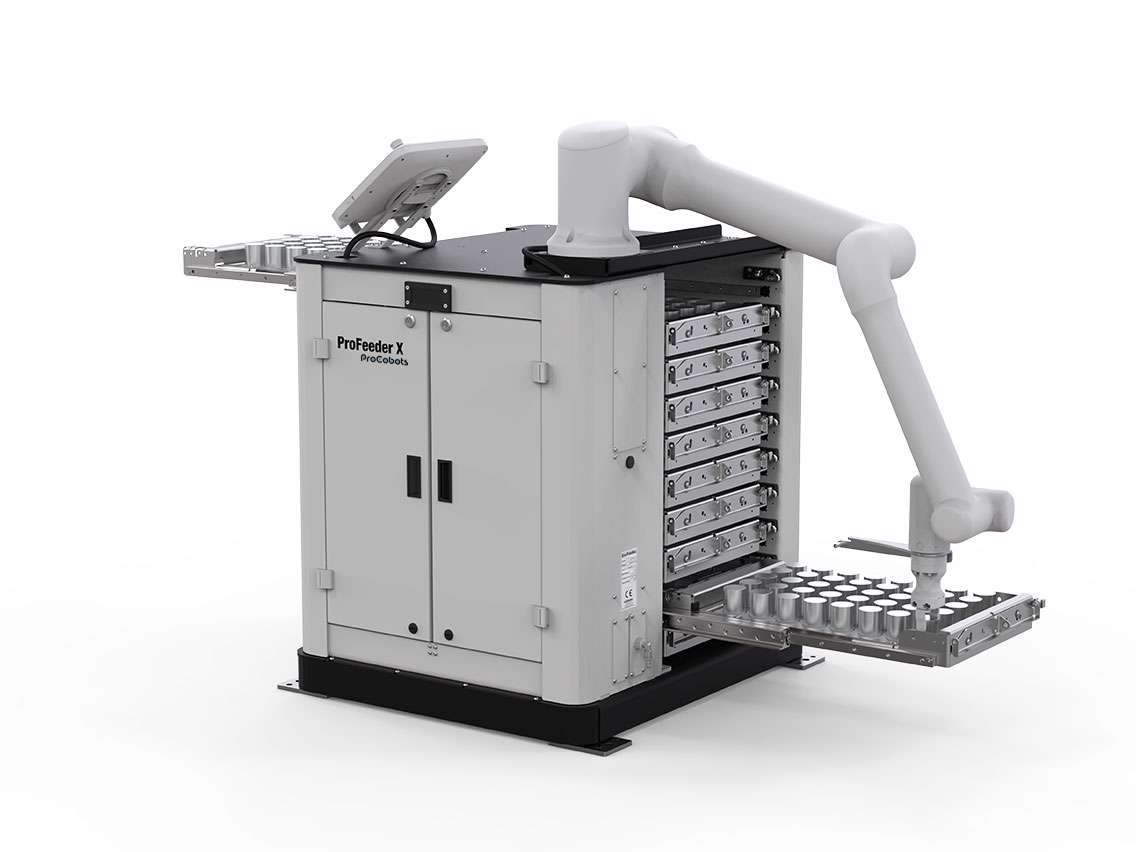

ProFeeder X
The ProFeeder X robot cell is a compact, high capacity system.
You can configure the ProFeeder X with 5 or 10 drawers to match your production capacity and part sizes.
Three-position drawers let you load and unload parts simultaneously while the robot is running.
UR Model: UR15
Max payload: 15kg
Max reach: 1,300mm
Dimensions (W x H x D): 890 x 969 x 1008 mm
Max part height: 160/80mm
Max. load per tray: Approx 90kg
ProFeeder Tray
Good for small series machine tending.
Manual changeable part tray.
Heavy-duty leveling casters can be mounted.
Easy to move to other CNC machines
Dimensions (W x H x D): 1,125 x 932 x 900mm
Weight (Without Robot): 250kg
UR Model: UR15
Max payload: 15kg
Max reach: 1,300mm
Dimensions (W x H x D): 1165 x 800 x 900mm
Max part height: 160mm
Max. load per tray: Approx 300kg
UR20 and UR30 Cobots
Greater load and reach options compared to the standard UR15.
UR20 - 20Kg Payload, 1,750mm Max Reach
UR30 30Kg Payload, 1,300mm Max Reach
ProFeeder EasyDesk Tray
Small footprint featuring a spacious stainless-steel tabletop for parts accommodation.
Manual changeable part tray.
Heavy-duty leveling casters can be mounted.
Easy to move to other CNC machines
UR Model: UR 20 / UR30
Max payload: 20kg / 30kg
Max reach: 1,750 / 1,300mm
Dimensions (W x H x D): 1,050 x 1,420 x 920mm
Max part height: 160mm
Max. load per tray: Approx 300kg
